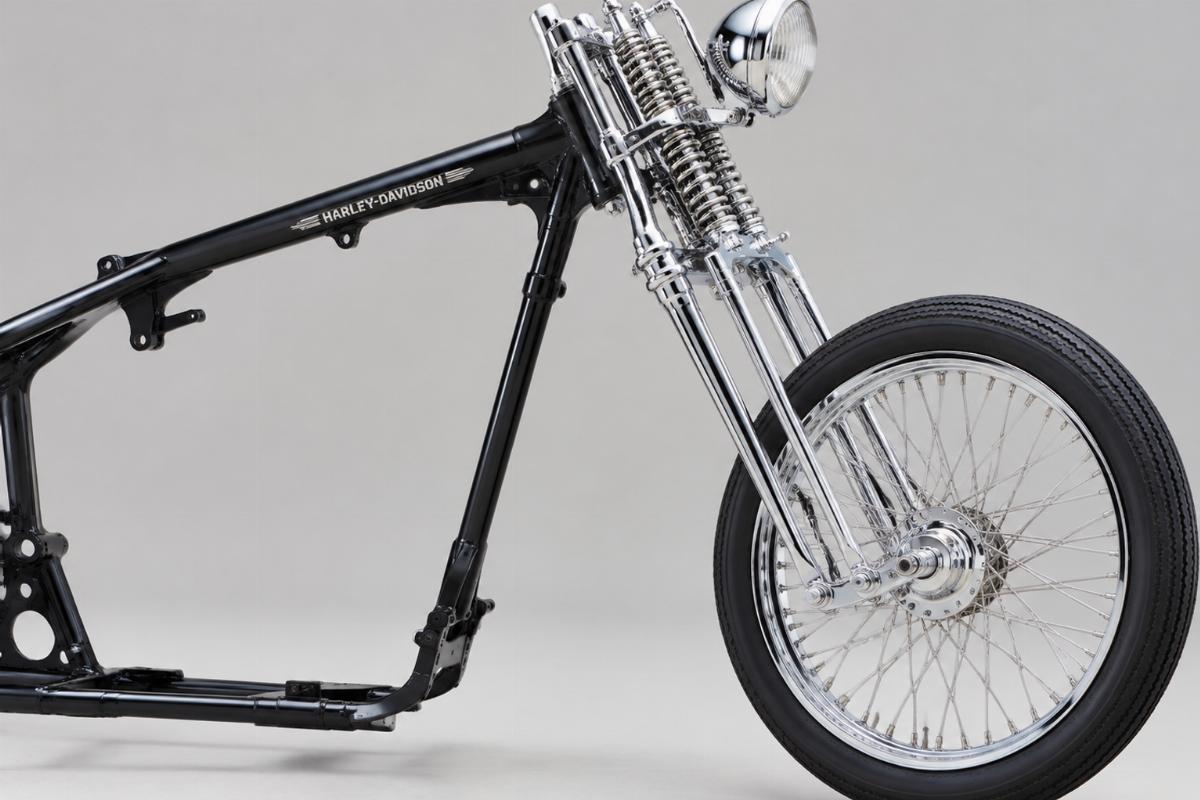

Single Piece Order Custom Springer Front End for Harley-Davidson Frames
Single Piece Order Available — We supply this custom springer front end for Harley-Davidson frames with no minimum quantity blocking your custom build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Chrome plated |
| Steering Stem | Zinc-plated |
| Axle | 3/4″ axle included |
| Riser Mount Thread | 1/2″-20 |
| Bushing Type | Bronze rocker bushings |
| Construction | Welded construction |
| Length | Choice of length; stock length based on 23″ |
| Wheel Compatibility | Built for narrow wheels |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson Frames | Confirm with model and year | Fits frames with 1″ neck. Stock length measurement is based on 23″ as measured from the top surface of the lower tree to the centerline of the axle vertically. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Uncertainty When Ordering an Over-Stock Springer
Clear length statements prevent ride height and steering geometry errors.
Springer forks offered over stock often lack clear overall length or geometry statements, making it hard to judge ride height and steering impact before ordering. A builder once ordered an over-stock springer without checking the rake impact, and the front end sat way too high, ruining the handling completely. That mistake taught me to always verify the overall length and tree spacing before shipping out any custom springer front end for Harley-Davidson frames [NEED_CITE: frame geometry calculations for over-stock springer lengths].
Measuring the Neck Stem and Tree Spacing
When sourcing a custom springer front end for Harley-Davidson frames, the 1″ neck stem diameter is the primary fitment checkpoint. If the frame neck is machined for a different diameter, the steering stem will not seat correctly, regardless of the fork length. We verify the 1″ neck requirement against your frame specifications to ensure the steering stem aligns perfectly with the head cup and neck bearings [NEED_CITE: steering head cup diameter variations across frame generations].
Confirming Fork Length Over Stock
The overall length dictates how the front end alters the rake and trail. Our stock length is based on a 23″ measurement standard, taken vertically from the top surface of the lower tree to the centerline of the axle. When selecting a custom springer front end for Harley-Davidson frames, you must confirm your required fork length over stock to maintain the intended steering geometry and ride height for your specific build.
Interpreting Riser Mounts and Axle Specifications
The legs are drilled and tapped with a 1/2″-20 thread to mount risers, which directly determines the handlebar clamp compatibility for your chosen bars. The unit includes a 3/4″ axle and is built specifically for narrow wheels, meaning the slider spacing and axle width are fixed to accommodate that wheel profile. Precision-fit bronze rocker bushings and welded construction provide the structural foundation, while the zinc-plated steering stem and chrome plated finish offer baseline corrosion resistance for the front-end assembly.
The Hidden Cost of Unverified Front-End Dimensions
Ordering a front end without confirming the exact tree spacing or neck diameter often leads to the bike sitting unfinished on the lift. If the steering stem diameter is off by even a fraction, the neck bearings will not seat, requiring costly machining or a complete return. Furthermore, if the fork length over stock is misjudged, the altered geometry can make the motorcycle unsafe to ride, turning a simple parts swap into a major frame modification project [NEED_CITE: handling consequences of incorrect springer fork length and rake].
Sourcing Front-End Depth from a Single Account
We produce springer front ends and chassis hardware in our own facility, ensuring the welded construction and bronze bushings meet our internal standards. Our catalogue offers front-end depth, combining complete springer assemblies, multiple over-stock lengths, and hardware in one place. We provide chrome and black finish options on main front-end lines, allowing you to match the aesthetic of the build. Fitment is confirmed against the platform family before quotation, and we support a minimum order from one piece for custom builders.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length over stock and neck diameter
- Finish specification for chrome plated batches
- Quality inspection record for welded construction and bushings
- Cross-reference sheet with OEM numbers marked reference only
Pre-Installation Checks and Receiving
- Verify the frame neck diameter is exactly 1″ before installing the zinc-plated steering stem.
- Measure the fork length from the lower tree to the axle centerline to confirm the over-stock dimension.
- Check the 1/2″-20 riser mount threads for debris before threading in your chosen risers.
- Inspect the chrome plated finish and bronze rocker bushings for any transit damage.
- Ensure the 3/4″ axle slides freely through the narrow wheel hub and sliders.
- Store the assembly in a dry environment to protect the zinc-plated stem and chrome finish.
Requesting a Fitment Check for Your Build
Send your frame model and year, along with your required fork length over stock, to verify the 1″ neck compatibility. Provide photographs of your current triple tree or measurements of the neck stem if the frame year is unknown. Let us know your required finish and quantity, and whether you need a sample for fitment confirmation before placing a bulk order for your custom springer front end for Harley-Davidson frames.
Frequently Asked Questions
Q: How do I measure my frame neck to confirm it fits a 1″ steering stem?
A: Measure the inner diameter of the steering head cup where the stem passes through. The inner diameter must accommodate a 1″ stem along with the specific neck bearings and races you plan to use. Always check the bearing outer and inner diameters against your frame specifications to ensure proper seating.
Q: How is the stock length of 23″ measured on this springer front end?
A: The 23″ stock length is measured vertically from the top flat surface of the lower triple tree down to the exact centerline of the axle. This vertical measurement determines the ride height and geometry impact, so use this specific reference point when comparing it to your current front end.
Q: What wheel widths and axle sizes are compatible with this narrow springer?
A: This front end is built specifically for narrow wheels and includes a 3/4″ axle. The slider spacing is fixed to accommodate this narrow profile. You must verify that your wheel hub width matches the 3/4″ axle and fits between the sliders without requiring spacers.
Q: Can I order a single piece for a custom build without a minimum order quantity?
A: Yes, we support a minimum order from one piece. Custom builders and repair shops can order a single assembly for a specific project without being blocked by bulk minimums. We provide the same fitment verification and documentation for a single unit as we do for larger distribution orders.
Q: How do you ensure finish consistency between chrome plated batches?
A: We supply a finish specification and a quality inspection record for every chrome plated batch. This documentation allows you to compare the plating thickness and visual consistency. If you are ordering multiple parts over time, requesting these records ensures the chrome finish matches across different production runs.
