Aftermarket Replacement Top Triple Clamp for Springer Front Ends
Finish-Matched Springer Components — This top triple clamp is offered in consistent chrome or black finishes to align with your existing front-end assembly, ensuring visual continuity alongside verified non-wishbone mounting dimensions.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Top Triple Clamp |
| Application | Non-Wishbone Springer Front Ends |
| Finish Options | Chrome or Black |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Springer Front Ends (non-wishbone) | Confirm with model and year | Verify wishbone vs. non-wishbone design before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Non-Wishbone Springer Front Ends Require Exact Triple Clamp Dimensions
A top triple clamp for springer front ends must match the specific tree width and stem diameter of the non-wishbone configuration to seat properly.
When builders order a top triple clamp for springer front ends without confirming the internal bracing design, the steering stem often fails to seat correctly. The mounting holes on a non-wishbone tree differ in spacing compared to wishbone setups, meaning a standard clamp will leave the fork assembly misaligned. Shops frequently encounter this issue when replacing worn trees on older custom builds where the original design intent was never documented [NEED_CITE: factory service manual specifications by model year for springer configurations].
Verifying the Non-Wishbone Mounting Pattern

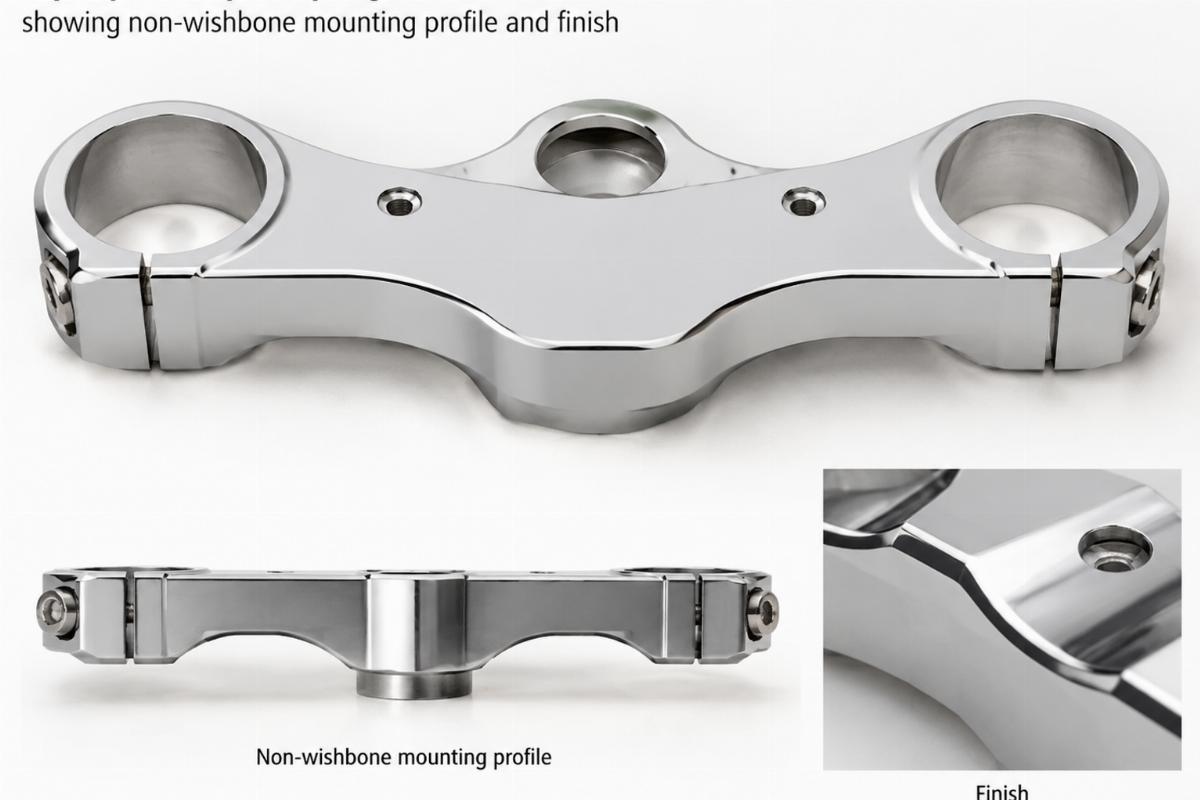

Selecting the correct top triple clamp for springer front ends begins with identifying whether the existing assembly uses a wishbone or non-wishbone design. The non-wishbone configuration lacks the lower cross-brace, which directly alters the upper tree mounting points and steering stem length. If the tree width is measured incorrectly, the fork legs will not align with the lower clamps, causing severe binding in the steering head.
Checking Steering Stem Diameter and Tree Spacing

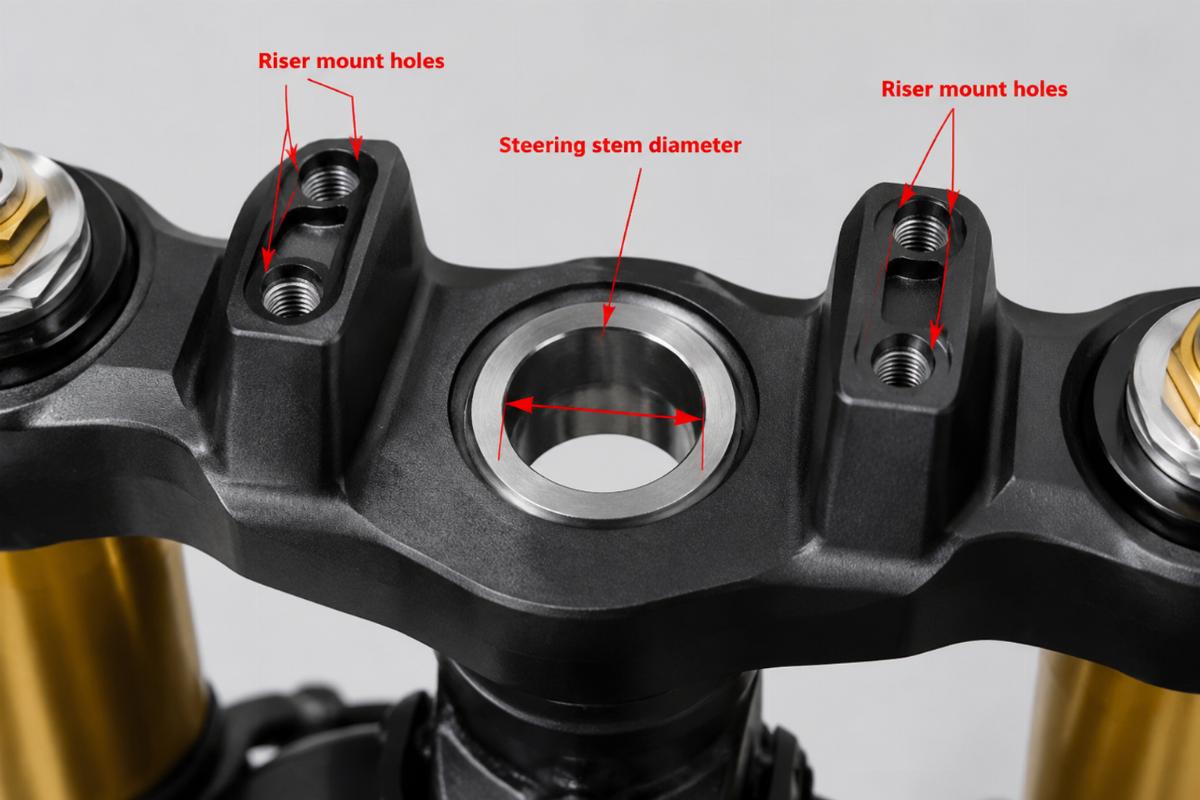

The steering stem diameter must match the neck bearings precisely, while the tree spacing dictates how the fork tubes sit within the clamps. A top triple clamp for springer front ends that is machined to the wrong stem diameter will either slip inside the bearings or refuse to install entirely. Measuring these dimensions against the specific springer platform prevents the frustration of receiving a part that physically cannot be assembled [NEED_CITE: steering head bearing and tree spacing variations across custom springer builds].
How Incorrect Tree Dimensions Affect Steering Geometry
When a top triple clamp for springer front ends is supplied with incorrect tree spacing, the entire steering geometry of the motorcycle changes. The rake and trail are altered, which affects how the front wheel tracks and how the bike handles at speed. Builders often overlook this dimension, assuming all springer trees are interchangeable, only to find the bike pulls to one side or feels unstable once fully assembled.
Sourcing Verified Springer Front End Components
We verify the fitment of every top triple clamp for springer front ends against the specific platform and year range before quotation. Our own production on springer front ends ensures that tree width, stem diameter, and mounting hole spacing are machined to match non-wishbone specifications accurately. We offer consistent chrome and black finish options across our front-end lines, so your upper tree matches your fork tubes and sliders without batch variations.
Documentation and Quality Assurance
- Fitment sheet stating applicable platforms and year ranges for the non-wishbone design
- Key dimensions including tree width and steering stem diameter confirmed against requirements
- Finish specification detailing the chrome or black plating process used
- Quality inspection record verifying the mounting hole spacing and stem alignment
- Cross-reference sheet with OEM numbers marked reference only for identification
Receiving and Inspecting Your Top Triple Clamp
- Verify the steering stem diameter matches your existing neck bearings before installation.
- Measure the tree width and compare it to your lower triple clamp to ensure fork alignment.
- Check the riser mount hole diameter and spacing if you are using specific handlebar risers.
- Inspect the chrome or black finish for any plating defects or surface imperfections.
- Confirm the mounting hole pattern matches your non-wishbone springer assembly exactly.
- Store the part in a dry environment to prevent surface corrosion before final assembly.
Requesting a Fitment Check and Sample
Send your model and year along with photographs or measurements of your existing non-wishbone springer front end for a fitment check. If you are building a custom bike and need to verify the tree width or stem diameter, we can supply a sample for fitment confirmation before you place a bulk order. Let us know your required finish and quantity, and we will provide a quotation with the verified dimensions.
Frequently Asked Questions
Q: How do I confirm if my springer front end is wishbone or non-wishbone for triple clamp fitment?
A: Examine the area between the fork legs below the lower triple clamp. A wishbone design features a visible lower cross-brace connecting the legs, while a non-wishbone setup lacks this brace. This structural difference changes the upper tree mounting points, so identifying the design is critical before ordering a top triple clamp for springer front ends.
Q: What key dimensions should I measure on my springer front end to ensure the top triple clamp fits?
A: You must measure the steering stem diameter to ensure it matches your neck bearings, and the tree width to guarantee the fork tubes align with the lower clamps. Additionally, check the distance between the riser mount holes if you are using specific handlebars. These dimensions dictate whether the top triple clamp for springer front ends will seat correctly.
Q: Can I order a single top triple clamp for a custom build without a minimum order quantity?
A: Yes, we support single-piece orders for custom builders and repair shops. You do not need to meet a high minimum order quantity to purchase a top triple clamp for springer front ends. We can supply one unit with a verified fitment sheet so you can complete your build without holding excess inventory.
Q: Do you provide a fitment sheet and cross-reference details before I place a bulk order?
A: We provide a detailed fitment sheet stating the applicable platforms and year ranges, along with key dimensions like tree width and stem diameter. A cross-reference sheet with OEM numbers marked reference only is also included. This documentation ensures you have all the data needed to verify the top triple clamp for springer front ends before committing to a large order.
