Aftermarket Replacement Springer Fork 18″ for Wide Glide
In-house Springer Production — Every springer fork for harley-davidson is manufactured in our own facility, ensuring strict dimensional control from the rocker mount to the lower legs.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork |
| Finish | Black |
| Overall Length | 18″ (measured from top of the fork to the bottom center of the rocker mount) |
| Length Type | Stock length |
| Rocker Stud Hole Inner Diameter | 1/2″ |
| Included Components | Fork with rods |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | Verify rocker stud hole diameter and overall length against your specific frame setup. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why 1/2″ Rocker Stud Holes Cause Fitment Failures on a Springer Fork for Harley-Davidson
Rocker stud hole inner diameter and overall length dictate whether the fork actually mounts to your triple tree.
I started out buying parts for repair shops before switching to the supply side, and I learned to identify components by actual measurements rather than catalog names. Once, a shop sent photos of a pre-1984 springer front end asking for a replacement. I quoted a standard 18-inch spring fork, but when it arrived, the rocker studs would not slide in. The shop had swapped the rocker arms from a later setup, and the inner diameter of the rocker stud holes on our fork was exactly 1/2 inch, which was too tight for their thicker studs. Now, I always verify the rocker stud hole diameter and overall length before confirming any fitment [NEED_CITE: factory service manual specifications by model year].
Verifying Platform and Year Range Compatibility
When sourcing a springer fork for harley-davidson, the platform family determines the mounting geometry. A fork designed for an early classic Big Twin will not share the same neck bearing spacing or triple tree dimensions as a later Springer Softail. We check the 18″ overall length and 1/2″ rocker stud hole inner diameter against your specific model and year range to ensure the steering head cups and neck bearings align correctly [NEED_CITE: frame neck bearing size variations across model years].

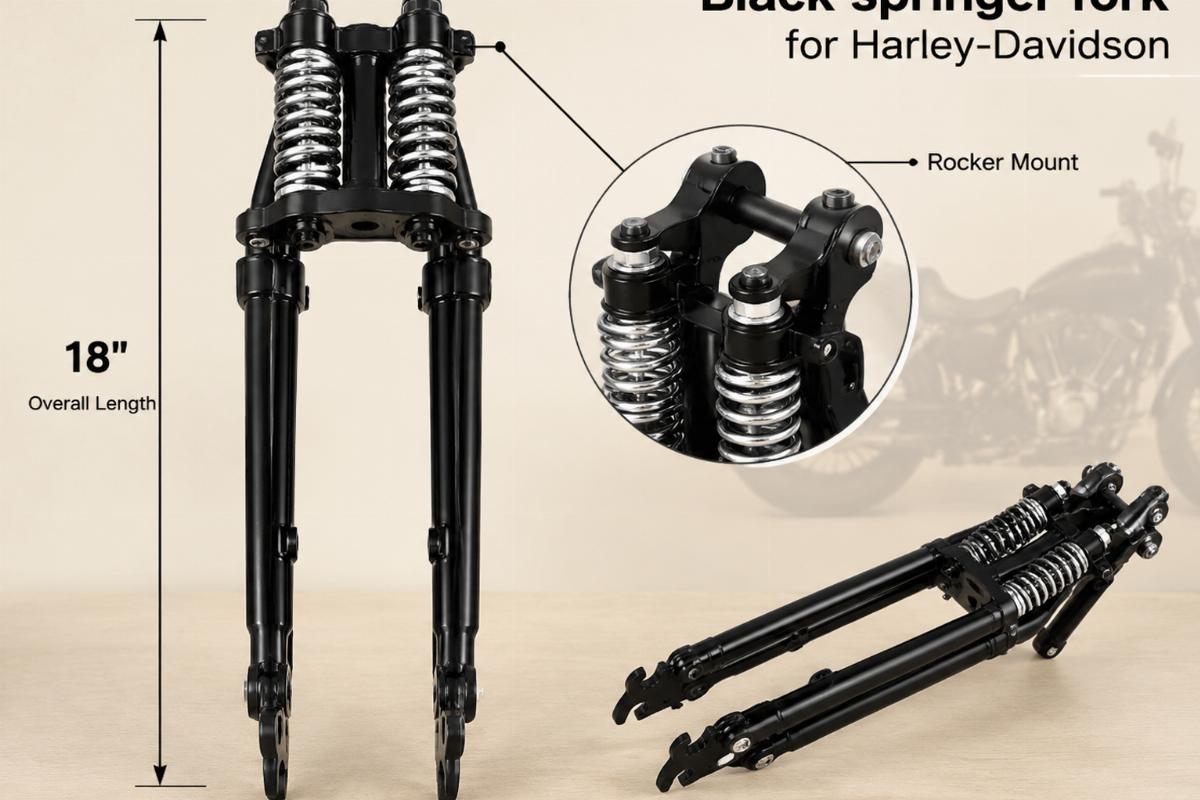

Measuring the 18″ Overall Length Accurately
The 18″ stock length is measured strictly from the top of the fork to the bottom center of the rocker mount. If a listing omits this exact measurement method, you cannot judge how the fork will affect your ride height or steering geometry. Confirming this dimension against your frame’s springer mounting points prevents geometry issues that occur when a fork is offered as stock length without clear overall measurements.
Understanding Key Dimensions for Front-End Builds

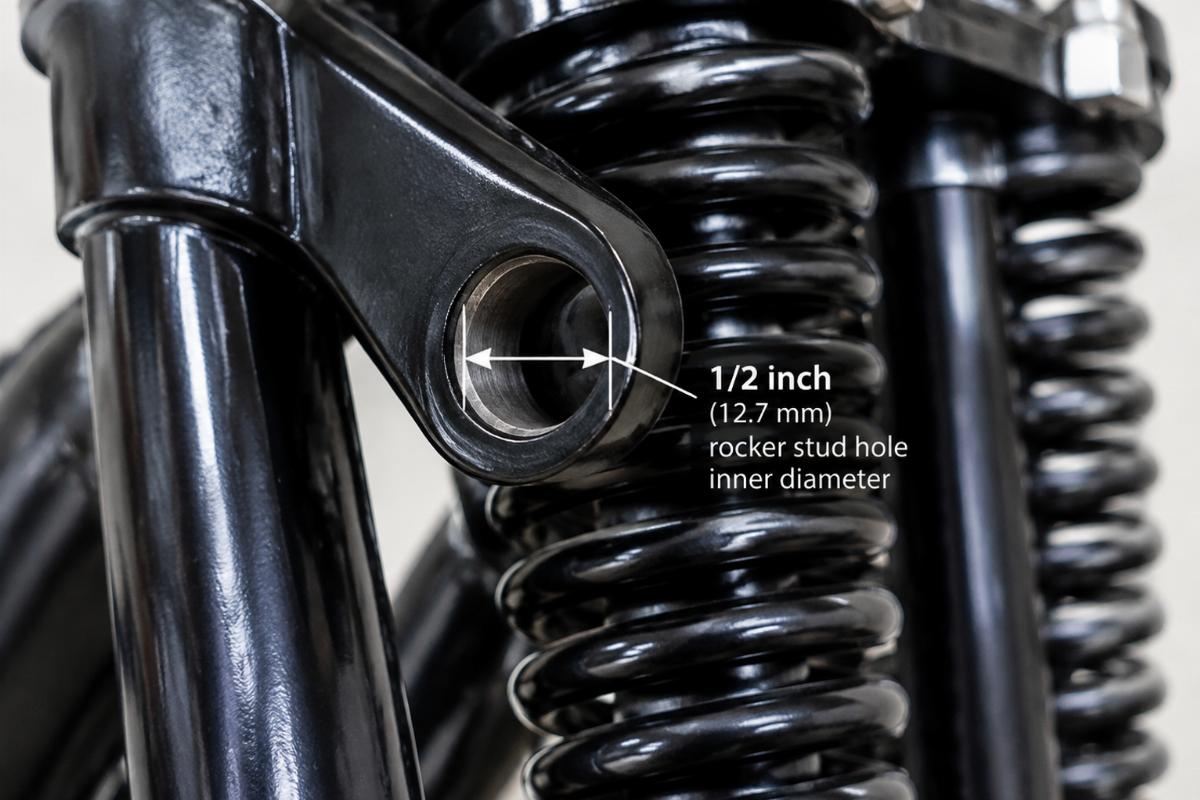

The 1/2″ inner diameter for the rocker stud holes is critical for hardware compatibility. If your existing rocker arms use thicker studs, this 1/2″ hole will cause an immediate installation failure. The stock length design maintains the standard ride height intended for the frame, while the black finish provides a specific aesthetic for your front-end build. These dimensions are documented before quotation so you know exactly what is arriving at your shop.
The Hidden Cost of Incorrect Springer Dimensions
When a springer fork for harley-davidson arrives with the wrong rocker stud hole diameter, the bike sits on the lift while the shop waits for a replacement. If the overall length is off by even a fraction of an inch, the steering geometry changes, and the front end will not track straight. Superseded part numbers across model years mean a number from an older manual might not match the physical hardware on a restored frame, leading to wasted labor hours when the parts do not mate.
Why Shops Source Front-End Parts From Us
We manufacture springer front ends in our own facility, giving us direct control over the 1/2″ rocker stud hole machining and the 18″ overall length accuracy. Our catalogue offers complete springer assemblies and early springer parts in one place, so you do not need to source rods and forks separately. We provide both black and chrome finish options on our main front-end lines, ensuring batch-to-batch consistency. Fitment is confirmed against your platform and year range before we issue a quotation. We support a minimum order from one piece, allowing a single-piece order for a shop building one custom bike.
Documentation Provided With Your Order
- Fitment sheet stating applicable platforms and year ranges for this springer fork
- Key dimensions sheet documenting the 18″ overall length and 1/2″ rocker stud hole diameter
- Finish specification detailing the black coating process and quality inspection record
- Cross-reference sheet with OEM numbers marked reference only for identification
- Packing photographs showing the fork with rods before dispatch
Receiving and Pre-Installation Checks
- Verify the included fork with rods matches the components listed on your packing slip
- Measure the overall length from the top of the fork to the bottom center of the rocker mount to confirm the 18″ dimension
- Use calipers to check the 1/2″ rocker stud hole inner diameter against your existing rocker studs
- Inspect the black finish for any shipping damage or surface inconsistencies before mounting
- Have a qualified technician verify the steering head cups and neck bearing fitment
- Store the fork in a dry environment to prevent surface corrosion before installation
Request a Fitment Check for Your Build
Send your model and year for a fitment check to confirm this 18″ stock length springer fork matches your frame. Provide your old part number, a photograph of the existing rocker arms, or the measured rocker stud thickness so we can verify the 1/2″ hole compatibility. Let us know if you require a single sample for fitment confirmation before placing a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm if this 18″ stock length springer fork fits my specific model and year?
A: Send us your model and year, along with a photo of your current triple tree and rocker arms. We verify the 18″ overall length and 1/2″ rocker stud hole diameter against your specific frame setup and provide a fitment sheet confirming compatibility before you order.
Q: What is the exact measurement method for the 18″ overall length?
A: The 18″ overall length is measured strictly from the top of the fork to the bottom center of the rocker mount. This specific measurement point ensures you can accurately judge how the fork will sit in your frame and affect your steering geometry.
Q: How can I verify the 1/2″ rocker stud hole diameter is compatible with my hardware?
A: Measure the outer diameter of your existing rocker studs with calipers. If your studs are thicker than 1/2 inch, they will not slide into this fork. We recommend sending us a photo or measurement of your rocker arms so we can confirm compatibility.
Q: Can I order a single springer fork sample to test fitment before placing a bulk order?
A: Yes, we support a minimum order from one piece. You can order a single sample to verify the 18″ length, the black finish quality, and the 1/2″ rocker stud hole fitment on your frame before committing to a larger purchase for your shop.
