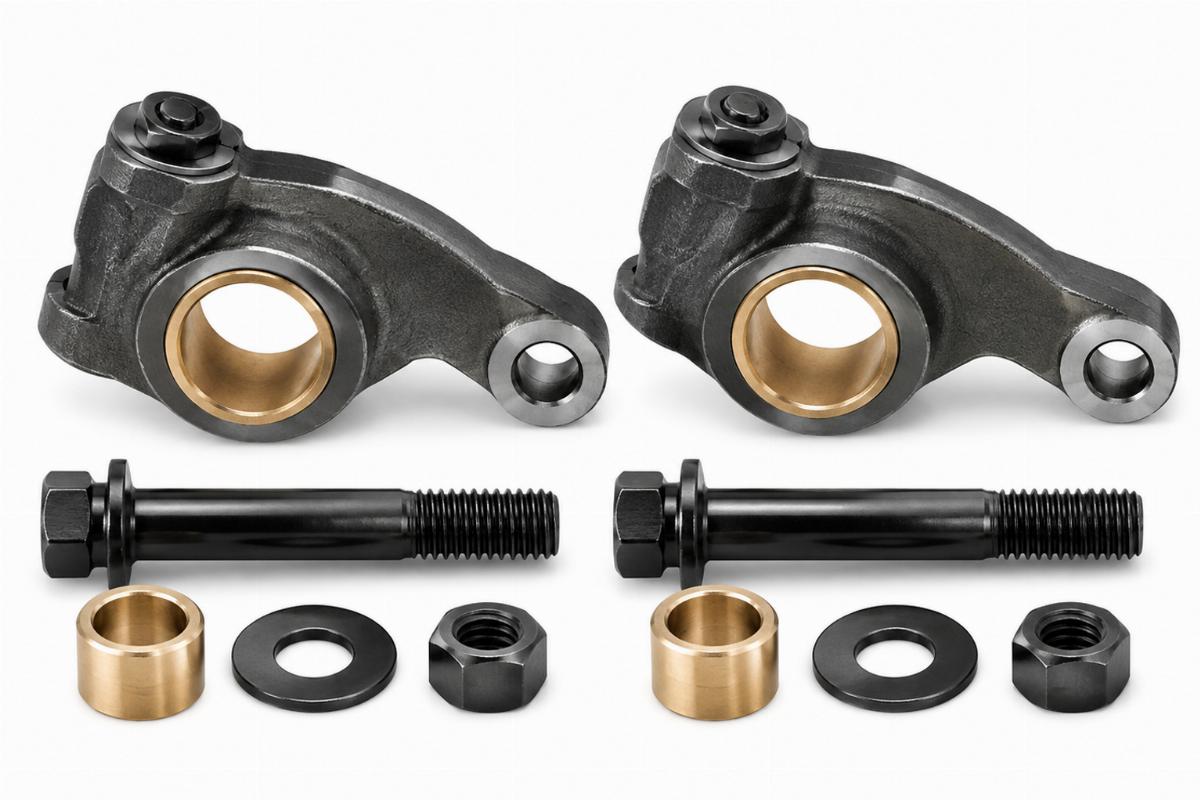

Springer Rockers and Pivot Bolts Set for Springer Front Ends
In-house springer production — Every rocker and pivot bolt set is manufactured in our own facility to ensure exact pivot hole diameters and thread pitches for precise fitment.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Rockers and Pivot Bolts Set |
| Axle Hole | 3/4″ |
| Pivot Bolt Thread | 1/2-20 |
| Kit Contents | 2 rockers, 4 bolts, 4 nuts, 4 washers, 4 bronze bushings, 4 cotter pins |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Springer Front Ends | Confirm with model and year | Verify pivot bolt thread and axle hole diameter before installation. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Thread Pitch and Axle Hole Dimensions Dictate Your Build
A springer rockers and pivot bolts set must match your specific fork leg thread pitch and axle diameter to seat correctly.
Sourcing complete rocker and pivot bolt kits with bronze bushings for older springer front ends can be difficult when brand channels no longer support discontinued models. I once shipped a rocker set for a pre-1984 Springer Softail build where the pivot bolts had 1/2-20 threads while the customer’s older nuts were 1/2-13. The rocker would not seat, and the whole assembly was dead in the water. That mistake taught me to always double-check pivot bolt thread pitches and rocker pivot hole diameters between early and late springer setups before shipping anything out [NEED_CITE: factory service manual specifications by model year].
Verifying the 3/4″ Axle Hole Clearance
When evaluating a springer rockers and pivot bolts set, the 3/4″ axle hole dimension is the first critical measurement to confirm. If your front end axle is a different diameter, the rockers will either bind against the axle or rattle loosely inside the fork legs. This clearance directly affects how the front wheel tracks and how the fork legs align under load. Always measure your existing axle or fork leg spacing before ordering to avoid geometry issues.
Matching the 1/2-20 Pivot Bolt Thread
The 1/2-20 pivot bolt thread included in this kit is a specific standard that must align perfectly with the threaded holes in your fork legs. Using a different thread pitch, such as the older 1/2-13 standard, will cross-thread the fork legs or prevent the nuts from seating. This thread specification is what ultimately secures the rockers to the front end and allows the spring action to function as designed [NEED_CITE: thread pitch variations across early and late springer platforms].
Interpreting the Complete Hardware Kit

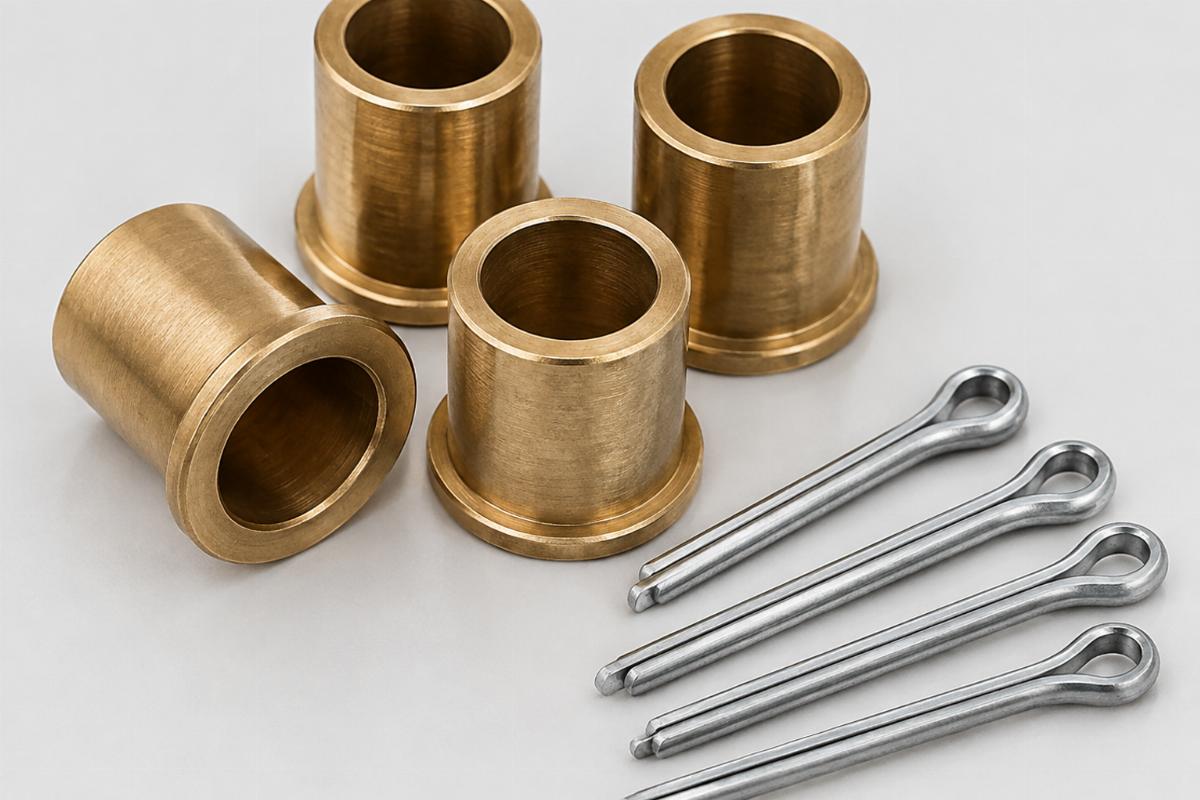

This springer rockers and pivot bolts set includes 2 rockers, 4 bolts, 4 nuts, 4 washers, 4 bronze bushings, and 4 cotter pins to ensure you have everything needed for a complete rebuild. The bronze bushings are pressed into the rocker eyes to provide a durable bearing surface for the pivot bolts, reducing friction and wear over time. Having all hardware and bushings in one kit prevents the need to source mismatched components from different suppliers.
The Hidden Cost of Incorrect Fitment
Ordering a springer rockers and pivot bolts set without confirming the thread pitch or axle hole can leave your motorcycle stuck on the lift. If the pivot bolts do not thread correctly, you risk stripping the fork legs, which requires expensive welding and re-tapping to fix. Furthermore, if the kit is missing specific hardware like cotter pins or bronze bushings, the entire assembly must be disassembled again to source the missing pieces, delaying your build timeline significantly [NEED_CITE: repair costs associated with stripped fork leg threads].
Sourcing from a Dedicated Front End Specialist
We manufacture our own springer front ends and related hardware, meaning we understand the exact dimensions required for these assemblies. Every springer rockers and pivot bolts set is checked against platform families to ensure the 3/4″ axle hole and 1/2-20 threads are correct for your specific build. We offer a one-piece minimum order, allowing custom builders to purchase exactly what they need for a single bike without meeting high bulk requirements.
Documentation Provided with Your Order
- Fitment sheet stating applicable platforms and year ranges for this specific set
- Key dimensions including the 3/4″ axle hole and 1/2-20 thread pitch
- Quality inspection record confirming all hardware and bushings are present
- Packing photographs showing the exact kit contents before dispatch
- Cross-reference sheet with OEM numbers marked reference only
Checks to Perform Before Installation
- Verify the kit contains exactly 2 rockers, 4 bronze bushings, and all hardware
- Confirm the 1/2-20 pivot bolt threads match your fork leg mounting points
- Measure the 3/4″ axle hole against your front end axle diameter
- Inspect the bronze bushings for any shipping damage before pressing them in
- Have a qualified technician verify the fitment of all front end components
Request a Fitment Check for Your Build
Send us your model and year, along with a photograph or measurements of your existing fork legs, so we can verify if this springer rockers and pivot bolts set is the correct match. If you are unsure about the axle diameter or thread pitch, providing the old parts for comparison helps us confirm the exact specifications. We can also supply a sample set for fitment confirmation before you commit to a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm if this springer rockers and pivot bolts set fits my specific front end?
A: You need to verify the 3/4″ axle hole matches your front end axle and the 1/2-20 pivot bolt thread matches your fork legs. Send us your model, year, or a photo of your existing setup, and we will check the fitment against our platform database before you order.
Q: Does this kit include all the hardware needed to rebuild the rocker assembly?
A: Yes, the springer rockers and pivot bolts set includes 2 rockers, 4 bolts, 4 nuts, 4 washers, 4 bronze bushings, and 4 cotter pins. This provides everything required to replace the rockers and install new bushings and hardware for a complete assembly rebuild.
Q: Can I order just one set for a custom build without a high minimum order?
A: Absolutely. We support custom builders and independent shops by offering a one-piece minimum order. You can purchase a single springer rockers and pivot bolts set for your project without needing to meet bulk quantity requirements.
Q: What should I check if my springer front end has been modified?
A: If your front end is modified, measure the actual axle diameter and the thread pitch of the pivot bolt holes on your fork legs. Compare these physical measurements to the 3/4″ axle hole and 1/2-20 thread specifications of this kit to ensure they align before installation.
