Spring Fork Shock Hardware Kit – Chrome – Fits Heritage Spring Fork
Single Piece Order — We supply this springer fork shock hardware kit with a minimum order of one piece, allowing custom builders to order exact hardware for a single Heritage Spring Fork build without bulk commitments.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Shock Hardware Mount Kit |
| Finish | Chrome |
| Kit Contents | 2-1/4″ chrome allen bolts, biter washers, and chrome acorn nuts |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Heritage Spring Fork front forks | Confirm with model and year | Verify bolt length for specific shock and bracket combinations. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Avoiding Build Delays with a Complete Springer Fork Shock Hardware Kit
A complete hardware kit ensures all mounting components are present and correctly sized for your front end.
Missing or mismatched shock mounting hardware can delay your springer front end build, especially when combining it with spotlight brackets. I once saw a custom shop halt assembly because the lower mounting hole spacing on a Heritage front end did not align with the supplied bolts, leaving the bike stranded on the lift. Sourcing a dedicated springer fork shock hardware kit prevents these dimensional surprises and keeps the project moving forward [NEED_CITE: frame mounting hole spacing variations across custom springer builds].
Verifying Mounting Dimensions for Heritage Applications
When selecting a springer fork shock hardware kit, the primary focus must be on confirming the exact mounting dimensions of your Heritage Spring Fork. The 2-1/4″ bolt length included in this kit is specifically suited for these applications, but variations in shock absorber thickness or added spotlight brackets can alter the required thread engagement. Always measure the total stack-up thickness before finalizing the hardware choice to ensure the allen bolts provide adequate thread contact without bottoming out [NEED_CITE: shock absorber and bracket stack-up measurements for custom front ends].
Matching Finish and Hardware Components
Consistency in finish is critical when assembling a custom front end. This springer fork shock hardware kit features a chrome finish on both the allen bolts and acorn nuts, ensuring a uniform appearance alongside other chromed fork components. The inclusion of biter washers provides a secure locking mechanism against vibration, which is essential for the dynamic movement of a springer assembly. Verifying that all components share the same plating batch helps maintain visual continuity across the entire front end.
Understanding Bolt Length and Stack-Up Requirements
The 2-1/4″ bolt length is a critical dimension for this springer fork shock hardware kit. In a Heritage Spring Fork setup, the bolt must pass through the shock mount, any associated spotlight brackets, and the springer leg, while leaving sufficient thread for the acorn nut. If the combined thickness of these components exceeds the effective thread length, the hardware will not secure properly. Conversely, if the bolt is too long, it may interfere with internal fork mechanisms or protrude unsafely. Careful measurement of your specific stack-up is required to confirm this length is appropriate [NEED_CITE: thread engagement requirements for suspension mounting hardware].
The Hidden Cost of Mismatched Hardware Specifications
Using incorrect hardware on a springer front end often leads to costly rework. If the bolt length is miscalculated, the shock mount may loosen under riding vibrations, potentially damaging the fork legs or the shock absorber itself. Furthermore, mixing hardware from different batches can result in mismatched chrome finishes, forcing the builder to strip and re-plate components to achieve a uniform look. Ensuring your springer fork shock hardware kit matches the exact dimensional and finish requirements of your specific Heritage build prevents these hidden delays and additional expenses.
Sourcing Reliable Front End Hardware
We produce front end and chassis hardware in our own facility, ensuring direct control over the manufacturing process for this springer fork shock hardware kit. Fitment is confirmed against the Heritage Spring Fork platform before quotation, reducing the risk of receiving incompatible parts. We offer chrome finish options on our main front-end lines to match your build requirements. Cross-reference against Harley-Davidson OEM numbers is available for identification purposes, marked reference only. Most importantly, we support a minimum order from one piece, allowing shops to procure exact hardware for a single custom build without meeting high volume thresholds.
Documentation and Verification Records
- Fitment sheet stating applicable platforms and year ranges for the Heritage Spring Fork
- Key dimensions including the 2-1/4″ bolt length and chrome finish specification
- Quality inspection record verifying the contents of the allen bolts, washers, and acorn nuts
- Warranty terms covering manufacturing defects in the hardware kit
- Packing photographs showing the received chrome finish and kit completeness
Pre-Installation Inspection and Verification
- Verify the kit contains the correct quantity of 2-1/4″ chrome allen bolts, biter washers, and acorn nuts.
- Confirm the front end is a Heritage Spring Fork model to ensure the bolt length matches your stack-up.
- Inspect the chrome finish on the allen bolts and acorn nuts for any plating defects or inconsistencies.
- Check the biter washers for proper teeth engagement to ensure they will lock securely under vibration.
- Store the springer fork shock hardware kit in a dry environment to prevent surface corrosion before installation.
Requesting a Fitment Check and Quote
Send your model and year for a fitment check to confirm this springer fork shock hardware kit matches your Heritage Spring Fork build. Provide the exact thickness of your shock absorber and any spotlight brackets to verify the 2-1/4″ bolt length is sufficient. Let us know your required finish and quantity, and ask about sample supply for fitment confirmation before placing a bulk order.
Frequently Asked Questions
Q: How to confirm if this shock hardware kit fits my specific Heritage Spring Fork build?
A: Confirm your front end is a Heritage Spring Fork model and measure the total stack-up thickness of your shock absorber and any spotlight brackets. The 2-1/4″ bolt length must accommodate this combined thickness while leaving adequate thread for the acorn nut. Send your model details and measurements for a fitment verification before ordering.
Q: What hardware components are included in the complete spring fork shock mount kit?

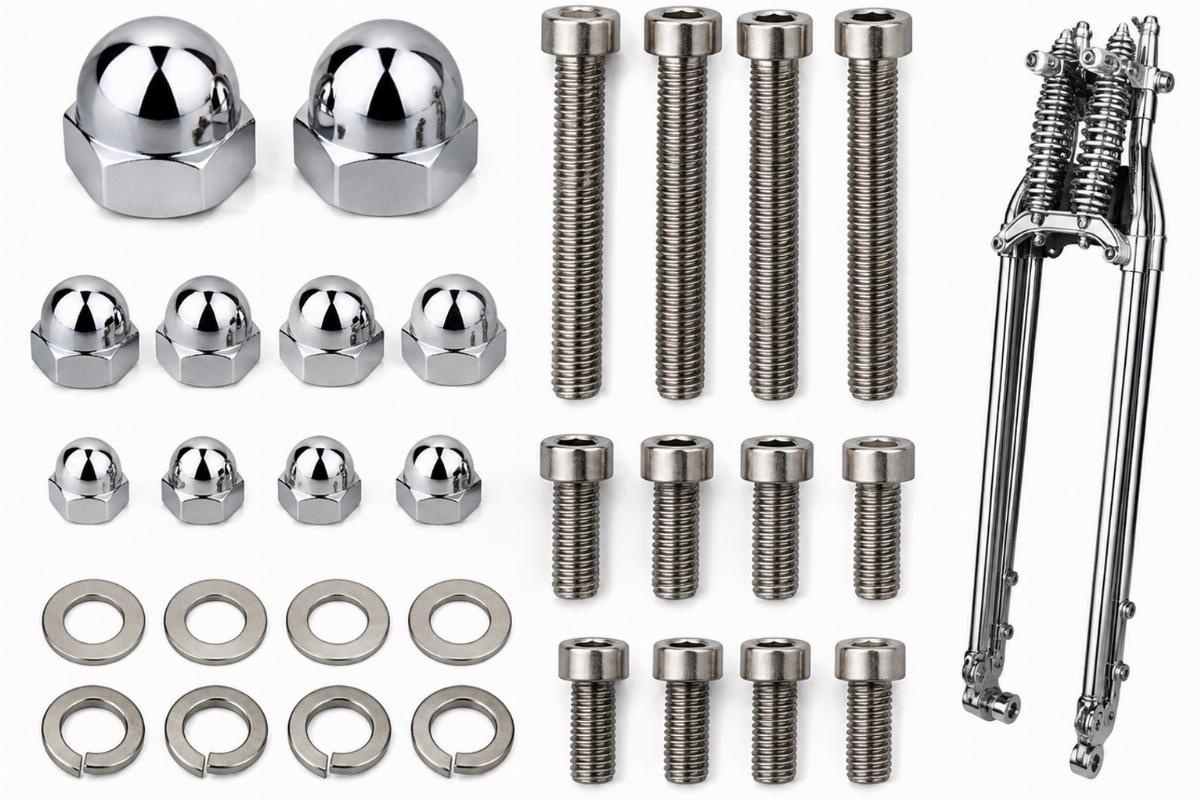

A: This springer fork shock hardware kit includes 2-1/4″ chrome allen bolts, biter washers, and chrome acorn nuts. These components provide a complete mounting solution for the shock absorber and spotlight brackets on a Heritage Spring Fork, ensuring all necessary hardware is present for assembly.
Q: Can I order a single shock hardware kit for a custom build without a minimum order quantity?
A: Yes, we support a minimum order from one piece. This allows custom builders and independent repair shops to order a single springer fork shock hardware kit for a specific Heritage Spring Fork build without being forced to purchase in bulk, ensuring you get exactly what you need for the project.
Q: Are the 2-1/4″ allen bolts long enough to mount both the shock and a spotlight bracket?
A: The 2-1/4″ bolt length is designed for standard Heritage Spring Fork applications. However, if you are adding a thick spotlight bracket, you must measure the total stack-up thickness of the shock mount, bracket, and fork leg to ensure the bolt provides sufficient thread engagement for the acorn nut.
