Spring Fork Top Plate Rod Support Brass for Custom Springer
Verified Fitment For Custom Builds — Rigorous sample test fitting for early springer front ends to prevent mounting mismatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Top Plate Rod Support |
| Material | Brass |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer | Confirm with model and year | Verify top plate mounting hole spacing and tree width before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Mounting Holes Fail On Early Springer Assemblies
Hole spacing mismatches freeze the build on the lift.
Custom builders frequently order a spring fork top plate rod support based on a general model family, ignoring the specific year of the frame. I still remember a batch of brass supports sent out for a pre-1984 springer front end build where the customer only mentioned the model. The top plate mounting hole spacing on their early frame was completely different from the later versions, and the brass support just would not align [NEED_CITE: frame geometry changes across early springer generations]. The entire front end became unbuildable until the correct spacing was measured and matched.
Checking Tree Spacing And Hole Geometry

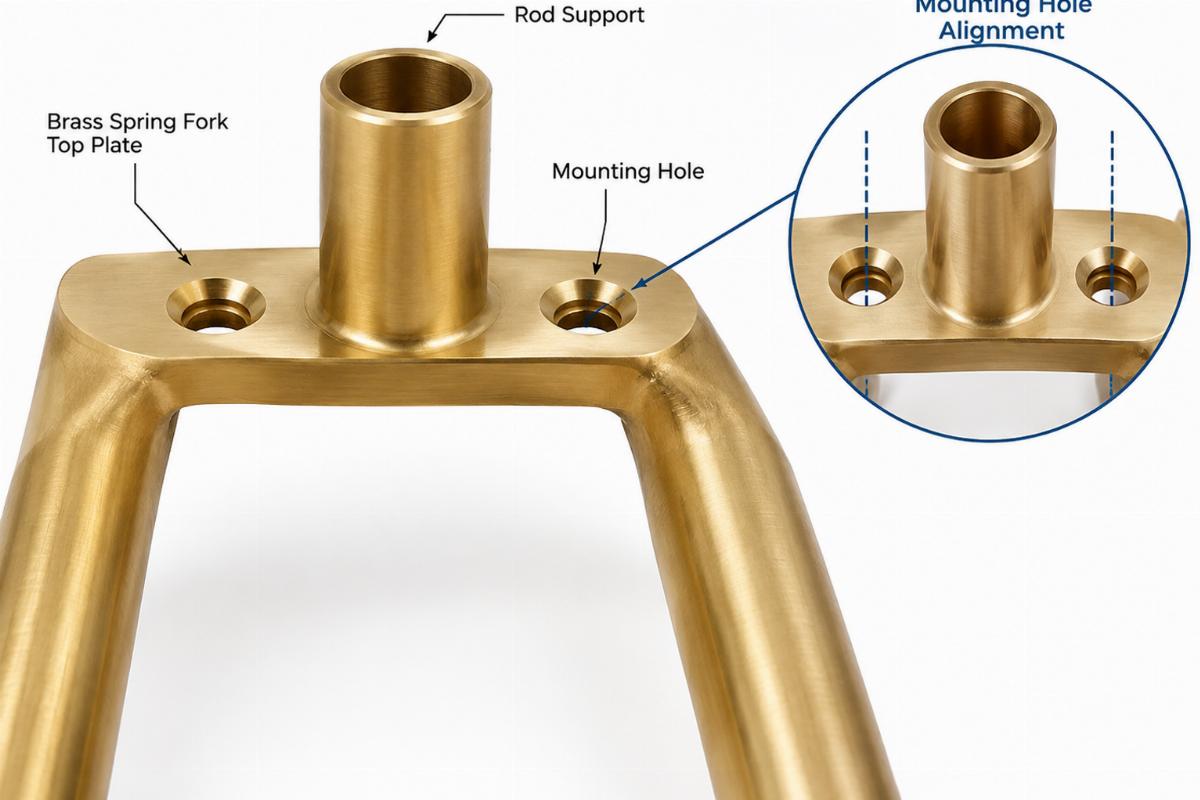

Before confirming any custom springer parts, you must measure the tree spacing and top plate mounting hole spacing directly from the frame. A spring fork top plate rod support made of brass relies on exact alignment to hold the fork rods securely. If the hole pattern is off by even a fraction, the rods will bind or sit at an incorrect angle, ruining the steering geometry [NEED_CITE: steering head and tree alignment tolerances for custom springers].
Verifying Rod Diameter And Material Thickness

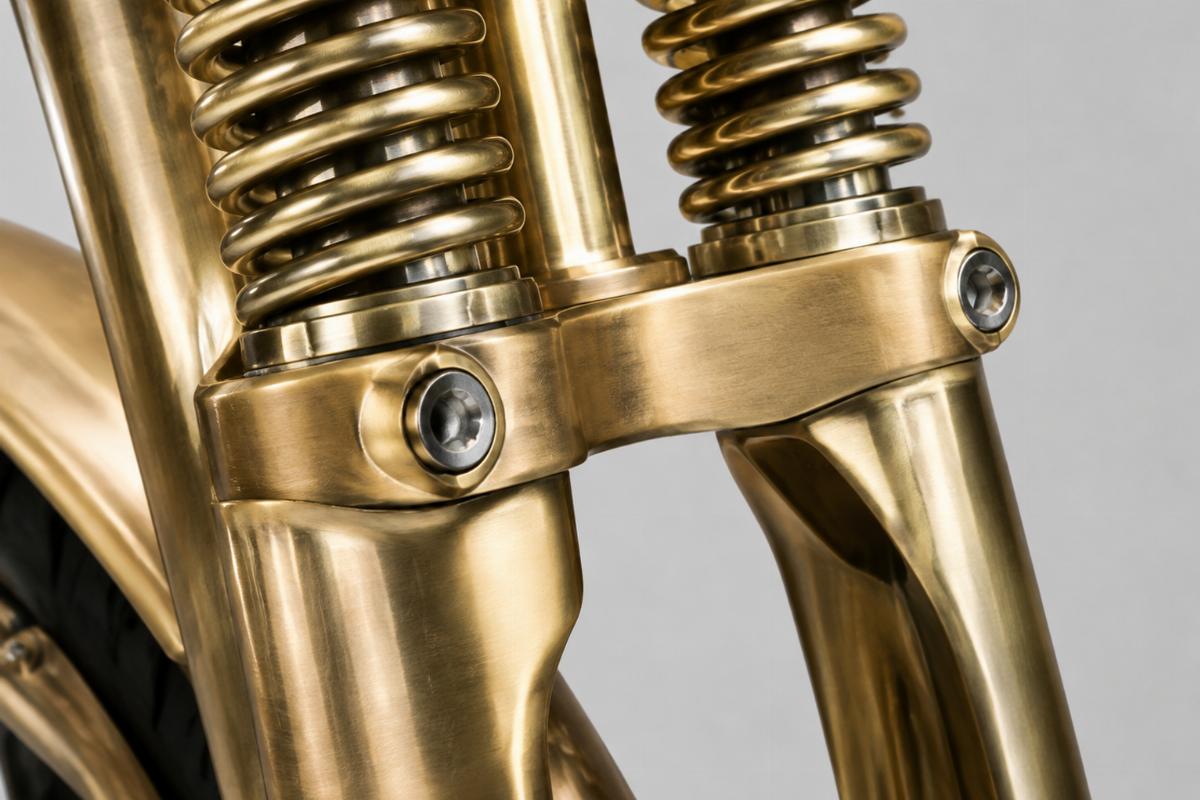

The solid brass construction provides a classic aesthetic, but the internal bore must match your fork rod diameter perfectly. When sourcing a spring fork top plate rod support, confirm the rod diameter compatibility and the material thickness. Variations in brass thickness can affect how the support clamps onto the rod, which is critical for maintaining the structural alignment of your custom springer front end assembly.
The Hidden Cost Of Unverified Springer Parts
Ordering a spring fork top plate rod support without verifying the exact model year and frame measurements leads to severe delays. When a part arrives and the mounting holes do not align, the bike sits on the lift while the shop waits for a replacement. This mistake forces the builder to disassemble the partially built front end, measure the actual tree spacing, and start the sourcing process over, wasting both time and labor on a single custom build.
Sourcing From A Front End Specialist
We verify the exact model year and measure the tree spacing before confirming any custom springer parts from our own production facility. Our front end depth ensures you get the correct brass components for early springer builds without guessing. We offer a minimum order from one piece, which is ideal for a shop building a single custom bike. Every spring fork top plate rod support is checked against platform and year range requirements before dispatch.
Documentation And Fitment Records
- Fitment sheet stating applicable platforms and year ranges provided upon request.
- Key dimensions including top plate hole spacing confirmed before quotation.
- Material specification sheet detailing the solid brass construction.
- Quality inspection record for the brass finish and machining tolerances.
- Sample supply available for fitment confirmation before placing bulk orders.
Receiving And Pre-Installation Checks
- Verify the brass spring fork top plate rod support matches the ordered material and finish.
- Measure the top plate mounting hole spacing against your specific frame before installation.
- Check the internal bore diameter to ensure it matches your custom fork rod size.
- Inspect the brass surface for any machining defects or casting flaws.
- Have a qualified technician confirm the tree spacing and alignment during assembly.
- Store the brass component in a dry environment to prevent oxidation before use.
Requesting A Fitment Check
Send your exact model, year, and a photograph of the top plate mounting holes for a precise fitment check. Provide the measured tree spacing and fork rod diameter to ensure the brass support aligns correctly. Let us know if you need a single piece for a custom build or a sample for fitment confirmation before a larger order.
Frequently Asked Questions
Q: How do I measure the top plate mounting hole spacing for my custom springer?
A: Measure the distance between the center of each mounting hole on your existing top plate or the frame neck directly. Use digital calipers for accuracy. Compare these exact measurements against the spring fork top plate rod support specifications to ensure the brass component will align perfectly with your frame before ordering.
Q: What material specifications should I check for brass springer fork components?
A: Verify that the component is machined from solid brass to ensure structural integrity and the correct classic aesthetic. Check the internal bore diameter to match your fork rods and confirm the material thickness is sufficient to handle the clamping force without deforming during the assembly of your custom springer front end.
Q: Can I order a single piece for a custom build without minimum order quantities?
A: Yes, we support minimum orders from one piece, making it easy to source a single spring fork top plate rod support for a specific custom build. You can also request a sample for fitment confirmation to ensure the brass mounting holes align with your frame before committing to any larger production runs.
Q: How do I confirm fitment for pre-1984 or discontinued springer models?
A: Provide the exact model, year, and photographs of your top plate mounting holes. We will verify the tree spacing and hole geometry against our records. Since early frames often have different mounting patterns than later versions, checking these dimensions ensures the brass support fits your specific discontinued springer model correctly.
