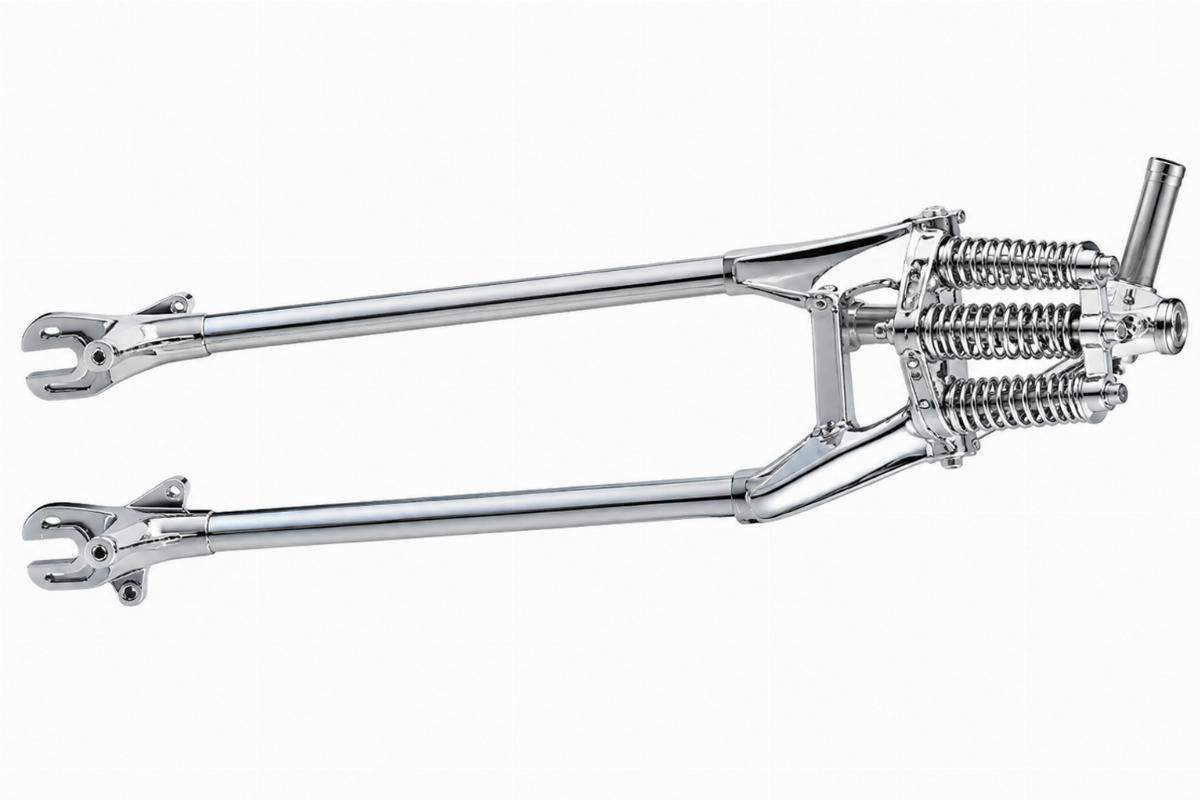

Chrome Inline Spring Fork Assembly 16″ – Fits FXSTS Springer Softail
Own Front-End Production — Every inline spring fork assembly for fxsts is built in our own facility to guarantee exact steering geometry and consistent chrome plating.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |
| Finish | Chrome |
| Wheel Fitment | 16″ |
| Length (rocker stud to bottom of top tree) | 27″ |
| Length (axle to bottom of top tree) | 30″ |
| Rake | 10° (built into the stem for FLSTS) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Springer Softail (FXSTS, FLSTS) | Confirm with model and year | For use with 16″ wheel assemblies |
