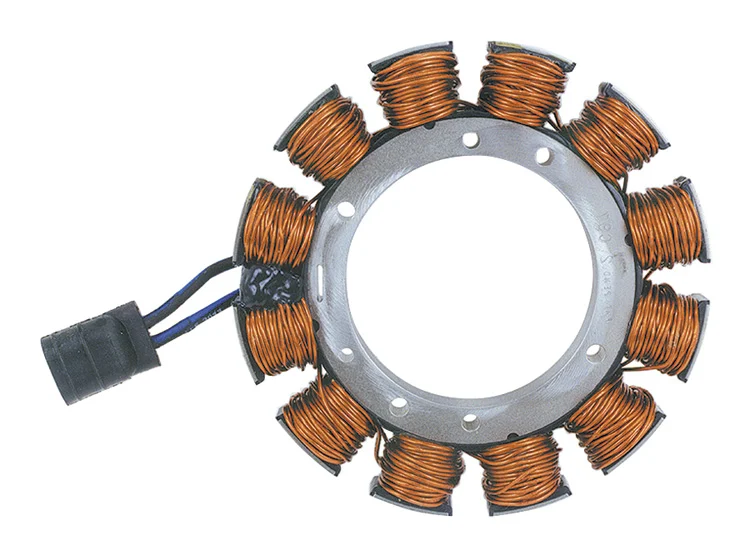

Alternator Stator for Sportster – OEM Ref 29967-89

Cross-referenced fitment verification — Every alternator stator for Sportster is checked against platform year ranges and cross-referenced to OEM numbers marked reference only before dispatch.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Connector Mismatch in the alternator stator for sportster

Stator listings that omit amperage and connector types often result in parts that arrive but fail to plug in or meet the charging demands.

I remember shipping a 22 AMP unit for a Sportster, but the buyer only provided the model name without the exact year. When the package arrived, the round female plug simply would not mate with their earlier wiring harness. It sat on the workbench, completely useless. This happens when electrical parameters are assumed rather than verified against the specific model year.

Verifying the round female plug requirement

Finding a matching alternator stator for sportster requires more than just knowing the bike runs. The 1991-2006 Sportster platform underwent electrical updates that changed how the stator connects to the regulator. You must verify that the existing wiring harness specifically requires a round female plug. If the harness was modified or belongs to an adjacent year range, the physical connection will fail regardless of the electrical output.

Understanding the 22 AMP electrical output

The 22 AMP output is a critical specification for this alternator stator for sportster. It dictates how much current the unit can supply to the battery and accessories under load. If the motorcycle has been upgraded with high-draw lighting or accessories, this specific output must align with the regulator requirements and the overall electrical load. Supplying a different amperage can lead to chronic undercharging.

The hidden cost of an unmolded stator mismatch

This unmolded stator construction is designed for specific thermal and vibrational environments. When buyers ignore the exact year range and order based on a generic parts catalog, the physical dimensions of the stator might not clear the inner primary case. A part that arrives but cannot be installed forces the bike to sit on a lift, tying up bay space and delaying the build. Superseded part numbers make this worse, as an old manual number might point to a completely different connector style.

Why source this alternator stator for sportster here

We confirm fitment against the Sportster platform and the strict 1991-2006 year range before quoting. Our cross-reference sheet maps this unit to 29967-89, clearly marked reference only, to help you match it to your existing records. We provide a detailed fitment sheet stating the exact platforms and year ranges this stator was checked against. You can order a single piece for fitment confirmation before committing to a bulk order for your shop. Our technical follow-up ensures that if the round female plug or 22 AMP output needs further clarification, we are available to verify the details.

Documentation Provided

• Fitment sheet listing the 1991-2006 Sportster year range this part was checked against.
• Cross-reference sheet showing 29967-89 marked reference only.
• Key dimensions detailing the 22 AMP rating and round female plug type.

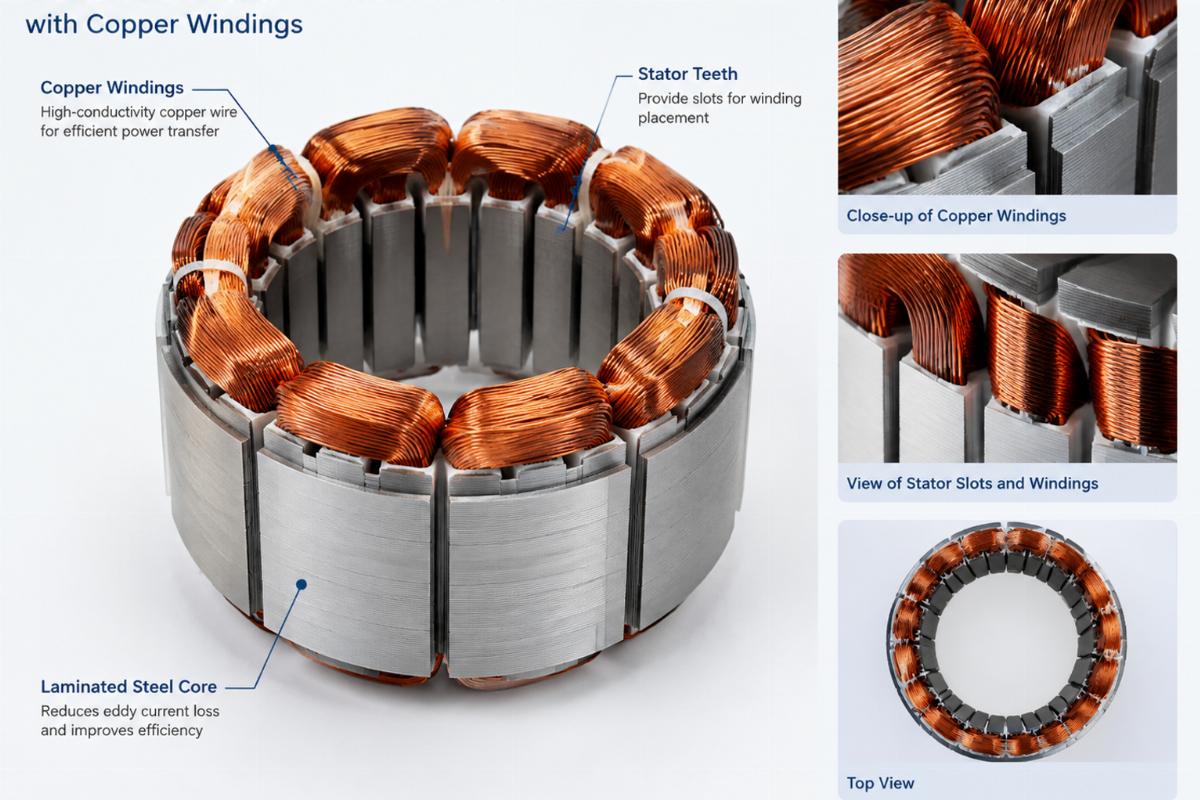

• Quality inspection record verifying the unmolded stator construction.
• Warranty terms covering the electrical output and connector integrity.

Receiving and Pre-Installation Checks

• Verify the alternator stator for sportster matches the 1991-2006 year range on the fitment sheet.

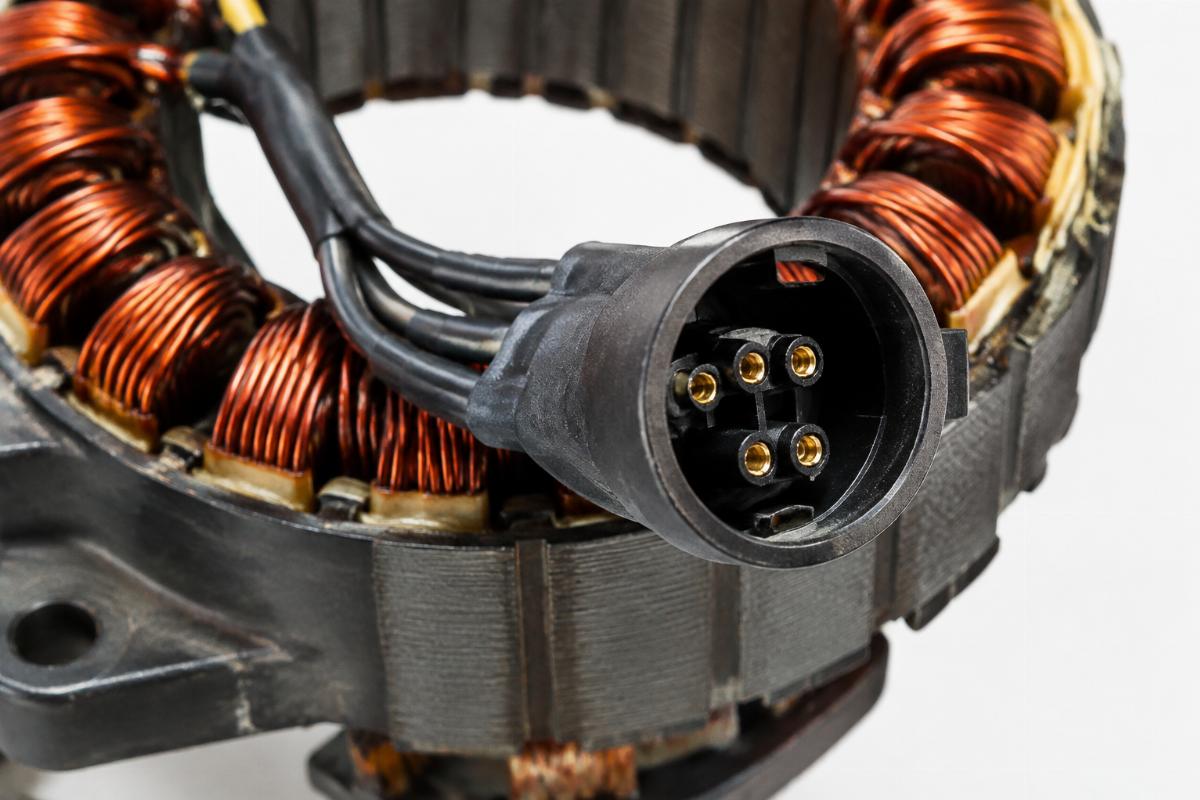

• Inspect the round female plug for any shipping damage before attempting to connect it.
• Confirm the 22 AMP output aligns with your regulator and electrical load requirements.
• Check the unmolded stator windings for any visible defects or loose connections.
• Have a qualified technician verify the physical clearance inside the primary case.
• Store the unit in a dry environment to protect the exposed windings from moisture.

Requesting a Fitment Check

Send your exact Sportster model and year to verify this alternator stator for sportster is the correct match. Provide the existing OEM number or a clear photograph of the current round female plug to confirm the connector style. Let us know if you need a single sample unit for physical fitment confirmation before placing a larger order for your inventory.

Frequently Asked Questions

Q: How do I confirm my Sportster model year is compatible with this stator?

A: Verify your motorcycle falls strictly within the 1991-2006 year range. Check your existing wiring harness to ensure it requires a round female plug connection. If your bike has modified wiring or falls outside this range, the physical connector may not mate correctly.

Q: How do I verify the connector type and amperage output for my electrical system?

A: Inspect the existing plug on your current stator or the matching socket on the wiring harness to confirm it accepts a round female plug. Ensure your voltage regulator and accessory load are designed to handle a 22 AMP charging output without causing electrical faults.

Q: What should I do if my original part number has been superseded?

A: Provide the superseded number or a photograph of the old unit so we can cross-reference it against 29967-89, marked reference only. We will verify if the connector style and physical dimensions of this unmolded stator match your specific application before quoting.

Q: Can I order a single piece for fitment confirmation before placing a bulk order?

A: Yes, we support single-piece minimum orders for shops building one bike or testing fitment. You can order one unit to verify the round female plug and physical clearance on your Sportster before committing to a larger bulk purchase for your inventory.

Q: Do you provide cross-reference sheets for OEM identification?

A: Yes, every order includes a cross-reference sheet that maps this alternator stator to 29967-89, clearly marked reference only. This documentation helps you match the part to your existing catalogs and service manuals without claiming any原厂 or authorized status.
