Alternator Stator for Sportster 1986-1990 – Aftermarket Replacement
Fitment Verified by Year — Every alternator stator for sportster is checked against the exact model year and connector shape before quotation.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 29967-84A (reference only) |
| Part Type | Alternator Stator |
| Output | 19 AMP |

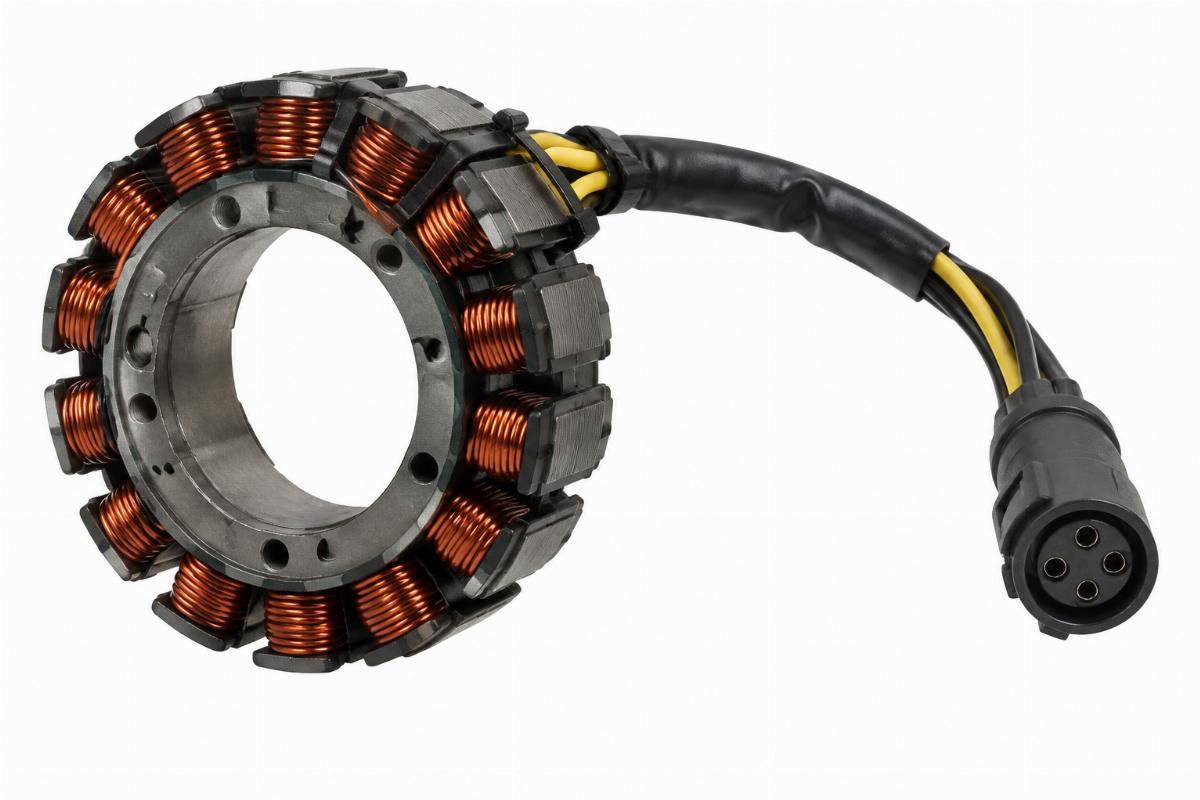

| Connector Type | Round Female Plug |
| Construction | Unmolded |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Sportster | 1986-1990 | Verify round female plug matches existing wiring harness. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Connector Shape Matters More Than the Cross-Reference Number
A matching reference number means nothing if the plug will not mate.
I still remember a batch of 19 AMP unmolded stators for Sportster 1986/1990. The cross-reference number matched perfectly on paper, but the connector was a round female plug instead of the expected shape. The stators arrived at the shop, but the plugs simply would not mate. We had to rewire every single unit on the bench. That mistake taught me to never trust a part number blindly. Now I always verify the connector type and amperage against the exact model year before anything leaves the warehouse [NEED_CITE: connector changes across model years for this platform].
Checking the 1986-1990 Sportster Wiring Harness
Before ordering this alternator stator for sportster, you must confirm the round female plug matches your existing wiring harness. The 19 AMP output capacity is designed for the electrical load of these specific years, but physical compatibility relies entirely on the plug shape. If your harness was modified during a previous repair, the original connector might no longer be present.
Verifying Amperage and Construction Details
This unit delivers a 19 AMP output with an unmolded stator construction. You need to confirm this output meets the electrical load requirements of your specific Sportster build, especially if aftermarket accessories have been added. The unmolded design requires careful handling to prevent wire damage during installation [NEED_CITE: electrical load calculations for modified sportster builds].
Understanding Unmolded Stator Specifications
The unmolded construction means the copper windings are exposed, which affects how the part must be stored and handled. The 19 AMP rating dictates the maximum continuous electrical draw the charging system can support. The round female plug is a fixed physical dimension that cannot be adapted without cutting and splicing wires, which introduces potential failure points. Always check model year strictly within the 1986-1990 range to ensure physical and electrical compatibility.
The Hidden Cost of Incorrect Electrical Fitment
When an alternator stator for sportster arrives with the wrong connector, the bike sits on the lift while a technician rewires the harness. This wastes labor hours and delays the build. If the amperage is too low, the battery will drain under load; if the plug is forced or modified poorly, it can cause a short circuit. Superseded part numbers in older manuals often hide these connector changes, leading to a chain of ordering errors that only surface when the box is opened [NEED_CITE: superseded part number documentation for early sportster electrical components].
Sourcing Electrical Parts with Fitment Certainty
We verify fitment against the platform family and model year range before providing a quotation for every alternator stator for sportster. Our cross-reference process checks the 29967-84A reference number against current harness configurations to ensure the round female plug is correct. We support a single piece minimum order, allowing shops to buy one unit for fitment confirmation before committing to bulk inventory. Every electrical rating and connector type is documented on the fitment sheet provided with your order.
Documentation Provided with Your Order
- Fitment sheet stating the 1986-1990 Sportster year range
- Cross-reference sheet with 29967-84A marked reference only
- Key dimensions including 19 AMP rating and connector type
- Quality inspection record verifying the round female plug
- Warranty terms covering electrical output and construction
Receiving and Pre-Installation Checks
- Verify the 19 AMP output label matches your order paperwork.
- Inspect the round female plug for bent pins or plastic damage.
- Check the unmolded windings for any shifted wires or loose connections.
- Confirm the part number matches the 1986-1990 Sportster requirement.
- Store the unit in a dry environment to prevent corrosion on the connections.
- Have a qualified technician verify the wiring harness before final mounting.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this alternator stator for sportster matches your exact requirements. Provide the OEM reference number or a photograph of your current connector if the part number is unknown. Let us know if you need a single piece sample for fitment confirmation before placing a larger order.
Frequently Asked Questions
Q: How do I confirm my Sportster model year is compatible with this 19 AMP stator?
A: Check your frame and engine serial numbers against the 1986-1990 year range. We verify the round female plug and 19 AMP output against these specific years. If your bike was built late in the year or has a replaced engine, send us a photo of the existing connector for final verification.
Q: How do I match the electrical output and connector type for my specific wiring setup?
A: Measure the electrical load of your Sportster build to ensure it does not exceed 19 AMP. Inspect your existing wiring harness to confirm it terminates in a round female plug. If your harness was modified, you may need to adapt the wiring, but the stator itself will only output 19 AMP.
Q: What should I do if the reference number has been superseded in newer manuals?
A: Newer manuals often list updated reference numbers that change the connector shape or amperage. We cross-reference 29967-84A against the original 1986-1990 harness specifications. Send us the superseded number from your manual along with your model year, and we will verify if the physical plug matches your bike.
Q: Can I order a single piece for fitment confirmation before placing a bulk order?
A: Yes, we support a single piece minimum order. You can purchase one alternator stator for sportster to test the round female plug connection and verify the 19 AMP output on your bench. Once confirmed, you can place a bulk order for your shop or distribution catalogue with confidence.
