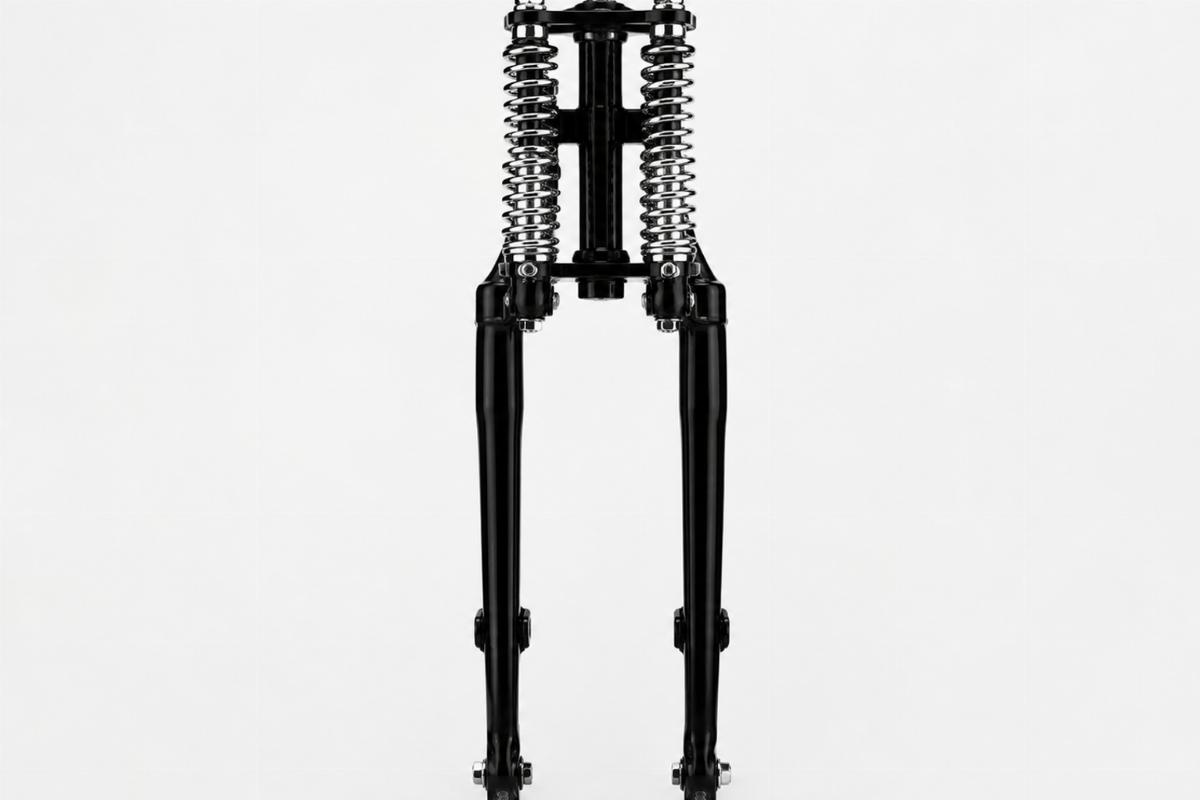

Aftermarket Replacement Narrow Springer Fork Assembly for Custom Builds
In-House Springer Production — This narrow springer fork assembly is manufactured in our own facility, ensuring direct control over the 24-inch length and 6-inch rocker width specifications.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Narrow Springer Fork Assembly |
| Length | 24″ |
| Style | Narrow |
| Finish | Black with chrome springs |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Kit Contents | Triple tree, stem, brake boss, axle, standard fittings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom builds | Confirm with model and year | Left side rocker is offset to allow space for applications where a brake system is installed |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Rocker Spacing and Axle Dimensions in Custom Front Ends
Clear dimensional data prevents brake and handlebar clearance issues.
Springer forks offered in custom widths often lack clear statements on rocker spacing and axle dimensions, making it difficult to judge if the assembly will accept your specific brake setup and handlebars. When the 6-inch width between rockers is not explicitly verified against the wheel and caliper mounting requirements, the build stalls on the lift. We ensure every narrow springer fork assembly includes exact measurements to avoid these geometry mismatches. [NEED_CITE: frame neck and brake caliper mounting specifications across custom platforms]
Verifying Frame Neck and Handlebar Clearances

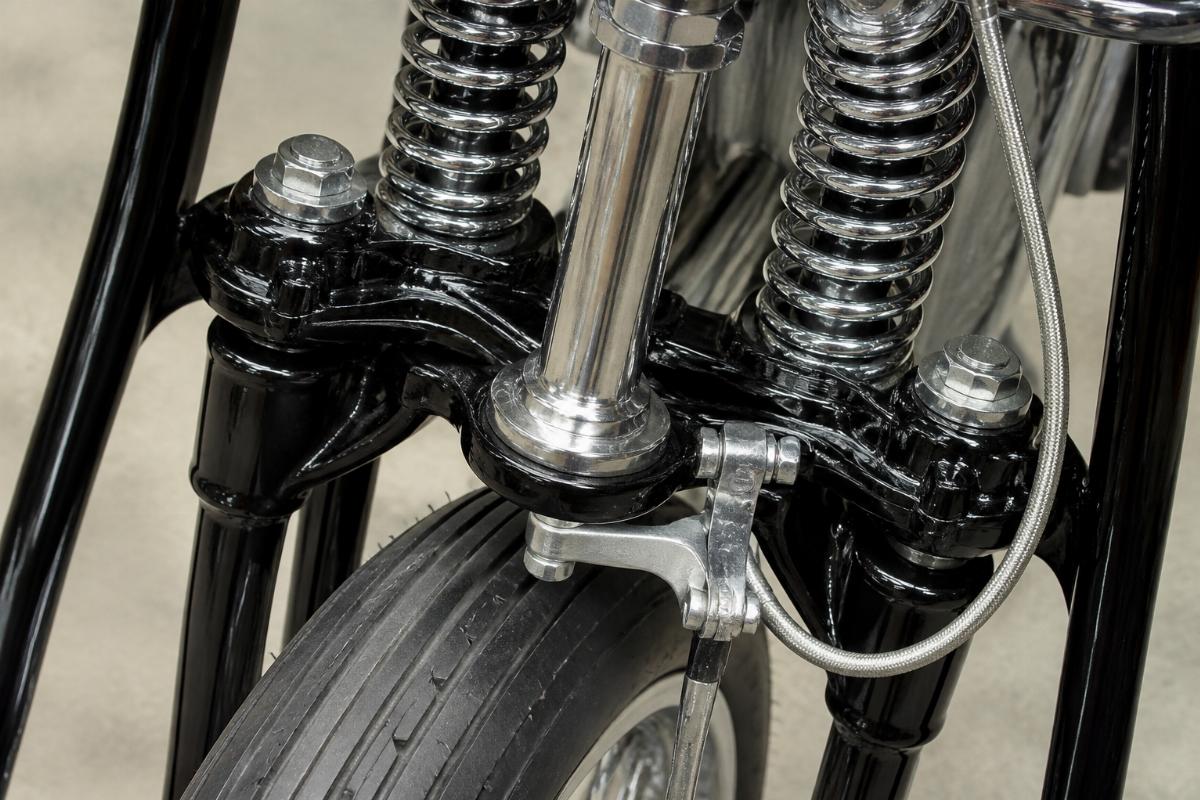

Determining if a narrow springer fork assembly matches your frame requires checking the 1-inch stem diameter against your specific frame neck bearing cups. The top triple tree features standard stem and tube locations, designed to align inline for accepting dog bone or stock Spring Fork handlebars. If the stem diameter or tree spacing is overlooked, the steering head will not seat correctly, forcing a return to the supplier.
Confirming Brake System Compatibility
The left side rocker on this narrow springer fork assembly is offset to provide necessary clearance for brake system installations. This specific offset ensures the brake boss aligns properly with the caliper mount, preventing the boss from missing the mount entirely. Buyers must verify this left rocker offset against their exact brake setup before finalizing the order. [NEED_CITE: brake boss offset requirements for custom springer brake mounts]
Interpreting Core Dimensions for Custom Geometry
The 24-inch overall length combined with a narrow 6-inch width between rockers defines the visual profile and physical footprint of the front end. The 3/4-inch axle outer diameter must match your wheel hub spacing, while the 3/4″-18 drilled and tapped legs dictate which riser mounting hardware can be used. Overlooking the leg thread pitch or axle diameter means the wheel will not mount, or the chosen risers will not thread in. [NEED_CITE: axle diameter and thread pitch standards for custom springer hubs]
The Hidden Cost of Unverified Front-End Specs
Ordering a custom front end without confirming the rocker width and axle diameter often results in the wheel and brake caliper failing to fit between the legs. If the left rocker offset is incorrect for your specific brake setup, the brake boss completely misses the caliper mount, requiring custom fabrication or a full replacement. These fitment errors keep the motorcycle parked on the shop floor while waiting for the correct narrow springer fork assembly to arrive. [NEED_CITE: common fitment errors in custom springer front end builds]
Sourcing Verified Front-End Components
We produce this narrow springer fork assembly in our own facility, allowing us to control the black finish and chrome spring quality directly. Fitment is confirmed against the platform and year range before quotation, ensuring the 24-inch length and 6-inch rocker width match your build requirements. We support custom builders with a one-piece minimum order, meaning you can purchase a single sample assembly to verify fitment before committing to a larger batch.
Included Documentation and Records
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length, rocker width, and axle diameter
- Finish specification for black body and chrome springs
- Quality inspection record detailing dimensional checks
- Packing photographs showing the triple tree and standard fittings
Receiving and Pre-Installation Checks
- Verify the kit includes the triple tree, stem, brake boss, axle, and standard fittings.
- Measure the 6-inch distance between rockers to confirm brake caliper clearance.
- Check the 1-inch stem diameter against your frame neck bearing cups.
- Inspect the black finish and chrome springs for consistency across the assembly.
- Ensure the 3/4″-18 leg threads are clear and ready for riser hardware.
- Store the assembly in a dry environment to protect the finish before installation.
Requesting a Fitment Check
Send your model and year, along with photographs or measurements of your current front end, to verify if this narrow springer fork assembly fits your custom build. Specify your required finish and quantity, and let us know if you need a single sample for trial installation before placing a bulk order. Our team will cross-reference your requirements and provide a detailed fitment sheet for your review.
Frequently Asked Questions
Q: How do I measure my frame to ensure this 24″ narrow springer fork will fit correctly?
A: Measure the inner width of your frame neck to confirm it accepts a 1-inch stem diameter. Check the distance between your frame’s mounting points to ensure the 24-inch overall length aligns with your desired ride height and geometry. Verify the triple tree locations match your handlebar setup.
Q: What is the exact distance between the rockers and does it accommodate wide brake calipers?
A: The width between the rockers is exactly 6 inches. You must measure your specific brake caliper and wheel hub spacing to confirm it fits within this 6-inch narrow profile. The left side rocker is offset to provide necessary clearance for the brake system installation.
Q: Are the standard fittings included compatible with my existing headlamp bracket and shock assembly?
A: The kit includes a triple tree, stem, brake boss, axle, and standard fittings designed to accept standard Spring Fork components. You must verify that the standard tube locations on the top triple tree align with your specific headlamp bracket and shock assembly mounting requirements.
Q: Can I order a single sample assembly to verify fitment on my custom build before buying in bulk?
A: Yes, we support custom builders with a one-piece minimum order. You can order a single sample of this narrow springer fork assembly to verify the 24-inch length, 6-inch rocker width, and left rocker offset on your specific build before placing a larger bulk order.
Q: How do you ensure the black and chrome finish consistency across different production batches?
A: As the direct manufacturer of our springer front ends, we control the finishing process in our own facility. Every batch undergoes a quality inspection where the finish specification for the black body and chrome springs is detailed and verified to ensure visual consistency across production runs.
