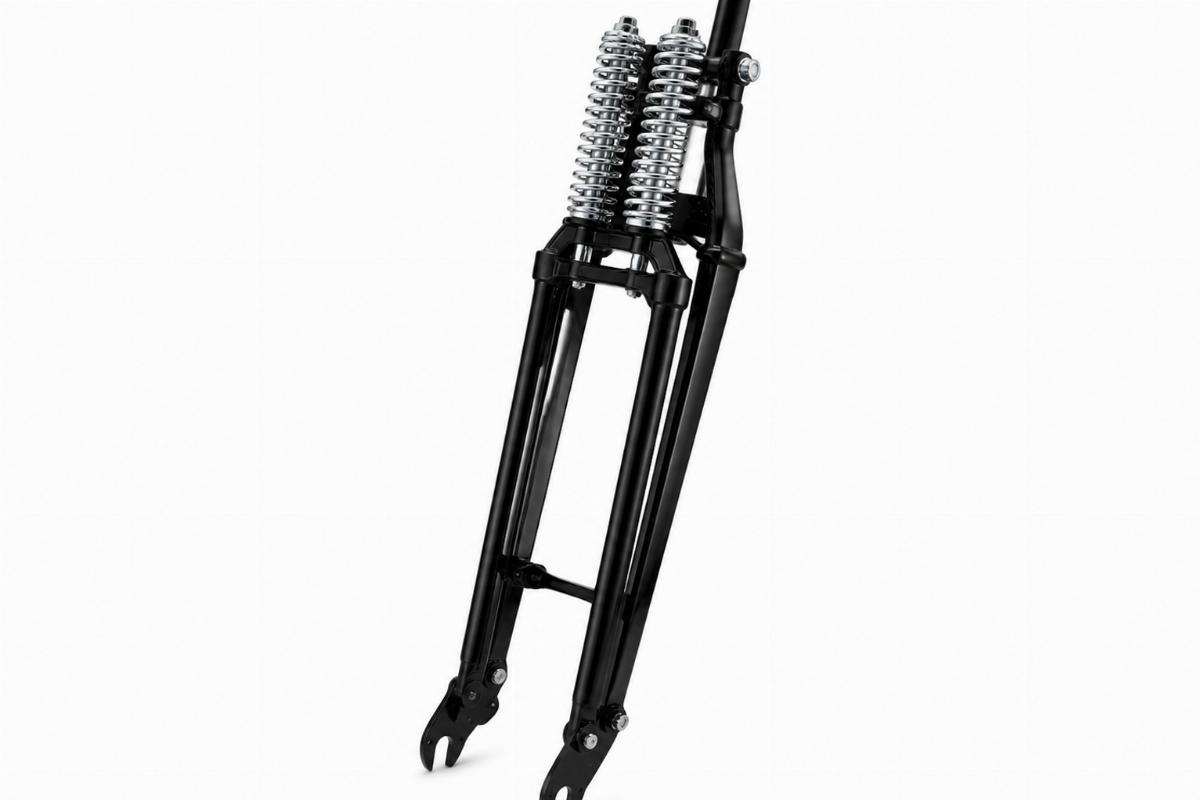

26″ Narrow Springer Fork Assembly Black – Fitment Checked
Own-Produced Springer Assemblies — Every narrow springer fork assembly is manufactured in-house to ensure exact rocker spacing and consistent finish across batches.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Black with chrome springs |
| Length | 26″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Left Side Rocker | Offset |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Will accept original Spring Fork components, headlamp bracket, shock assembly or ride control as it includes original fittings. Left side rocker is offset to allow space for applications where a brake system is installed. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Rocker Width Dictates Your Front End Build
A 6″ rocker width changes the entire handlebar and fender clearance equation.
Builders often assume length is the only metric that matters when ordering a narrow springer fork assembly. I have seen projects stall because the 6″ spacing forced the handlebars into the fuel tank or left the fender rubbing the lower legs. When the width is overlooked, the front end geometry shifts, and the steering stops fail to align with the frame neck [NEED_CITE: frame neck spacing and steering stop placement by model year]. Verifying this dimension against your intended bar rise and pullback prevents costly rework.
Verifying Stem and Axle Dimensions for Triple Tree Alignment
The 1″ stem diameter must match your top triple tree bore exactly to prevent steering head play. A mismatched stem forces the use of reducer sleeves, which can compromise steering precision. The 3/4″ axle outer diameter determines whether your front wheel bearings will seat correctly. If the axle is too thick or thin for the hub, the wheel will not center between the 6″ rockers. Always cross-check these diameters against your triple tree and wheel hub specifications before finalizing the build [NEED_CITE: steering stem and axle diameter specifications across custom frames].
How the Offset Left Rocker Affects Brake Clearance

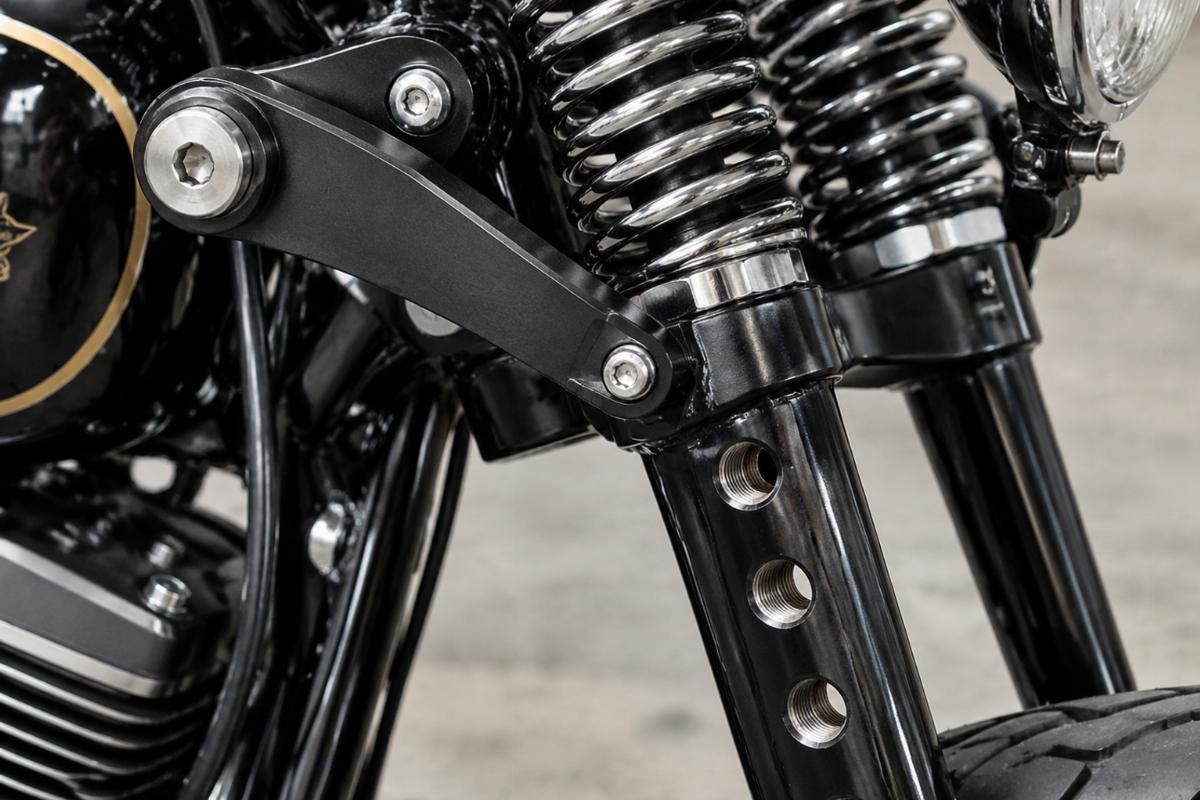

The left side rocker on this narrow springer fork assembly is specifically offset to provide clearance for brake systems. Standard inline rockers often leave zero gap for a caliper, causing it to jam against the fork leg during compression. This offset ensures the caliper mounts cleanly without modifying the leg or the brake bracket. If your build uses a specific brake rotor size, confirm that the offset provides adequate lateral clearance for the caliper body and brake lines [NEED_CITE: brake caliper clearance requirements for custom springer front ends].
Decoding the 26″ Length and 3/4″-18 Leg Threads
An overall length of 26″ significantly alters the ride height and rake compared to stock dimensions. This change affects the trail and steering response, requiring adjustments to the rear suspension or shock length to maintain a level stance. The 3/4″-18 drilled and tapped threads on the legs allow direct mounting of risers without additional clamps. This threading pattern is standard for many aftermarket risers, but you must verify the thread depth and pitch match your chosen handlebar setup to avoid stripping the legs during installation.
The Hidden Cost of Ignoring Brake Offsets and Rocker Spacing
Assuming a 26″ length is sufficient without checking the 6″ rocker width often leads to front wheel bearing failure. I once verified a build where the bearings would not seat because the hub width exceeded the rocker spacing. Worse, the left rocker lacked the necessary offset, causing the brake caliper to jam against the leg and score the finish. When these dimensions are ignored, the bike sits on the shop floor for weeks while custom tabs are fabricated or the wrong axle is sourced. A narrow springer fork assembly must be validated against the exact build specs, not just the visual profile.
Sourcing Directly from the Front End Specialist
We manufacture our springer front ends in-house, ensuring the 6″ rocker width and offset left rocker meet exact specifications for every narrow springer fork assembly. Fitment is confirmed against your platform and year range before quotation, eliminating guesswork. We offer chrome and black finish options with consistent batch quality, so your left and right legs match perfectly. Cross-referencing against factory numbers is provided for identification, marked reference only. Minimum orders start at one piece, supporting custom builders who need a single unit for a specific project without hitting bulk thresholds.
Documentation and Fitment Verification
- Fitment sheet stating applicable platforms and year ranges provided before dispatch
- Key dimensions including 26″ fork length, 6″ rocker width, and 3/4″ axle documented
- Cross-reference sheet with factory numbers marked reference only for identification
- Finish specification detailing black main assembly with chrome springs
- Quality inspection record verifying offset left rocker and 3/4″-18 leg threads
Receiving and Pre-Installation Checks
- Verify the 6″ width between rockers matches your handlebar and fender clearance requirements
- Confirm the 1″ stem diameter aligns with your top triple tree bore specifications
- Check that the 3/4″ axle outer diameter seats correctly in your front wheel hub
- Inspect the black finish and chrome springs for any transit damage or plating defects
- Ensure the offset left side rocker provides adequate clearance for your specific brake caliper
- Store the assembly in a dry environment to prevent surface corrosion before installation
Requesting a Fitment Check and Quote
Send your model designation and year range to verify if this narrow springer fork assembly matches your frame geometry. Provide photographs or measurements of your current stem diameter and rocker spacing if the original parts are unavailable. Specify if you require a single sample unit for fitment confirmation before committing to a larger order. Our team will cross-check the 26″ length, 6″ width, and brake offset against your exact build requirements.
Frequently Asked Questions
Q: How do I confirm if this 26″ narrow springer fork fits my specific motorcycle model and year?
A: Send your model designation and year range for a fitment check. We cross-reference the 1″ stem diameter, 6″ rocker width, and 26″ length against your frame specifications. If your original parts are unavailable, providing photographs or measurements of the stem and rocker spacing helps us verify compatibility before quotation.
Q: What are the key dimensions to measure when replacing an existing springer front end?
A: Measure the stem diameter to match your triple tree, the width between rockers for handlebar clearance, and the axle outer diameter for wheel hub fitment. The 26″ overall length will affect ride height and rake, so verify your rear suspension can accommodate the change. The 3/4″-18 leg threads must also match your intended riser mounting hardware.
Q: Does this assembly include the necessary fittings for original springer components and headlamp brackets?
A: Yes, this narrow springer fork assembly is designed to accept original Spring Fork components, including headlamp brackets and shock assemblies, as it includes the original fittings. The legs are also drilled and tapped for mounting risers, allowing you to reuse your existing hardware or install aftermarket dog bone handlebars without additional modification.
Q: Can I order a single sample unit to verify the fitment and finish quality before a bulk purchase?
A: We support a minimum order of one piece, allowing custom builders and repair shops to order a single sample for fitment confirmation. This ensures the 6″ rocker width, offset left rocker, and black finish with chrome springs meet your project requirements before you commit to a larger quantity.
Q: How does the offset left side rocker affect brake system installation on custom builds?
A: The offset left side rocker provides necessary lateral clearance for brake calipers, preventing them from jamming against the fork leg during suspension compression. This design eliminates the need to fabricate custom caliper mounts or modify the fork leg, ensuring the brake system operates safely without interfering with the springer mechanism or the black finish.
