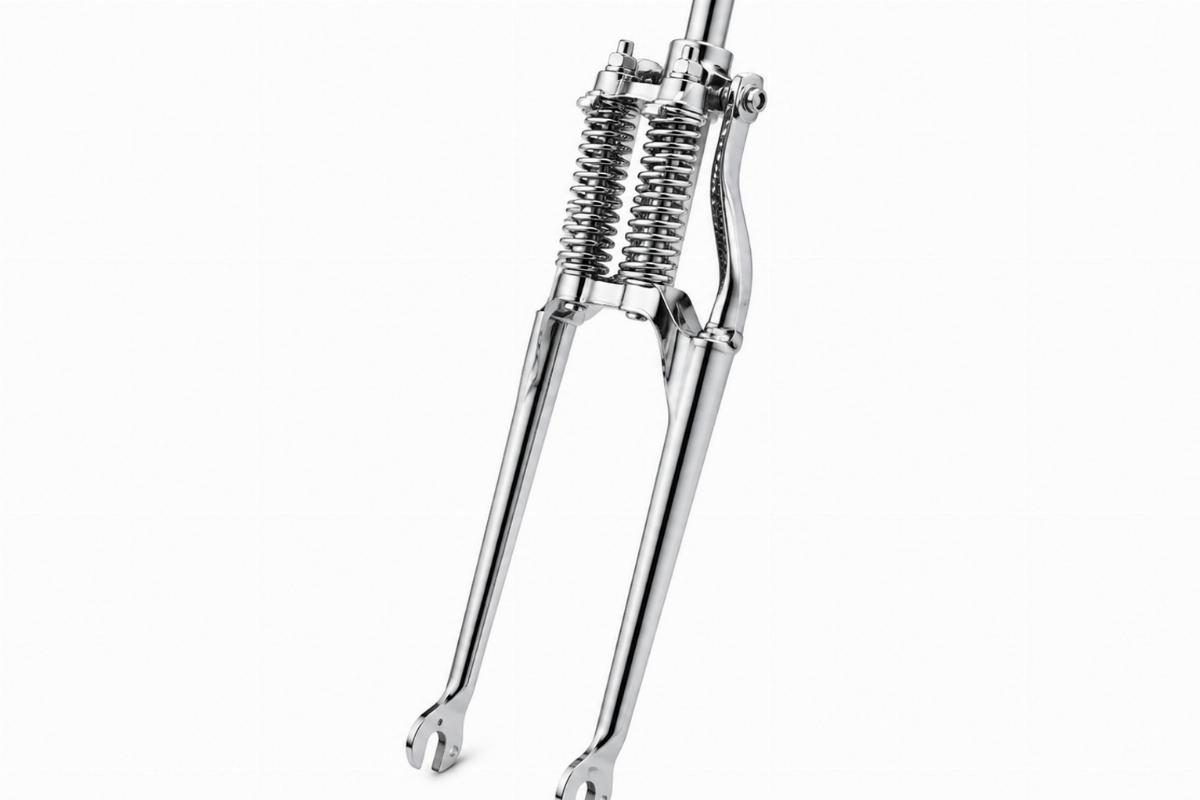

Aftermarket Replacement Narrow Spring Fork Assembly 31″ Chrome for Custom
Consistent chrome detailing — every narrow spring fork assembly undergoes batch inspection to ensure uniform plating thickness and clarity across your custom builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Length | 31″ (stock length) |
| Axle hole | 3/4″ |
| Top tree | Without ears |
| Leg thread | 1/2″-20″ |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated | Not stated | Narrow width |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Tree Spacing and Axle Fitment Matter More Than Model Names
A narrow spring fork assembly requires exact tree spacing and rocker axle dimensions to mount correctly.
Builders often order based solely on a model name, ignoring that a specific 3/4″ axle hole is required for the wheel hub. When the assembly arrives, the axle simply will not slide through the rockers if the width is wrong. We have to pull out the calipers to measure the tree width and rocker spacing to get the geometry right. Relying on vague listings leaves shops guessing about steering stem compatibility [NEED_CITE: frame geometry specifications for narrow glide configurations].
Verifying Steering Stem Compatibility for Top Trees
When evaluating a narrow spring fork assembly, the top tree specification dictates how the steering stem interfaces with the frame neck. This unit features a top tree without ears, meaning it relies entirely on the steering stem nut and internal bearing race for retention, without external pinch bolt ears. You must confirm that your steering stem diameter and handlebar mounting requirements align with this earless design. Mismatched tree styles prevent proper clamping and compromise steering alignment [NEED_CITE: steering head bearing retention methods across custom frames].
Riser Mounting and Leg Thread Specifications
The legs on this narrow spring fork assembly are drilled and tapped 1/2″-20″ specifically for riser mounting. This thread pitch is a standard industry size, but verifying the exact hole placement on the leg is critical before ordering risers. If the tapped holes do not align with your chosen riser base, you cannot secure the handlebars safely. Always cross-check the 1/2″-20″ thread depth and location against your existing hardware or new riser kit [NEED_CITE: standard thread pitches for aftermarket handlebar risers].
The Hidden Cost of Unverified Dimensions
Ordering a front end without confirming the 31″ stock length and narrow width can leave a custom build stalled on the lift. If the fork length alters the intended rake, the bike handles poorly, and correcting it requires swapping the entire assembly. Furthermore, if the 3/4″ axle hole is slightly off due to unverified manufacturing tolerances, the wheel cannot be mounted, leading to costly返工 and delayed deliveries. Clear dimension sheets prevent these assembly line bottlenecks [NEED_CITE: production delays caused by incorrect front-end geometry].
Sourcing Front Ends with Fitment Certainty
We confirm fitment against the platform family and model year range before providing a quotation for any narrow spring fork assembly. Our catalogue offers front-end depth, ensuring you can source complete assemblies with verified dimensions like the 31″ length and 3/4″ axle hole in one place. Chrome and black finish options are available, with batch consistency maintained through strict quality inspection records. We support a minimum order from one piece, allowing custom builders to order a single assembly for a one-off build without facing bulk quantity blocks.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length and tree spacing
- Finish specification for chrome batch consistency
- Quality inspection record for the specific assembly
- Cross-reference sheet with OEM numbers marked reference only
- Packing photographs showing the top tree and rockers
Receiving and Pre-Installation Checks
- Verify the 3/4″ axle hole slides smoothly over your front wheel spindle.
- Confirm the 31″ stock length matches your frame’s intended ride height.
- Inspect the chrome finish for plating consistency across the legs and rockers.
- Check that the top tree without ears seats flush against your steering stem.
- Ensure the 1/2″-20″ leg threads are clean and free of plating debris.
- Store the assembly in a dry environment to prevent surface oxidation before install.
Requesting a Fitment Check
Send your model and year, along with a photograph or measurements of your current steering neck and wheel hub, to verify compatibility. Specify if you need the chrome finish and confirm the quantity required for your build. We will return a fitment sheet and quotation detailing the exact dimensions of the narrow spring fork assembly for your approval.
Frequently Asked Questions
Q: How do I confirm if this narrow spring fork assembly fits my specific custom frame?
A: You must verify the tree width, steering stem diameter, and the 3/4″ axle hole against your frame’s neck and front wheel hub. Send us your model, year, and key measurements, and we will provide a fitment sheet confirming compatibility before you order.
Q: What are the critical dimensions to measure when replacing a narrow springer front end?
A: The most critical dimensions are the overall fork length, the tree width, and the 3/4″ axle hole diameter on the rockers. You also need to check the top tree design to ensure it matches your steering stem and handlebar mounting setup.
Q: Does this kit include the top tree and rockers, and what are their specifications?
A: Yes, the assembly includes the rockers with a 3/4″ axle hole and a top tree without ears. The legs are drilled and tapped 1/2″-20″ for riser mounting. Always verify these specific dimensions against your existing hardware.
Q: Can I order a single narrow spring fork assembly for a one-off custom build?
A: Yes, we support a minimum order from one piece. You can order a single assembly for a custom build without meeting high bulk quantity requirements. We will still provide a full fitment check and dimension sheet for your specific application.
Q: How do you ensure chrome finish consistency across different production batches?
A: We maintain strict quality inspection records for every batch to ensure uniform plating thickness and clarity. When you order, we supply the finish specification and inspection record so you can verify the chrome quality matches your project standards.
