Chrome Narrow Springer Fork Assembly 28″ – Fitment Checked
Single-Piece Fitment Verified — We confirm platform and year range before dispatch, allowing one-piece orders for custom builds without minimum quantity blocks.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |

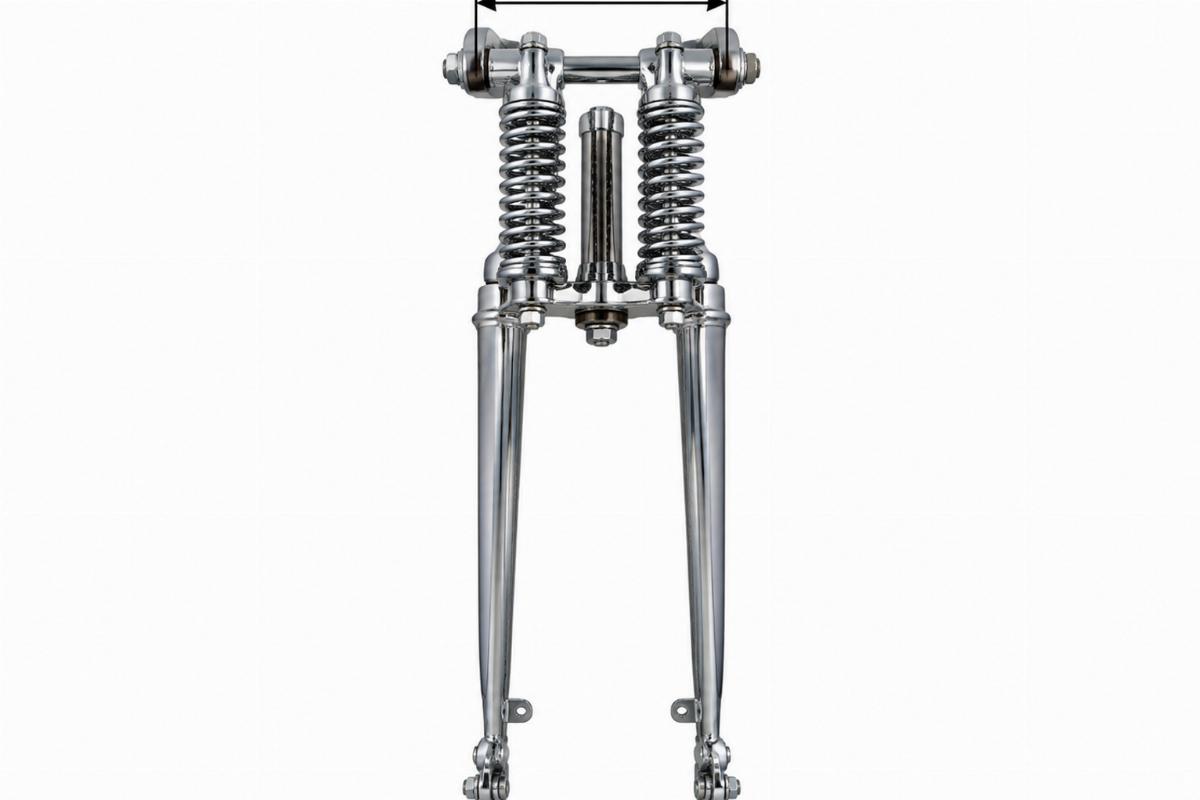

| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree | Standard stem and tube locations, inline |
| Handlebar Compatibility | Dog bone or stock Spring Fork handlebars |

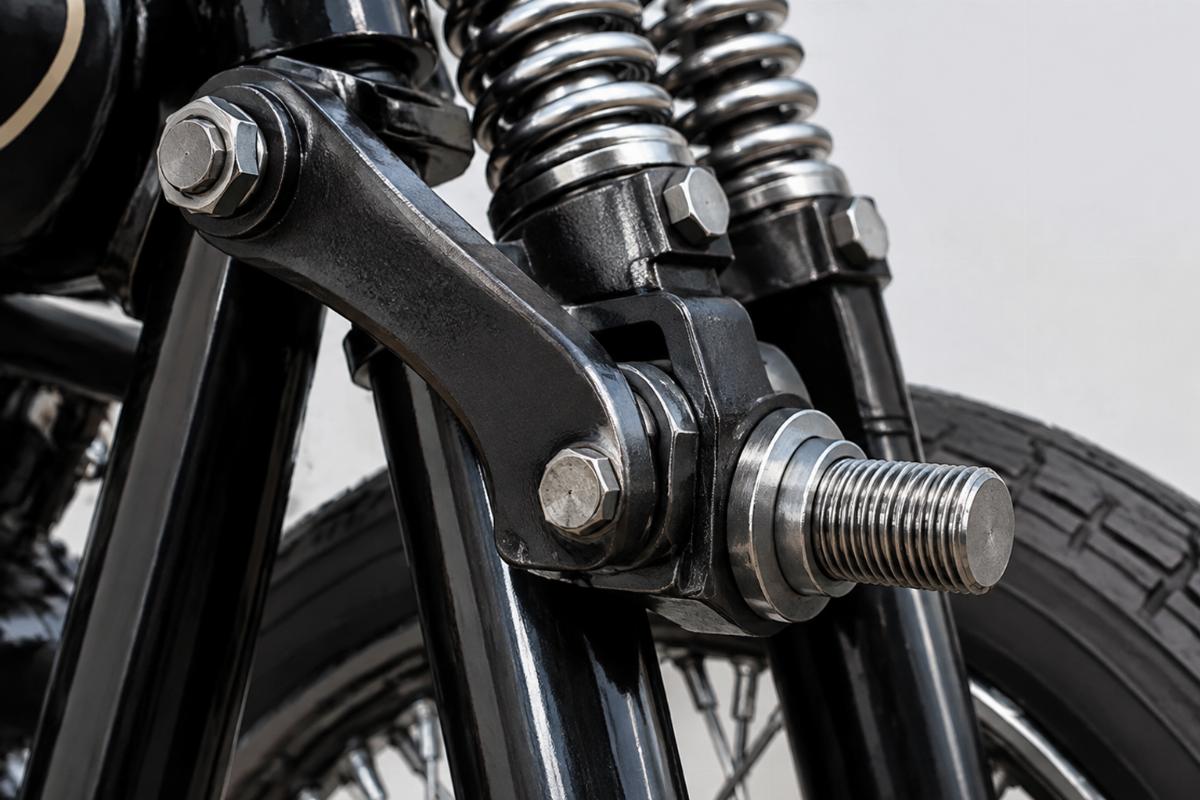

| Left Side Rocker | Offset |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | Accepts standard Spring Fork components, headlamp bracket, shock assembly. Left side rocker is offset for brake system clearance. |
