Aftermarket Replacement 1″ Springer Apes Handlebars for Harley-Davidson
Fitment Verified by Platform — Every 1″ Springer Apes Handlebars for Harley-Davidson is checked against your specific triple tree spacing and model year before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Diameter | 1″ |
| Wall Thickness | .109″ |
| Material | Steel tubing |
| Riser Clamp Area | 4.75″ on-centers (knurled) |
| Rise | 8″ to 16″ (available in multiple options) |
| Dimpling | Drilled for internal wiring |
| Bending | CNC-mandrel bent |
| Finish | Chrome or black (available options) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | Confirm with model and year | Designed for swapping a springer front end onto a Harley-Davidson previously fitted with a hydraulic front end. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving the 4.75″ Knurling Gap on Springer Conversions
Standard hydraulic riser spacing fails on aftermarket springer trees.
When swapping a springer front end onto a Harley-Davidson, the triple tree clamp centers often differ from stock hydraulic setups. If the handlebar knurling width does not match the tree spacing, the clamps slip on the smooth steel between the dimples. This ruins the installation and forces a complete teardown of the front end to source the correct 1″ springer apes handlebars for Harley-Davidson with the proper 4.75″ on-center knurling [NEED_CITE: aftermarket springer triple tree spacing specifications].
Matching Tree Centers to Bar Knurling

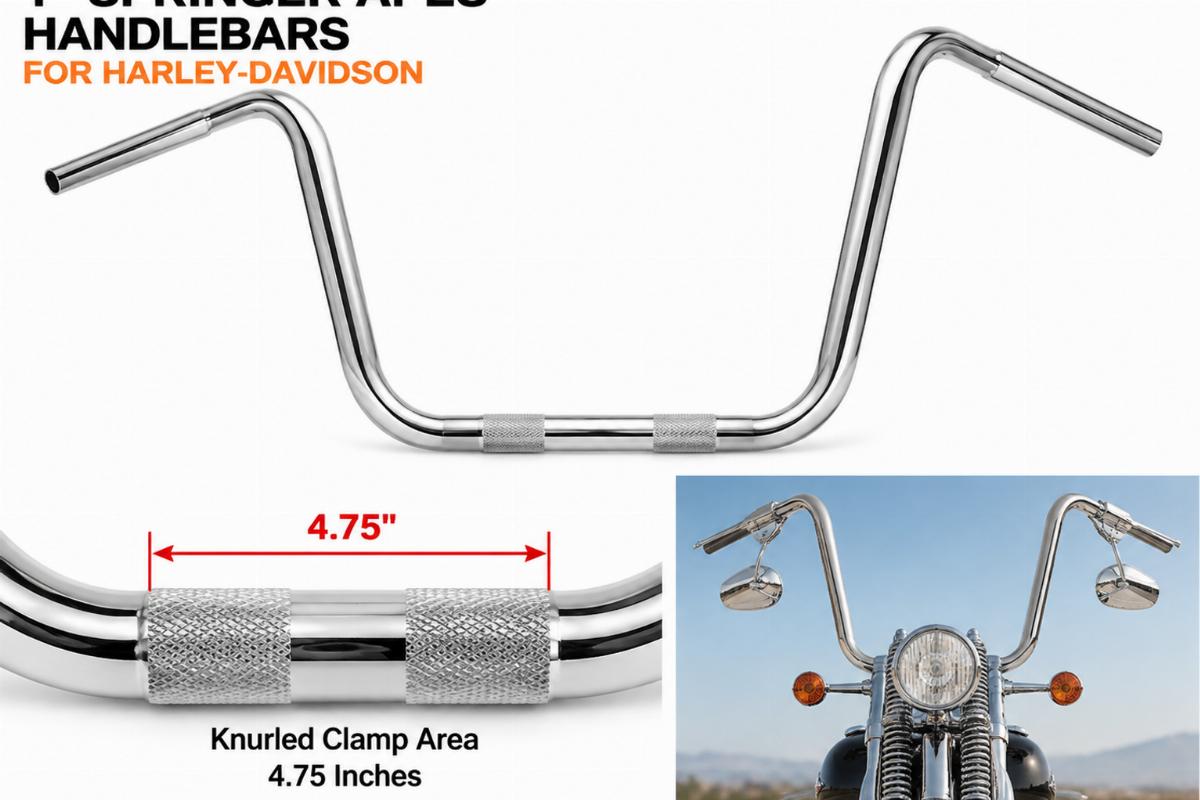

The 4.75″ on-center knurled riser clamp area on these 1″ springer apes handlebars for Harley-Davidson is specifically sized for common aftermarket springer triple trees. Measuring your tree centers before ordering ensures the clamps grip the knurled section rather than the smooth tubing. This prevents clamp slip and maintains a secure hold on the 1″ diameter steel bar.
Verifying Rise and Cable Routing
Rise options from 8″ to 16″ drastically alter your riding position and cable length requirements. A taller rise on these 1″ springer apes handlebars for Harley-Davidson may require custom throttle, clutch, and brake lines to reach the controls safely. Always calculate your cable lengths based on the exact rise and pullback of the chosen bar profile before finalizing the front end assembly [NEED_CITE: cable length adjustments for high rise handlebars].
Wall Thickness and Mandrel Bending
The .109″ wall steel tubing provides the necessary rigidity for the 8″ to 16″ rise options without excessive flex. CNC-mandrel bending ensures the 1″ springer apes handlebars for Harley-Davidson maintain a consistent 1″ outer diameter through the curves. This prevents kinking at the bends, which is critical when routing internal wiring through the dimpled and drilled sections of the bar.
The Hidden Cost of Incorrect Clamp Spacing
Ordering handlebars without verifying the knurling width for your specific springer trees leads to immediate installation failure. The clamps will slide on the smooth steel, leaving you unable to torque the risers to specification. This forces you to disassemble the entire front end, order a new set of 1″ springer apes handlebars for Harley-Davidson with the correct 4.75″ spacing, and lose days of shop time redoing the build [NEED_CITE: shop downtime caused by incorrect handlebar clamp spacing].
Sourcing from a Fitment-Focused Catalogue
We verify the 4.75″ knurling spacing against your springer tree requirements before quoting any 1″ springer apes handlebars for Harley-Davidson. Our catalogue offers multiple rise options from 8″ to 16″ to match your exact cable routing needs. You can order a single set for a custom build without minimum order blocks, and we provide finish options in chrome or black to match your front end.
Documentation and Fitment Records
- Fitment sheet listing the specific springer tree spacing this bar was checked against
- Dimensional data confirming the 4.75″ knurling width and 1″ diameter
- Finish specification for your selected chrome or black option
- Cross-reference sheet for your existing Harley-Davidson part numbers (reference only)
Receiving and Pre-Installation Checks
- Measure the 4.75″ knurled clamp area with calipers to confirm it matches your triple trees
- Verify the 1″ diameter and .109″ wall thickness against your riser and control specs
- Check the dimpled and drilled sections for clear internal wiring paths
- Inspect the CNC-mandrel bends for any surface defects before mounting
- Confirm the 8″ to 16″ rise matches your custom cable and line lengths
Requesting a Fitment Check
Send your Harley-Davidson model, year, and a photo of your aftermarket springer triple trees to confirm the 4.75″ knurling spacing. Provide your desired rise between 8″ and 16″ and your preferred finish so we can verify cable routing and stock availability. We can supply a sample set for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm the 4.75″ knurling spacing fits my specific springer triple trees?
A: Measure the distance between the center of the left and right riser holes on your aftermarket springer trees. If the distance is 4.75 inches, the knurled clamp area on these bars will align perfectly with your trees, ensuring the clamps grip the textured steel instead of slipping on smooth tubing.
Q: What are the key dimensions to measure before ordering 1″ handlebars for a springer conversion?
A: You must measure the riser clamp spacing on your triple trees, the required rise height for your riding position, and the pullback. Confirming these dimensions ensures the 1″ springer apes handlebars for Harley-Davidson will physically mount to your trees and allow your controls to reach properly.
Q: Do I need to order a dimpled bar if I am not using factory controls?
A: If you are running aftermarket controls that do not require internal wiring, a non-dimpled bar is sufficient. However, if you plan to route switch housings or brake lines internally, the dimpled and drilled sections on these 1″ springer apes handlebars for Harley-Davidson are necessary to accommodate the wiring.
Q: Can I order a single set of handlebars for a custom build without a minimum order quantity?
A: Yes, we support single-piece orders for custom builders and repair shops. You can order one set of 1″ springer apes handlebars for Harley-Davidson in your chosen rise and finish without meeting a bulk minimum, allowing you to complete a one-off build without excess inventory.
Q: How do I determine the correct rise for my custom lines and cables?
A: Measure the distance from your triple tree mounting point to your desired hand position. Compare this to the 8″ to 16″ rise options available. Taller rises on these 1″ springer apes handlebars for Harley-Davidson will require longer custom throttle, clutch, and brake cables to maintain proper control function.
