1″ Handlebar for Harley-Davidson – Fitment Checked
Verified triple tree spacing — Every handlebar is checked against stock and aftermarket Harley-Davidson triple tree hole spacing before dispatch to ensure direct riserless mounting.
Product Specification
Part Type | Handlebar
| Parameter | Value |
|---|---|
| Diameter | 1″ |
| Height | 10″ |
| Pullback | 10″ |
| Overall Width | 18″ |
| On-Center Spacing | 3.5″ |
| Wall Thickness | .109″ |
| Mounting Thread | 1/2″-13 (internally threaded uprights) |
| Material | Premium steel tubing |
| Manufacturing | TIG welded by hand, CNC-mandrel bent |
| Finish | Choice of finish |
| Dimpling | Choice of dimpling |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson (stock or aftermarket triple trees) | Confirm with model and year | Riserless design mounts directly to triple tree; can often make use of stock cables and brake lines on most Harley models. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Riserless Mounting Dimensions Dictate Your Build
A 1″ handlebar for harley-davidson custom chopper builds requires exact on-center spacing to mount directly without risers.
Handlebar listings often miss bar diameter, rise, width, pullback or dimpling details, making it hard to judge if the bar fits your custom build without needing extra risers. When the 3.5″ on-center spacing does not match the triple tree, the bars simply sit unmountable, leaving the front end incomplete and the bike stuck on the lift. Verifying the triple tree hole spacing and bar diameter prevents this exact scenario [NEED_CITE: factory service manual specifications for triple tree hole spacing by model year].
Checking Triple Tree Hole Spacing
Before confirming fitment for a 1″ handlebar for harley-davidson custom chopper applications, the triple tree hole spacing must be measured. This riserless design relies on a strict 3.5″ on-center spacing to align perfectly with the mounting holes. If the triple tree spacing varies due to an aftermarket modification or a specific model year change, the handlebar will not seat correctly.
Verifying Cable and Line Routing

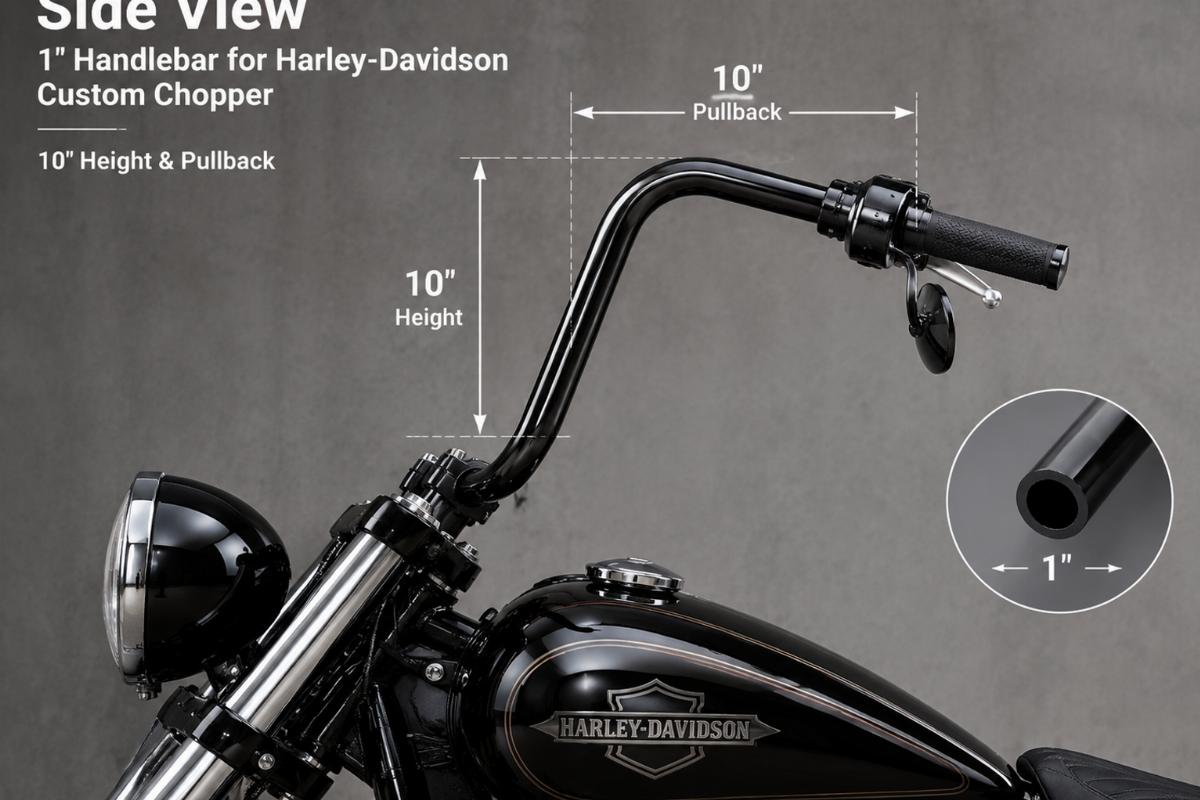

The 10″ height and 10″ pullback on this 1″ handlebar for harley-davidson custom chopper setups directly affect cable and brake line routing. While the riserless design can often make use of stock cables and brake lines on most Harley models, the exact pullback distance changes the routing path. Always verify the line length against the specific model year to ensure they reach the controls without stretching [NEED_CITE: cable length variations across custom chopper model years].
Understanding Core Dimensions and Wall Thickness

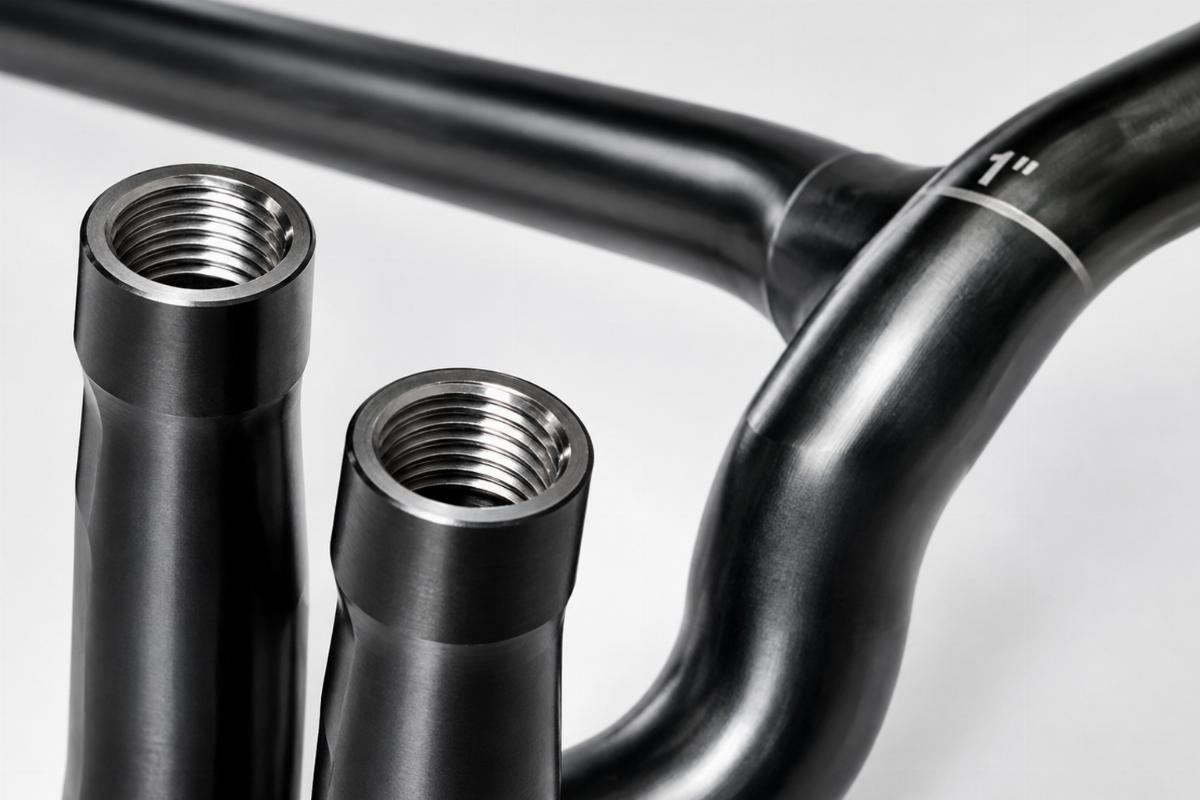

The 1″ diameter and .109″ wall thickness of the premium steel tubing provide the structural baseline for this handlebar. The 18″ overall width determines how the rider’s stance aligns with the tank and controls. Internally threaded uprights accept standard 1/2″-13 mounting bolts, which means the thread pitch and depth must match the triple tree studs exactly to prevent cross-threading during assembly.
The Hidden Cost of Incorrect Spacing
When a riserless handlebar arrives with incorrect on-center spacing, the entire front-end assembly halts. The bike sits on the shop floor while the builder waits for a replacement, delaying the build timeline. Furthermore, if the dimpling or finish choice does not match the rest of the front-end components, the visual consistency of the custom chopper is compromised, requiring a complete reorder [NEED_CITE: fitment issues caused by unverified riserless handlebar dimensions].
Sourcing Fitment-Checked Handlebars
We verify fitment against the platform family and model year range before quotation. Our catalogue offers a choice of finish and choice of dimpling to match your specific front-end setup. We support single piece orders, allowing custom builders to purchase exactly what they need for one bike without meeting high minimums. Cross-referencing against Harley-Davidson OEM numbers (reference only) ensures you get the correct replacement profile.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including bar diameter, rise, pullback, and overall width
- Finish specification and dimpling options for the selected handlebar
- Cross-reference sheet with OEM numbers marked reference only
- Quality inspection record detailing the TIG welding and mandrel bending checks
Receiving and Pre-Installation Checks
- Verify the 3.5″ on-center spacing matches your specific triple tree before mounting.
- Check the 1/2″-13 internal threads on the uprights for any shipping damage.
- Confirm the choice of finish and choice of dimpling matches your order sheet.
- Measure the 10″ height and 10″ pullback against your stock cables to confirm routing.
- Have a qualified technician inspect the TIG welded joints and .109″ wall thickness prior to installation.
Requesting a Fitment Check
Send your model and year for a fitment check to confirm this 1″ handlebar for harley-davidson custom chopper applications matches your triple tree. Provide your old part照片 or key实测尺寸 if the part number is unknown. Let us know your required finish, dimpling choice, and if you need a sample for fitment confirmation before placing a bulk order.
