Single Piece Order 1″ Slant Z Handlebar for Harley-Davidson
Fitment Verified by Platform — Every 1″ slant z handlebar for harley-davidson is checked against specific model years and control housing requirements before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1″ |
| Rise | 6″ |
| Width | 24″ |
| Wall Thickness | .109″ |
| Material | Premium steel tubing |
| Welding | TIG welded by hand |
| Finish | Choice of finish |
| Dimpling | Choice of dimpling |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson models | Confirm with model and year | Often allows use of stock cables and brake lines |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Handlebar Dimensions Dictate Your Control Setup
Missing riser dimpling or incorrect wiring holes will stall a build on the lift.
When sourcing a 1″ slant z handlebar for harley-davidson, builders often assume a standard 1″ diameter fits all generations. Early Dyna models, for instance, require specific wiring-hole placements and riser dimpling to route internal cables through the controls [NEED_CITE: factory service manual specifications by model year]. If the dimpling is omitted or placed incorrectly, the internal wiring cannot pass through the switch housings, forcing a complete rewire or a return to the supplier. Verifying the exact platform and year range prevents this costly assembly failure.
Checking Control Housing Compatibility
Before ordering, you must verify that the 1″ diameter and chosen dimpling option match your specific Harley-Davidson model’s control housings. The inward-angling uprights on a 1″ slant z handlebar for harley-davidson change the physical footprint at the riser clamp area. If the clamp width or the angle interferes with your specific fuel tank clearance or headlight bucket, the bar will not seat properly. Always cross-reference the riser spacing and clamp diameter against your existing triple tree setup.
Evaluating Stance and Cable Routing

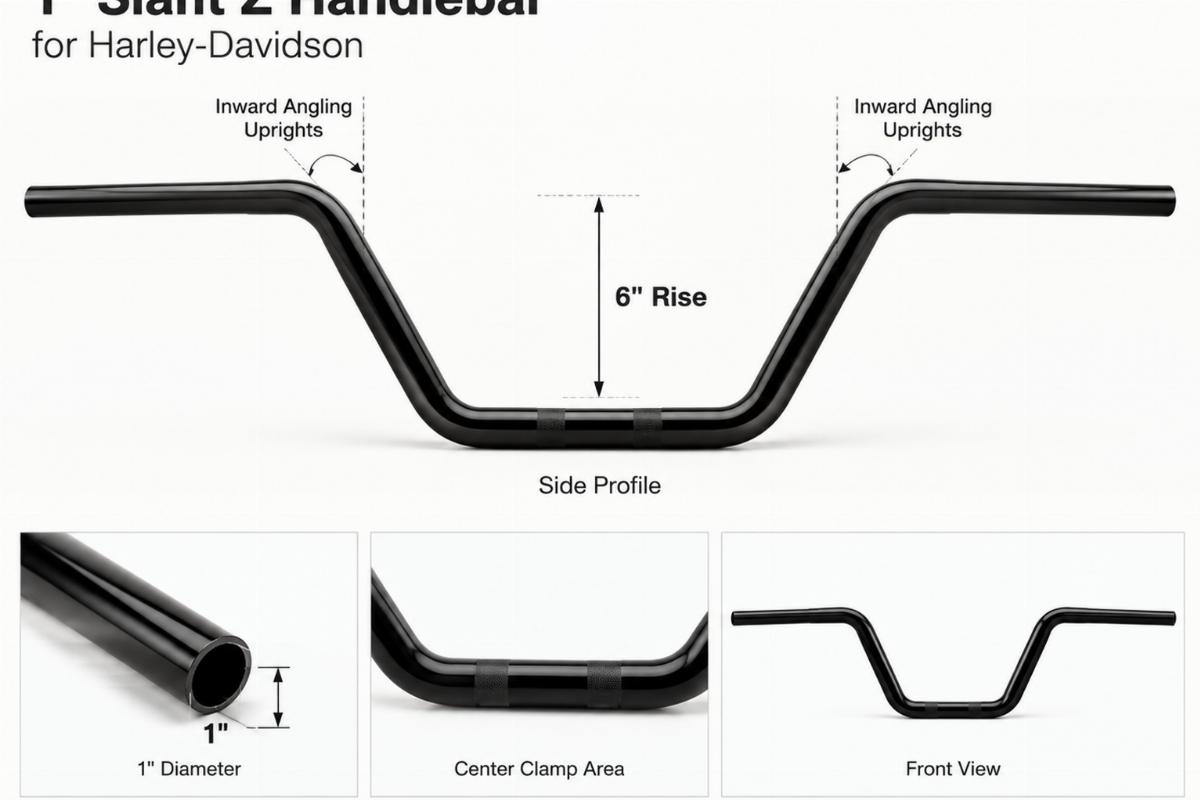

The 6″ rise and 24″ overall width directly influence your riding position and cable routing length. While this 1″ slant z handlebar for harley-davidson often allows the use of stock cables and brake lines, the inward-angling uprights alter the pullback and width at the grips. You need to confirm that the 24″ width provides enough clearance for your mirrors and hand controls without stretching the throttle and brake cables beyond their safe operating limits [NEED_CITE: cable routing clearances for custom handlebar rises].
Interpreting Steel Tubing and Wall Thickness

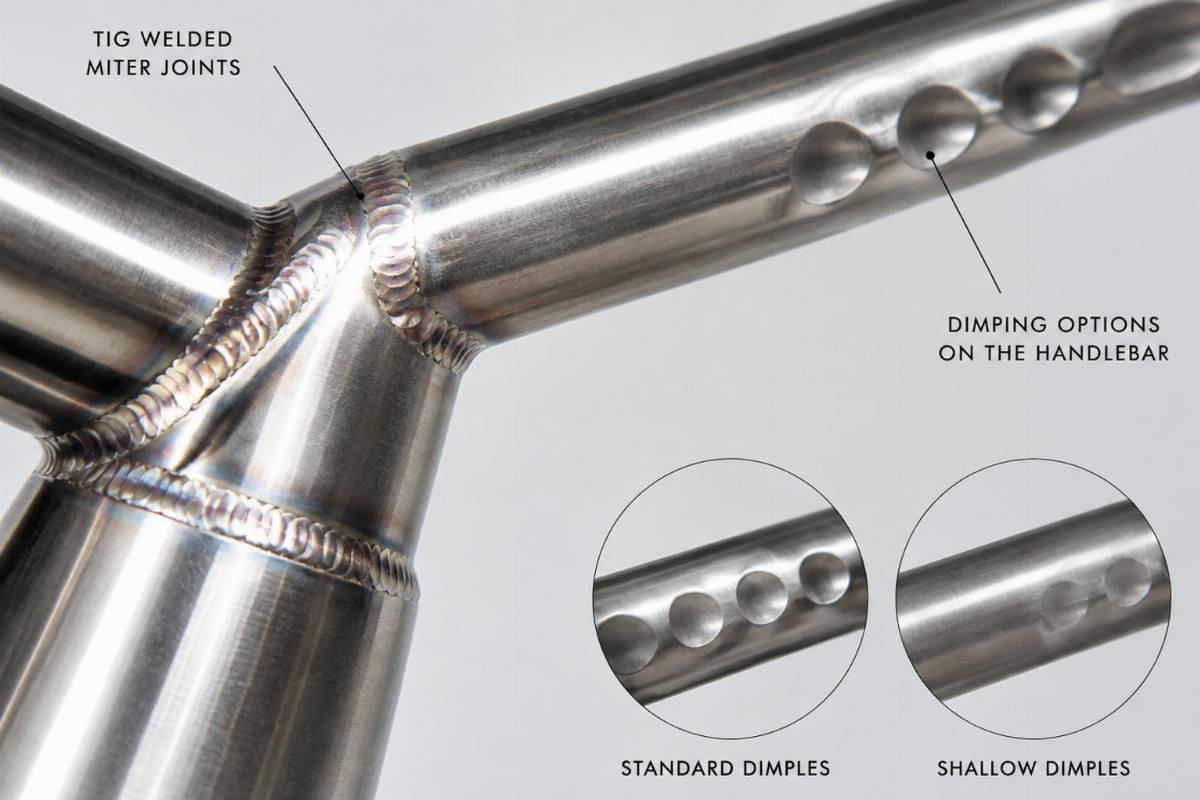

The .109″ wall thickness on the premium steel tubing provides the necessary structural rigidity for a 6″ rise without adding excessive weight. TIG welded by hand with flawless miter cuts, the joints maintain uniform strength where the uprights meet the center section. This wall thickness is critical for handling the leverage forces applied during steering inputs and braking, ensuring the bar does not flex under load. The choice of finish and dimpling options allows you to match the bar to your specific electrical and aesthetic requirements.
The Hidden Cost of Incorrect Fitment Data
Ordering a handlebar without confirming the exact model year often leads to parts that physically bolt on but fail functionally. A bar with the wrong dimpling placement will pinch internal wires, causing short circuits or complete control failure. Furthermore, if the inward-angling uprights clash with a custom fuel tank, the bike sits in the shop waiting for a replacement tank or a new bar. These fitment errors result in lost labor hours, delayed project completion, and the frustration of返工 [NEED_CITE: assembly delays caused by incorrect handlebar dimpling and clearance issues].
Sourcing with Fitment Certainty
We verify the exact platform and year range against your request before quoting any handlebar. Our catalogue offers a choice of finish and dimpling options to match your specific control housings and aesthetic needs. We support a one-piece minimum order, allowing custom builders to source a single bar for a specific project without meeting bulk thresholds. Every 1″ slant z handlebar for harley-davidson is checked for dimensional accuracy, ensuring the 1″ diameter, 6″ rise, and 24″ width match your build requirements.
Documentation Provided
- Fitment sheet stating applicable Harley-Davidson platforms and year ranges
- Key dimensions including 1″ bar diameter, 6″ rise, and 24″ overall width
- Finish specification and choice of dimpling options documentation
- Sample supply available for fitment confirmation before bulk orders
- Quality inspection record detailing TIG welding and miter cut checks
Receiving and Pre-Installation Checks
- Verify the 1″ diameter and choice of dimpling match your control housings
- Measure the 6″ rise and 24″ width to confirm stance and cable routing
- Inspect the TIG welded joints and miter cuts for structural integrity
- Check the choice of finish for consistency across the center section and uprights
- Ensure internal wiring passages are clear if running internal controls
- Store the bar in a dry environment to protect the finish before installation
Requesting a Fitment Check
Send your specific Harley-Davidson model and year for a fitment check before ordering. Provide your old part photos or key measurements if the year is unknown, and specify your required choice of finish and dimpling. Let us know if you need a sample to confirm cable routing and riser clearance for your custom build.
Frequently Asked Questions
Q: How do I confirm my Harley-Davidson model and year can fit this 1″ slant z handlebar for harley-davidson?
A: You must verify the handlebar diameter and dimpling requirements match your specific model’s control housings. Early Dyna models require specific wiring-hole placements and riser dimpling for the 1″ diameter. Send your exact model and year to confirm compatibility and internal wiring clearance before ordering.
Q: What key dimensions should I measure to ensure the 6″ rise and 24″ width match my build?
A: Measure the distance from the riser clamp to the grip center to verify the 6″ rise. Check the overall width of 24″ to ensure it aligns with your desired riding position and does not interfere with your fuel tank. Confirm that the inward-angling uprights provide adequate clearance for your headlight and mirrors.
Q: Can I order a single handlebar for a custom build, or is there a minimum order quantity?
A: We support a one-piece minimum order, allowing you to purchase a single handlebar for a custom build without bulk requirements. This is ideal for custom builders and restoration shops working on individual projects. You can also request a sample for fitment confirmation before placing larger orders.
Q: How do I verify the finish and dimpling options match my existing controls?
A: Specify your required choice of finish and dimpling options when requesting a quote. We provide a finish specification and dimpling documentation to ensure the bar matches your switch housings and aesthetic needs. If unsure, request a sample to physically verify the dimpling placement and finish quality against your existing controls.
Q: Can I request a sample to confirm fitment and cable routing before placing a bulk order?
A: Yes, sample supply is available for fitment confirmation before bulk orders. This allows you to test the 1″ diameter, 6″ rise, and 24″ width on your specific platform. You can verify that the inward-angling uprights clear your fuel tank and that the internal wiring passes through the controls correctly.
