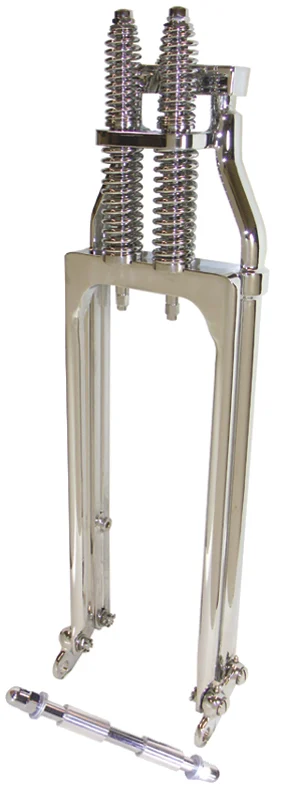

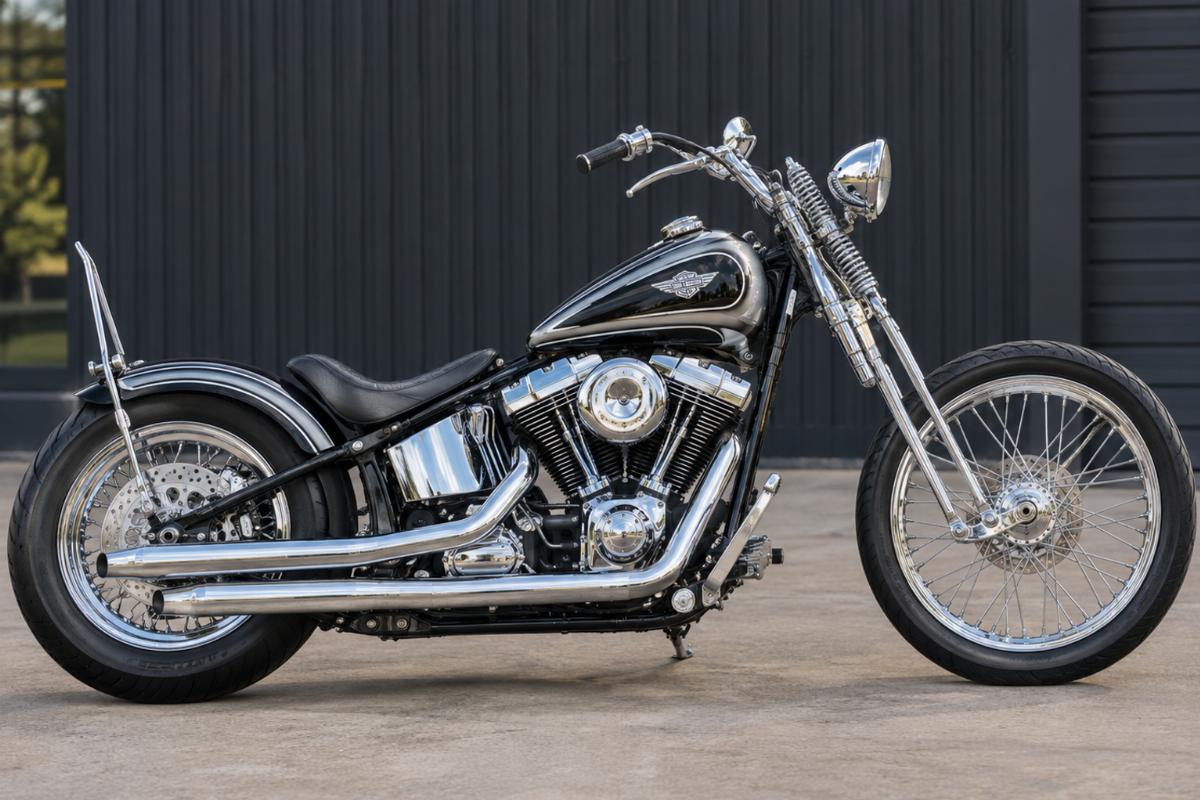

Chrome Custom Springer Front End 30″ – Fits Softail

Single Piece Order Accepted — We supply this complete 30-inch chrome plated assembly without minimum quantity blocks, allowing custom builders to order exactly one unit for a specific Softail project.

Product Specification

Part Type | Custom Springer Front End

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

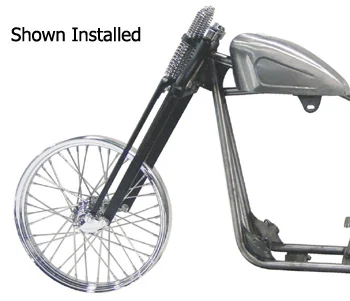

Verifying Over-Stock Geometry for Your Softail Frame

A +6″ over stock length fundamentally alters front-end geometry and requires precise frame measurement before ordering.

Springer forks offered “over stock” often lack clear statements on overall length and geometry impact, making it difficult to judge ride height and steering compatibility before ordering. When a builder ignores the overall length and rake specs, the steering geometry shifts, and the front fender can rub against the triple tree because the trail was not calculated right. That mistake forces weeks of rework and delays the build schedule.

Calculating Rake and Trail Impact on Ride Height

Installing a custom springer front end for softail platforms with a 30″ overall dimension changes the steering axis. You must measure the neck angle and calculate the resulting trail to ensure the front fender clears the triple tree at full compression. The 24″ distance from the bottom bearing to the axle center dictates the exact drop, which directly affects the stance and handling characteristics of the finished chopper.

Matching Riser Mounts and Handlebar Clearances

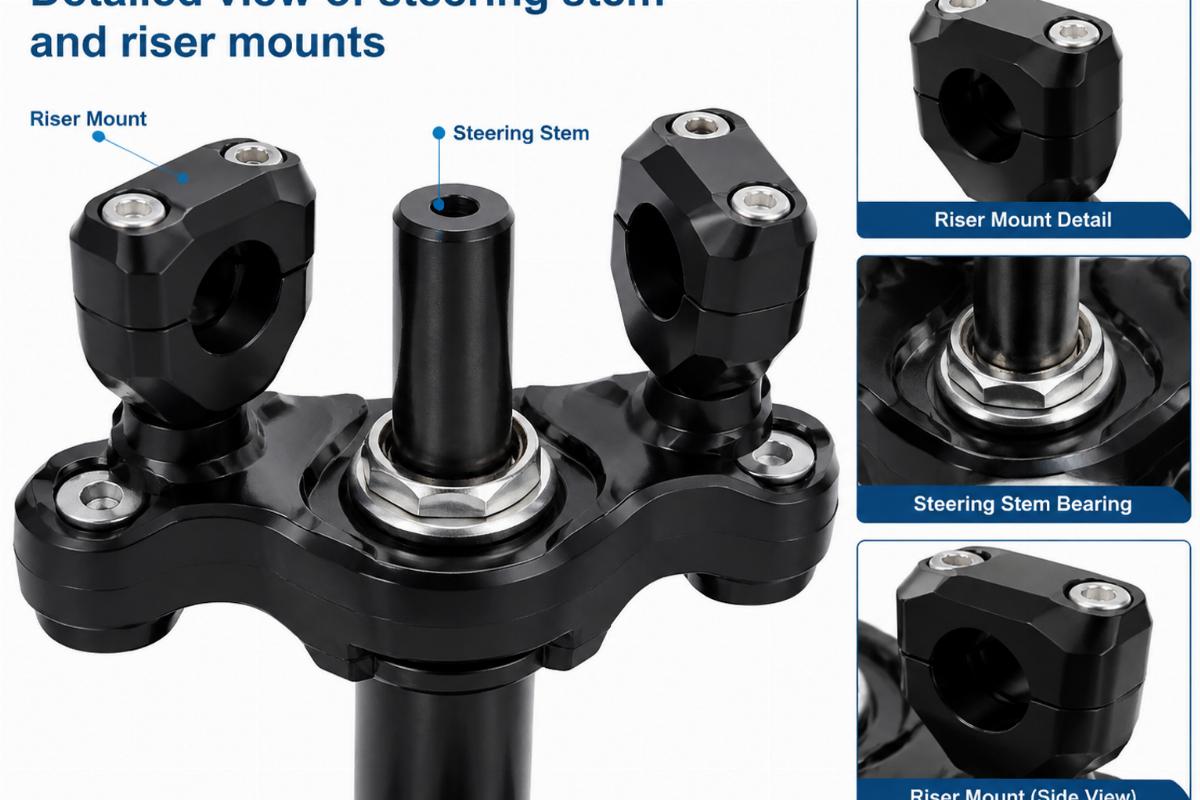

The 4 3/4″ riser mount centers and 1/2-20 thread pattern determine which handlebars and risers will bolt directly to the top tree. If the distance between rockers is 9 1/4″, you must verify that your chosen handlebars do not interfere with the fork movement or the fuel tank during full steering lock. Checking these clearances prevents binding and ensures smooth steering operation.

Interpreting Steering Stem and Axle Dimensions

The 1″ O.D. steering stem is designed for Timken type bearings, requiring a matching neck cup and bearing set to prevent steering play. The 3/4″ O.D. axle kit includes the brake mount pivot, thrust washer, and hub spacers, meaning your wheel hub must be machined or spaced to accept this exact axle diameter. Mismatched axle spacing leads to misaligned brake calipers and uneven bearing wear.

The Hidden Cost of Unverified Springer Dimensions

Ordering a front end without confirming the over-stock length and rake impact often results in the front fender rubbing against the triple tree. This happens when the trail is not calculated right for the specific frame neck angle. The bike ends up sitting on the shop floor for weeks while the builder sources different risers, modifies the fender mounts, or re-welds the tree to correct the geometry. Verifying the 30″ overall dimension against your frame specs prevents this costly rework.

Sourcing Front End Depth and Finish Consistency

We produce complete springer assemblies and offer multiple over-stock lengths in one catalogue, ensuring you get the exact 30″ dimension needed for your build. The chrome plated finish is applied under controlled conditions to maintain consistency between batches, so side-by-side fittings look uniform. You can order a single piece for a custom build without facing bulk quantity blocks, and we verify fitment against the Softail platform before dispatch.

Documentation and Fitment Records

• Fitment sheet listing the Softail platform and confirming the +6″ over-stock length
• Key dimensions sheet detailing the 30″ overall length and 24″ bearing-to-axle measurement
• Finish specification document for the chrome plated surface
• Quality inspection record verifying steering stem O.D. and riser mount threads
• Packing photographs showing the assembled unit and axle kit components

Receiving and Pre-Installation Checks

• Verify the 30″ overall length and 24″ bearing-to-axle measurement with a tape measure upon arrival
• Inspect the chrome plated finish on the rockers and legs for any shipping damage or plating defects
• Check the 1/2-20 riser mount threads to ensure they are clean and free of plating buildup

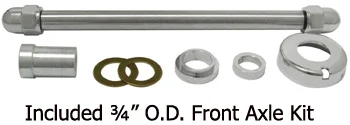

• Confirm the 3/4″ O.D. axle kit includes the brake mount pivot and thrust washer
• Store the assembly in a dry environment to prevent surface corrosion before installation

Requesting a Fitment Check for Your Build

Send your specific Softail model and year range along with a photograph of the current neck assembly for a fitment check. Provide the measured neck angle and desired ride height to confirm if this 30″ custom springer front end for softail platforms matches your geometry. Let us know if you need a sample supply for fitment confirmation before committing to the final order.

Frequently Asked Questions

Q: How do I confirm if this +6″ over stock springer fits my specific Softail frame geometry?

A: You must measure your frame’s neck angle and calculate the resulting trail to ensure the front fender clears the triple tree. The 30″ overall dimension and 24″ bearing-to-axle measurement dictate the exact drop. We provide a fitment sheet to verify these dimensions against your specific model year before dispatch.

Q: What key dimensions should I measure on my wheel to ensure proper axle fitment?

A: Measure your wheel hub spacing to ensure it accommodates the 3/4″ O.D. axle kit. The kit includes the brake mount pivot, thrust washer, and hub spacers. Your hub must be machined or spaced to accept this exact diameter to prevent misaligned brake calipers and uneven bearing wear.

Q: Does the kit include all necessary hardware for the riser mounts and axle assembly?

A: The assembly features 4 3/4″ riser mount centers with a 1/2-20 thread pattern for direct handlebar mounting. The 3/4″ O.D. axle kit includes the brake mount pivot, thrust washer, and hub spacers. Custom spacers may be required depending on the specific wheel used for your build.

Q: Can I order a single piece for a custom build instead of a bulk quantity?

A: Yes, we accept single piece orders for custom builders working on individual projects. There are no minimum order quantity blocks preventing you from purchasing exactly one unit. We verify the fitment against the Softail platform and provide a sample supply option if you need physical confirmation before finalizing.

Q: How do you ensure finish consistency between different batches of chrome plated front ends?

A: The chrome plated finish is applied under controlled conditions in our own facility to maintain visual consistency across production runs. This ensures that when parts are fitted side by side or ordered in separate batches, the surface quality and reflectivity remain uniform without noticeable variations in plating depth or color.
