Aftermarket Replacement Custom Springer Front End for FXST Softail

Consistent Chrome Finish — Every batch of this custom springer front end for FXST Softail is plated to match across components, ensuring uniform appearance when assembled.

Product Specification

Part Type | Custom Springer Front End

Finish | Chrome plated

Material | Forged rockers and in-line top bracket

Length | 32″ overall (+8″ over stock; 24″ standard length measured from bottom bearing to axle center)

Steering Stem O.D. | 1″

Bearing Type | Timken type

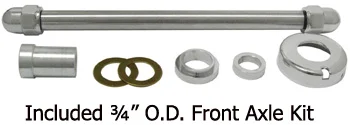

Axle Kit O.D. | 3/4″ (includes brake mount pivot, thrust washer, and hub spacers)

Width Between Rockers | 9 1/4″

Riser Mounts | 4 3/4″ centers, threaded 1/2-20

Rear Legs | 1 piece from rocker to top tree, threaded for right or left brakes

Top Bracket | In-line, without built-in rake

Additional Features | Rocker grease fittings

Fitment

Platform | Year Range | Notes

Softail (FXST) | Confirm with model and year | +8″ over stock length; comparable to standard length

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Resolving Geometry Uncertainty in Over-Stock Springer Forks

A +8″ over stock length fundamentally alters ride height and steering trail.

Springer forks offered “over stock” often lack clear statements on overall length and geometry impact, making it hard to judge ride height and steering changes before ordering. When a builder assumes a standard 24-inch measurement without verifying the 32-inch overall dimension, the front end sits significantly higher. This mismatch destroys the intended steering geometry of the FXST Softail frame, forcing costly rework or frame modification to correct the rake.

Verifying Frame Neck Compatibility for 1″ Stems

Before ordering a custom springer front end for FXST Softail platforms, the 1″ O.D. steering stem must be measured against the frame neck. Timken type bearings require precise seating to function correctly. If the neck was previously machined for a different diameter, this stem will not seat properly, leading to dangerous steering play or binding.

Measuring Riser and Headlight Clearances

The 9 1/4″ width between rockers and 4 3/4″ riser mount centers dictate handlebar and headlight fitment. Builders must confirm these dimensions against their chosen handlebars and lighting setups. Ignoring the 1/2-20 threaded riser mount spacing often results in brackets that fail to align, requiring custom fabrication to mount the headlight correctly.

Understanding the Impact of 32″ Overall Length

The 32″ overall length, measured from the bottom bearing to the axle center, includes the +8″ over stock extension. This extra length raises the front axle, changing the trail and making the steering feel heavier. Custom builders must calculate how this 32-inch dimension interacts with their specific rear suspension travel to maintain a balanced stance.

Hidden Costs of Ignoring Dimensional Data

Ordering a springer without confirming the 1 piece rear leg threading for right or left brakes can halt a build. If the brake caliper mount threads do not match the rotor side, the wheel cannot be secured. Similarly, overlooking the 3/4″ axle kit O.D. means the hub spacers will not fit the wheel bearings, leaving the bike stranded on the lift until custom spacers are machined.

Sourcing from a Front-End Specialist

We manufacture this custom springer front end for FXST Softail in our own facility, ensuring direct control over the forged rockers and in-line top bracket. Our front-end depth means you get complete assemblies and early parts in one catalogue, eliminating the need to source components from multiple vendors. We offer chrome plated finishes with strict batch consistency, so parts match visually. Fitment is confirmed against the Softail platform before quotation, and we support single piece minimum orders for custom builders.

Documentation Provided

• Fitment sheet stating applicable platforms and year ranges
• Cross-reference sheet with OEM numbers marked reference only
• Key dimensions including 32″ overall length and 1″ stem diameter
• Finish specification for the chrome plated components
• Quality inspection record for forged rockers and top bracket
• Packing photographs showing the 3/4″ axle kit and hub spacers

Receiving and Pre-Installation Checks

• Verify the 32″ overall length and +8″ over stock dimension against your frame geometry.
• Measure the 1″ O.D. steering stem against your frame neck before pressing bearings.
• Check the 9 1/4″ width between rockers to ensure handlebar clearance.
• Inspect the chrome plated finish on all components for consistency before assembly.
• Confirm the 4 3/4″ riser mount centers match your chosen handlebar clamps.
• Have a qualified technician verify the 1/2-20 threaded riser mounts during installation.

Requesting a Fitment Check

Send your FXST model code and year range to verify this custom springer front end for FXST Softail matches your frame geometry. Provide the 1″ steering stem measurement and any specific handlebar width requirements to ensure proper clearance. Let us know if you need a sample unit to test the chrome finish quality and 32″ overall length before placing a bulk order.
