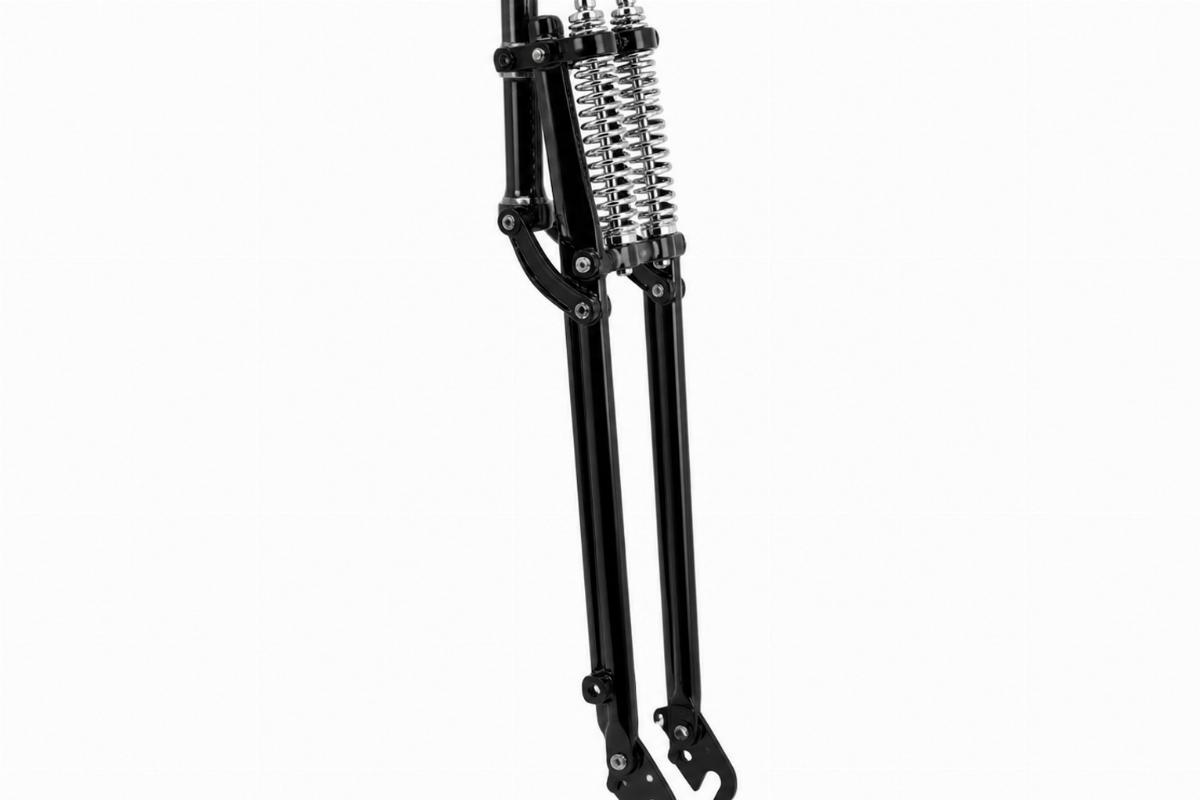

20″ Narrow Spring Fork Assembly Black – Fitment Checked
Fitment Verified by Year Range — Every narrow spring fork assembly is checked against specific platform families and model years before quotation to prevent mounting mismatches.
Product Specification
Part Type | Spring Fork Assembly
| Parameter | Value |
|---|---|
| Length | 20″ |
| Finish | Black with chrome springs |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Rocker Width | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree | Standard stem and tube locations, inline |
| Left Side Rocker | Offset |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Accepts dog bone or stock spring fork handlebars; accepts original spring fork components, headlamp bracket, shock assembly or ride control. Confirm with model and year. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Confusion in Custom Springer Builds
A 20″ narrow spring fork assembly requires exact frame neck and axle spacing verification.
Springer forks offered over stock often lack clear statements on overall length and rocker width, making it hard to judge steering geometry and brake fitment. I remember a buyer ordering a fork for a Springer Softail without specifying the year. They just said FLSTS. We sent out a unit, but the 1-inch stem and 3/4-inch axle spacing did not match their specific year triple tree. The 6-inch rocker width was right, but the mounting points were off, and the fork sat crooked [NEED_CITE: factory service manual specifications by model year]. It taught me to always verify the exact model year and measure the stem and axle dimensions before quoting.
Verifying Frame Neck and Stem Compatibility
When evaluating a narrow spring fork assembly, the 1-inch stem diameter must align perfectly with your frame’s steering head neck dimensions. An inline top triple tree with standard stem and tube locations simplifies handlebar mounting, but the frame neck must accept this specific 1-inch profile. If the neck is bored for a different diameter, the assembly will not seat correctly, leading to steering bind or unsafe handling characteristics [NEED_CITE: steering head neck dimension variations across custom frames].
Axle Spacing and Brake Clearance Considerations

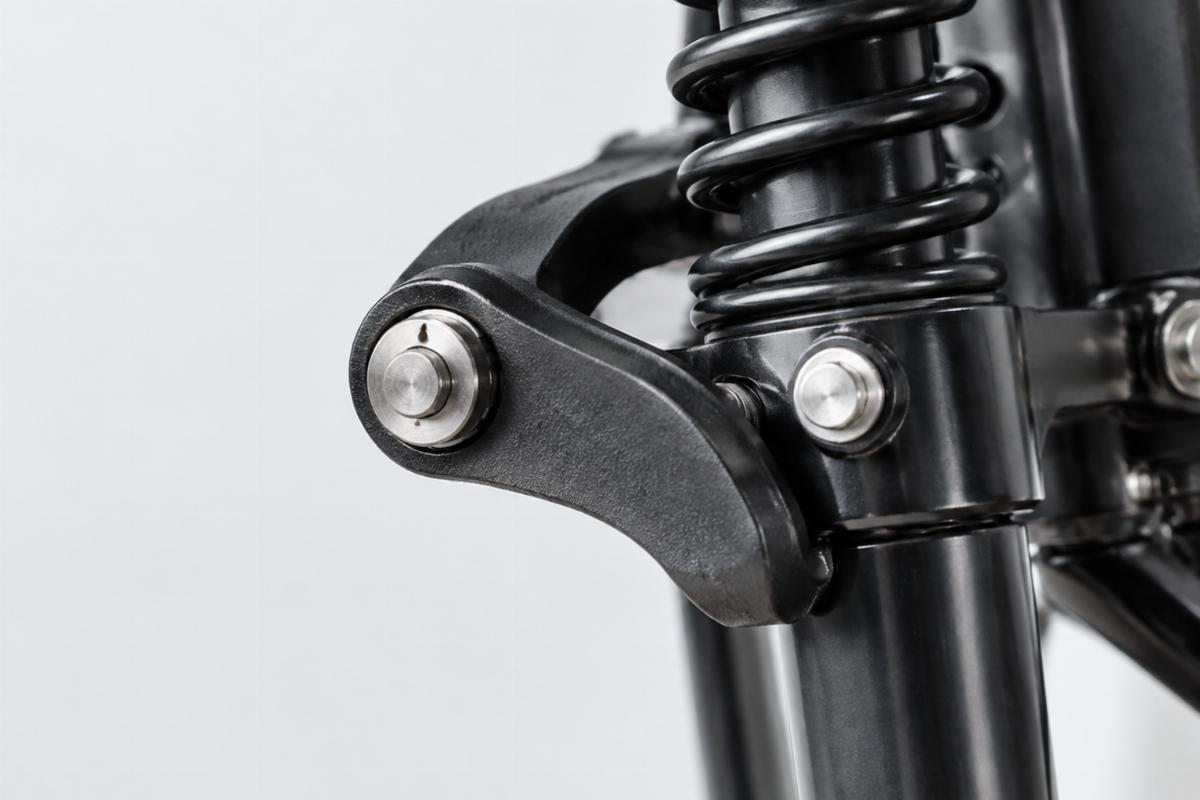

The 3/4-inch axle outer diameter dictates the hub compatibility, while the 6-inch rocker width defines the overall stance. Crucially, the left side rocker is offset to allow space for applications where a brake system is installed. This offset ensures the caliper and rotor clear the rocker leg without interference. Failing to account for this offset when selecting a wheel hub or brake setup can result in the assembly sitting crooked or the brake dragging [NEED_CITE: axle spacing and brake clearance requirements for springer front ends].
The Hidden Cost of Unchecked Dimensions
Ordering a front end without confirming the exact model year and measuring the stem and axle dimensions often leads to costly delays. A mismatched 1-inch stem or incorrect 3/4-inch axle spacing means the fork sits crooked or fails to mount to the triple tree. The bike ends up stuck on the lift or the workbench, blocking the bay while waiting for a replacement or modification. Verifying the 20-inch length and 6-inch rocker width against your specific build prevents this downtime and ensures the narrow spring fork assembly integrates seamlessly into your project [NEED_CITE: impact of incorrect front end dimensions on build timelines].
Sourcing from a Front End Specialist
We produce front-end and chassis parts in our own facility, ensuring direct control over the manufacturing of springer assemblies. Fitment is confirmed against platform family and model year range before quotation, eliminating guesswork. We offer a minimum order from one piece, accommodating custom builders working on single-bike projects. Cross-reference against Harley-Davidson OEM numbers is provided, marked reference only, to assist in identifying correct replacements. This depth in front-end components, combined with strict fitment verification, supports dealers, custom builders, and repair shops with reliable parts.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for the 20″ narrow spring fork assembly
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including fork length over stock, stem diameter, and rocker width
- Finish specification detailing the black finish with chrome springs
- Quality inspection record verifying the 1″ stem and 3/4″ axle dimensions
Receiving and Pre-Installation Checks
- Verify the 1″ stem diameter and 3/4″ axle outer diameter against your frame and wheel hub upon arrival.
- Inspect the black finish and chrome springs for any transit damage or surface inconsistencies.
- Confirm the left side rocker offset provides adequate clearance for your specific brake caliper setup.
- Check the 3/4″-18 leg thread to ensure compatibility with your chosen handlebar risers or mounting hardware.
- Ensure the inline top triple tree standard stem and tube locations match your handlebar requirements.
- Store the narrow spring fork assembly in a dry environment to protect the finish before installation.
Requesting a Fitment Check
Send your exact model code and year range to verify if this 20″ narrow spring fork assembly matches your frame geometry. Provide the stem diameter and axle spacing measurements from your current setup or triple tree to confirm compatibility. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop or custom build.
Frequently Asked Questions
Q: How do I confirm my motorcycle model and year fits this 20″ spring fork assembly?
A: Provide your exact model code and year range so we can verify the 1-inch stem diameter and 3/4-inch axle spacing against your frame’s steering head neck and wheel hub. We check fitment against specific platform families before quotation to ensure the 20-inch length and 6-inch rocker width match your build requirements.
Q: What key dimensions should I measure to ensure the 1″ stem and 3/4″ axle fit my frame and wheel?
A: Measure the inner diameter of your frame’s steering head neck to confirm it accepts the 1-inch stem. Check your wheel hub’s axle bore to ensure it matches the 3/4-inch outer diameter. Verify the distance between the fork legs to ensure the 6-inch rocker width aligns with your setup.
Q: Does the 6″ rocker width allow enough clearance for my specific brake caliper setup?
A: The 6-inch rocker width provides a standard stance, but the left side rocker is specifically offset to allow space for applications where a brake system is installed. You must verify that this offset provides adequate clearance for your specific caliper and rotor combination to prevent interference.
Q: Can I order a single spring fork assembly for a custom build without a minimum order quantity?
A: Yes, we support custom builders and independent repair shops by offering a minimum order from one piece. You can order a single 20″ narrow spring fork assembly for your specific project without being blocked by bulk quantity requirements, and we verify fitment before dispatch.
Q: How do you verify the fitment of the inline triple tree and handlebar riser mounts?
A: We confirm that the top triple tree features standard stem and tube locations in an inline configuration to accept your handlebars. We also verify that the 3/4″-18 leg thread on the forks matches your riser or mounting hardware requirements, ensuring proper integration with your chosen controls.
