Fitment Checked 18″ Narrow Black Springer Fork Assembly
In-house springer production — every 18″ narrow springer fork assembly is manufactured and dimensionally verified in our own facility before dispatch.
Product Specification
Part Type | Springer Fork Assembly
| Parameter | Value |
|---|---|

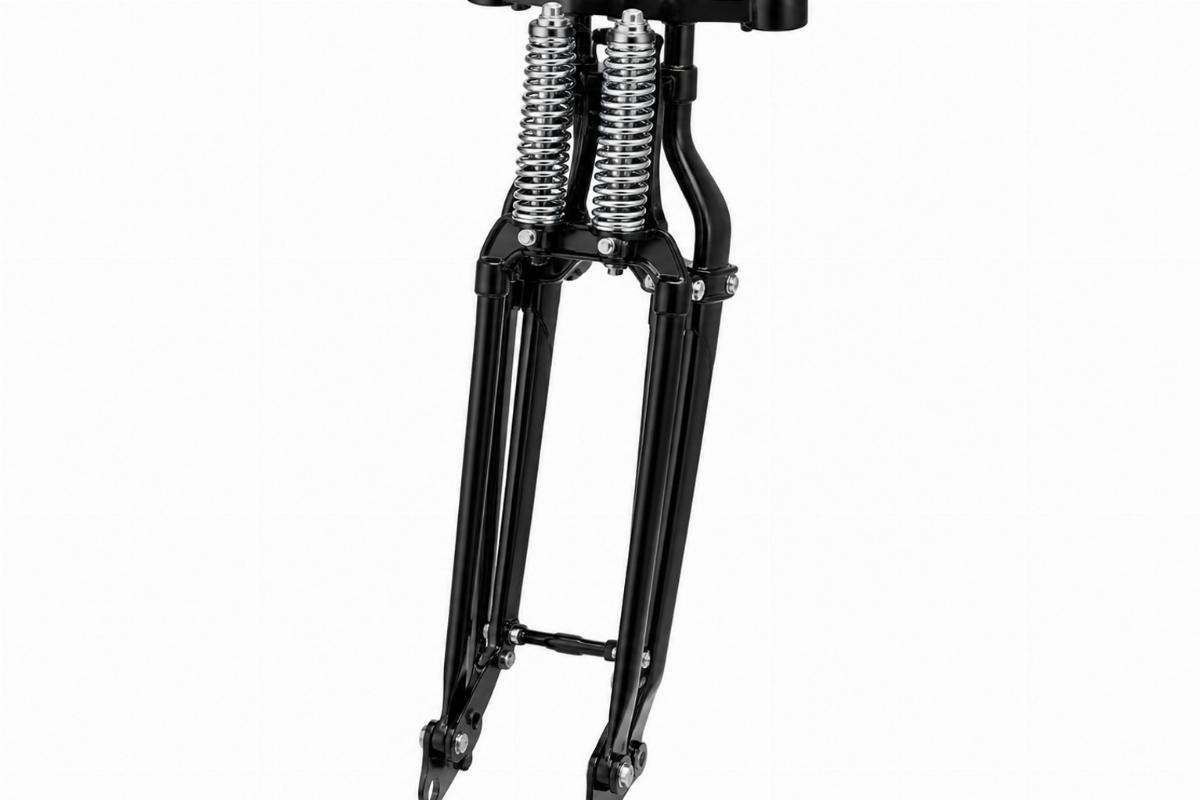

| Finish | Black with chrome springs |
| Overall Length | 18″ |
| Stem Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree | Standard stem and tube locations, inline |
| Left Side Rocker | Offset |

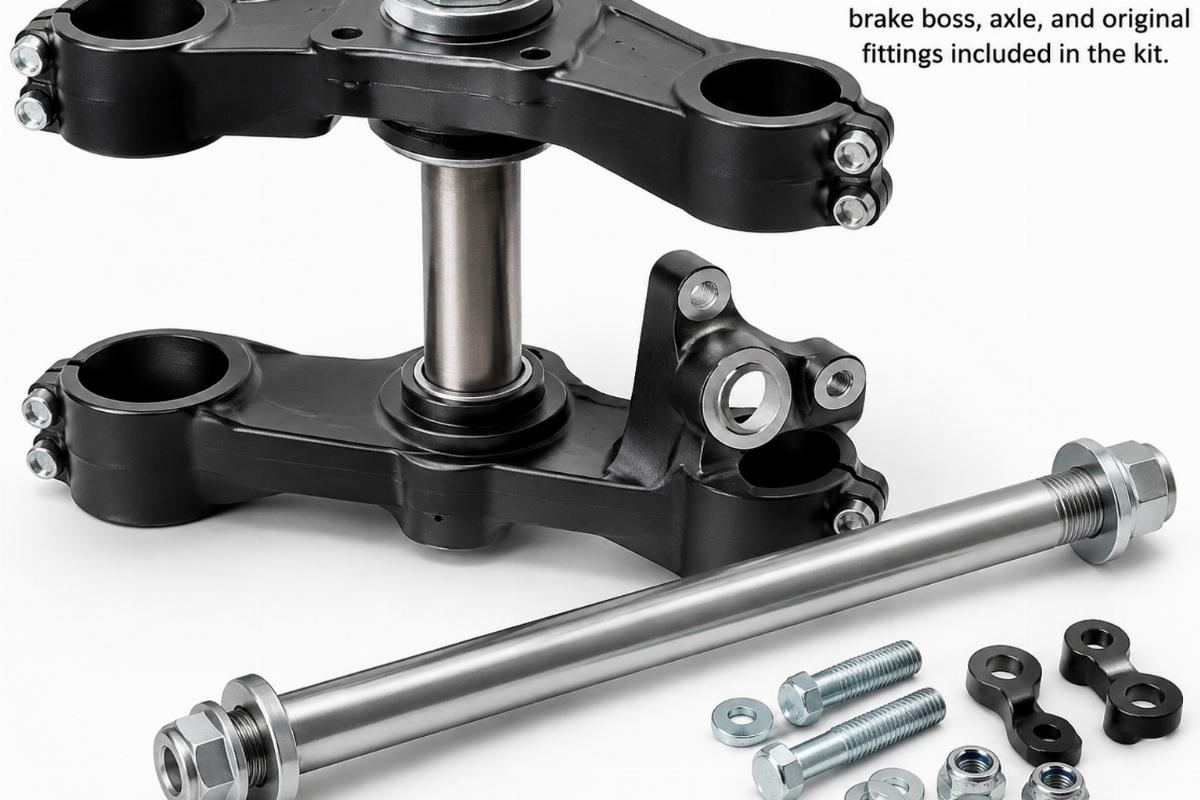

| Kit Contents | Triple tree, brake boss, axle, original fittings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Confirm with model and year | Accepts standard spring fork components, headlamp bracket, shock assembly or ride control. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Rocker Width and Axle Spacing Dictate Your Build Timeline
A 6-inch rocker width and 3/4-inch axle demand exact frame and wheel matching before ordering.
Builders often focus solely on the 18″ overall length when selecting a 18″ narrow springer fork assembly, assuming the rest of the front end will naturally align. I have seen custom projects sit on the lift for weeks because the rocker spacing did not match the front wheel hub width or the brake caliper mount. When the 3/4″ axle and offset left rocker do not clear the specific brake system, the entire assembly becomes unusable until the wheel or caliper is re-sourced. Verifying the width between rockers against your specific wheel and brake setup prevents these costly delays [NEED_CITE: service manual specifications for front hub and caliper clearance].
Verifying Frame Neck Dimensions for the 1″ Stem
The 1″ stem diameter on this 18″ narrow springer fork assembly requires precise measurement of your frame’s steering head neck. If the frame neck was machined or welded for a different diameter, the standard stem and tube locations on the inline top triple tree will not seat correctly. This misalignment affects the steering geometry and makes it impossible to install the neck bearings properly. Always measure the inner diameter of your frame neck before finalizing the front end selection [NEED_CITE: frame neck dimension variations across custom hardtail and softail chassis].
Checking Brake Mount Alignment for the Offset Rocker
The left side rocker on this assembly is specifically offset to allow space for brake system applications. When mounting your caliper, you must confirm that the offset provides enough clearance for the rotor and the brake line routing. If the offset is too tight or angled incorrectly for your specific rotor setup, the caliper will bind or rub. This 18″ narrow springer fork assembly includes the brake boss and axle, but the final alignment depends on matching the offset to your exact brake components [NEED_CITE: brake caliper clearance requirements for narrow springer setups].
Understanding the 18″ Length and Inline Triple Tree
The 18″ overall length directly influences the ride height and the visual proportion of the custom build. Combined with the inline top triple tree, this length maintains standard stem and tube locations, which accepts dog bone or stock spring fork handlebars. This means you do not need to source specialized risers or handlebars to accommodate the triple tree position. The 3/4″-18 drilled and tapped legs ensure that the standard spring fork components and shock assembly can be mounted securely without modifying the leg threads.
The Hidden Cost of Unverified Front End Dimensions
Ordering a front end based only on the model name without checking the rocker width or axle size is a common mistake that halts production. When a 18″ narrow springer fork assembly arrives with dimensions that do not match the front wheel or brake caliper, the bike cannot be assembled. The project sits on the lift while the builder searches for a different wheel or a custom caliper bracket. This delay wastes labor hours and pushes back the delivery date, turning a straightforward installation into a major fabrication job.
Sourcing Directly from the Front End Specialist
We produce this 18″ narrow springer fork assembly in our own facility, ensuring the black finish and chrome springs meet consistent quality standards across batches. Our catalogue offers front-end depth, combining complete springer assemblies with the specific 6″ rocker width and 1″ stem you need for narrow setups. We provide a fitment sheet stating applicable platforms and year ranges before quotation, so you know exactly what the part is verified for. You can order a single 18″ narrow springer fork assembly for a custom build without meeting high minimum order quantities. We also supply samples for fitment confirmation before you commit to bulk orders for your shop.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for this specific assembly.
- Key dimensions including 18″ fork length, 6″ rocker width, and 1″ stem diameter.
- Cross-reference sheet with OEM numbers marked reference only where applicable.
- Finish specification detailing the black body and chrome spring treatment.
- Quality inspection record verifying the 3/4″ axle and offset left rocker.
- Packing photographs showing the triple tree, brake boss, axle, and original fittings.
Receiving and Pre-Installation Checks
- Verify the kit includes the triple tree, brake boss, 3/4″ axle, and original fittings.
- Confirm the 1″ stem diameter matches your frame neck before attempting installation.
- Measure the 6″ width between rockers against your front wheel hub spacing.
- Check the black finish and chrome springs for any transit damage or surface defects.
- Ensure the 3/4″-18 leg threads are clean and free of debris before mounting components.
- Have a qualified technician inspect the offset left rocker for your specific brake system.
Requesting a Fitment Check for Your Build
Send your model and year along with a photograph of your current front end or frame neck to initiate a fitment check. Provide the key实测 dimensions of your front wheel hub and brake caliper to ensure the 6″ rocker width and 3/4″ axle will align correctly. Let us know if you require a sample 18″ narrow springer fork assembly for physical verification before placing a larger order for your shop.
Frequently Asked Questions
Q: How to confirm if this 18″ springer fork fits my custom build frame?
A: You must verify the frame neck inner diameter to ensure it accepts the 1″ stem diameter. Additionally, check the steering head cup and neck bearing sizes, as early and late frames often differ. Providing your frame model and year allows us to cross-reference the fitment sheet and confirm compatibility before dispatch.
Q: What are the key dimensions to measure for a narrow springer fork assembly?
A: The critical dimensions are the 18″ overall length, the 6″ width between rockers, and the 1″ stem diameter. You must also measure your front wheel hub width to match the 3/4″ axle and verify the offset left rocker clears your specific brake caliper and rotor setup.
Q: Does the inline top triple tree accept standard dog bone handlebars?
A: Yes, the inline top triple tree features standard stem and tube locations designed to accept dog bone or stock spring fork handlebars. This allows you to use standard handlebar mounts without needing specialized risers or custom machining to accommodate the triple tree position.
Q: Can I order a single springer fork assembly for a custom build?
A: Yes, we support a minimum order of one piece, making it easy for custom builders and independent repair shops to source a single 18″ narrow springer fork assembly for a specific project. We also offer sample supply for fitment confirmation before you commit to larger bulk orders.
Q: How to verify the left side rocker offset for my specific brake system?
A: Measure the distance from the wheel hub mounting surface to the outer edge of your brake rotor and caliper. Compare this measurement to the clearance provided by the offset left rocker on the assembly to ensure the caliper will not bind or rub against the fork leg during suspension compression.
