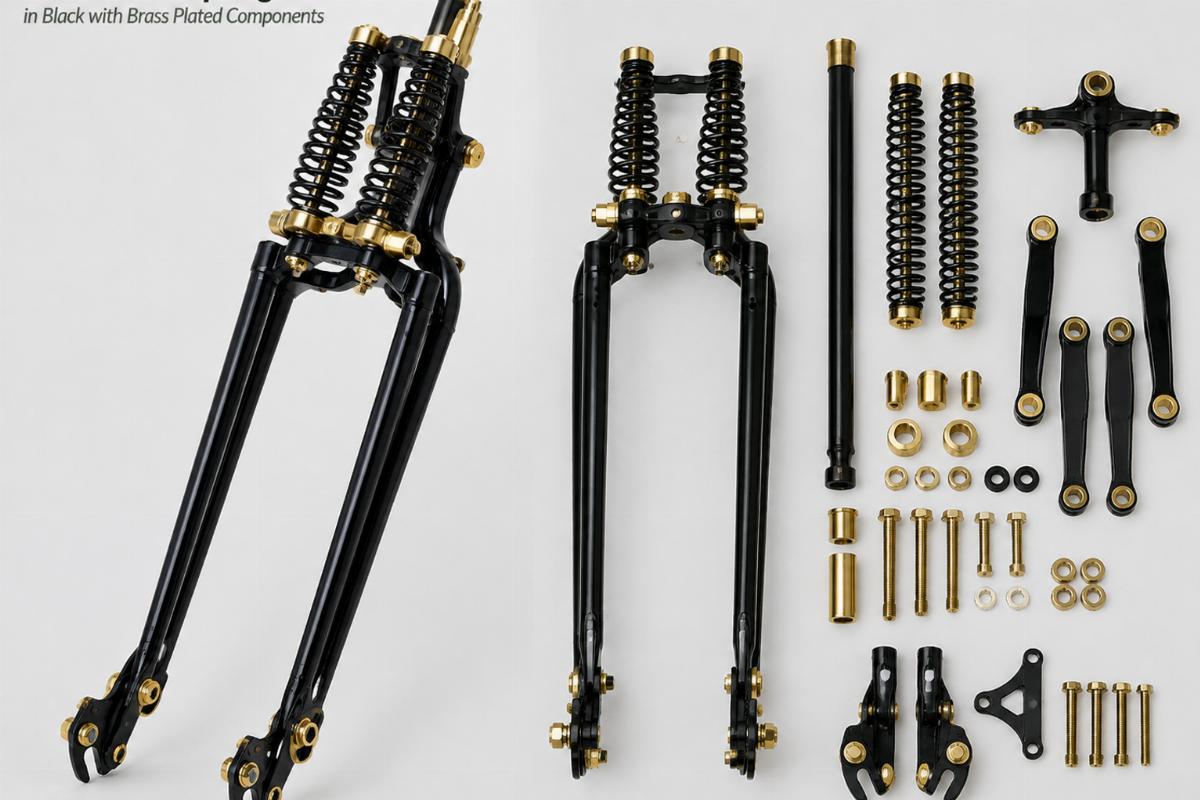

20″ Custom Springer Fork Kit Black – Fitment Checked
Single-Piece Minimum Order — Build your one-off custom chassis without hitting arbitrary bulk thresholds, verified against your exact frame geometry before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Kit |
| Length | 20″ |
| Finish | Black with brass plated rockers, springs, top tree and axle nuts |
| Thread | 3/4″-18 |
| Kit Contents | rockers, springs, top tree, axle nuts |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Confirm with model and year | Confirm frame neck dimensions and tree spacing for the 20″ length |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Over-Stock Springer Lengths Demand Exact Frame Measurements
A 20″ custom springer fork kit requires precise steering neck and tree spacing checks to maintain correct rake and trail geometry.
Springer forks offered over stock often lack clear statements on overall length and mounting details, making it hard to judge ride height and steering geometry for your custom build. When the overall length changes, the rake and trail shift, which can severely affect steering feel if the frame neck was designed for a stock-length setup. Builders frequently assume a longer fork simply drops in, only to find the front end sits too high or the steering stem binds against the frame stops [NEED_CITE: frame geometry changes across custom chassis builds].
Verifying Steering Head Dimensions for a 20″ Setup
Before ordering a 20″ custom springer fork kit, you must measure the steering head cups and neck bearings to ensure the top tree will seat correctly. The top tree width and axle spacing must align with your specific custom chassis requirements, as an incorrect match will prevent the assembly from dropping into the neck. Always check the bearing race size against the steering stem diameter to avoid binding issues during assembly.
Matching Post Risers to Threaded Rear Legs
The rear fork legs on this 20″ custom springer fork kit are drilled and tapped 3/4″-18 specifically for mounting post risers. You need to verify post riser stud compatibility with these tapped holes to ensure the handlebars sit at the correct height and pullback angle. Using the wrong stud thread or length can strip the aluminum or leave the risers loose, compromising the entire front-end assembly [NEED_CITE: thread pitch variations in aftermarket riser mounts].
Interpreting the 20″ Length and Thread Specifications

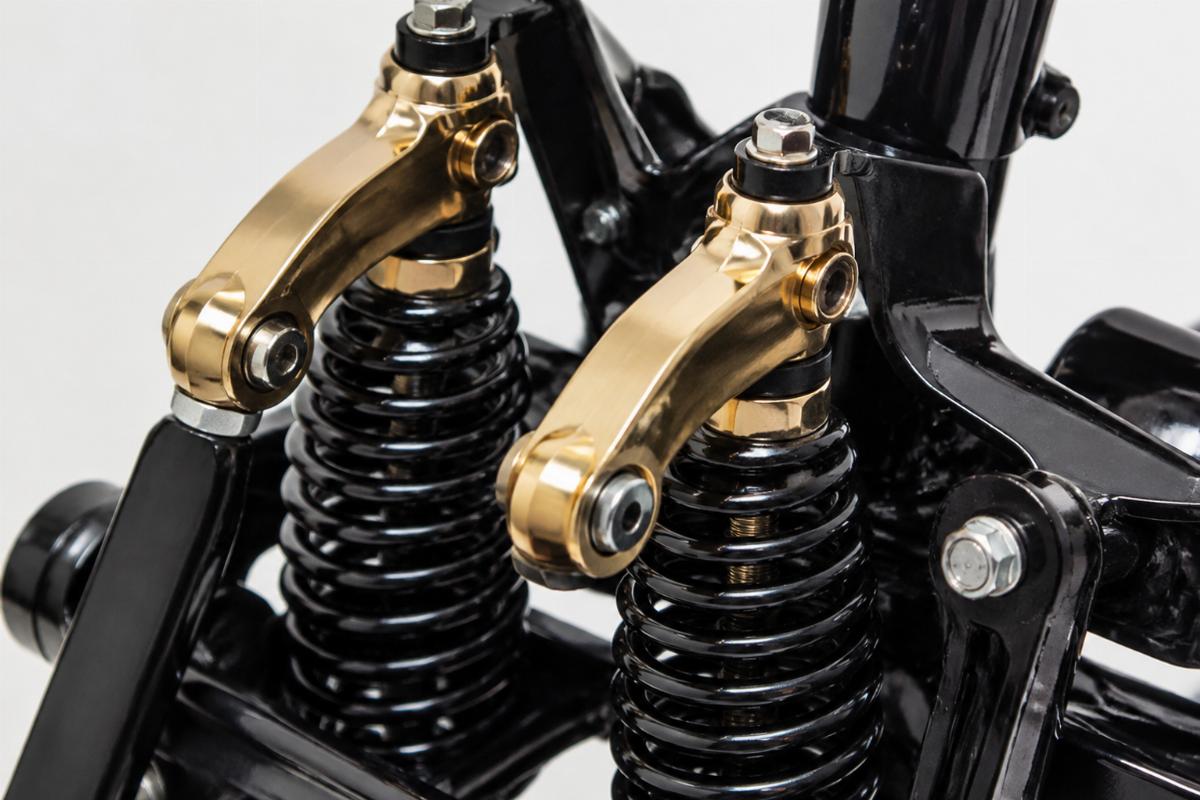

The 20″ overall length directly dictates the ride height and visual proportion of the front end, requiring you to calculate the resulting rake and trail before fabrication. The 3/4″-18 thread on the rear fork legs is a standard coarse thread chosen for its strength and availability in custom hardware. The black finish with brass plated rockers, springs, top tree, and axle nuts provides a specific visual contrast, meaning batch consistency is critical when matching other brass-accented components on the bike.
The Hidden Cost of Unverified Front-End Geometry
Ordering a springer kit without confirming the frame neck dimensions often leads to the bike sitting unfinished on the shop floor because the triple tree simply will not drop into the neck. If the steering stem diameter or bearing race size is off by even a fraction of an inch, the entire front end must be disassembled, and the neck cups machined or replaced. This rework delays the build timeline and adds unexpected machining costs that could have been avoided with a simple pre-order measurement check [NEED_CITE: machining delays caused by incorrect steering stem fits].
Sourcing Front-End Depth Without Bulk Commitments
We produce springer front ends and chassis hardware in our own facility, allowing us to supply a complete 20″ custom springer fork kit with a minimum order of just one piece. Our front-end depth means you get the rockers, springs, top tree, and axle nuts in a single catalogue line, eliminating the need to source individual components from multiple vendors. Fitment is confirmed against your platform and year range before quotation, and we offer sample supply for fitment confirmation before you commit to bulk orders.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges verified before dispatch
- Key dimensions including 20″ fork length over stock and 3/4″-18 thread specifications
- Finish specification detailing the black base and brass plated hardware components
- Quality inspection record confirming batch consistency for the brass plating
- Packing photographs showing the kit contents and protective packaging
- Cross-reference sheet with OEM numbers marked reference only, if applicable
Receiving and Inspecting the Springer Kit
- Verify the kit includes the rockers, springs, top tree, and axle nuts upon arrival
- Measure the 20″ overall length and check the 3/4″-18 threads on the rear legs
- Inspect the black finish and brass plating for any shipping damage or defects
- Confirm the top tree width matches your measured steering neck dimensions
- Store the kit in a dry environment to prevent corrosion on the brass components
Requesting a Fitment Check and Quote
Send your model and year, along with photographs or measurements of your steering neck, to verify fitment for your custom build. Let us know the exact finish and quantity you require, and whether you need a sample to check the brass plating consistency before placing a larger order. We will cross-reference your requirements and provide a detailed quotation based on your specific chassis dimensions.
Frequently Asked Questions
Q: How do I confirm my custom frame geometry fits a 20″ over-stock springer fork?
A: You must measure the steering head cups, neck bearings, and tree spacing to ensure the top tree will seat correctly. The 20″ length changes the rake and trail, so verify that the front end will not bind against the frame stops or sit too high for your intended ride height.
Q: What dimensions should I measure on the steering neck for top tree fitment?
A: Measure the inner diameter of the steering head cups and the outer diameter of the neck bearings. Compare these measurements against the top tree width and steering stem diameter of the kit to ensure the assembly drops into the neck without requiring machining.
Q: Which post risers are compatible with the threaded rear fork legs?
A: The rear fork legs are drilled and tapped 3/4″-18. You must select post risers with studs that match this exact thread pitch and have sufficient length to secure the riser base without bottoming out or stripping the threads in the fork legs.
Q: Can I order a single springer fork kit for a one-off custom build?
A: Yes, we support a minimum order of one piece. This allows custom builders and restoration shops to procure a complete front-end assembly for a single project without meeting high bulk thresholds, and we verify fitment before dispatch.
Q: How do I request a sample to verify finish consistency before bulk ordering?
A: You can request a sample during the inquiry process by providing your model details and required quantity. We will supply a sample unit so you can physically inspect the black finish and brass plating quality to ensure it matches your other components before committing to the full order.
