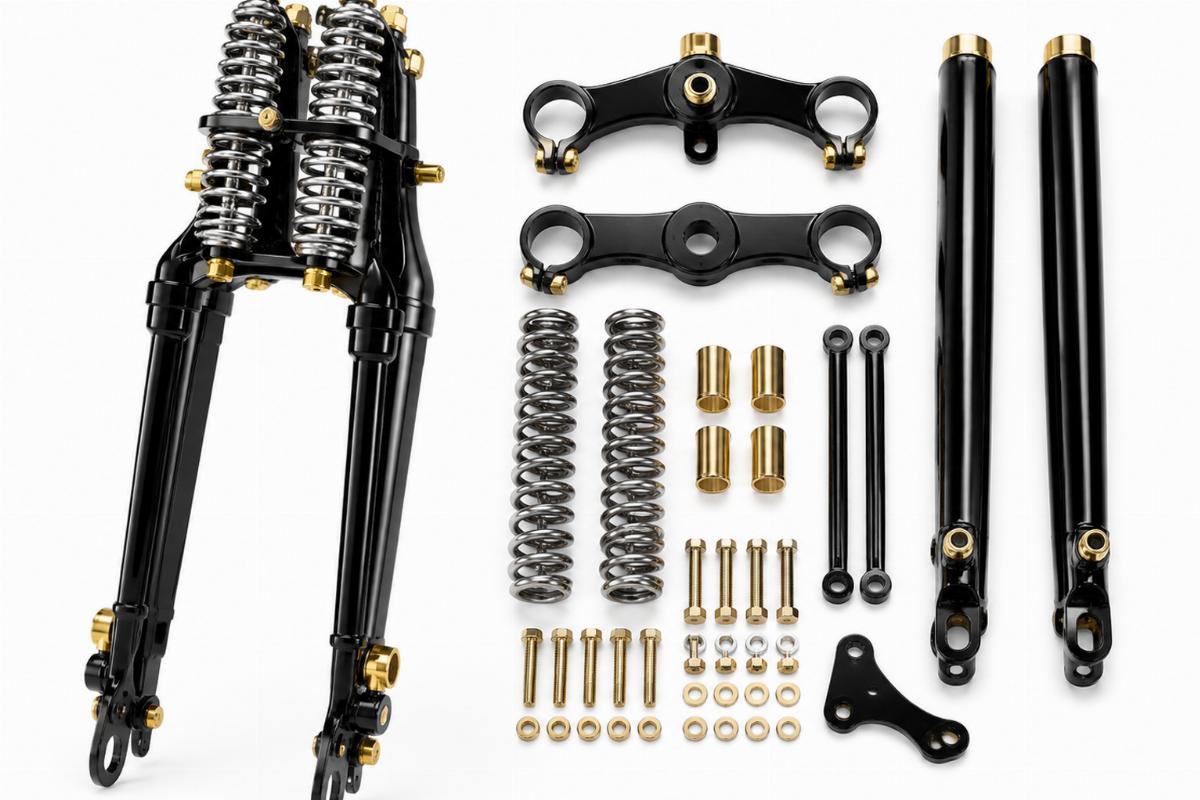

Black Springer Fork Kit 18″ – Fits Custom Springer Front End
Consistent Finish Options — Every springer fork kit for custom springer builds is produced with matched black and brass plated components to ensure visual uniformity across the entire front end.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Finish | Black with brass plated rockers, springs, top tree and axle nuts |
| Length | 18″ |
| Thread | 3/4″-18 |
| Kit Contents | Rockers, springs, top tree, axle nuts |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer Front End | Confirm with model and year | Use post risers with stud to top of rear fork legs. The legs are drilled and tapped 3/4″-18 for mounting risers. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Clarifying Over Stock Length for Your Springer Fork Kit for Custom Springer
An 18-inch over stock length directly alters the steering geometry and ride height of the front end.
Builders often select an over stock length without calculating the resulting rake and trail changes. When the extra length is applied to a frame not designed for it, the front end sits too high, causing clearance issues at full lock. Verifying the exact frame dimensions before ordering prevents the front end from ruining the intended geometry [NEED_CITE: frame geometry calculations for over stock front ends].
Verifying Frame Dimensions Before Assembly
When sourcing a springer fork kit for custom springer builds, the overall length dictates how the bike sits on the ground. An 18-inch over stock measurement means the front end will be significantly taller than a stock setup. You must confirm that your custom frame’s neck angle and triple tree spacing can accommodate this height without the handlebars striking the fuel tank. Checking these dimensions ensures the geometry remains functional and visually proportional.
Matching Riser Threads to Rear Fork Legs

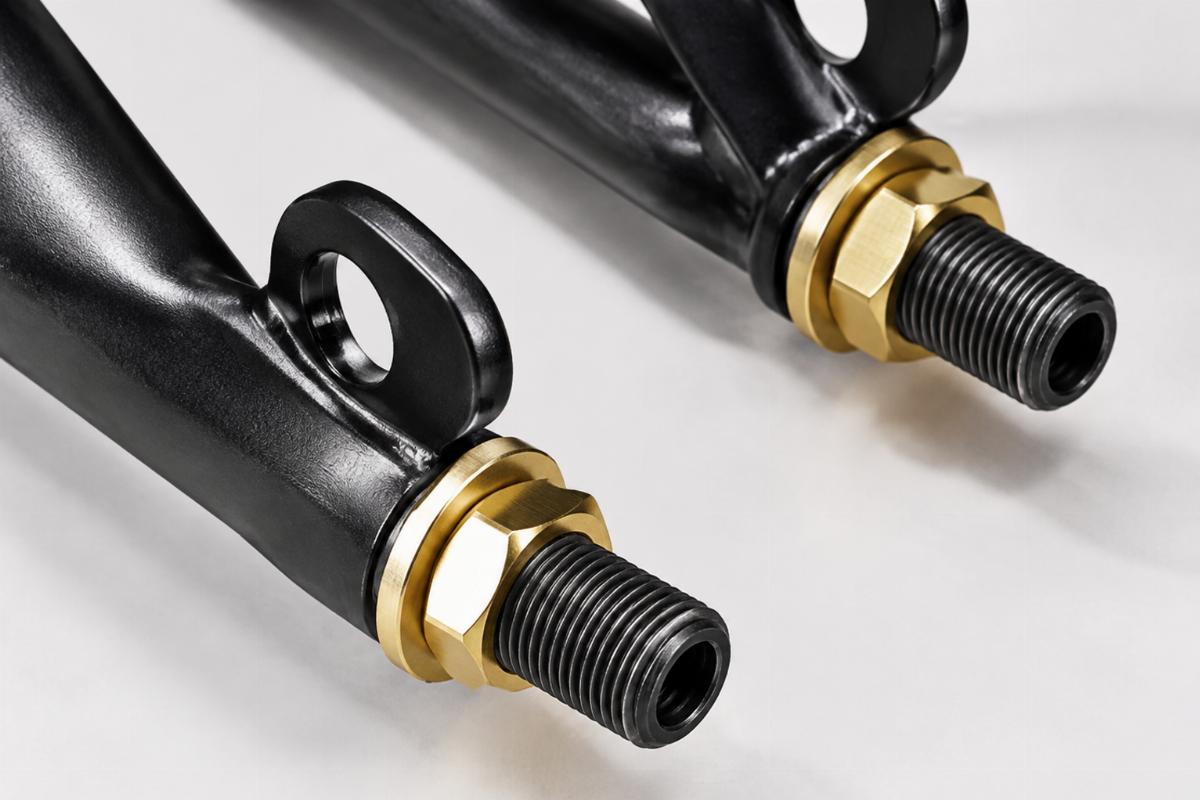

The rear fork legs on this springer fork kit for custom springer applications are drilled and tapped 3/4″-18. This specific thread pitch is required to mount post risers using a stud to the top of the legs. If your chosen risers use a different thread size, they will not seat correctly or could strip the threads during assembly. Confirming this thread specification against your riser hardware prevents cross-threading and ensures a secure mount [NEED_CITE: thread pitch standards for springer fork riser mounts].
Interpreting the 18-Inch Length and Thread Specifications
The 18-inch length is measured as an over stock dimension, meaning it adds height compared to a standard replacement. This extra height changes the rake, pushing the front wheel further forward and altering the trail, which affects how the steering feels. The 3/4″-18 thread on the rear legs is a standard coarse thread used for heavy-duty mounting. Understanding how these two specs interact helps you predict whether the front end will clear the frame at full steering lock and whether your risers will bolt on without modification.
The Hidden Cost of Ignoring Geometry and Thread Specs
Ordering an over stock front end without checking the rake impact often leads to the bike sitting too high, causing the handlebars to hit the tank at full lock. Similarly, assuming the rear leg threads will match your risers without checking the 3/4″-18 pitch can result in damaged components and a stalled build. When a front end fails to clear the frame or the risers do not thread in, the bike stays on the lift while you wait for replacement parts or machining. These fitment errors turn a straightforward assembly into a costly delay [NEED_CITE: common fitment errors with over stock springer front ends].
Sourcing Directly from the Front End Specialist
We manufacture our own springer front ends and chassis hardware, ensuring the black finish and brass plating are applied under one quality control process. This springer fork kit for custom springer builds includes all necessary rockers, springs, top tree, and axle nuts, eliminating the need to source hardware from multiple vendors. We provide a detailed fitment sheet confirming the 18-inch length and 3/4″-18 thread specifications before you order. You can purchase a single kit for a custom build without meeting high minimum order quantities.
Documentation Provided with Your Order
- Fitment sheet stating the custom springer platform and 18-inch over stock length
- Key dimensions sheet detailing the 3/4″-18 rear leg thread and overall height
- Finish specification document for the black and brass plated components
- Quality inspection record verifying kit contents and thread integrity
- Packing photographs showing the rockers, springs, top tree, and axle nuts
Receiving and Inspecting the Springer Fork Kit
- Verify the kit includes the black rockers, springs, top tree, and brass plated axle nuts
- Check the rear fork legs to confirm the 3/4″-18 threads are clean and undamaged
- Measure the 18-inch overall length against your custom frame’s clearance limits
- Inspect the black finish and brass plating for any shipping damage or inconsistencies
- Have a qualified technician confirm the riser stud compatibility before final assembly
- Store the kit in a dry environment to protect the finish before installation
Requesting a Fitment Check for Your Build
Send your custom frame dimensions and the intended riser specifications to verify the 18-inch length and 3/4″-18 thread compatibility. Provide photographs of your current triple tree spacing if you are replacing an existing front end. Let us know if you require a sample kit to confirm the black and brass finish matches your build before placing a larger order.
Frequently Asked Questions
Q: How does an 18-inch over stock length affect rake and trail on a custom frame?
A: An 18-inch over stock length increases the ride height, which typically increases the rake angle and alters the trail. This changes the steering geometry, making the front end sit higher and potentially affecting clearance at full lock. You must calculate these changes against your specific frame’s neck angle to ensure the handlebars do not strike the fuel tank.
Q: What components are included in the 18-inch springer fork kit?
A: This springer fork kit for custom springer builds includes the rockers, springs, top tree, and axle nuts. The finish is black with brass plated rockers, springs, top tree, and axle nuts. All necessary hardware for the front end assembly is contained within the kit, ensuring visual consistency across the components.
Q: How do I verify the 3/4″-18 thread on the rear fork legs fits my risers?
A: Check the specifications of your chosen post risers to confirm they require a 3/4″-18 stud. The rear fork legs are drilled and tapped specifically for this thread pitch. If your risers use a different size, they will not thread in correctly. Matching this thread ensures a secure mount without damaging the fork legs.
Q: Can I order a single springer fork kit for a custom build?
A: Yes, we support a minimum order of one piece. You can order a single springer fork kit for custom springer projects without needing to meet bulk quantity requirements. This allows custom builders and restorers to purchase exactly what they need for a specific bike build without excess inventory.
