18″ Springer Fork Kit Black – Fitment Checked
Platform and Year Fitment Verified — Every 18″ custom springer fork kit is checked against your specific frame dimensions and year range before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Finish | Black (fork kit), Chrome (springs), Machined chrome (top triple tree) |
| Length | 18″ |
| Fork Stem Diameter | 1″ |
| Axle Assembly Diameter | 3/4″ |
| Leg Thread | 1/2″ x 20 |
| Rocker Offset | Right rocker is NOT offset |
| Kit Contents | Spring fork kit, top triple tree without ears, 1″ fork stem, 3/4″ axle assembly |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom builds | Confirm with model and year | Intended for custom brake and spool wheel installation; verify steering neck and hub spacing. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Rocker Offset Matters for Custom Brake Mounts
The right rocker on this 18″ custom springer fork kit is NOT offset to accommodate specific custom brake and spool wheel setups.
Years ago, I sourced a springer front end for a Softail build, assuming the 1″ stem and 3/4″ axle would just drop in. I completely missed the right rocker offset requirement for the custom brake mount. The wheel refused to center, and the caliper alignment was totally off, leaving the bike stuck on the lift. Now, I physically measure every fork stem, axle spacing, and rocker offset on the bench before any sample goes out. Listings that omit this detail force builders to guess, leading to wasted time and mismatched components [NEED_CITE: frame geometry and brake mount spacing variations across custom builds].
Verifying Steering Neck and Hub Spacing

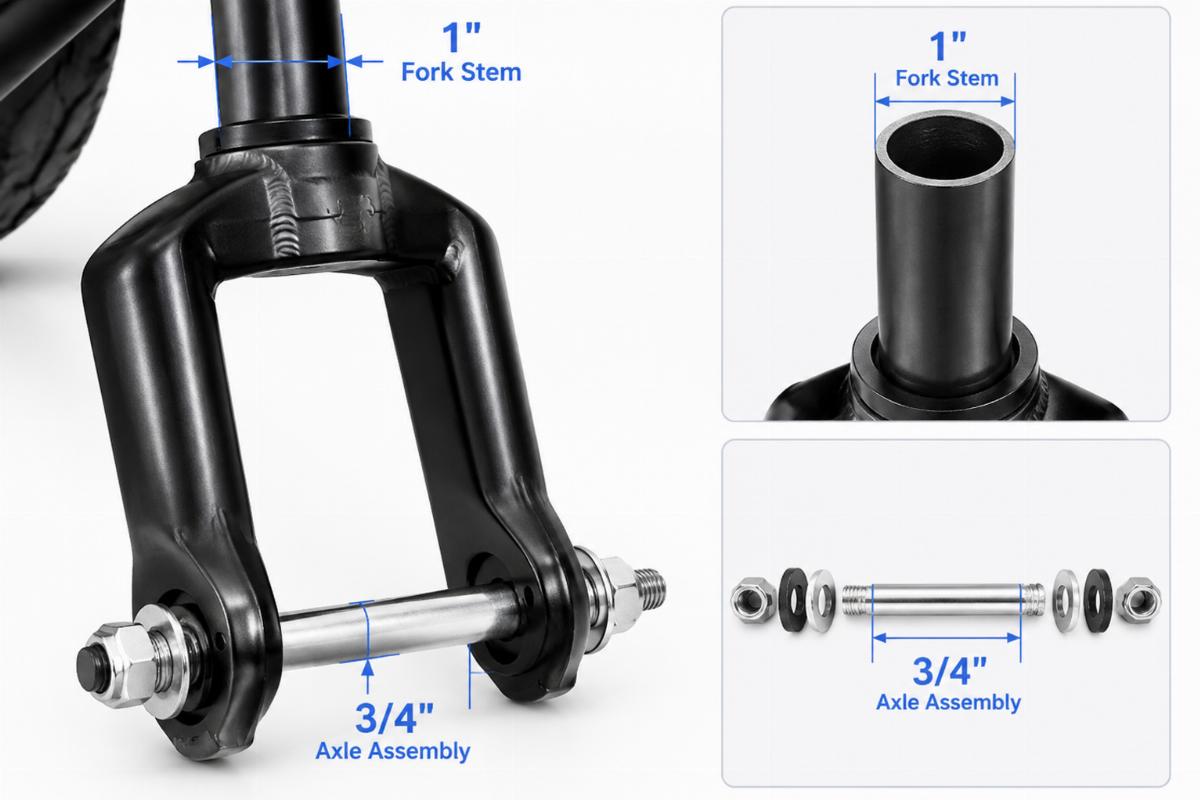

When evaluating this 18″ custom springer fork kit, the 1″ fork stem and 3/4″ axle assembly must match your front hub and steering neck requirements exactly. The top triple tree comes without ears, meaning your specific handlebar riser or mounting setup dictates the final clamp area. Measuring the steering neck inner diameter and the hub width ensures the 3/4″ axle assembly can be properly spaced.
Matching the 18″ Length to Frame Geometry
The 18″ overall length directly influences the ride height and steering geometry of the motorcycle. Builders must confirm this length aligns with the desired rake and trail before ordering. Changing the front-end length alters how the bike tracks through corners and how the weight distributes over the front wheel, making pre-purchase measurement critical [NEED_CITE: rake and trail calculations based on fork length and tree angle].
Understanding the 1/2″ x 20 Leg Thread and Stem Specs
The 1/2″ x 20 leg thread is the standard mounting point for the fork springs and internal damping components. The 1″ fork stem must slide smoothly into the steering neck cups without binding. If the stem diameter is even slightly oversized, it will damage the neck bearings; if undersized, it introduces dangerous play into the steering head.
The Hidden Cost of Assuming Fitment
Ordering a front end without confirming the rocker offset or axle spacing often results in the wheel refusing to center. A misaligned caliper will drag or fail to grip, turning a simple installation into a days-long fabrication headache. When the right rocker is offset for a standard application but your build requires a non-offset setup for a custom brake mount, the entire assembly must be torn down and replaced, delaying the project and wasting capital [NEED_CITE: caliper alignment issues caused by incorrect rocker offsets].
Sourcing Front Ends with Certainty
We confirm the 1″ fork stem and 3/4″ axle assembly against your platform before quotation to prevent mismatched parts. The black finish on the fork legs is paired with chrome springs and a machined chrome top triple tree to match your aesthetic requirements. We offer a minimum order from one piece, allowing shops to order a single sample for fitment confirmation before committing to bulk inventory. Every 18″ custom springer fork kit is physically measured on the bench to verify the non-offset right rocker and leg thread specs.
Documentation and Shipping Details
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length, stem diameter, and axle size
- Finish specification for black and chrome components
- Cross-reference sheet with OEM numbers marked reference only
- Quality inspection record and warranty terms
- Packing photographs and HS code documentation
Receiving and Pre-Installation Checks
- Verify the 1″ fork stem slides freely into your steering neck cups.
- Check that the right rocker is NOT offset to match your custom brake mount.
- Confirm the 3/4″ axle assembly width matches your front hub spacing.
- Inspect the black finish and chrome springs for any shipping damage.
- Ensure the 1/2″ x 20 leg threads are clean and undamaged.
- Store the kit in a dry environment to protect the machined chrome top triple tree.
Requesting a Fitment Check
Send your model and year, along with photographs or measurements of your steering neck and front hub, for a fitment check. Let us know if you require the 1″ taper bearing kit, which is available separately. We can supply a single sample kit to verify the 18″ length and rocker offset on your frame before you place a larger order.
Frequently Asked Questions
Q: What dimensions should I measure to confirm this 18″ springer fits my custom frame?
A: You need to measure the steering neck inner diameter to ensure the 1″ fork stem fits, the front hub width to verify the 3/4″ axle assembly spacing, and the distance from the triple tree to the axle to confirm the 18″ length matches your desired ride height.
Q: Does the kit include the steering neck bearings, or are they sold separately?
A: The 1″ taper bearing kit is available separately and is not included in this springer fork kit. You must source the correct bearing kit for your specific steering neck dimensions to ensure proper fitment and smooth steering operation.
Q: How does the 18″ length affect the rake and trail of my motorcycle?
A: The 18″ length changes the front ride height, which directly alters the rake and trail of the motorcycle. This affects steering geometry and handling characteristics, so you must calculate the impact on your specific frame before installation to ensure it meets your build requirements.
Q: Can I order a single sample kit to verify fitment before placing a bulk order?
A: Yes, we support a minimum order from one piece. You can order a single sample to physically measure the fork stem, axle spacing, and rocker offset on your bench to confirm fitment before committing to a larger bulk order for your shop or inventory.
Q: What spacers are required to center the wheel with the 3/4″ axle assembly?
A: The required spacers depend on the exact width of your front hub and the custom brake mount setup. You must measure the hub width and subtract the axle assembly width to determine the spacer thickness needed to center the wheel and align the caliper correctly.
