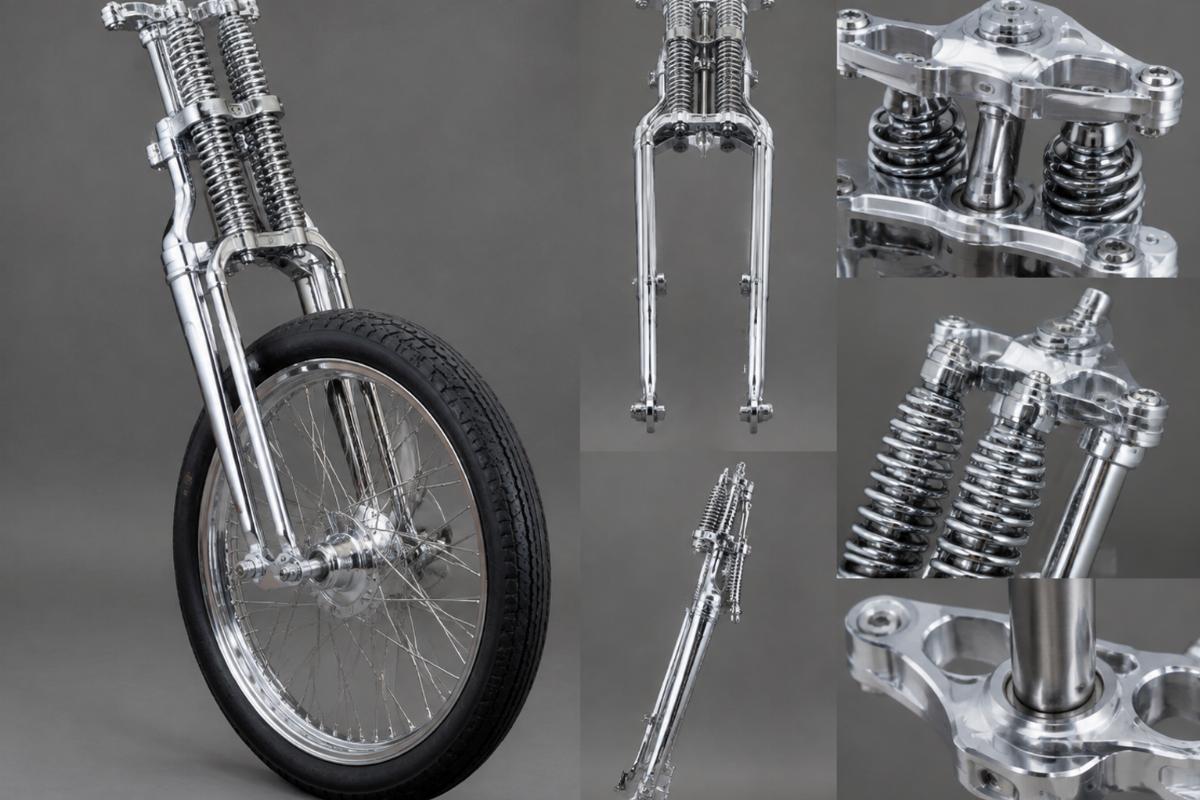

18″ Chrome Custom Springer Fork Kit – Fitment Checked
Verified Front-End Dimensions — Every 18″ custom springer fork kit is physically mapped for triple tree spacing and axle alignment before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Kit |
| Finish | Chrome |
| Top Triple Tree | Machined chrome design without ears |
| Fork Legs Thread | 1/2″ x 20 |
| Fork Stem | 1″ |
| Axle Assembly | 3/4″ |
| Rocker Design | Original shape components and design (excluding the offset) |
| Bearing Requirement | 1″ taper bearing kit |

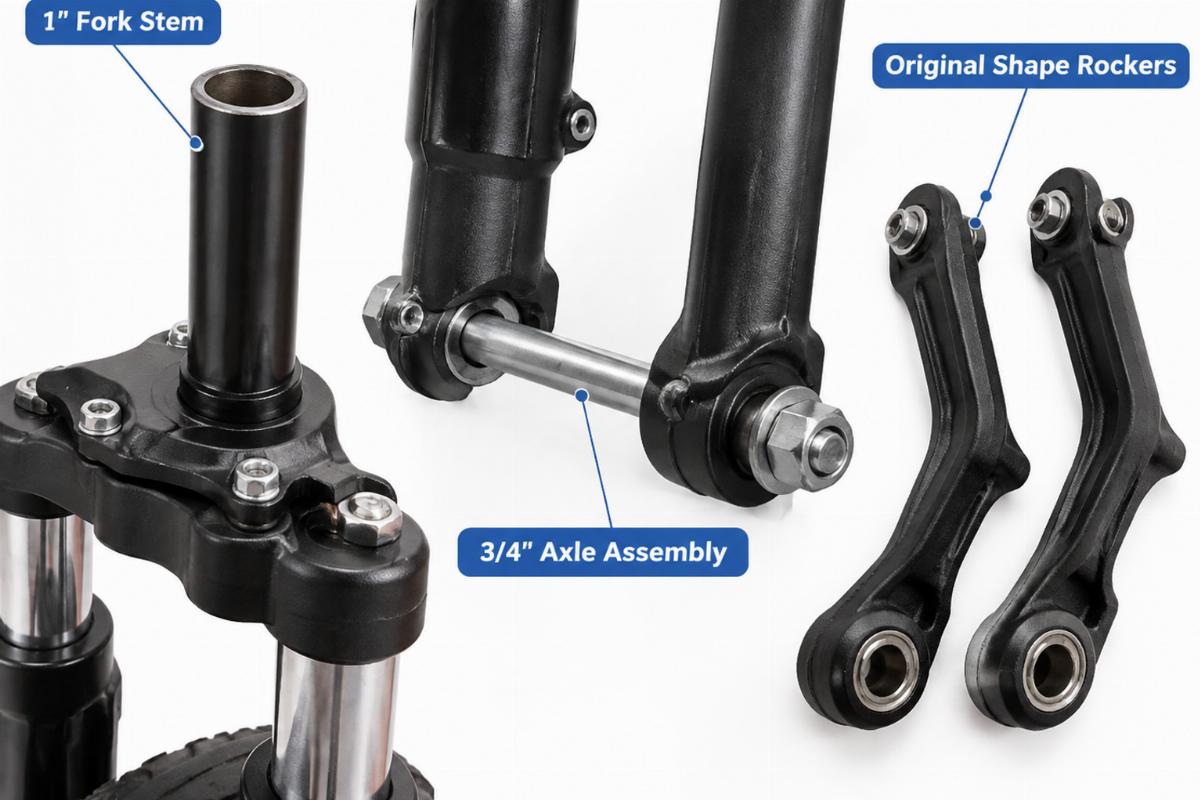

| Kit Contents | Top triple tree, fork legs, rockers, 1″ fork stem, 3/4″ axle assembly |
Fitment Verification
| Platform | Year Range | Notes |
|---|---|---|
| Custom Builds | Confirm with model and year | For custom brake and spool wheel installation |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Steering Geometry Risks in Over-Stock Springer Builds
An 18″ overall length means nothing if the triple tree spacing ruins the rake.
When builders select an over-stock front end, the total length often looks correct on paper, but the top triple tree design and axle offset dictate the actual ride height and steering geometry. I once verified an 18″ custom springer fork kit for a custom FXSTS build where the overall length matched the drawing, but we overlooked the triple tree spacing. The 3/4″ axle assembly could not center the wheel properly, and the steering geometry was completely ruined. Measuring the 1/2″ x 20 fork legs thread against the specific frame is mandatory to avoid this exact failure [NEED_CITE: frame neck dimensions and rake specifications by custom build].
Checking Top Triple Tree Spacing and Stem Length
The machined chrome top triple tree without ears on this 18″ custom springer fork kit requires exact measurement against your steering neck. If the 1″ fork stem length or the tree width does not match your frame’s head cup requirements, the front end will not seat correctly. Always verify the stem diameter and tree spacing against your specific custom frame geometry before assuming the overall length guarantees a fit.
Evaluating Fork Leg Threads and Axle Alignment
The 1/2″ x 20 fork legs thread must align perfectly with your chosen post risers and rear fork legs. When mounting a custom brake and spool wheel, the 3/4″ axle assembly needs spacers to center the wheel properly. Failing to calculate the required spacer thickness for this specific axle diameter will result in a misaligned wheel and binding brakes [NEED_CITE: axle spacer requirements for custom spool wheels].
Interpreting Core Dimensions for Custom Frames
The 1″ fork stem dictates which steering head bearing kit you need, specifically requiring a 1″ taper bearing kit. The 3/4″ axle assembly determines the hub spacing and wheel centering. The original shape rocker design, excluding the offset, is engineered for custom brake setups, meaning your caliper mount must match this specific rocker profile. Every dimension in this kit directly influences how the front end interacts with your frame’s steering neck and wheel hub.
The Hidden Cost of Ignoring Frame Geometry
Skipping the physical mapping of triple tree spacing and axle offset often leaves a custom bike stranded on the lift. If the 1″ fork stem is slightly off, the steering neck bearings will bind or loosen under load. When the 3/4″ axle assembly fails to center the wheel due to incorrect spacer calculations, the custom brake setup will drag. These geometry errors force a complete teardown of the front end, wasting weeks of build time and requiring new hardware to correct the steering angle.
Sourcing Verified Front-End Components
We produce this 18″ custom springer fork kit in our own facility, ensuring the machined triple tree and fork legs meet exact dimensional tolerances. Every kit is checked against its platform family and year range before quotation, providing a fitment sheet that details the 1″ stem and 3/4″ axle requirements. We offer single-piece minimum orders, allowing custom shops to procure one kit for a specific build without bulk commitments. Cross-reference checks against OEM numbers are provided for identification, and sample supply is available for physical fitment confirmation before bulk dispatch.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and year ranges for the 18″ length
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 1″ fork stem, 3/4″ axle, and 1/2″ x 20 threads
- Finish specification for the chrome components
- Quality inspection record verifying triple tree spacing
- Packing photographs showing the top triple tree and rocker design
Pre-Installation Inspection Checklist
- Verify the kit includes the top triple tree, fork legs, rockers, 1″ fork stem, and 3/4″ axle assembly
- Measure the 1″ fork stem length against your steering neck bearing requirements
- Check the 1/2″ x 20 fork legs thread compatibility with your post risers
- Inspect the machined chrome top triple tree without ears for shipping damage
- Confirm the 3/4″ axle assembly length matches your custom wheel hub spacing
- Store the 18″ custom springer fork kit in a dry environment to protect the chrome finish
Requesting a Fitment Check
Send your model and year, along with photographs or measurements of your steering neck and wheel hub, to verify if this 18″ custom springer fork kit matches your custom frame geometry. Provide the required 1″ taper bearing kit preference and confirm if you need a sample for physical trial assembly. Our team will cross-reference your dimensions against the 1/2″ x 20 fork legs thread and 3/4″ axle assembly specifications to ensure proper fitment.
Frequently Asked Questions
Q: How do I confirm if this 18″ springer kit fits my custom frame geometry?
A: You must measure your steering neck to ensure it accepts a 1″ fork stem and verify the top triple tree spacing. Check that your frame can accommodate the 3/4″ axle assembly and that the 1/2″ x 20 fork legs thread matches your post risers. We provide a fitment sheet detailing these dimensions once you share your frame specifications.
Q: What are the key dimensions to measure for the 1″ fork stem and 3/4″ axle?
A: Measure the internal diameter of your steering head cups to confirm they accept a 1″ taper bearing kit and stem. For the 3/4″ axle, measure your custom wheel hub width to calculate the exact spacer thickness needed to center the wheel properly within the fork legs.
Q: Does the kit include the 1″ taper bearing kit or just the fork assembly?
A: The kit contents include the top triple tree, fork legs, rockers, 1″ fork stem, and 3/4″ axle assembly. The 1″ taper bearing kit is available separately and must be ordered to complete the steering head installation for this specific fork stem diameter.
Q: Can I order a single springer fork kit for a one-off custom build?
A: Yes, we support single-piece minimum orders for custom builders and repair shops. You can order one 18″ custom springer fork kit for your specific project, and we can also supply a sample for physical fitment confirmation against your frame before you commit to additional components.
Q: How is the chrome finish consistency maintained across different batches?
A: The chrome finish on the fork components and machined triple tree is controlled through our own production facility’s quality inspection records. We document the finish specification for every batch, ensuring that the chrome consistency remains uniform across all front-end lines, even when ordering single pieces.
