Chrome Narrow Spring Fork Assembly 21″ – Aftermarket Replacement
Single Piece Order — We supply this narrow spring fork assembly individually for custom builds, checking the 2-inch drop and 3/4-inch axle hole before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Narrow Spring Fork Assembly |
| Finish | Chrome |
| Length | 2″ under stock length |
| Axle Hole | 3/4″ |
| Top Tree | Without ears |
| Leg Thread | 1/2″-20 |
| Rockers | Symmetrical, not offset on right side |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | 2″ under stock length alters ride height and steering geometry. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Overall Length Before Altering Frame Geometry
A 2-inch drop changes rake and trail, requiring frame and fender clearance checks.
I once saw a batch listed simply as a narrow spring fork without stating it was 2 inches under stock length. The buyer installed it on a Springer Softail, and the altered rake made the front tire rub the fender. Now, I physically map every fork assembly and check the 3/4-inch axle hole and 1/2″-20 leg tapping before quoting, so the geometry actually works on the bike [NEED_CITE: factory service manual specifications for rake and trail by model year].
Checking Rake and Trail Impact on Custom Builds
When you order a narrow spring fork assembly that is 2 inches under stock, the front end sits lower, which steepens the steering geometry. This affects how the bike handles at low speeds and changes the clearance between the tire and the fender. You must verify the overall length impact against your specific frame to ensure the front tire does not rub during full compression or steering lock [NEED_CITE: frame geometry changes with shortened front ends].
Maintaining Finish Consistency Across Production Batches
Chrome and black finish quality varying between batches is a common issue when sourcing front-end parts. Our front-end lines maintain strict finish consistency so parts look uniform when fitted side by side. This narrow spring fork assembly receives a chrome finish applied to the complete unit, ensuring the rockers, legs, and top tree match visually without patchy plating or color shifts [NEED_CITE: plating thickness and consistency standards for aftermarket chrome].
Understanding Key Dimensions for Installation

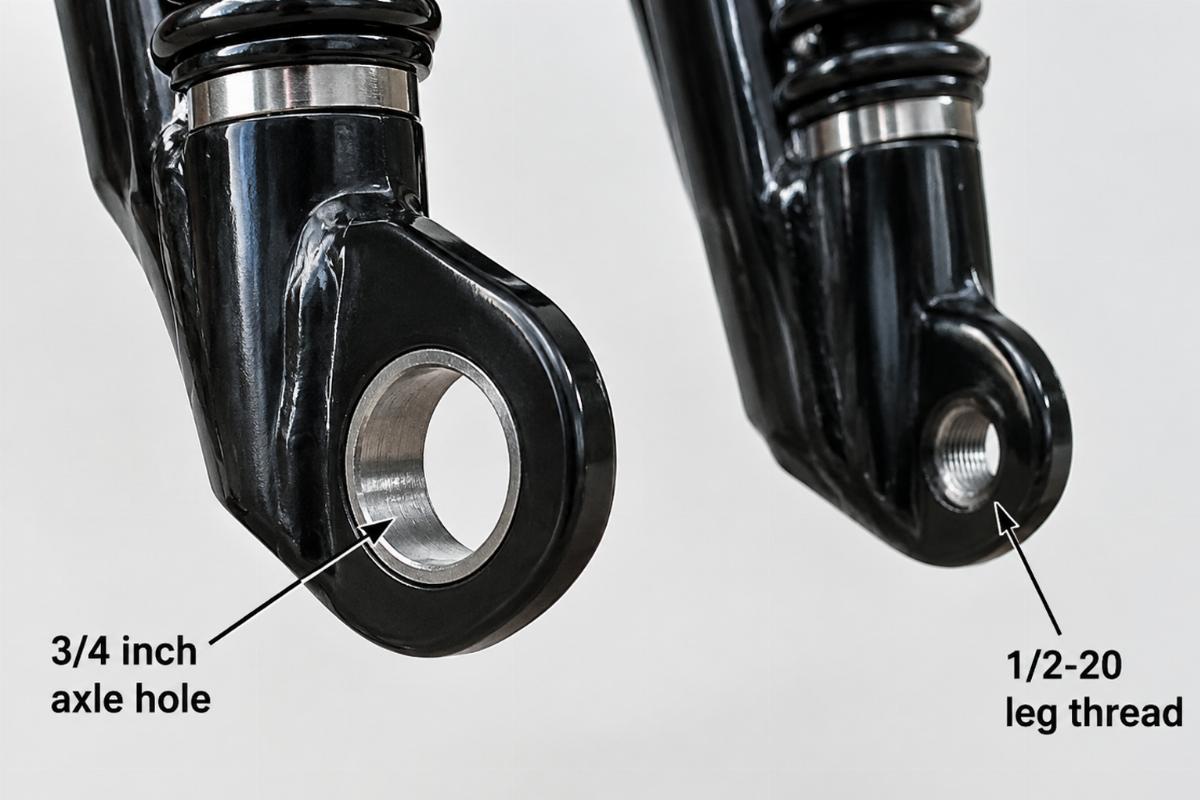

The 3/4-inch axle hole on the included symmetrical rockers must match your front wheel axle diameter; using an incorrect axle will cause binding or unsafe movement. The legs are drilled and tapped 1/2″-20 for riser mounting, meaning your chosen risers must match this specific thread pitch to avoid cross-threading. The top tree comes without ears, which dictates how the handlebars and ignition components will be mounted relative to the steering stem.
Hidden Costs of Incorrect Fitment and Missing Details
Ordering a front end without confirming the exact drop length often leads to the bike sitting in the service bay while the shop waits for a replacement. If the leg thread is mismatched, risers cannot be mounted without re-tapping, which risks damaging the fork leg. Furthermore, receiving a top tree with the wrong mounting configuration forces the builder to source additional adapters, delaying the build and increasing overall project costs [NEED_CITE: common fitment errors in custom springer installations].
Sourcing Front Ends with Confirmed Dimensions
We confirm fitment against your specific platform and year range before quotation, ensuring the 2-inch drop is appropriate for your frame. This narrow spring fork assembly is available for single-piece orders, allowing custom builders to purchase exactly what they need without meeting high minimums. We cross-reference against Harley-Davidson OEM numbers, marked reference only, to verify the correct application for your specific model year.
Documentation Provided with Your Shipment
- Fitment sheet listing the platforms and year ranges this assembly was checked against
- Cross-reference sheet with OEM numbers marked reference only for identification
- Key dimensions document stating the 2-inch under stock length and axle hole size
- Finish specification detailing the chrome plating process and consistency standards
- Quality inspection record confirming the 1/2″-20 leg thread and symmetrical rockers
Pre-Installation Checks for Your Workshop
- Verify the 2-inch under stock length against your frame to confirm fender clearance.
- Check the 3/4-inch axle hole on the rockers against your front wheel axle diameter.
- Confirm the 1/2″-20 leg thread matches your riser mounting hardware before assembly.
- Inspect the chrome finish for consistency across the legs, rockers, and top tree.
- Ensure the top tree without ears aligns with your planned handlebar mounting setup.
Requesting a Fitment Check for Your Build
Send your model and year for a fitment check to confirm this narrow spring fork assembly matches your frame geometry. Provide your current fork length or a photograph of the existing front end so we can verify the 2-inch drop. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How does a 2-inch under stock spring fork affect ride height and steering geometry?
A: A 2-inch drop lowers the front end, which steepens the rake and reduces trail. This changes low-speed handling and requires checking fender clearance to prevent tire rub during compression and steering lock.
Q: What is the difference between narrow and wide glide spring fork assemblies?
A: The primary difference lies in the tree width, slider spacing, and overall width to match the front wheel and frame neck. A narrow assembly will not fit a wide glide frame without changing the triple trees and axle spacing.
Q: How do I measure my current fork length to confirm the 2-inch under stock drop?
A: Measure the overall length from the bottom of the axle hole in the rocker to the top of the fork leg or top tree mounting surface. Compare this measurement to your stock length to verify the 2-inch reduction.
Q: Can I order a single spring fork assembly for a custom build?
A: Yes, we support single-piece orders for custom builders and repair shops. You can order one narrow spring fork assembly without meeting a high minimum order quantity, allowing you to complete a specific build.
Q: How do you ensure chrome finish consistency across different production batches?
A: We apply the chrome finish to the complete assembly in controlled batches, maintaining strict plating standards. This ensures the rockers, legs, and top tree look uniform when fitted side by side, avoiding mismatched shades.
