Springer Conversion Kit for Yamaha XS650 1970-1983 – Single Piece Order
Verified Springer Fitment — We manufacture our own front-end assemblies and chassis hardware, ensuring exact steering stem compatibility for custom conversions.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Conversion Kit |
| Steering Stem Fitment | Standard 1″ |
| Riser Spacing | 4-3/4″ center to center |

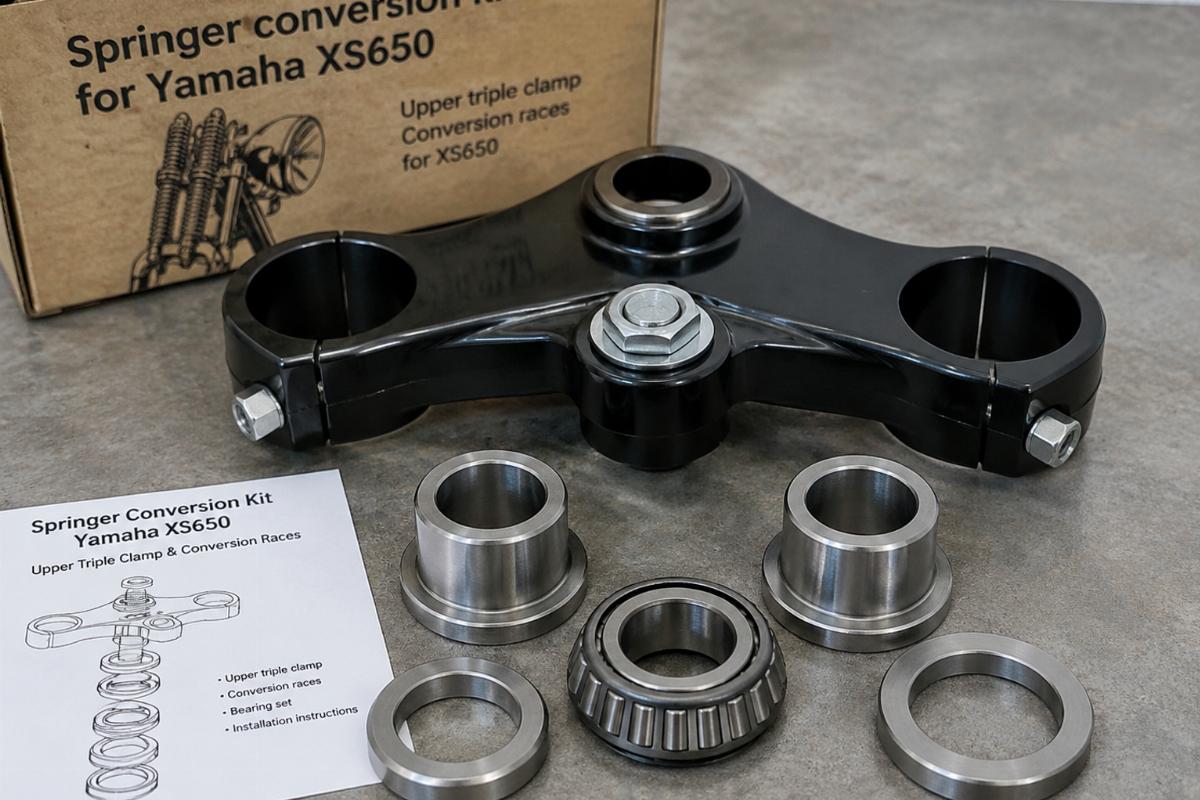

| Kit Contents | Upper triple clamp, locknut, metric-to-SAE conversion bearing races, bearings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Yamaha XS650, TX650 | 1970-1983 | Designed to install aftermarket Harley-Davidson style springer front ends |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Metric-to-SAE Steering Stem Mismatches
A springer conversion kit for Yamaha XS650 bridges the gap between metric frame necks and standard 1-inch stems.
Converting a metric Yamaha XS650 to run a standard 1-inch springer front end often fails due to mismatched steering neck bearings and triple clamp spacing. I learned this by tearing down wrecked bikes over the years. A buyer once ordered standard 1-inch SAE steering neck bearings for his 1970s Yamaha XS650 without checking the frame. He did not realize the XS650 uses a metric steering neck tube. When the parts arrived, the SAE races simply would not press into the metric tube. We had to swap them for the correct Metric-to-SAE conversion races to make it fit [NEED_CITE: steering neck tube diameter variations across metric and SAE platforms]. That mistake cost him weeks of downtime. Now, I always double-check the steering stem and neck dimensions before confirming any springer conversion kit.
Confirming Frame Neck Dimensions for Springer Conversions
Before ordering a springer conversion kit for Yamaha XS650, the frame steering neck tube must be measured to ensure it accepts the included metric-to-SAE conversion bearing races. The upper triple clamp is custom machined to fit the original steering neck tube on these specific models. If the neck tube has been previously modified or reamed by another builder, the conversion races may not seat properly. Always verify the front end being installed uses a standard 1-inch steering stem to match the kit specifications [NEED_CITE: steering neck tube diameter variations across metric and SAE platforms].
Matching Riser Spacing to Handlebar Setups
The riser spacing on this conversion kit is set at 4-3/4 inches center to center. This dimension dictates which handlebar risers and clamps will bolt directly to the upper triple clamp. If your custom handlebar setup requires a different riser width, you will need to source alternative risers or modify the clamp spacing. Confirming this measurement against your intended handlebar setup prevents delays during the final assembly of the front end.
Understanding Triple Clamp and Bearing Specifications

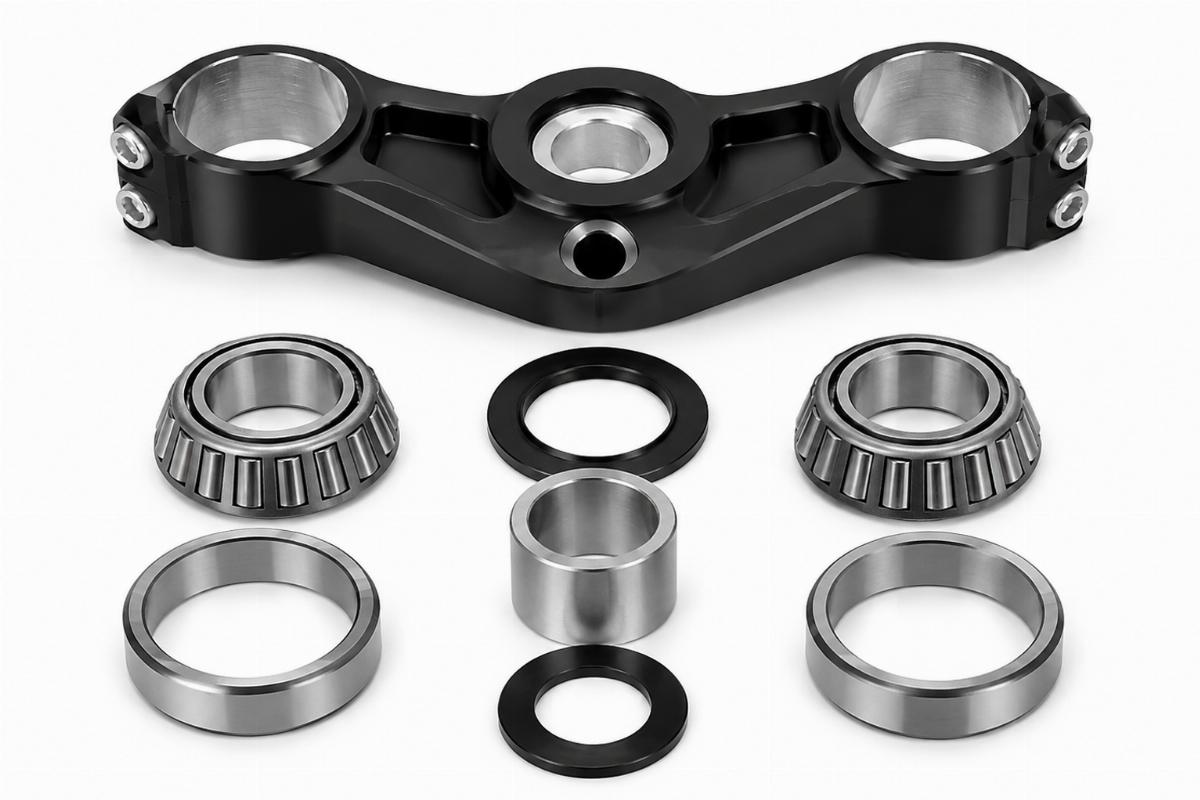

The kit includes an upper triple clamp, a locknut, metric-to-SAE conversion bearing races, and bearings. The conversion bearing races are specifically designed to adapt the metric outer diameter to the standard 1-inch inner diameter required by the springer fork stem. The locknut secures the assembly and sets the correct bearing preload. The 4-3/4 inch riser spacing is machined directly into the upper triple clamp. These dimensions are fixed; they cannot be adjusted once the parts are manufactured.
The Hidden Cost of Unverified Conversion Parts
Ordering a springer conversion kit for Yamaha XS650 without verifying the steering stem diameter leads to parts that physically will not assemble. If the conversion races are not the correct metric-to-SAE size, they will either drop through the frame neck or refuse to press in. This forces the builder to halt the project, return the parts, and wait for replacements. Using incorrect bearing sizes also damages the steering neck tube if forced, requiring expensive frame repairs. Verifying dimensions before ordering prevents these costly delays and wasted labor hours [NEED_CITE: steering neck tube diameter variations across metric and SAE platforms].
Sourcing Verified Front-End Components
We produce our own front-end assemblies and chassis hardware, ensuring every springer conversion kit for Yamaha XS650 is checked against platform dimensions before shipment. We offer a minimum order from one piece, allowing custom builders to order exactly what they need for a single project. Fitment is confirmed against the 1970-1983 year range and specific platform families. We also provide a sample supply for fitment confirmation before you commit to bulk orders for your shop.
Included Documentation and Records
- Fitment sheet listing the 1970-1983 year range this kit was checked against
- Key dimensions sheet confirming steering stem diameter and riser spacing
- Packing photographs showing the upper triple clamp and conversion races
- Quality inspection record for the metric-to-SAE bearing races
- Warranty terms covering manufacturing defects in the triple clamp
Pre-Installation Checks for Builders
- Verify the kit includes the upper triple clamp, locknut, and conversion races
- Confirm the motorcycle is a 1970-1983 Yamaha XS650 or TX650 model
- Measure the steering stem diameter to ensure it matches the standard 1-inch requirement
- Check the upper triple clamp surface for any shipping damage before pressing bearings
- Have a qualified technician install the steering neck bearings to prevent damage
Requesting a Fitment Check
Send your model and year for a fitment check before ordering your springer conversion kit for Yamaha XS650. Provide the exact year range of your frame and the steering stem diameter of the front end you plan to install. If you are unsure about the riser spacing needed for your handlebars, include those measurements in your inquiry. We will verify the dimensions and confirm the kit matches your build requirements.
Frequently Asked Questions
Q: How do I confirm my 1970-1983 Yamaha XS650 fits this conversion kit?
A: Verify your motorcycle is a Yamaha XS650 or TX650 built between 1970 and 1983. The kit is designed specifically for the metric steering neck tube dimensions found on these models. Ensure the aftermarket springer front end you plan to install uses a standard 1-inch steering stem to match the included conversion bearing races.
Q: What components are included in this springer conversion kit?
A: The kit includes a custom machined upper triple clamp, a locknut, metric-to-SAE conversion bearing races, and the corresponding bearings. These parts work together to adapt the metric frame neck to accept a standard 1-inch springer fork stem. No additional steering stem hardware is included.
Q: How do I measure the steering stem diameter for this kit?
A: Measure the diameter of the steering stem on the aftermarket springer front end you intend to install. It must measure exactly 1 inch to match the conversion bearing races included in the kit. If the stem is a different size, the bearings will not fit correctly and the assembly will fail.
Q: Can I order a single conversion kit for a custom build?
A: Yes, we accept minimum orders from one piece. This allows custom builders and independent repair shops to order a single springer conversion kit for a specific project without meeting high bulk quantity requirements. Sample supply is also available if you need to verify fitment before a larger order.
Q: Does the kit include the upper triple clamp for the XS650 steering neck?
A: Yes, the upper triple clamp is included and is custom machined to fit the original steering neck tube on 1970-1983 Yamaha XS650 and TX650 frames. The riser spacing on this clamp is set at 4-3/4 inches center to center to match standard handlebar setups.
