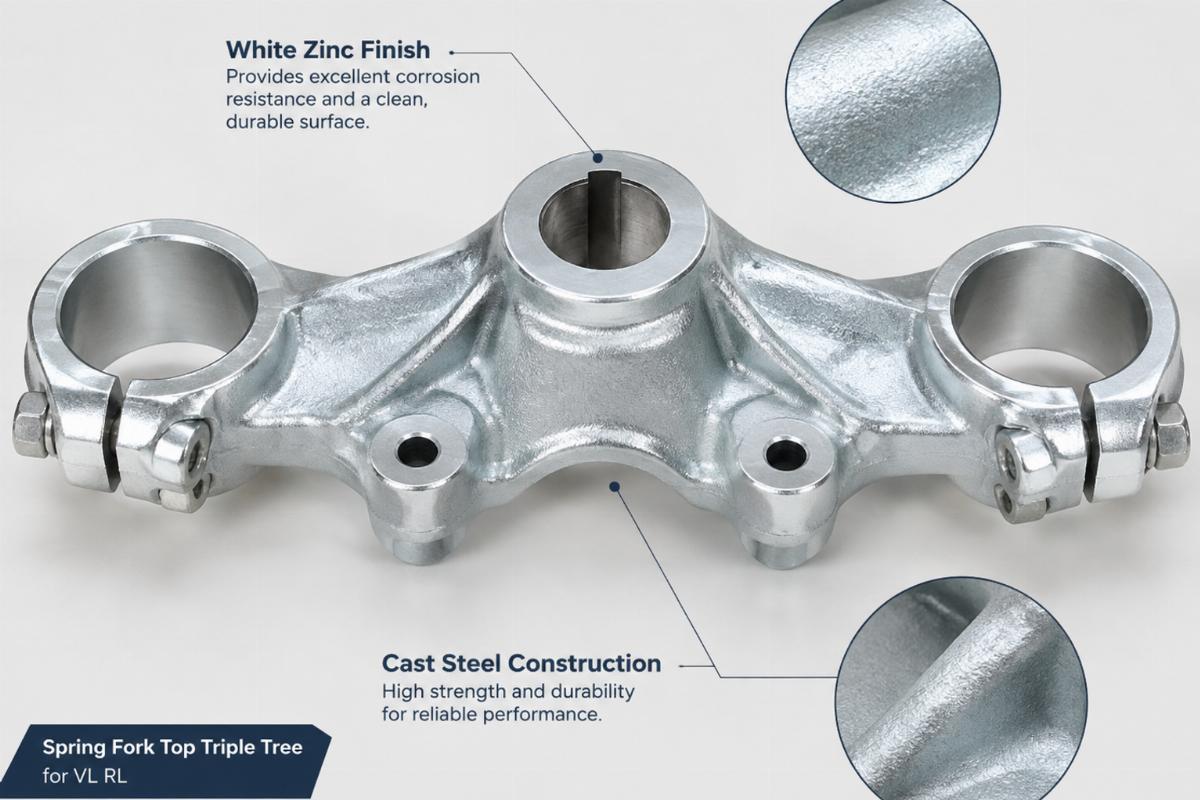

Spring Fork Top Triple Tree – White Zinc – Fits VL & RL 1930-1957
Single Piece Order — This spring fork top triple tree for vl rl is available with a minimum order of one unit, supporting custom builders and repair shops restoring pre-1984 machines without bulk inventory requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Top Triple Tree |
| Finish | White zinc |
| Material | Cast steel |

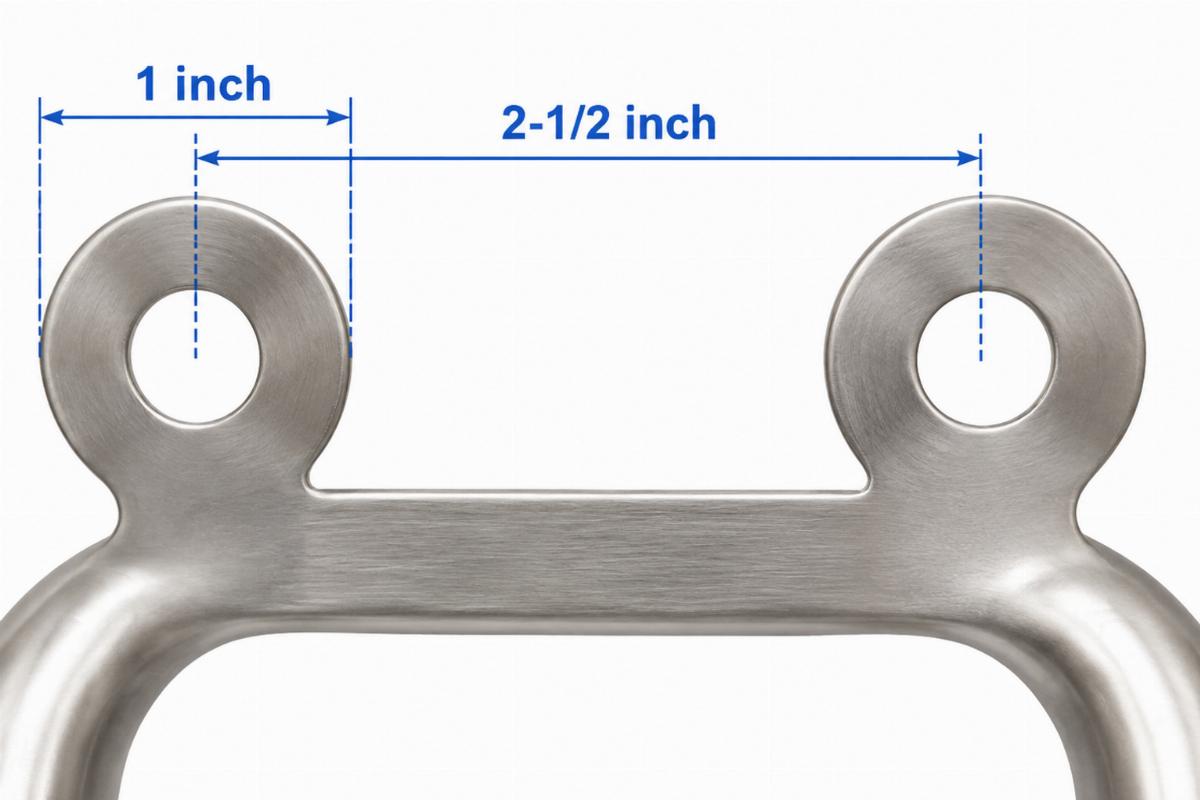

| Ear Outer Diameter | 1″ |
| Hole Inner Diameter (1936-1957 mounting) | 1.05″ (requires honing) |
| Length (center hole to center hole) | 2-1/2″ |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| VL & RL spring fork | 1930-1936 | Designed for “I” beam type forks. |
| Inline Big Twin | 1936-1957 | Includes 1945 spring fork. Inner diameter of mounting holes must be honed out to 1.05″ to fit most spring forks. Works on later models with modification. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Mounting Dimensions for Classic I-Beam Forks
Dimensional discrepancies in early front ends require precise measurement before installation.
When sourcing a spring fork top triple tree for vl rl, buyers often encounter listings that omit critical mounting diameters, leading to parts that simply will not seat. A shop once ordered this exact component for a 1936-1957 spring fork, assuming the 1930-1936 VL design was a direct drop-in. They ignored the inner diameter difference. The mounting holes were too tight, and the fork legs would not seat. We had to hone them out to exactly 1.05″ just to make it fit. Now, we always check if the 1930-1936 VL and RL I-beam dimensions match the later inline Big Twin specs before quoting [NEED_CITE: factory service manual specifications by model year].
Checking Platform and Year Range Compatibility
Determining whether this spring fork top triple tree for vl rl fits your project requires matching the specific platform family and model year range. The 1930-1936 VL and RL models utilize an I-beam fork design that dictates the initial casting dimensions. However, the 1936-1957 inline Big Twin platform introduced variations in the spring fork mounting points. If you are building a 1945 spring fork, the base casting is compatible, but the mounting hole diameter requires modification to accept the later fork legs properly.
Understanding Modification Requirements for Later Models
Installing this spring fork top triple tree for vl rl on later model spring forks is possible but demands specific mechanical adjustments. The casting is engineered with a specific center-to-center hole length of 2-1/2″ and an ear outer diameter of 1″. For 1936-1957 applications, the inner diameter of the mounting holes must be honed out to 1.05″ to accommodate the fork legs. This modification ensures the components align correctly without binding the steering stem or stressing the cast steel material [NEED_CITE: dimensional changes across model years for this platform].
Interpreting Cast Steel and White Zinc Specifications
The material and finish of this component directly impact its longevity and application. Constructed from cast steel, the part provides the necessary structural rigidity for early springer front ends. The white zinc finish offers a period-correct appearance while providing a baseline level of corrosion resistance for the raw metal. The 1″ outer diameter ears are specifically sized to accept standard dog bone risers, ensuring handlebar compatibility for custom chopper and bobber builds. Always verify the finish consistency between batches if you are ordering multiple front-end components to maintain visual uniformity [NEED_CITE: finish consistency between chrome and black batches].
The Hidden Cost of Incorrect Fitment Assumptions
Assuming a part will fit without verifying the exact year range and mounting dimensions often results in significant shop delays. If a triple tree arrives with the wrong inner diameter, the bike remains stuck on the lift while a machinist is sourced to hone the holes. In some cases, the casting ears might be too narrow for the intended risers, forcing the builder to scrap the part and start over. These fitment errors compound when restoring discontinued models, as reference materials from older manuals frequently contain superseded dimensions that no longer match the available aftermarket replacements.
Why Source Pre-1984 Springer Parts Here
We manufacture our own springer front ends and chassis hardware, ensuring direct control over the casting and finishing processes for this spring fork top triple tree for vl rl. Our catalogue maintains deep inventory in early springer parts, allowing us to support pre-1984 and discontinued models that are no longer served by brand channels. Every quotation includes a fitment confirmation against the specific platform family and model year range before dispatch. We also provide cross-reference sheets against original numbers, marked reference only, to help you identify the correct replacement. Finally, we support single-piece minimum orders, enabling repair shops to source exactly what they need for a single restoration without meeting high volume thresholds.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for this specific casting.
- Cross-reference sheet with original numbers marked reference only.
- Key dimensions including hole diameter, center length, and ear diameter.
- Finish specification detailing the white zinc treatment.
- Quality inspection record confirming the casting meets dimensional tolerances.
- Warranty terms and packing photographs for transit verification.
Inspection and Verification Before Installation
- Verify the white zinc finish on the cast steel surface for any transit damage or plating defects.
- Measure the 2-1/2″ center-to-center hole length and 1″ ear outer diameter against your existing fork legs.
- Confirm the inner diameter of the mounting holes to determine if honing to 1.05″ is required for your specific year range.
- Check that the 1″ ears properly accept your chosen dog bone risers without interference.
- Store the component in a dry environment to preserve the white zinc finish prior to assembly.
Requesting a Fitment Check and Quotation
Send your model and year for a fitment check to ensure this spring fork top triple tree for vl rl matches your project requirements. Provide the specific platform family, model year range, and any key measurements from your existing front end. If you are unsure about the modification needed for a 1936-1957 application, share a photograph of your current mounting points so we can verify the honing requirement before you order.
Frequently Asked Questions
Q: How can I confirm if this triple tree fits my specific 1930s springer fork model?
A: You can confirm fitment by checking the platform and year range. This part is designed for 1930-1936 VL and RL I-beam forks. For 1936-1957 inline Big Twin models, it fits but requires the mounting holes to be honed to 1.05″. Send your model and year for a fitment check to verify compatibility before ordering.
Q: What modification is needed to mount this on 1936-1957 spring forks?
A: The inner diameter of the mounting holes must be honed out to exactly 1.05″ to fit most spring forks from this era. The base casting is compatible, but this machining step is required to ensure the fork legs seat properly without binding the steering assembly.
Q: Can I order a single top triple tree for a custom chopper build?
A: Yes, we support single-piece minimum orders. You can order just one top triple tree for your custom build without needing to meet bulk volume requirements. We provide a fitment sheet and key dimensions to ensure the part matches your specific chassis geometry before dispatch.
Q: Does this part work on later model spring forks without any changes?
A: It works on later models with modification. The casting is designed for early I-beam forks, so later applications may require honing the mounting holes to 1.05″ or other adjustments to align with the fork legs. Always verify your specific year range and fork type before installation.
