Spring Fork Top Tree Kit with 4″ Brass Risers for Inline Spring Forks
Single-Piece Minimum Order — Custom builders and repair shops can order exactly one spring fork top tree kit for inline spring forks without facing bulk quantity barriers, ensuring fitment verification before committing to larger batches.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Top Tree Kit |
| Finish (Top Tree) | Zinc plated |
| Finish (Risers) | Polished brass |
| Finish (Pinch Bolts) | Parkerized |
| Length (Risers) | 4″ |

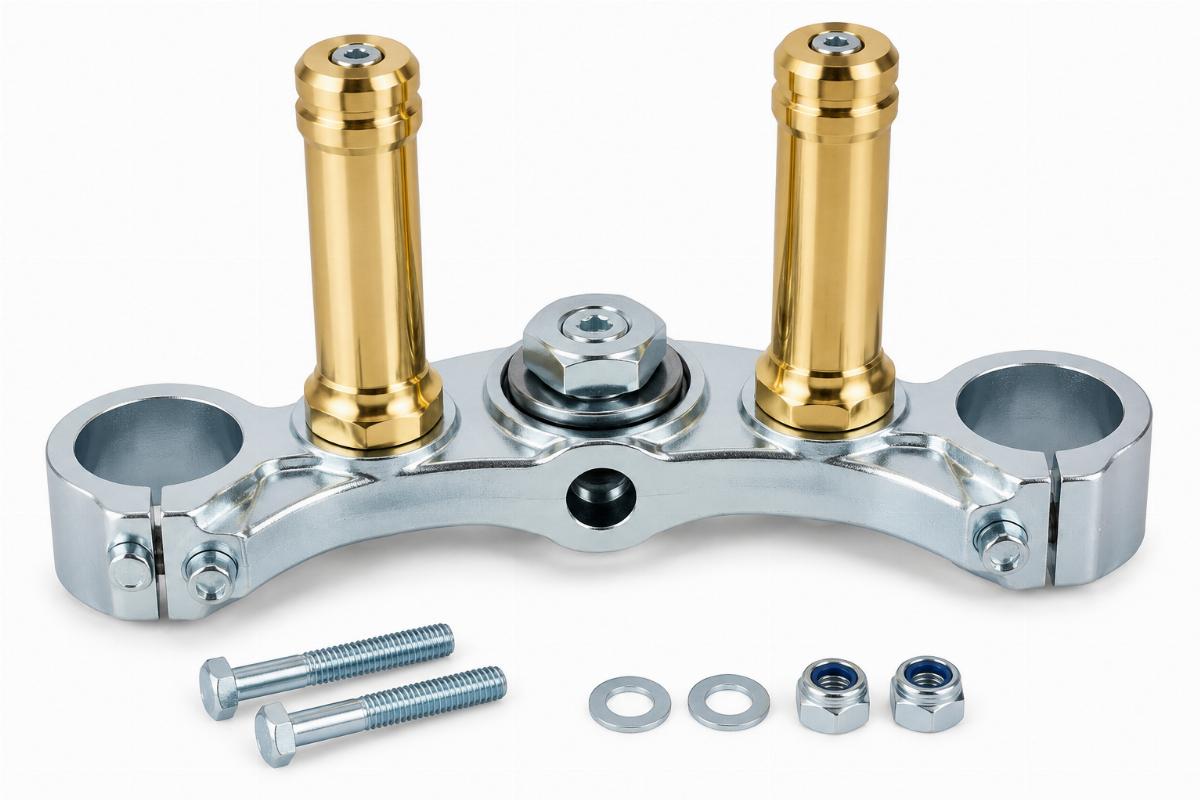

| Kit Contents | Inline zinc plated top tree with ears, 4″ polished brass dog bone risers, pinch bolts for tree |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Inline Spring Forks | Confirm with model and year | Verify fork stem diameter and neck bearing sizes before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Riser Dimension Guesswork in Spring Fork Top Tree Kit for Inline Spring Forks
Exact 4-inch riser height and polished brass finish eliminate handlebar elevation guesswork.
Handlebar and riser listings often omit critical dimensions like rise and diameter, leading to repeated fitment failures on the shop floor. When a builder receives a kit without verified riser length, the entire front-end geometry and handlebar positioning must be re-evaluated. This spring fork top tree kit for inline spring forks provides exact riser length and finish details to remove that uncertainty [NEED_CITE: frame geometry calculations based on riser height and stem diameter].
Verifying Stem Diameter for Inline Spring Forks
Before dispatching any front-end hardware, confirming the fork stem diameter matches the top tree bore is mandatory. Early and late pre-1984 frames often look identical, but steering stem diameters and neck bearing sizes differ significantly between year ranges. This spring fork top tree kit for inline spring forks requires precise measurement to ensure the zinc plated top tree seats correctly into the head cup without binding [NEED_CITE: steering stem diameter variations across classic big twin model years].
Checking Ear Spacing and Clamp Alignment
The top tree ear spacing must align perfectly with your handlebar clamp requirements to prevent stress on the risers. Dog bone risers introduce specific leverage points, and mismatched ear spacing can lead to cracked components or unstable steering. By confirming these dimensions against your specific build, you ensure the 4″ polished brass risers and parkerized pinch bolts function as intended [NEED_CITE: handlebar clamp spacing standards for custom springer builds].
Understanding Zinc, Brass, and Parkerized Finishes

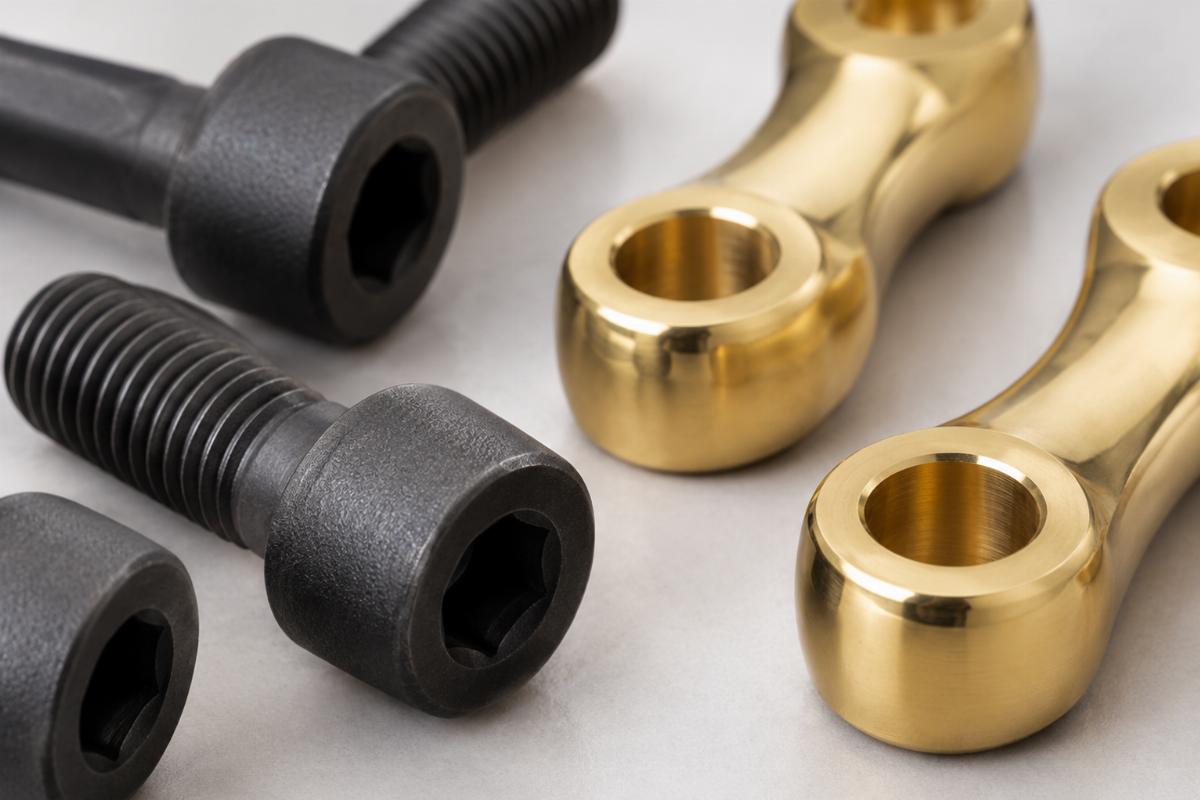

The zinc plated finish on the top tree provides baseline corrosion resistance for the main structural component, while the polished brass dog bone risers offer a distinct visual contrast for custom aesthetics. Parkerized pinch bolts ensure secure clamping while maintaining a consistent, matte industrial look that complements the brass and zinc elements. Understanding these finish specifications helps you match the spring fork top tree kit for inline spring forks to the overall visual theme of the motorcycle without unexpected color mismatches upon arrival.
The Hidden Cost of Incorrect Front-End Hardware
Ordering front-end hardware without verifying exact year ranges often results in parts that simply will not seat into the head cup, leaving the motorcycle stranded on the lift. A mismatched top tree forces the shop to halt the build, source a replacement, and recalibrate the entire front-end assembly, costing valuable labor hours. Relying on incomplete listings that omit stem diameters or riser heights perpetuates these errors across the supply chain, turning a simple replacement into a costly debugging process [NEED_CITE: labor hours lost to incorrect front-end part fitment in independent repair shops].
Sourcing Front-End Hardware with Fitment Certainty
We verify the exact year range and frame dimensions against platform families before quoting any front-end hardware, ensuring the spring fork top tree kit for inline spring forks matches your specific requirements. Our catalogue consolidates early springer parts and custom kits under one account, allowing you to source the zinc plated tree, brass risers, and parkerized bolts together. We support pre-1984 and discontinued models that are no longer serviced by brand channels, keeping classic builds moving forward. You can order a single kit for fitment confirmation before committing to bulk purchases for your distribution line.
Documentation Provided with Your Order
- Fitment sheet listing the inline spring fork platform and applicable year ranges
- Key dimensions document detailing the 4″ riser length and top tree specifications
- Finish specification sheet confirming zinc plated, polished brass, and parkerized surfaces
- Quality inspection record verifying kit contents and hardware completeness
- Commercial invoice and packing list for customs and receiving verification
Receiving and Pre-Installation Checks
- Verify the kit includes the inline zinc plated top tree with ears, 4″ polished brass risers, and pinch bolts
- Measure the top tree bore and compare it against your fork stem diameter before installation
- Inspect the polished brass risers and parkerized pinch bolts for any shipping damage or finish defects
- Confirm the top tree ear spacing aligns with your intended handlebar clamp setup
- Store the kit in a dry environment to preserve the zinc and parkerized finishes before assembly
Requesting a Fitment Check for Your Build
Send your model and year, along with a photograph or measurements of your existing fork stem, to verify compatibility with this spring fork top tree kit for inline spring forks. If you are rebuilding a classic platform, providing the exact year range ensures we cross-reference the correct neck bearing sizes and stem diameters. Let us know if you require a single sample kit for fitment confirmation before placing a larger order for your shop or distribution catalogue.
Frequently Asked Questions
Q: How do I confirm my inline spring fork stem diameter matches this top tree kit?
A: You must measure the diameter of your existing fork stem or consult the frame specifications for your exact model year. Early and late frames within the same family often use different stem diameters. We provide a fitment sheet detailing the top tree bore size so you can verify the match before installation, preventing the part from failing to seat into the head cup.
Q: What are the exact dimensions of the 4″ polished brass dog bone risers?
A: The risers included in this spring fork top tree kit for inline spring forks have a verified length of 4 inches. This specific height is designed to provide a consistent handlebar elevation for custom inline springer builds. The exact diameter and pullback dimensions are documented in the key dimensions sheet provided with your quotation to ensure they meet your specific ergonomic requirements.
Q: Does the kit include all necessary hardware for top tree installation?
A: Yes, the kit is comprehensive and includes the inline zinc plated top tree with ears, the 4″ polished brass dog bone risers, and the specific parkerized pinch bolts required for the tree. No additional hardware is needed to assemble these core components. The quality inspection record verifies that all listed contents are present and undamaged before dispatch.
Q: Can I order a single top tree kit for a custom build without minimum order quantities?
A: Absolutely. We support custom builders and independent repair shops by offering a minimum order of exactly one piece. This allows you to procure a single spring fork top tree kit for inline spring forks to verify fitment and finish consistency on a specific bike before deciding whether to order additional units for future projects or inventory.
Q: How is finish consistency maintained between zinc plated and polished brass components?
A: Each component in the spring fork top tree kit for inline spring forks undergoes individual finish specification checks. The zinc plated tree, polished brass risers, and parkerized pinch bolts are inspected to ensure they meet our visual and corrosion resistance standards. This prevents batch variations where mixed finishes might look mismatched once the front end is fully assembled and displayed side by side.
