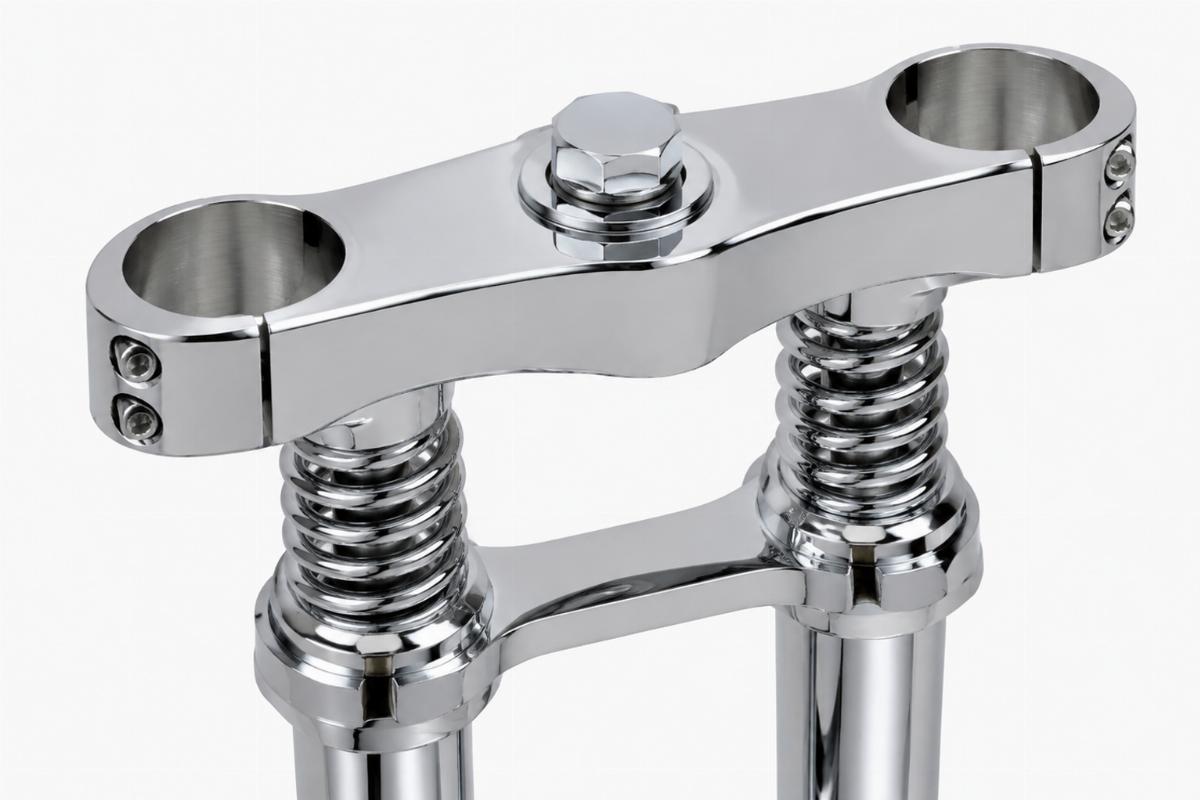

Chrome Plated Inline Top Triple Tree 1/2″ for Spring Forks – Fitment Checked
In-house springer front end production — Every top triple tree is machined and finished in our own facility, ensuring exact 1/2″ hole spacing and thread consistency before it reaches your shop.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Top Triple Tree |
| Finish | Chrome plated |
| Material | Cast steel |
| Design | Inline, without ears |
| Mount Hole Diameter | 1/2″ |
| Thread | 1/2″ x 20 or 1/2″ x 13 |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| stock or custom Spring Forks | Confirm with model and year | Verify thread pitch and hole spacing against your specific riser hardware. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Thread Pitch Matters for Your Springer Fork Top Triple Tree
A 1/2″ mount hole is only half the equation; the thread pitch determines if your risers will actually install.
I still remember a batch of chrome plated top triple trees shipped to a custom builder in Latin America. The buyer ordered springer fork parts without specifying the year, and we supplied the standard 1/2″ mount holes. When the risers arrived, the 1/2″ x 20 threads didn’t match their 1/2″ x 13 allen cap screws [NEED_CITE: thread pitch variations across custom springer builds]. The parts looked identical from the outside, but that tiny thread pitch difference meant the risers wouldn’t install, leaving the bike stuck on the lift. Now, I always double-check the exact thread size and hole spacing for every triple tree before it leaves the warehouse to prevent this exact scenario.

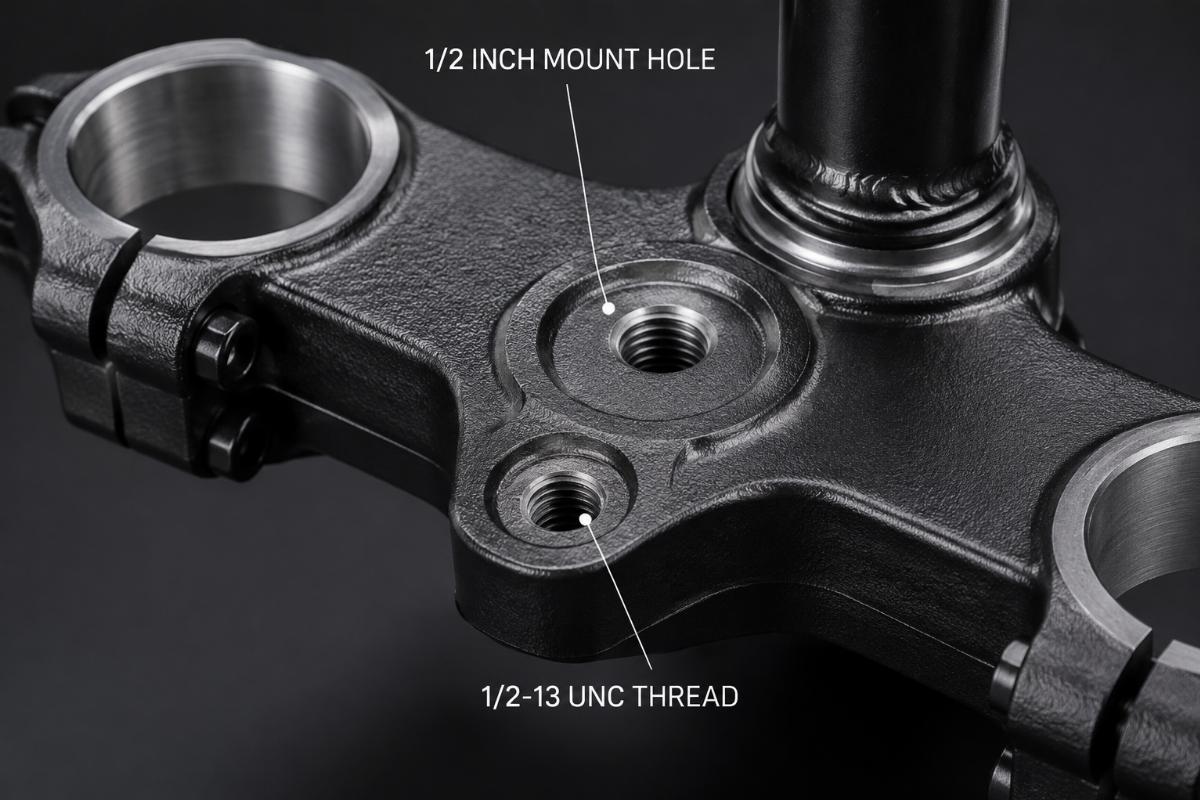

Verifying Mount Hole Dimensions for Riser Compatibility
When sourcing a springer fork top triple tree, the 1/2″ mount hole diameter must perfectly match your post riser base requirements. If the hole is too small, the riser post will not seat; if it is too large, the assembly will lack structural rigidity. This inline design without ears provides a clean setup, but the critical factor remains the precise 1/2″ hole spacing and the specific thread specification you select.
Selecting the Correct Thread Specification
The thread specification for the 1/2″ mount holes is available as either 1/2″ x 20 or 1/2″ x 13. This choice is not universal and depends entirely on the hardware used in your specific fork assembly [NEED_CITE: thread standards for custom front end hardware]. Ordering the wrong thread pitch means the allen cap screws will cross-thread or fail to engage, requiring a return and delaying the build. Confirming this detail during the inquiry phase ensures the cast steel component arrives ready for your exact hardware.
The Hidden Cost of Incorrect Thread Specifications
Shipping a springer fork top triple tree with the wrong thread pitch means the bike stays on the lift while the shop waits for a replacement. A 1/2″ x 20 thread will not accept a 1/2″ x 13 bolt, and forcing it damages the cast steel material. Beyond the physical damage, the chrome plated finish can chip during forced installation, ruining the visual consistency of the front end. Misidentified thread specs also lead to wasted shipping costs and lost labor hours for the custom builder.
Why Source This Component From Us
We manufacture our own springer front ends, meaning this top triple tree is produced under strict quality control rather than outsourced to unknown vendors. We offer a minimum order of one piece, allowing custom builders to purchase a single replacement without meeting high volume thresholds. Every unit undergoes a fitment check against your specific platform and year range before quotation to guarantee compatibility. We also provide chrome plated finish options that are inspected for batch consistency, ensuring the part matches your existing front end components. Finally, we supply samples for fitment confirmation before you commit to bulk orders.
Documentation Provided With Your Order
- Fitment sheet stating applicable platforms and year ranges for this specific triple tree.
- Key dimensions document detailing the 1/2″ mount hole diameter and thread options.
- Finish specification record confirming the chrome plated batch consistency.
- Quality inspection record verifying the cast steel material and inline design.
- Warranty terms covering manufacturing defects for the top triple tree.
Pre-Installation Checks for Your Triple Tree
- Verify the 1/2″ mount hole diameter matches your post riser base requirements before assembly.
- Confirm the thread specification is either 1/2″ x 20 or 1/2″ x 13 based on your allen cap screws.
- Inspect the chrome plated finish for any shipping damage or plating inconsistencies on the cast steel.
- Ensure the inline, earless design aligns correctly with your specific stock or custom springer fork configuration.
- Store the top triple tree in a dry environment to protect the chrome plated finish prior to installation.
Send Your Details for a Fitment Check
To ensure this springer fork top triple tree fits your build perfectly, send us your model and year range along with a photograph of your current riser hardware. Let us know if you require the 1/2″ x 20 or 1/2″ x 13 thread specification, and confirm if you need a sample for physical verification before placing a larger order. Providing these details upfront prevents fitment issues and keeps your custom build on schedule.
Frequently Asked Questions
Q: How do I confirm if this inline triple tree fits my specific custom springer fork setup?
A: Send us your model, year range, and a photograph of your current riser hardware. We will verify the 1/2″ mount hole spacing and confirm whether the inline, earless design matches your specific stock or custom springer fork configuration before providing a quotation.
Q: What are the exact thread specifications available for the 1/2″ mount holes?
A: This top triple tree is available with either 1/2″ x 20 or 1/2″ x 13 threads. You must confirm which thread pitch matches your existing allen cap screws to ensure the risers install correctly without cross-threading the cast steel material.
Q: Can I order a single top triple tree for a custom build, or is there a minimum order quantity?
A: You can order a single top triple tree. We support a one-piece minimum order, allowing custom builders and repair shops to purchase exactly what they need for a specific project without being forced to meet high volume requirements.
Q: How do you ensure chrome finish consistency between different production batches?
A: Because we produce our own springer front ends, we control the plating process in-house. We provide a finish specification record and quality inspection report with your order to verify the chrome plated batch consistency matches your existing front end components.
Q: Can I request a sample to verify the cast steel material and 1/2″ hole spacing before bulk ordering?
A: Yes, we offer sample supply for fitment confirmation. Requesting a sample allows you to physically verify the cast steel material, the inline design, and the exact 1/2″ hole spacing before committing to a bulk order for your shop.
