Single Piece Order Handlebars for Metric Motorcycles
Fitment Verified Control Parts — Sourced control components checked against platform dimensions and supplied with one-piece minimum orders for custom builders and repair shops.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Finish | Black |
| Material | Steel tubing |
| Diameter | 7/8 inch OD x 0.095″ wall |
| Width | 27″ overall |
| Rise | 6″ |
| Design | Uprights angle inward |
| Welding | Hand TIG welded |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Metric motorcycles | Confirm with model and year | Fits stock cables, brake lines, and wiring |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Control Diameter and Routing for Window Handlebars for Metric Motorcycles
Stock switches and internal wiring require exact 7/8 inch OD and specific cross-drilling to function correctly.
Handlebar listings often miss exact rise, width, and diameter details, leaving builders guessing if stock cables and wiring will reach. I once saw a builder order generic window bars for a metric custom without specifying the control diameter or wiring-hole details. The stock switches could not clamp properly, and the internal wiring had no path to route through the steel tubing. That mistake forced a complete teardown and reorder. Verifying the exact 7/8 inch OD, rise, and width before confirming fitment prevents these costly delays [NEED_CITE: factory service manual specifications by model year for control clamp diameters].

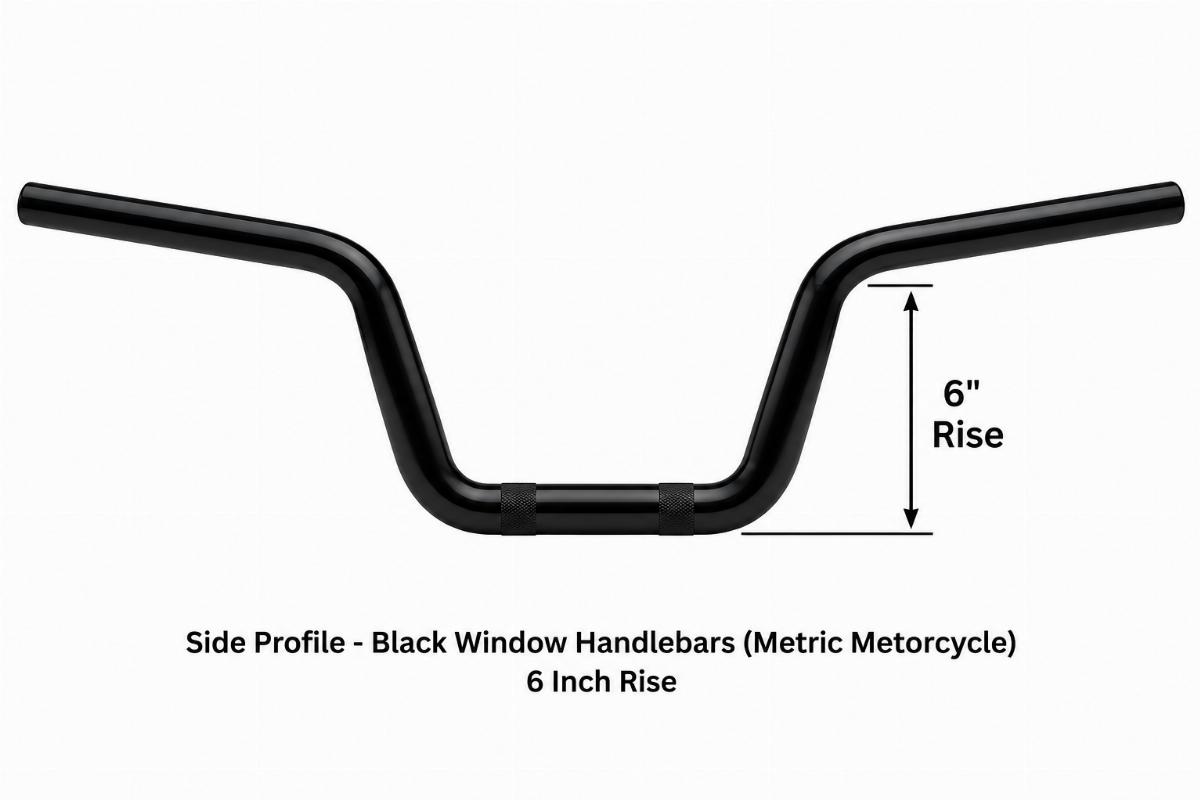

Matching Stock Cable Lengths to a 6 Inch Rise
When upgrading to these window handlebars for metric motorcycles, the 6″ rise directly impacts cable and brake line routing. You must confirm that your stock cables have enough slack to accommodate the additional height without stretching or binding at the steering stops. The 27″ overall width ensures the controls remain within comfortable reach while maintaining the inward-angling upright design.
Checking Upright Clearance and Clamp Spacing
The inward-angling uprights on this 7/8 inch OD setup change the visual profile and the physical clearance around the triple tree. Builders need to measure the distance between the riser mounts on their specific metric motorcycle to ensure the 27″ width aligns perfectly. The hand TIG welded joints provide a solid connection, but the exact geometry must match your frame’s neck angle to avoid steering interference [NEED_CITE: frame geometry and triple tree spacing variations across metric platforms].
Interpreting the 7/8 Inch OD and Wall Thickness
The 7/8 inch OD x 0.095″ wall steel tubing construction is a critical dimension for control fitment. This specific diameter is required to accept standard metric control clamps, switches, and levers without the need for reduction sleeves. The 0.095″ wall thickness maintains structural integrity while allowing enough internal space for throttle and control cables to route cleanly through the bars. If your bike uses a 1 inch mounting section, these 7/8 inch bars will not fit your stock risers or clamp mounts.
The Hidden Cost of Incorrect Control Dimensions
Ordering handlebars without confirming the exact diameter and rise often leads to bikes sitting on the lift for weeks. If the 7/8 inch OD does not match your stock clamps, you cannot mount the switches. If the internal wiring cannot route because the bars lack the necessary cross-drilling or internal clearance, the electrical system remains incomplete. Superseded part numbers and copied fitment tables only make this worse, sending the wrong width or rise to your shop, resulting in rework and delayed builds [NEED_CITE: cable length limitations when changing handlebar rise on metric frames].
Sourcing Single Pieces with Confirmed Dimensions
We supply these window handlebars for metric motorcycles with a minimum order of one piece, supporting custom builders and independent repair shops working on single builds. Every set is checked against the 7/8 inch OD, 6″ rise, and 27″ width requirements before quotation. We provide a fitment sheet stating the applicable platforms and year ranges, ensuring you know exactly what dimensions you are receiving. This approach eliminates the guesswork and prevents the delivery of bars that cannot accept your stock controls.
Documentation Provided
- Fitment sheet listing applicable metric platforms and year ranges
- Key dimensions including 7/8 inch OD, 6″ rise, and 27″ width
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification for the black coating

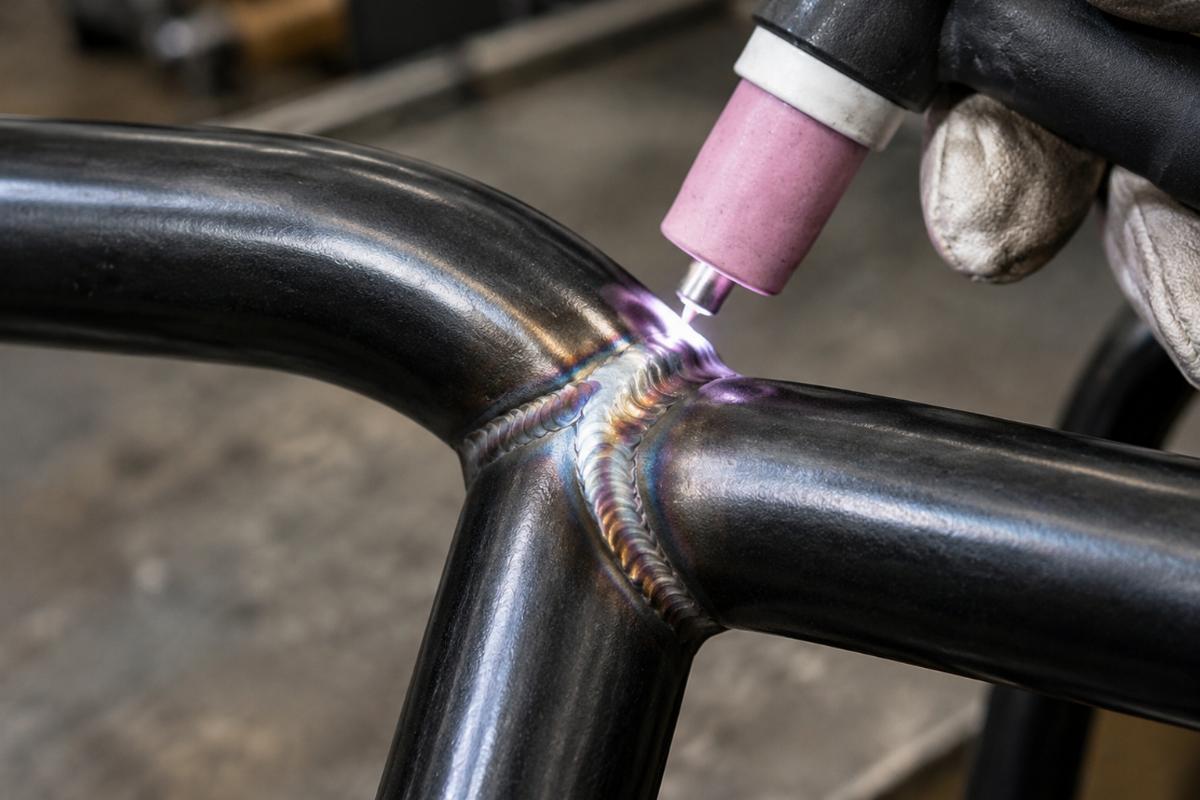

- Quality inspection record for hand TIG welded joints
Receiving and Pre-Installation Checks
- Verify the 7/8 inch OD matches your stock control clamps and riser mounts
- Measure the 27″ overall width and 6″ rise against your stock cable lengths
- Inspect the black finish for consistency across the steel tubing
- Check the inward-angling uprights for clearance around your triple tree
- Ensure internal wiring paths are clear before routing cables
- Store in a dry environment to maintain the black finish condition
Requesting a Fitment Check
Send your metric motorcycle model, year, and a photograph of your current controls to verify compatibility. Provide the exact measurements of your stock cable lengths and wiring requirements to confirm the 6″ rise will work. Let us know if you need a single pair for a custom build or require a sample for fitment confirmation before placing a larger order.
Frequently Asked Questions
Q: How do I confirm if these 7/8″ handlebars fit my specific metric motorcycle model and year?
A: Send your model, year, and a photo of your current controls. We verify the 7/8 inch OD against your stock clamps and check if the 6″ rise and 27″ width align with your frame geometry. A fitment sheet is provided before quotation to confirm compatibility.
Q: What exact dimensions must I measure to ensure stock cables work with a 6″ rise?
A: Measure the length of your stock throttle, clutch, and brake lines from the control to the mounting point. Compare this to the additional height introduced by the 6″ rise. Ensure your wiring harness has enough slack to route through the 7/8 inch OD tubing without stretching.
Q: Can I order a single pair of handlebars for a custom build without a high minimum order?
A: Yes, we support custom builders and repair shops with a minimum order of one piece. You can order a single pair of these window handlebars for metric motorcycles for your specific build without meeting bulk quantity requirements.
Q: Do you provide a fitment and cross-reference sheet to verify compatibility before I order?
A: Yes, we provide a fitment sheet stating the applicable platforms and year ranges, along with key dimensions like the 7/8 inch OD, 6″ rise, and 27″ width. Cross-reference sheets with OEM numbers marked reference only are also included to help verify compatibility.
