Aftermarket Replacement Leaf Spring Fork Assembly for Custom Choppers
In-House Springer Production — We manufacture our own springer front ends and chassis hardware, ensuring direct control over the 44cm length and 1″ stem dimensions for your custom builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Leaf Spring Fork Assembly |
| Finish | Chrome |
| Stem Diameter | 1″ |
| Stem Thread | 1″ x 24 |
| Top Tree Configuration | Standard spring configuration for mounting risers |

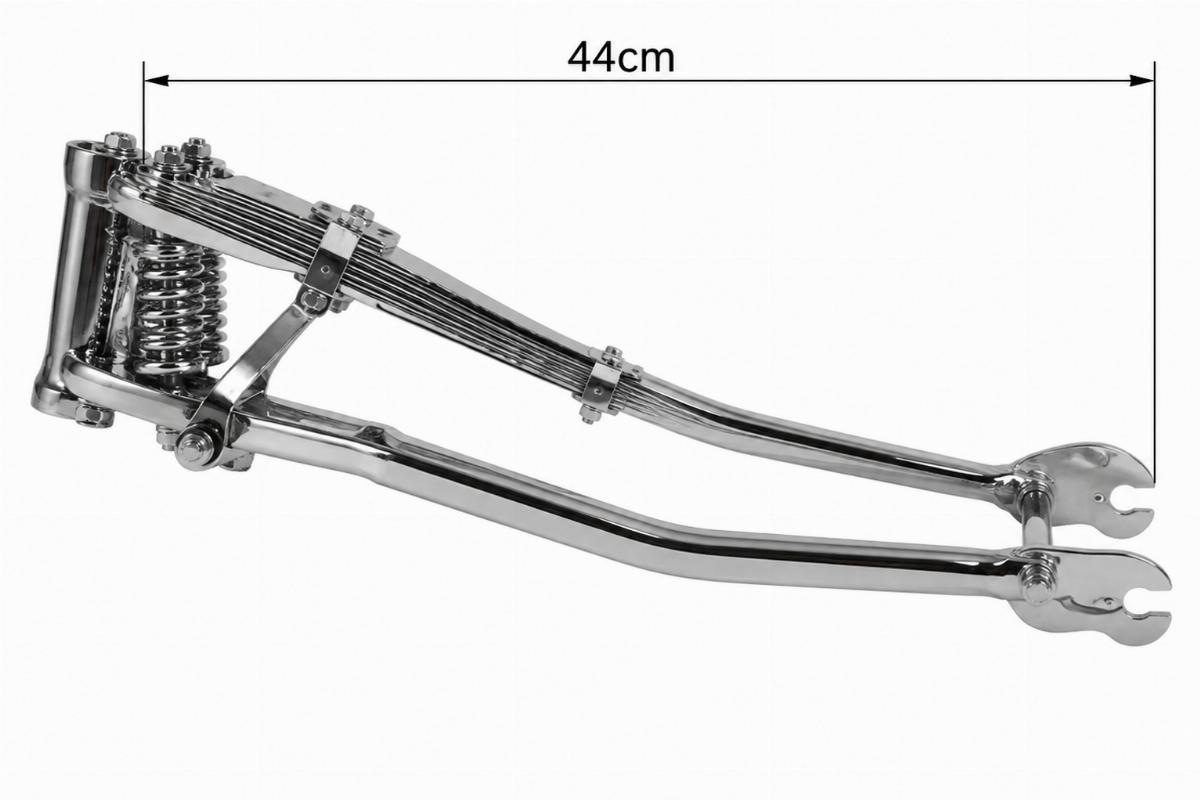

| Overall Length | 44cm (measured from lever tree base to axle) |
| Headlamp Bracket | Welded in place for bottom mount headlamps |
| Axle Diameter | 3/4″ |
| Included Hardware | Top crown nut, 3/4″ axle, chrome acorn nuts |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom choppers | Confirm with model and year | Verify the 44cm length and 1″ stem thread match your specific frame geometry and steering neck requirements. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Clarifying Overall Length and Stem Dimensions for Custom Builds
A leaf spring fork assembly for custom choppers requires exact length and stem verification before ordering.
Springer forks offered over stock often lack clear statements on overall length and mounting dimensions, making it difficult to judge ride height and steering geometry before ordering [NEED_CITE: frame geometry specifications for custom chopper builds]. When the 44cm length or 1″ x 24 thread is not explicitly confirmed against your specific triple tree, the fork may sit unusable in the shop. We provide a fitment sheet stating the applicable dimensions to prevent this mismatch.
Verifying Frame Geometry and Ride Height
Before installing a leaf spring fork assembly for custom choppers, you must measure the distance from the lever tree base to the axle on your current setup or frame jig. The 44cm overall length directly dictates your front-end ride height and alters the steering geometry. If your frame was designed for a shorter or longer springer, this specific assembly will change the rake and trail, affecting how the bike handles at low speeds [NEED_CITE: steering geometry changes based on fork length].
Matching the Steering Stem and Top Nut
The 1″ stem with a 1″ x 24 thread must perfectly match your steering neck bearings and top nut requirements. A mismatch here means the top tree will not seat correctly, or the included top crown nut will not thread properly. Always compare the stem thread pitch and diameter against your frame’s steering head specifications to ensure the standard spring configuration top tree aligns correctly for mounting your risers.
Evaluating Axle Spacing and Headlamp Mounting

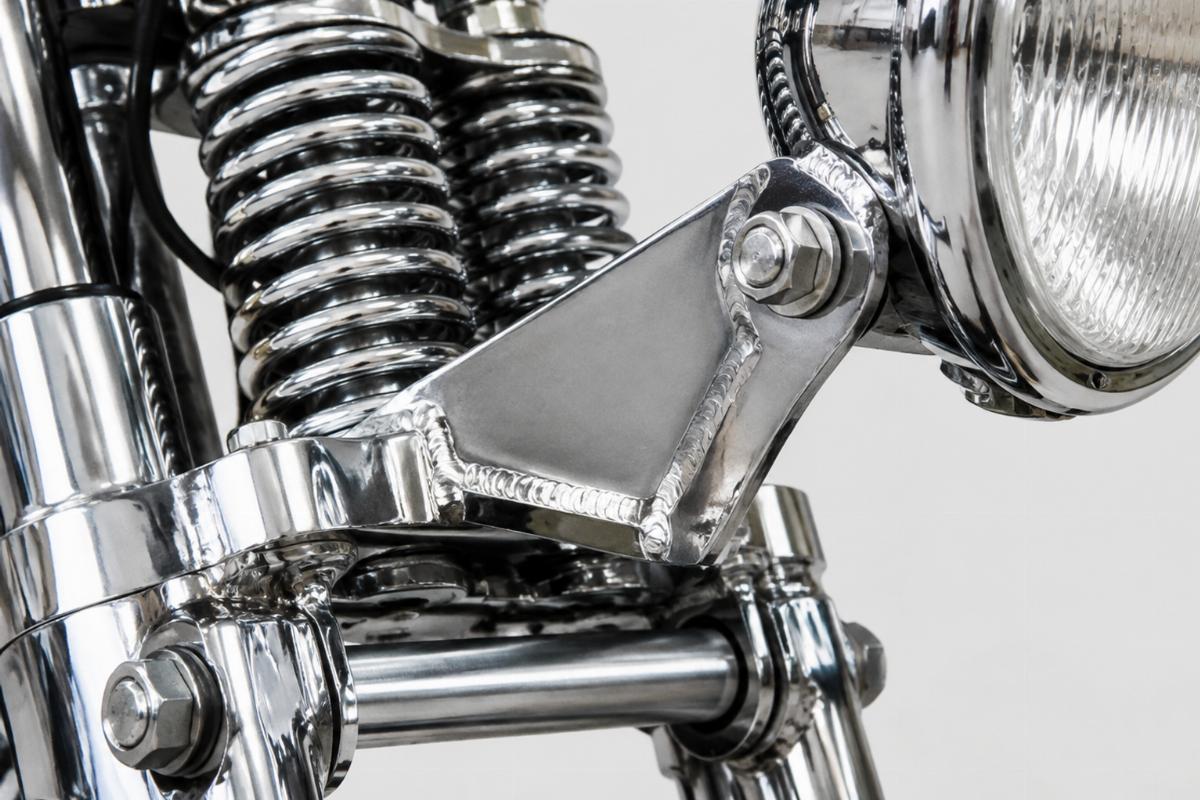

The 3/4″ axle diameter and the welded headlamp bracket for bottom mount headlamps are critical for your wheel and lighting setup. The axle spacing determines if your front wheel hub will fit between the legs without modification. Additionally, the welded bracket is fixed in place; if your custom build requires a different headlamp mounting position or a top-mount light, this specific fork configuration will require fabrication work to adapt.
The Hidden Cost of Unverified Front-End Dimensions
I once worked with a buyer who ordered a leaf spring fork assembly for a custom build but only provided the model name, skipping the exact frame year and geometry specs. The 44cm length and 1″ stem looked perfect in the photos, but because the year range and frame specifics were missed, the 3/4″ axle spacing and stem thread completely mismatched his specific frame’s triple tree and axle hardware. The fork just sat there, unusable, blocking the build schedule and requiring a return [NEED_CITE: common fitment errors when frame year is omitted]. This taught me to always verify the exact platform dimensions and year range before confirming any front-end fitment.
Sourcing Front-End Parts with Fitment Certainty
We produce front-end and chassis parts in our own facility, allowing us to control the critical dimensions like the 44cm length and 1″ stem thread. Our catalogue offers front-end depth, meaning you can source complete springer assemblies and related hardware under one account. We provide chrome finish options with strict quality inspection records to ensure consistency. You can place a minimum order from one piece, making it easy to source a single leaf spring fork assembly for custom choppers for a one-off build without hitting high volume barriers.
Documentation Provided
- Fitment sheet stating the 44cm length and 1″ stem thread for your specific platform.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Key dimensions document detailing the lever tree base to axle measurement.
- Finish specification and quality inspection record for the chrome plating.
- Packing photographs showing the included top crown nut and chrome acorn nuts.
Receiving and Pre-Installation Checks
- Verify the 44cm overall length from the lever tree base to the axle matches your order.
- Check the 1″ stem and 1″ x 24 thread for any shipping damage before installation.
- Inspect the chrome finish on the legs and included 3/4″ axle for consistency.
- Confirm the welded headlamp bracket is solid and aligned for your bottom mount headlamp.
- Ensure the top crown nut and chrome acorn nuts are present in the hardware bag.
- Store the assembly in a dry environment to prevent moisture spots on the chrome.
Requesting a Fitment Check
Send your exact frame model, year, and key steering neck measurements to verify if this 44cm leaf spring fork assembly for custom choppers matches your geometry. If you have an old fork, provide a photo or the stem thread specification to confirm the 1″ x 24 fitment. Let us know if you need a sample for physical verification before committing to your bulk order.
Frequently Asked Questions
Q: How do I confirm the 44cm length will fit my specific chopper frame?
A: Measure the distance from your current lever tree base to the axle center, or check your frame jig specifications. The 44cm length determines your ride height and steering geometry. We provide a fitment sheet detailing this measurement so you can compare it directly against your build requirements before ordering.
Q: What are the key dimensions to measure when replacing a custom springer front end?
A: You must verify the overall length from the lever tree base to the axle, the stem diameter, and the stem thread pitch. For this assembly, confirm your frame accepts a 1″ stem with a 1″ x 24 thread and that the 3/4″ axle spacing matches your front wheel hub width.
Q: Does the kit include the axle and necessary mounting hardware?
A: Yes, the leaf spring fork assembly for custom choppers includes a 3/4″ axle, a top crown nut, and chrome acorn nuts. The headlamp bracket is also welded directly to the fork legs for bottom mount headlamps, ensuring you have the core structural hardware needed for the front end.
Q: Can I order a single leaf spring fork assembly for a one-off custom build?
A: Yes, we support a minimum order from one piece. This allows custom builders and restoration shops to purchase a single assembly for a specific project without meeting high volume requirements. We can also supply a sample for fitment confirmation before you place larger orders.
Q: How do you ensure finish consistency between chrome batches?
A: We maintain strict finish specifications and provide a quality inspection record for every order. This documentation details the chrome plating standards, ensuring that if you order additional front-end parts later, the finish quality remains consistent for side-by-side fitting on your custom build.
