Fork Tube Upper Bracket Bolt Zinc Plated for Big Twin 1949-Early 1977
Fitment Confirmed by Year Range — Every fork tube upper bracket bolt for Big Twin 1949-Early 1977 is verified against platform specifications before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 45754-60 (reference only) |
| Part Type | Fork Tube Upper Bracket Bolt |
| Finish | Zinc Plated |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin | 1949-Early 1977 | Confirm exact model year for thread pitch compatibility. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Sourcing Hardware for Discontinued Big Twin Models
Exact thread matching is critical when restoring pre-1984 front ends. Finding a fork tube upper bracket bolt for big twin models from the 1949 to Early 1977 era is difficult when brand channels no longer support discontinued machines. Builders often rely on outdated manual numbers that have been superseded, leading to mismatched hardware. When the thread pitch is slightly off for transition models, it cross-threads and ruins the bracket hole, stopping the build entirely [NEED_CITE: factory service manual specifications by model year].
Verifying Thread Pitch for Transition Models

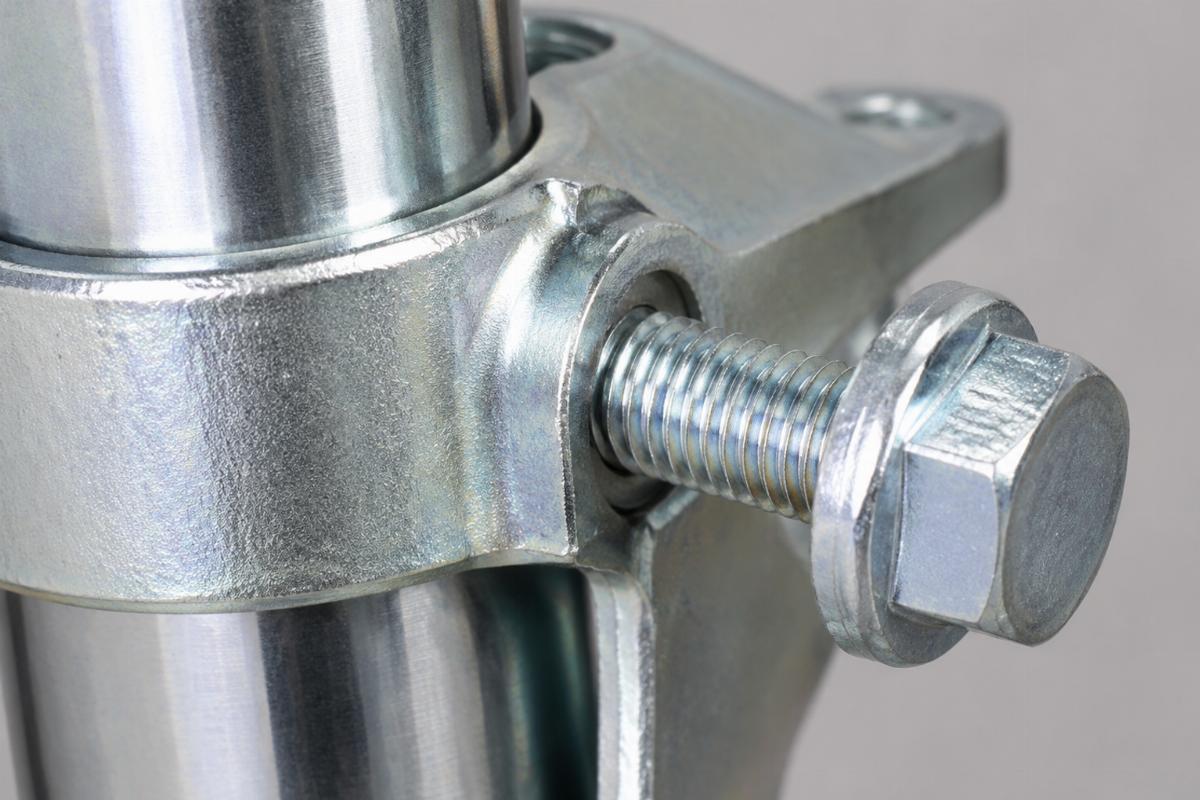

Matching a replacement HD# 45754-60 (reference only) requires more than just checking the number. The 1949 to Early 1977 range includes transition years where bracket designs and thread pitches shifted. We physically measure and test-fit every fork tube upper bracket bolt to ensure the threads and length match the exact year range of your specific build.
Checking Shoulder Dimensions and Bracket Alignment

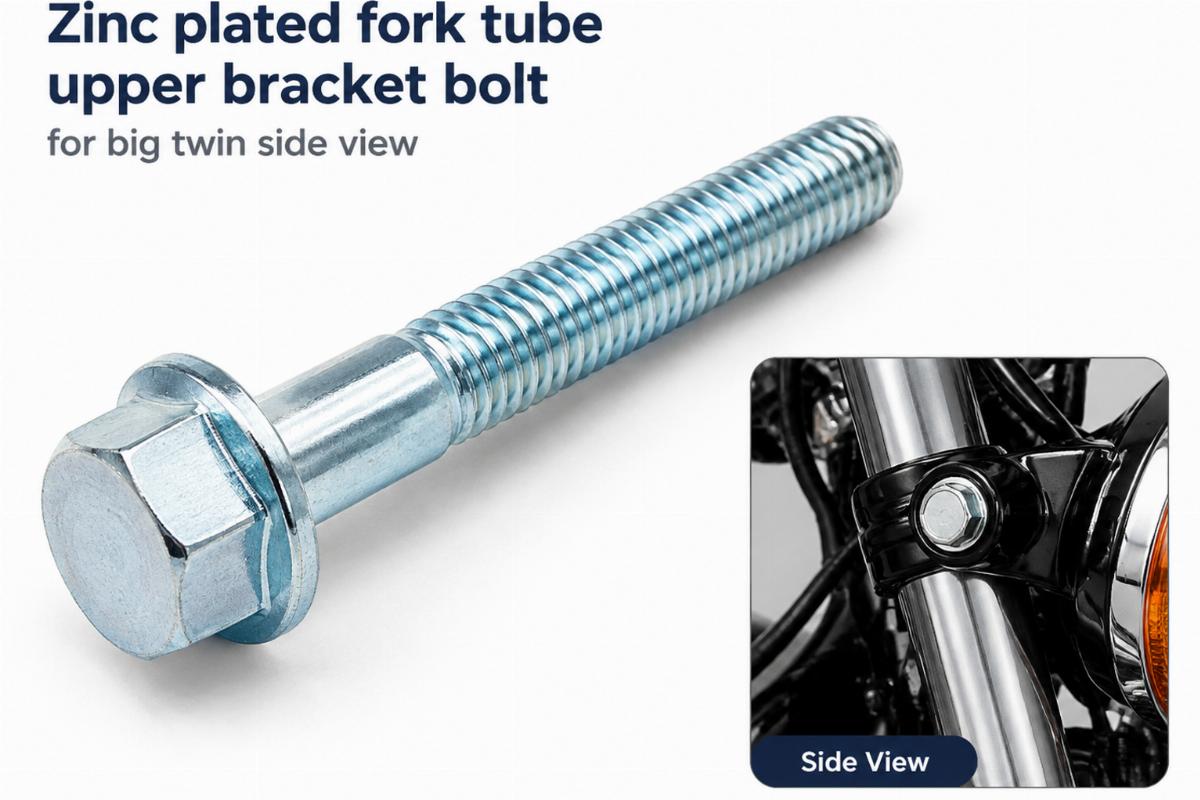

The shoulder dimension of this fork tube upper bracket bolt for big twin platforms dictates how the upper bracket sits against the fork tube. If the shoulder is too long or too short, the bracket will not seat correctly, causing misalignment in the front end assembly [NEED_CITE: frame geometry and fork alignment tolerances].
Understanding Zinc Plated Finish Consistency
The zinc plated finish on this hardware is selected to provide visual consistency with early front end components. When restoring a vintage Big Twin, matching the finish of small hardware pieces to the larger fork components is essential for an authentic appearance. This finish also offers basic corrosion resistance for daily riding conditions.
The Hidden Cost of Incorrect Front End Hardware
Using the wrong bolt in a vintage front end often goes unnoticed until assembly is nearly complete. A slightly incorrect thread pitch will cross-thread the bracket hole, turning a simple hardware replacement into a major repair job. This forces the bike to sit on the lift while the bracket is drilled out and re-tapped, delaying the entire build schedule and increasing labor costs [NEED_CITE: repair shop workflow delays due to hardware failure].
Why Source This Hardware From Us
We verify fitment against the specific platform family and model year range before providing a quotation. Our cross-reference process checks HD# 45754-60 (reference only) against superseded numbers to ensure you receive the correct part. We maintain a minimum order of one piece, allowing restoration shops to source exact replacement hardware without bulk quantities. Every fork tube upper bracket bolt is physically measured to guarantee thread and length accuracy. We provide comprehensive documentation to support your purchasing and installation records.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification for the zinc plated surface
- Quality inspection record for thread and length verification
- Packing photographs showing the exact hardware received
Receipt and Pre-Installation Checks
- Verify the zinc plated finish matches the rest of your front end hardware.
- Confirm the model year falls strictly within the 1949 to Early 1977 range.
- Check the thread pitch by hand before applying any installation force.
- Ensure the bolt shoulder seats correctly against the upper bracket.
- Store the hardware in a dry environment to preserve the zinc plating.
Request a Fitment Check
Send your specific Big Twin model and year range to verify compatibility with this fork tube upper bracket bolt. Provide the old part or a clear photograph if the original number is unreadable. Let us know if you require a sample for physical test-fitting before committing to your final order.
Frequently Asked Questions
Q: How do I confirm my specific Big Twin model year fits this fork tube upper bracket bolt?
A: You must verify that your model year falls strictly within the 1949 to Early 1977 range. Transition models within this period may have different thread pitches or bracket designs. We recommend checking your specific frame and fork assembly against the fitment sheet we provide before installation to ensure exact compatibility.
Q: Can I order a single replacement bolt for a restoration project without meeting a minimum order quantity?
A: Yes, we support a minimum order of one piece. This allows independent repair shops and restoration specialists to source exact replacement hardware for a single bike build without being forced to purchase bulk quantities. You can order just the specific fork tube upper bracket bolt you need for your project.
Q: Is this bolt a direct replacement for the superseded HD# 45754-60 (reference only)?
A: This aftermarket part is cross-referenced against HD# 45754-60 (reference only) for identification purposes. We physically measure and test-fit every bolt to ensure the thread pitch, length, and shoulder dimensions match the original specifications for the 1949-Early 1977 Big Twin application, accounting for any superseded numbers.
Q: How do you ensure the zinc plated finish matches other vintage front end hardware?
A: The zinc plated finish is applied to provide visual consistency with early front end components. We include a finish specification and quality inspection record with your order so you can verify the batch consistency. This ensures the small hardware pieces match the larger fork components for an authentic restoration appearance.
