Black 24″ Offset Springer Fork Kit – Fitment Checked
In-house Springer Production — Every 24 inch offset springer fork kit is manufactured in our own facility to ensure exact geometry and consistent finish before dispatch.

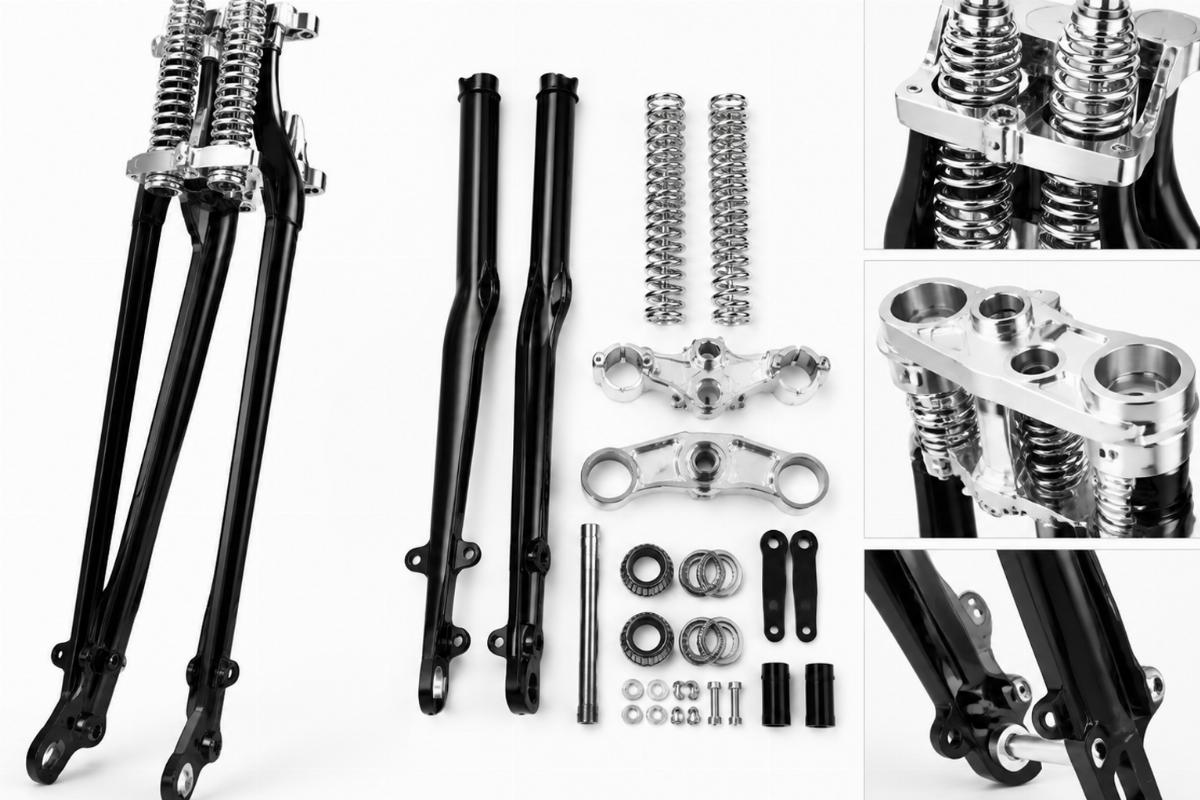

Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Finish | Black (kit), Chrome (springs and top triple tree) |
| Overall Length | 24″ |
| Offset Design | Yes (forks offset, right rocker non-offset) |
| Top Triple Tree | Machined chrome, without ears |
| Riser Mount | Post risers with stud to top of rear fork legs |
| Leg Thread | 1/2″ x 20 |
| Axle Assembly | 3/4″ (included) |
| Rocker Design | Original shape components |
| Bearing Kit | 1″ taper bearing kit (available separately) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | Use spacers for axle as required to center wheel |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Custom Frame Geometry for Offset Forks
Frame neck dimensions and right rocker clearance dictate whether this 24 inch offset springer fork kit will align correctly.
Builders often assume both rockers on an offset setup are modified to clear custom spool wheels. In reality, the right rocker stays non-offset just like the standard design. If the custom brake and wheel setup is not measured against this specific right leg clearance, the assembly will not fit. Verifying the 3/4-inch axle spacing and frame neck dimensions prevents the bike from sitting unfinished on the lift [NEED_CITE: frame geometry specifications for custom springer installations].
Checking Right Rocker Clearance and Axle Spacing

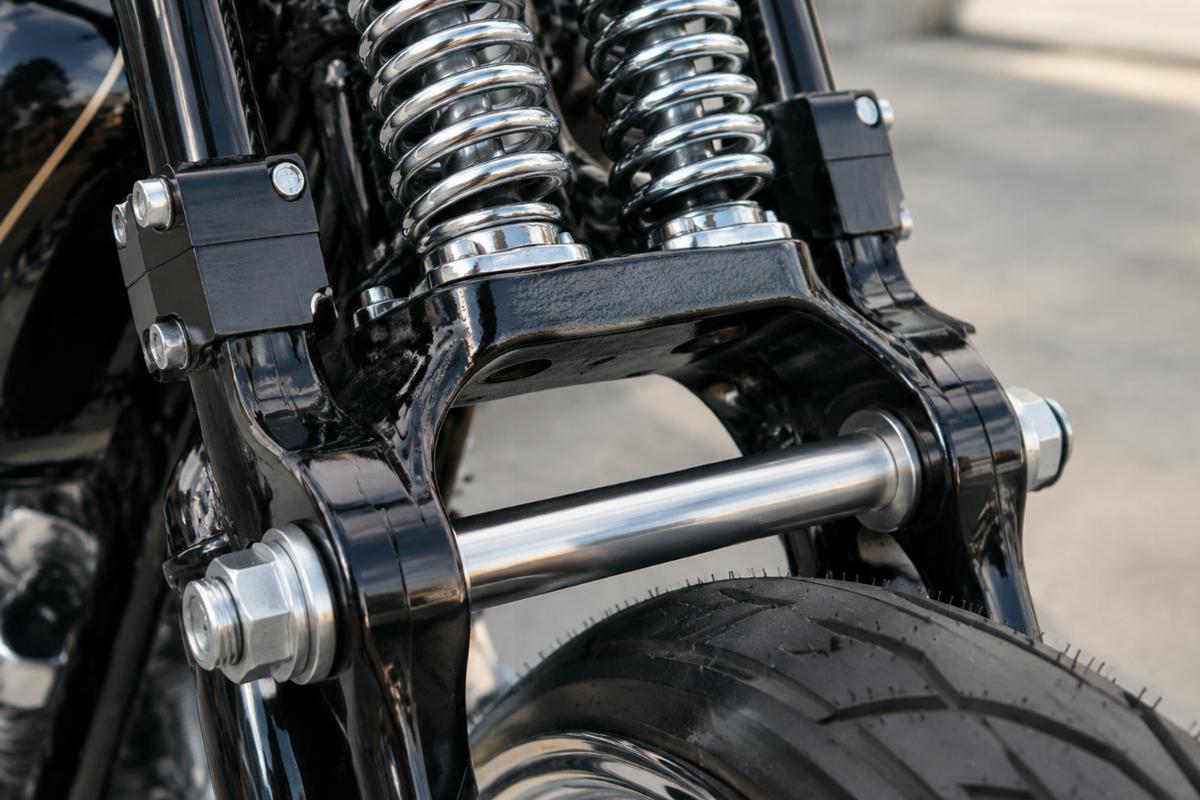

When evaluating a 24 inch offset springer fork kit for a custom build, the non-offset right rocker is the critical measurement point. The forks themselves are offset to accommodate wider tires or custom wheels, but the right leg maintains its standard profile. You must measure the distance from the right rocker to the custom brake caliper and spool wheel. The included 3/4″ axle assembly requires precise spacer placement to center the wheel, ensuring the offset forks do not bind against the right leg during steering lock.
Evaluating Triple Tree and Bearing Compatibility
The machined chrome top triple tree without ears on this 24 inch offset springer fork kit requires specific riser configurations. It is designed for post risers with a stud mounting to the top of the rear fork legs. Before ordering, verify the steering stem diameter of your custom frame to ensure the separately available 1″ taper bearing kit matches the neck cup dimensions. Mismatched bearing sizes will prevent proper installation and affect steering alignment [NEED_CITE: steering head bearing dimensions across custom frame manufacturers].
Hidden Costs of Incorrect Offset Measurements
Ordering a custom springer without confirming the right rocker clearance often leads to complete disassembly and rework. If the custom wheel or brake caliper contacts the non-offset right leg, the builder must either machine the leg, modify the wheel spacing, or order a different fork kit entirely. This delays the build timeline and introduces additional fabrication costs. Furthermore, if the 1/2″ x 20 leg threads do not match the intended axle hardware, the front end cannot be secured safely, requiring replacement parts and extended downtime [NEED_CITE: common fitment errors in custom springer front end installations].
Sourcing Direct from the Manufacturer
Purchasing this 24 inch offset springer fork kit directly from our facility ensures you receive parts produced under one quality control standard. We offer a minimum order of one piece, allowing custom shops to order a single sample for dry-fitting before committing to bulk purchases. Our production includes both the black kit finish and the chrome springs, ensuring color consistency between batches. Every kit is checked against its dimensional specifications, including the 24″ overall length and 3/4″ axle assembly, before it leaves our warehouse.
Documentation and Support Materials
- Fitment sheet stating applicable platforms and year ranges for this specific fork kit
- Cross-reference sheet with dimensional data marked reference only
- Key dimensions including 24″ fork length over stock and 3/4″ axle diameter
- Finish specification detailing black kit and chrome spring components
- Quality inspection record verifying right rocker clearance and thread dimensions
- Packing photographs showing the included 3/4″ axle assembly and hardware
Pre-Installation Inspection Checklist
- Verify the included 3/4″ axle assembly and spacers are present in the kit
- Check the 1/2″ x 20 leg threads for any shipping damage or debris
- Inspect the black finish on the fork legs and chrome on the springs for consistency
- Confirm the machined top triple tree without ears matches your riser requirements
- Measure the right rocker clearance against your custom brake and wheel setup
- Store the kit in a dry environment to prevent surface corrosion before installation
Requesting a Fitment Check
To ensure this 24 inch offset springer fork kit matches your specific build, send us your custom frame dimensions and steering stem measurements. Provide photos of your current front end or the custom wheel and brake setup you intend to use. Let us know if you require a single sample kit for a dry-fit confirmation before placing a larger order for your shop.
Frequently Asked Questions
Q: Does the right rocker have the same offset as the left fork leg?
A: No, the right rocker remains non-offset to maintain standard clearance, while the fork legs are offset. You must verify the right rocker clearance against your custom brake and spool wheel setup to ensure proper fitment without interference.
Q: Are the steering head bearings included in this fork kit?
A: The 1″ taper bearing kit is available separately and is not included in the standard fork kit. You must verify your custom frame’s steering stem diameter and neck cup dimensions to ensure the separate bearing kit matches your specific frame requirements.
Q: How is the wheel centered with the offset fork design?
A: The kit includes a 3/4″ axle assembly, and you must use spacers for the axle as required to center the wheel. Proper spacer placement ensures the wheel aligns correctly within the offset forks and prevents binding against the non-offset right rocker leg.
Q: Can I order a single kit to test fit before buying in bulk?
A: Yes, we support a minimum order of one piece. You can order a single sample kit to verify the 24″ overall length, right rocker clearance, and triple tree fitment on your custom frame before committing to a larger bulk order for your shop.
