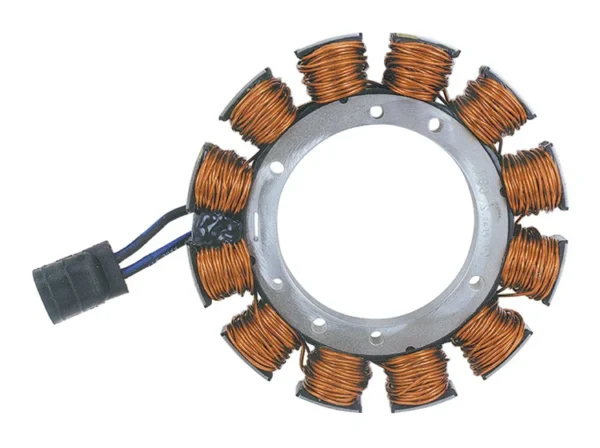

Aftermarket Replacement Alternator Stator for Big Twin

Verified Fitment Data — Every alternator stator for big twin softail dyna applications is checked against the exact model year and connector type before quotation.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Connector Types Change Silently on Your Alternator Stator for Big Twin Softail Dyna

The wiring harness shifted right after the 1996 EFI cutoff, making older plug forms incompatible with later models.

Regulator and stator listings often omit amperage and connector types, leading to parts that arrive but fail to plug in or charge correctly. I once shipped a 32 AMP unmolded unit based on an old manual reference, but the 2-pin female plug would not mate with a 1998 Dyna because the harness design changed. It just sat on the bench, completely unpluggable.

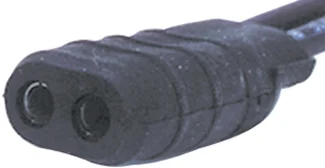

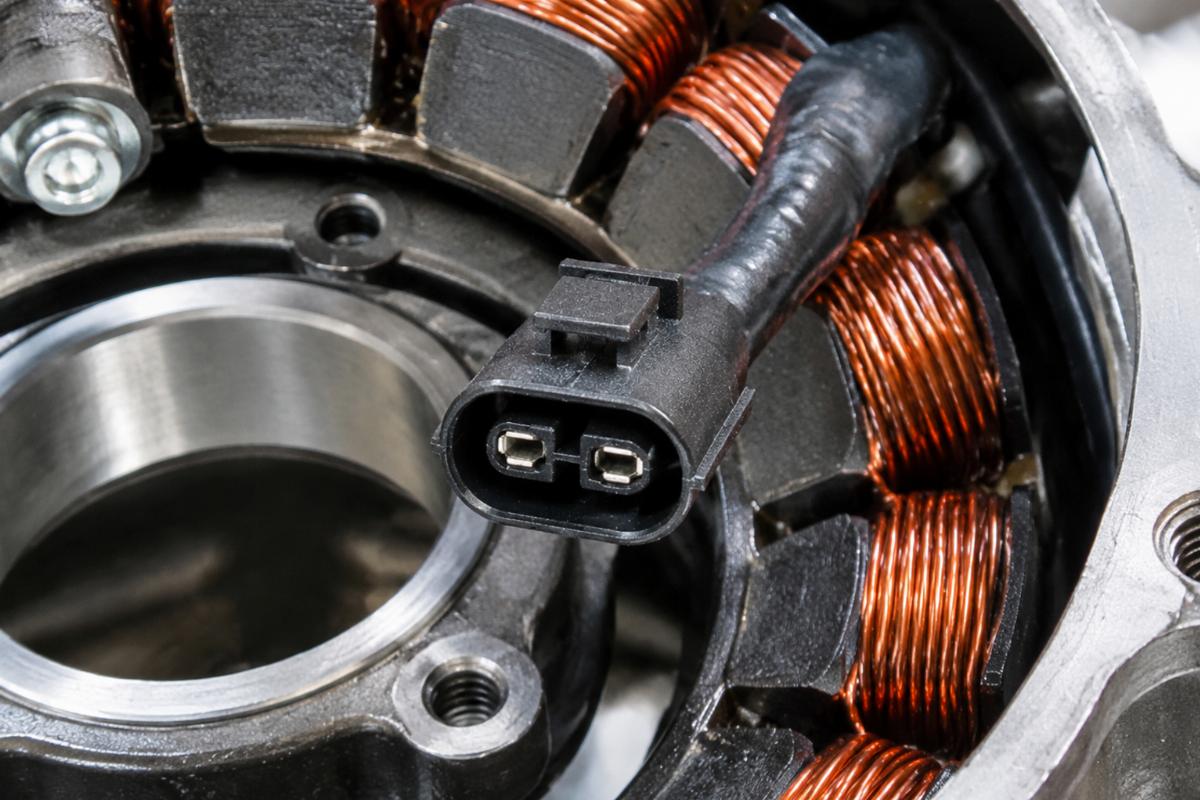

Checking the 2-Pin Female Plug Against Your Wiring Harness

When sourcing an alternator stator for big twin softail dyna builds, the physical plug form is just as critical as the electrical output. A 2 Pin Female Plug must mate perfectly with the existing harness without forcing or modifying the pins. If the plug form is wrong, the stator cannot deliver its 32 AMP output, regardless of how well the mounting points align. Always verify the exact plug form against the specific model year before finalizing the order.

Navigating the EFI Cutoff for Big Twin Platforms

The transition away from early EFI systems around 1996 changed how charging components interface with the main harness. For Big Twin models between 1989 and 1996, this alternator stator is strictly for non-EFI applications. Using it on an EFI model or mismatching the year range will result in a part that physically fits but electrically fails.

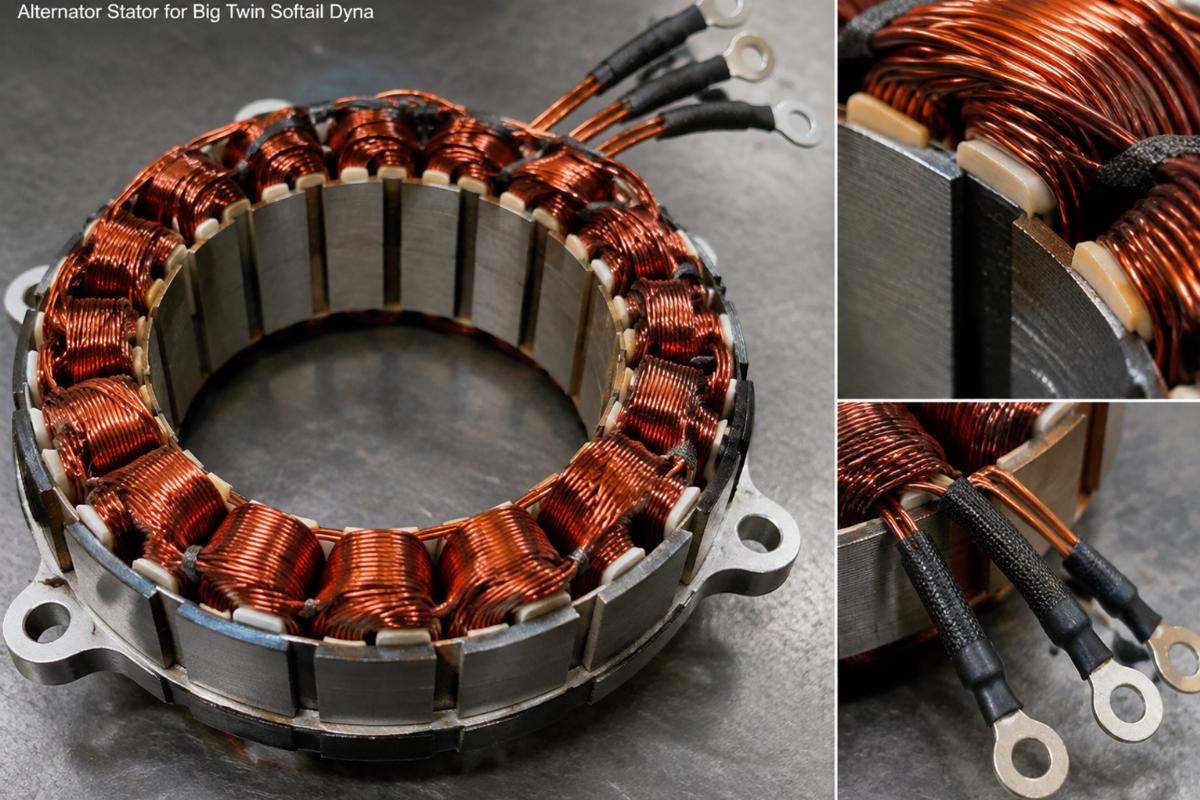

Understanding the 32 AMP Unmolded Construction

This unit delivers a 32 AMP output, which is the standard requirement for these specific Big Twin, Softail, and Dyna year ranges. The unmolded stator construction allows for easier visual inspection of the copper windings and simplifies the integration process into the existing charging circuit. Because it is unmolded, the physical dimensions and wire routing must be carefully compared to the original unit to ensure it clears the primary cover and stator support plate without interference.

The Hidden Cost of Mismatched Stator Fitment

Ordering an electrical component based solely on a generic parts catalogue often leads to costly delays. When a stator arrives with the wrong plug or amperage rating, the motorcycle remains stranded on the shop lift while the correct part is sourced. This downtime disrupts the build schedule and forces the shop to absorb return shipping costs. Relying on cross-referenced OEM numbers marked reference only helps avoid these silent mismatches.

Sourcing with Fitment Certainty

We confirm fitment against the platform family and model year range before providing any quotation for an alternator stator for big twin softail dyna applications. Our cross-reference sheets map the 29970-88C number directly to your specific year range, marked reference only. We support a minimum order from one piece, allowing independent repair shops and custom builders to test the fitment without committing to bulk inventory. Sample supply is also available for physical confirmation before larger orders are placed.

Documentation Provided

• Fitment sheet stating applicable platforms and exact year ranges
• Cross-reference sheet with OEM number 29970-88C marked reference only
• Electrical rating document confirming 32 AMP output and 2 Pin Female Plug
• Quality inspection record for the unmolded stator construction
• Warranty terms and packing photographs for shipping verification

Receiving and Pre-Installation Checks

• Verify the 2 Pin Female Plug matches your wiring harness before removing the old unit
• Confirm the 32 AMP rating aligns with your charging system requirements
• Inspect the unmolded stator windings for any transit damage or loose connections
• Check the fitment sheet to ensure your Big Twin, Softail, or Dyna year is listed
• Store the stator in a dry environment to prevent moisture ingress before installation

Requesting a Fitment Check

Send your exact model designation, year, and a photograph of the current connector to verify compatibility. If you have the old unit, providing the physical dimensions and plug type ensures we match the alternator stator for big twin softail dyna applications correctly. Let us know if you require a single sample for bench testing before committing to a larger quantity.

Frequently Asked Questions

Q: How do I confirm if my Big Twin model year is compatible with this stator?

A: This alternator stator for big twin softail dyna applications fits Big Twin models from 1989 to 1996, strictly excluding EFI models. You must verify your exact model year and confirm the bike does not have an early fuel injection system. Providing your VIN or a photo of the existing connector helps us double-check the fitment before shipping.

Q: What happens if I install this stator on an EFI Big Twin model?

A: This unit is designed for non-EFI applications and features a 2 Pin Female Plug. Installing it on an EFI model will result in a connector mismatch, preventing the stator from plugging into the wiring harness. It will not charge the battery and could cause electrical faults. Always confirm the EFI status of your specific model year.

Q: Can I order a single sample to test the fitment before buying in bulk?

A: Yes, we support a minimum order from one piece. You can order a single sample to verify the 32 AMP output, the unmolded construction, and the 2 Pin Female Plug fitment on your bench. Once confirmed, you can proceed with larger quantities for your distribution or shop inventory.

Q: How is the OEM number 29970-88C used in your documentation?

A: The number 29970-88C is used strictly for cross-reference identification and is always marked reference only on our sheets. It helps map the aftermarket alternator stator for big twin softail dyna applications to the original equipment specifications. We never claim this part is genuine, original, or factory-authorized.
