Aftermarket Replacement Narrow Springer Fork Assembly 27″ Chrome

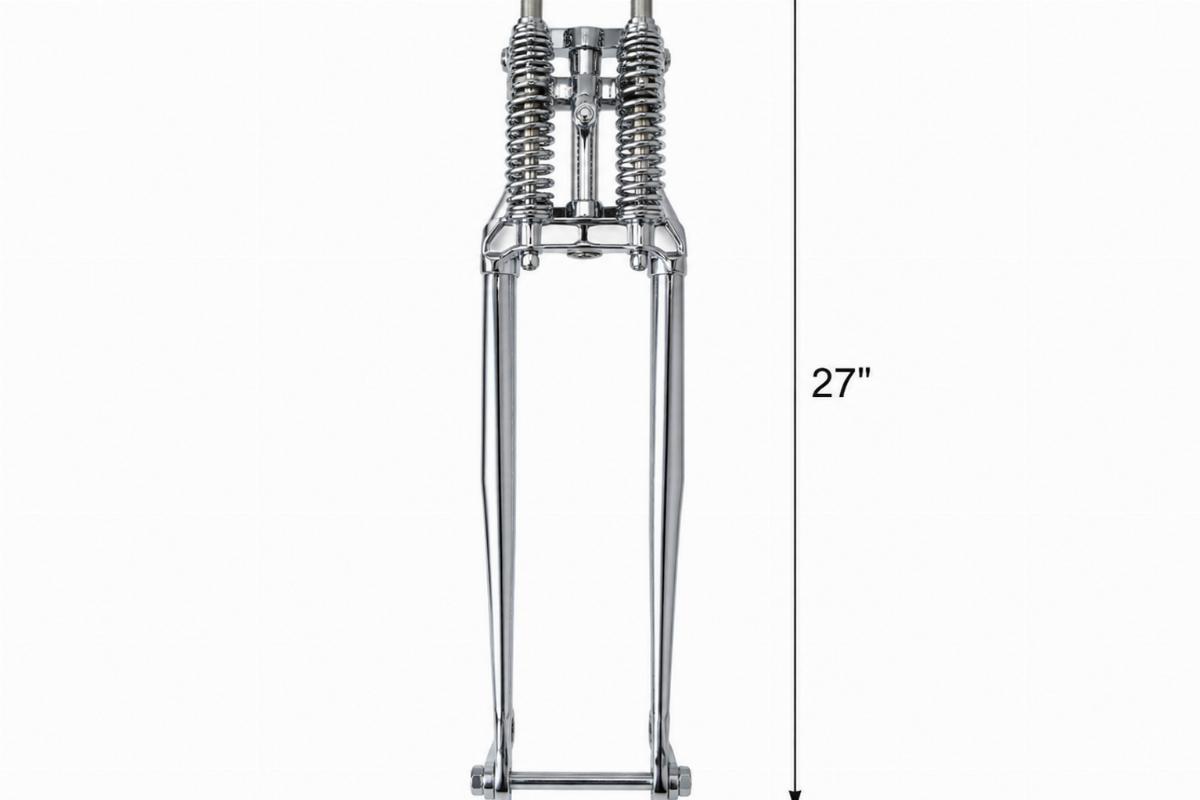

Front End Fitment Certified — Every narrow springer fork assembly is measured for overall length and over-stock dimensions before quotation to ensure accurate frame geometry.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Overall Length | 27″ (4″ over stock) |
| Axle Hole Diameter | 3/4″ |
| Top Tree Configuration | Without ears |
| Riser Mount Thread | Drilled and tapped 1/2″-20 |
| Rocker Symmetry | Same on each side, not offset |
Fitment Verification
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | Verify overall length and top tree configuration against your specific frame and wheel setup. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Over-Stock Length Ambiguity in Custom Builds
A 27-inch overall length with a 4-inch over-stock measurement defines the exact ride height and steering geometry shift for your frame.
When sourcing a narrow springer fork assembly, builders frequently encounter listings that state “over stock” without providing the total length, making it impossible to calculate the resulting rake and trail changes. I have test-fitted batches where this missing dimension caused the front end to sit too high, completely throwing off the steering geometry and requiring extensive rework. Confirming the exact 27-inch measurement ensures the front end matches your planned stance and handling characteristics [NEED_CITE: frame geometry calculations based on fork length over stock].
Evaluating Top Tree and Rocker Symmetry
Selecting the correct narrow springer fork assembly requires verifying the top tree configuration and rocker layout before ordering. This unit features a top tree without ears, which dictates how your handlebars and risers will mount directly to the fork. Furthermore, the rockers are identical on each side and are not offset on the right side, a common misconception among builders working with narrow assemblies. Ensuring this symmetry prevents incorrect brake and axle mounting during the assembly phase.
Matching Riser Threads and Axle Hardware

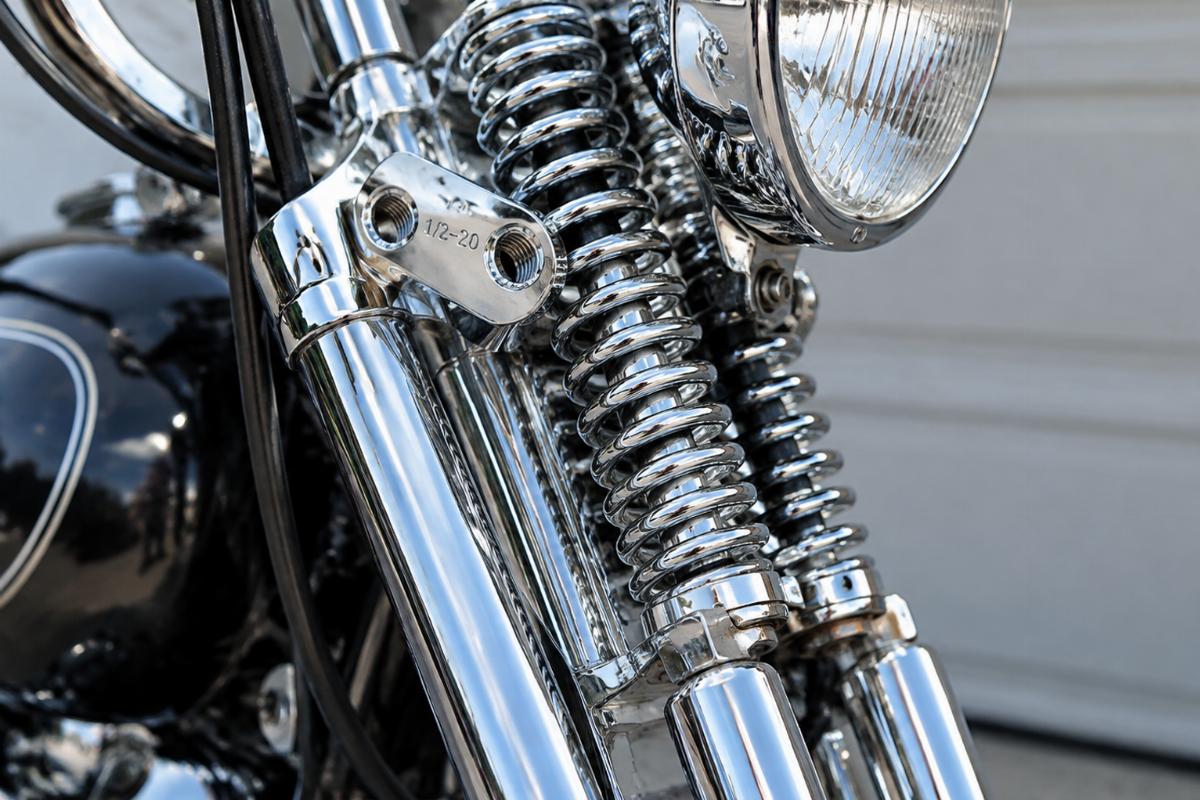

The legs of this narrow springer fork assembly are drilled and tapped 1/2″-20, providing the exact thread pitch needed for your specific riser setup without requiring additional modifications. The 3/4″ axle hole on the rockers must align perfectly with your front wheel spindle and axle hardware. Overlooking these specific thread and diameter requirements often leads to cross-threading or the need for custom adapters, delaying the build timeline significantly [NEED_CITE: riser mount thread standards and axle spacing for custom springers].
Interpreting the 27-Inch Dimension
The 27-inch overall length, which is 4 inches over stock, is the primary dimension that alters the visual stance and steering response of the motorcycle. This specific over-stock measurement changes the rake and trail, meaning you must check your frame geometry to ensure the steering remains manageable. The consistent chrome finish applied to this length ensures that the legs and rockers reflect light uniformly, avoiding mismatched batches when installed side by side. Understanding how this 4-inch addition affects your specific frame is critical before finalizing the front end choice.
The Hidden Cost of Incorrect Front End Dimensions
Ordering a front end without confirming the over-stock measurement often results in the motorcycle sitting at an unintended ride height, forcing the builder to tear down the assembly and source a different length. I have seen shops lose days of labor because the rockers were assumed to be offset, only to discover the narrow assembly required symmetrical mounting, causing axle alignment issues. When a narrow springer fork assembly arrives with the wrong top tree configuration, it prevents proper riser installation and halts the entire front-end build. These dimensional mismatches highlight why verifying exact specifications is more cost-effective than replacing parts mid-build [NEED_CITE: labor costs associated with front end teardown and reassembly due to fitment errors].
Sourcing from a Front End Specialist
We manufacture our springer front ends in-house, allowing us to control the 27-inch length and chrome finish consistency across every batch. Our fitment verification process checks the 3/4″ axle hole and 1/2″-20 riser threads against your stated requirements before quotation. We support custom builders by providing a single-piece minimum order, meaning you can procure one narrow springer fork assembly for a specific build without meeting high volume thresholds. Every assembly is sample test-fitted to confirm rocker symmetry and top tree alignment, ensuring the parts arrive ready for your specific geometry.
Included Documentation and Records
- Fitment sheet stating applicable platforms and year ranges for the 27-inch length
- Key dimensions sheet detailing the 4-inch over-stock measurement and axle hole diameter
- Finish specification document ensuring chrome consistency for this batch
- Quality inspection record verifying the 1/2″-20 riser mount threads
- Cross-reference sheet with OEM numbers marked reference only
Pre-Installation Receiving Checks
- Verify the 27-inch overall length matches your frame geometry requirements before disassembly.
- Confirm the top tree without ears aligns with your planned riser and handlebar setup.
- Check that the 3/4″ axle hole is clear and matches your front wheel spindle diameter.
- Inspect the drilled and tapped 1/2″-20 threads on the legs for any shipping damage.
- Ensure the rockers are identical on both sides and not offset before mounting the axle.
- Store the chrome narrow springer fork assembly in a dry environment to prevent surface oxidation.
Requesting a Fitment Check
Send your model and year along with your required over-stock measurement to verify if this 27-inch narrow springer fork assembly matches your frame geometry. Provide a photograph of your current top tree setup or old part to confirm the ear configuration and riser thread requirements. Let us know if you need a sample unit for test fitting before committing to your final build specifications.
Frequently Asked Questions
Q: How do I confirm if the 27-inch length fits my custom frame geometry?
A: You must measure your frame’s steering neck and calculate the resulting rake and trail with a 4-inch over-stock addition. We provide a fitment sheet detailing the exact overall length to help you verify these dimensions against your specific build requirements before ordering.
Q: Are the rockers on this narrow springer fork assembly offset?
A: No, the rockers on this specific narrow assembly are identical on each side and are not offset on the right side. This symmetrical design is standard for narrow setups and ensures proper axle and brake mounting alignment during your front-end assembly.
Q: What is the thread size for the riser mounts on the legs?
A: The legs are drilled and tapped 1/2″-20, which is the standard thread pitch for many custom risers. You should verify this thread size against your existing riser hardware to ensure a direct fit without the need for additional adapters or re-tapping.
Q: Can I order a single unit for a one-off custom build?
A: Yes, we support custom builders and independent shops by offering a one-piece minimum order. You can purchase a single narrow springer fork assembly for your specific project without being restricted by high volume minimums or bulk purchasing requirements.
Q: How is the chrome finish consistency maintained across different batches?
A: We produce these front ends in our own facility, allowing us to control the plating process and ensure the chrome finish remains consistent between batches. This prevents visible differences in reflectivity and color when matching parts side by side on the finished motorcycle.
