Aftermarket Replacement 24″ Narrow Springer Fork Assembly for Custom Builds
Consistent chrome plating — every 24 inch narrow spring fork assembly undergoes batch-matched finishing to prevent mismatched tones when paired with other front-end components.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Length | 24″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree | Standard stem and tube locations, inline |
| Left Side Rocker | Offset for brake system applications |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom builds | Confirm with model and year | Verify neck spacing and axle clearance before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving the Geometry Guesswork in Over-Stock Springer Forks
A 24 inch narrow spring fork assembly requires exact length and rocker width data to calculate ride height and steering clearance.
When sourcing custom springers, buyers often face listings that state “over stock” without defining the actual overall length or rocker spacing. This forces builders to guess how the unit will alter the frame’s rake and trail, or whether the brake caliper will clear the offset rocker. Without these exact measurements, a front end can arrive looking correct but failing to mount properly. [NEED_CITE: frame geometry calculations for custom springer lengths]
Verifying Triple Tree and Rocker Dimensions for Custom Frames

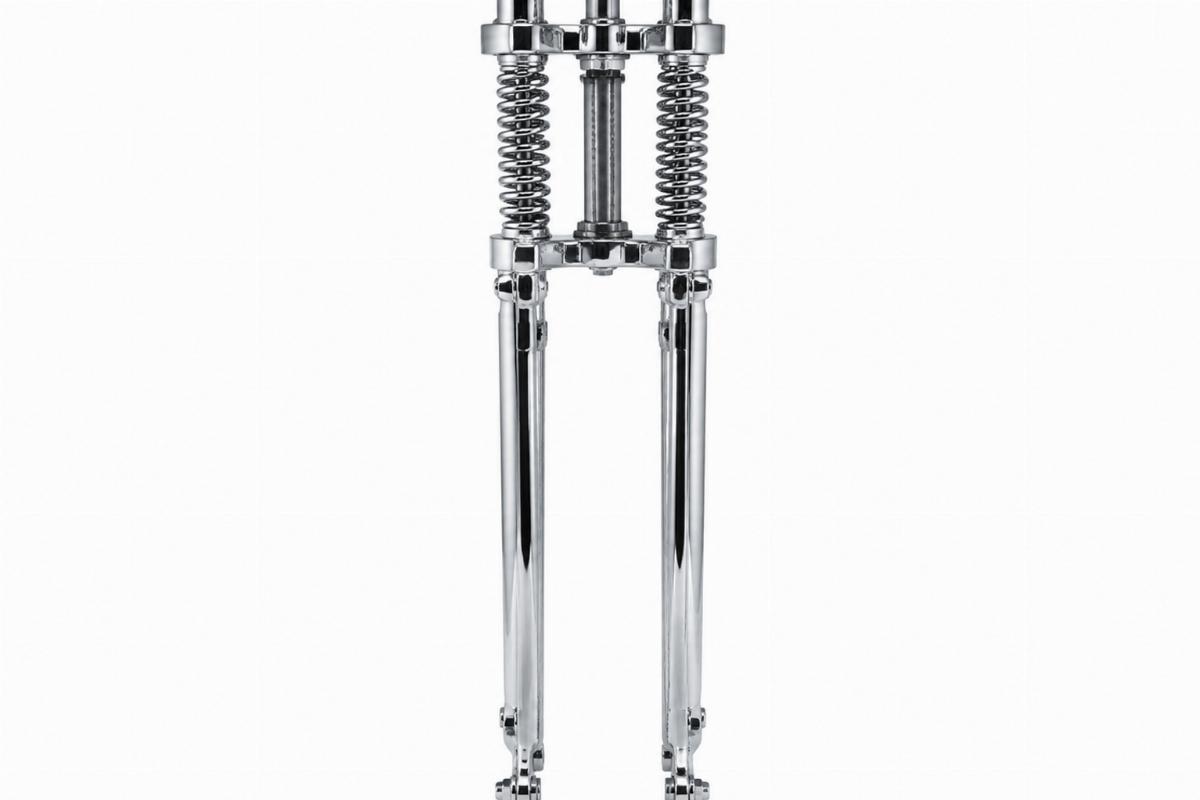

When evaluating a 24 inch narrow spring fork assembly, the inline top triple tree with standard stem and tube locations dictates how the handlebars and headlamp bracket will align. The 6″ width between rockers is a critical measurement; if your custom frame’s neck cups or intended brake setup require a wider stance, this narrow configuration will cause physical interference. Always cross-check the 1″ stem diameter against your frame’s neck bearing race specifications to ensure a direct drop-in fit.
Sourcing Depth for Custom Springer Front Ends
Finding a single supplier that stocks complete springer assemblies alongside the necessary early springer parts and hydraulic fork components simplifies the procurement process. This 24 inch narrow spring fork assembly is produced in-house, ensuring that the chrome finish matches other front-end hardware ordered from the same catalogue. Cross-referencing against known dimensions allows builders to confirm compatibility without relying on vague fitment claims. [NEED_CITE: dimension verification for custom front-end assemblies]
Interpreting Key Dimensions for Front-End Assembly

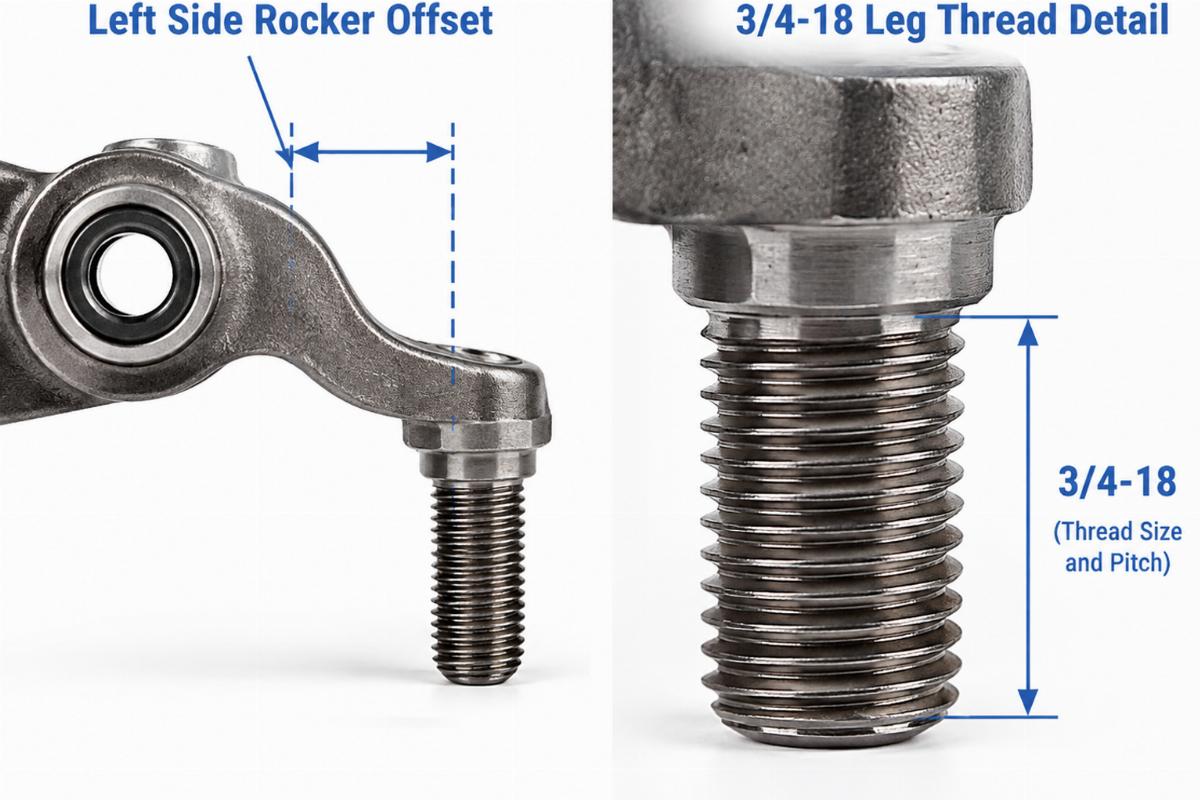

The 24″ overall length directly impacts the visual stance and the physical trail of the front wheel, altering how the steering geometry behaves at low speeds. The 3/4″ axle outer diameter must perfectly match the custom front hub’s bearing spacing; a mismatch here prevents the wheel from seating correctly. Furthermore, the left side rocker is specifically offset to provide the necessary clearance for brake system applications, preventing the caliper from binding against the rocker arm during suspension compression.
The Hidden Costs of Incorrect Rocker Offset and Width
Ordering a springer without verifying the rocker width and offset often leads to immediate assembly failures. A left side rocker that lacks sufficient offset will cause the brake caliper to rub against the fork leg, while an incorrect 6″ width can interfere with the frame’s steering stops or triple tree clamps. This results in the entire unit being returned, wasting weeks of build time and delaying the project. [NEED_CITE: common assembly failures due to unverified springer dimensions]
Why Builders Source This Springer Assembly Here
This 24 inch narrow spring fork assembly is manufactured in our own facility, ensuring direct control over the chrome plating quality and dimensional accuracy. We offer a one-piece minimum order, allowing custom shops to procure a single unit for a specific build without meeting high volume thresholds. Every assembly is checked against its stated dimensions before dispatch, and we provide a fitment sheet detailing the exact specifications to verify against your custom frame.
Documentation Provided
- Fitment sheet stating applicable custom platforms and dimension requirements
- Key dimensions sheet detailing fork length, stem diameter, and rocker width
- Finish specification document outlining the chrome plating standard
- Quality inspection record verifying the left side rocker offset and leg threads
Pre-Installation Checks
- Verify the 1″ stem diameter matches your frame’s neck bearing and tree spacing.
- Measure the 6″ width between rockers against your intended brake caliper mount.
- Confirm the 3/4″ axle outer diameter aligns with your custom front hub bearings.
- Check that the 3/4″-18 leg threads are compatible with your chosen risers.
- Inspect the chrome finish for consistency before mounting the assembly.
Requesting a Fitment Check
To ensure this 24 inch narrow spring fork assembly matches your project, send us your custom frame’s neck spacing, intended axle diameter, and brake caliper clearance requirements. Providing a photograph or measurement of your current triple tree setup helps us verify the inline stem and tube locations. We can also supply a single sample unit for physical fitment confirmation before you commit to a larger order.
Frequently Asked Questions
Q: How do I confirm if this 24 inch narrow spring fork assembly fits my custom frame geometry?
A: You must verify that your frame’s neck cups accept a 1″ stem diameter and that the steering head spacing matches the inline triple tree. Additionally, measure the clearance between your frame’s steering stops to ensure the 6″ width between rockers will not cause interference during full lock turns.
Q: What are the key dimensions to measure when replacing a custom springer front end?
A: The most critical measurements are the stem diameter, the overall fork length, and the width between the rockers. You must also check the axle outer diameter to ensure it matches your front hub, and verify the left side rocker offset to guarantee brake caliper clearance.
Q: Does the inline triple tree accept standard spring fork handlebars and headlamp brackets?
A: Yes, the top triple tree features standard stem and tube locations designed to accept typical inline spring fork handlebars and headlamp mounting brackets. However, you should confirm that your specific bracket mounting holes align with the standard tube spacing provided on this assembly.
Q: Can I order a single sample unit to verify fitment before placing a bulk order?
A: Yes, we support a one-piece minimum order specifically for fitment confirmation. You can order a single 24 inch narrow spring fork assembly to physically test the stem, axle, and rocker clearances on your custom frame before committing to multiple units for a batch of builds.
Q: How is the left side rocker offset designed to work with different brake caliper mounts?
A: The left side rocker is physically offset to create the necessary gap between the fork leg and the brake caliper. This prevents the caliper from rubbing against the rocker arm during suspension compression, but you must still verify that your specific caliper mount bracket clears the offset profile.
