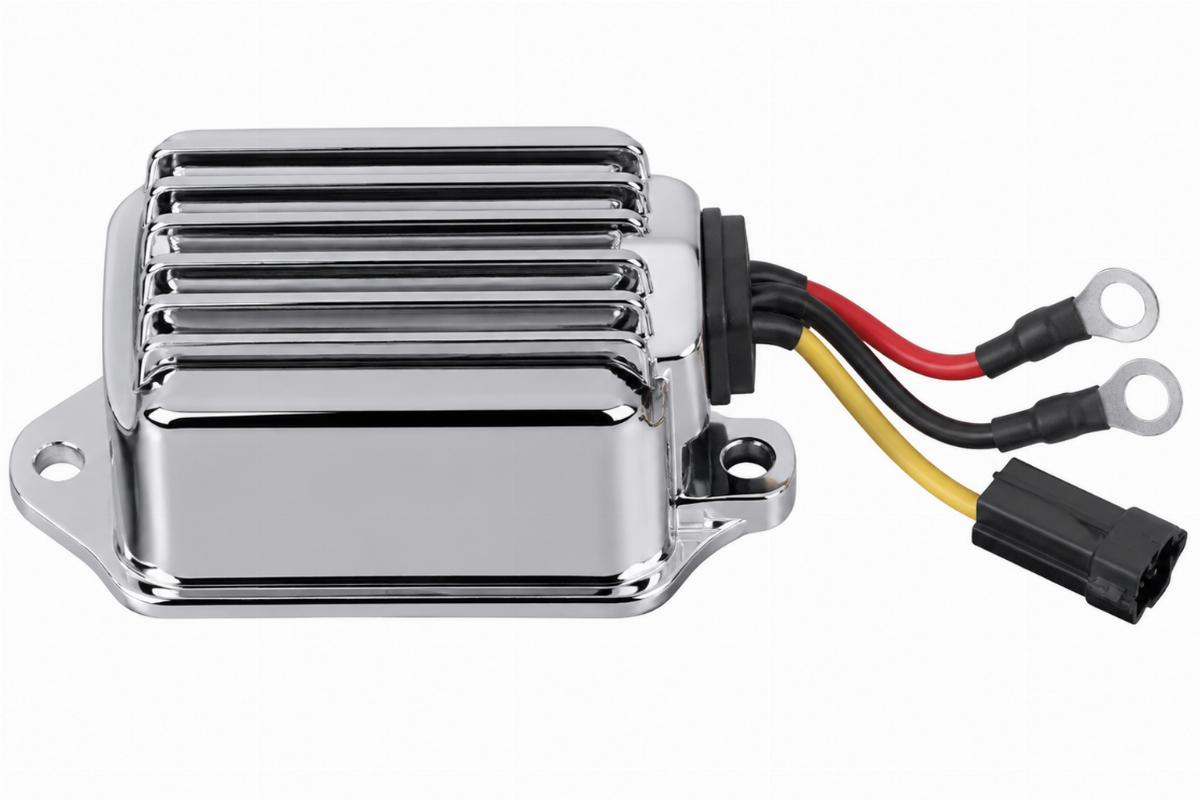

Voltage Regulator Rectifier – Chrome Plated – Fits Sportster 1982-Early 1984
Cross-Referenced OEM Numbers — Every voltage regulator rectifier for sportster is verified against the exact model year and connector type before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 74504-82 (reference only) |
| Part Type | Voltage Regulator Rectifier |
| Finish | Chrome Plated |
| Output | |
| Application | Generator Models |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Sportster (Generator Models) | 1982 / Early 1984 | Confirm plug connector type matches the specific model year. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Regulator Listings Fail the Charging System Check
Missing amperage and connector details leave buyers with parts that arrive but will not plug in.
When sourcing a voltage regulator rectifier for sportster, shops often encounter listings that state the chassis name but omit the exact year range and plug type. A unit might physically bolt to the frame, yet the connector will not mate with the harness if the charging system transitioned during that production window. This mismatch forces the bike to sit on the lift while the correct electrical component is sourced, delaying the build and frustrating the end customer [NEED_CITE: connector changes across model years for this platform].
Verifying the Generator Charging System Requirement
Before ordering a voltage regulator rectifier for sportster, the builder must confirm the motorcycle uses a generator charging system rather than an alternator. The electrical output and internal routing differ significantly between these two setups. Installing an alternator-specific regulator on a generator model will result in a complete failure to charge the battery, regardless of the physical fitment.
Tracking Connector Changes Across Model Years
The plug type is just as critical as the amperage rating when matching a voltage regulator rectifier for sportster to the wiring harness. Even within a narrow production window, the connector shape and pin layout can change as the factory updates the electrical architecture. Checking the specific year range and comparing the plug type against additional images ensures the unit will mate correctly without requiring harness modifications [NEED_CITE: factory service manual specifications by model year].
Interpreting the 12 Volt 13 Amp Output
The
| Output |
|---|
| 12 volt, 13 Amp |
The Hidden Cost of a Mismatched Electrical Connection
Sending a voltage regulator rectifier for sportster to the wrong model year means the part arrives but simply will not plug in. If the connector type is overlooked, the repair shop faces immediate downtime, unable to complete the charging system repair. Relying on outdated cross-reference numbers that have been superseded across model years only compounds this issue, leading to repeated returns and lost revenue for the distributor.
Sourcing Electrical Components with Fitment Certainty
We verify the exact model year and connector type before dispatching any regulators to ensure the voltage regulator rectifier for sportster matches the charging system. Our fitment confirmation process checks the platform family against the specific year range to prevent connector mismatches. We support a minimum order from one piece, allowing independent repair shops to source a single replacement for a restoration project without facing bulk order blocks.
Documentation Provided with Your Shipment
- Fitment sheet stating the applicable Sportster platform and 1982 to early 1984 year ranges.
- Cross-reference sheet with 74504-82 marked reference only for identification.
- Electrical rating details confirming the
| Output |
|---|
| 12 volt, 13 Amp |
- Finish specification detailing the chrome plated surface treatment.
- Quality inspection record verifying the electrical output before dispatch.
Receiving and Pre-Installation Verification Steps
- Verify the chrome plated finish on the voltage regulator rectifier for sportster matches the product images upon arrival.
- Check the plug connector type against the wiring harness to ensure it will mate without modification.
- Confirm the model year falls strictly within 1982 to early 1984 for the Sportster generator platform.
- Ensure the electrical rating details match the charging system requirements before installation.
- Have all electrical components installed and tested by a qualified technician.
- Store the unit in a dry environment to prevent moisture ingress before fitting.
Requesting a Fitment Check for Your Build
Send your specific Sportster model and year range to verify the connector type and charging system compatibility for this voltage regulator rectifier for sportster. Provide the old part number or a clear photograph of the existing plug connector to ensure an exact match. Let us know if you require a sample unit for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How can I confirm if my Sportster uses a generator or alternator charging system for this regulator?
A: You must check the engine case and charging system components to determine if the motorcycle uses a generator or an alternator. The voltage regulator rectifier for sportster is specifically designed for generator models. Installing it on an alternator-equipped bike will result in a failure to charge the battery, as the internal routing and output requirements differ between the two systems.
Q: What are the differences in regulator fitment between Sportster model years 1982 and early 1984?
A: The primary difference lies in the plug connector type and the specific wiring harness configuration used during that production window. Even though both years fall within the generator model range, the connector shape may have changed. You must verify the exact year range and compare the plug type to ensure the voltage regulator rectifier for sportster will mate correctly without requiring harness modifications.
Q: How do I check the plug type and connector compatibility before ordering?
A: Compare the plug on your existing unit or the motorcycle wiring harness against the additional product images provided. The connector shape and pin layout must match exactly for the voltage regulator rectifier for sportster to function properly. If you are unsure, send a photograph of the plug to our team for verification before dispatch to avoid receiving a part that will not connect.
Q: How do I cross-reference the HD# 74504-82 number if it has been superseded in older manuals?
A: The number 74504-82 is used for cross-reference identification only and is marked reference only on our documentation. If your older manual lists a superseded number, you must verify the specific model year and connector type rather than relying solely on the old part number. This ensures the voltage regulator rectifier for sportster you receive matches the actual charging system requirements of your specific build.
Q: Can I order a single piece regulator for a restoration project?
A: Yes, we support a minimum order from one piece, allowing independent repair shops and restoration specialists to source a single replacement without facing bulk order blocks. You can order one voltage regulator rectifier for sportster for your project, and we will verify the fitment against the 1982 to early 1984 year range and connector type before dispatch to ensure it fits your specific generator model.
