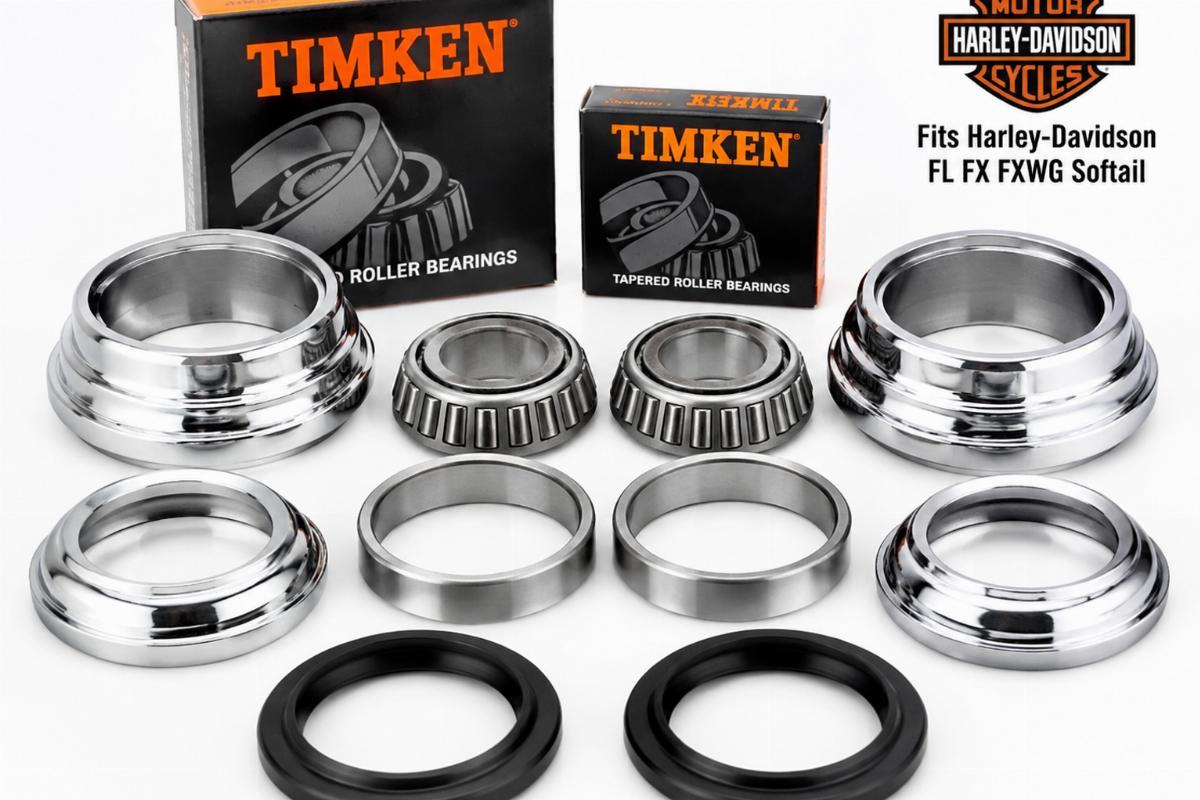

Aftermarket Replacement Steering Head Cup Kit for FL FX FXWG Softail
Consistent Chrome Finish — Every steering head cup kit undergoes strict plating checks to ensure the chrome finish matches across batches, preventing visual mismatch when paired with other front-end components.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 48311-60 (reference only), 48315-60 (reference only), 48300-60 (reference only) |
| Part Type | Steering Head Cup Kit |
| Finish | Chrome Plated |
| Bearing Type | Timken |
| Kit Contents | Head Cups with Races & Timken Bearings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FL, FX, FXWG | 1949-later | Fits FL, FX & FXWG 4 speed models; fits most Big Twin custom frames |
| Softail | 1984-1988 | Verify frame neck dimensions for custom Softail builds |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Steering Head Cup Dimensions Dictate Your Build Success
Frame neck dimensions and bearing sizes vary drastically between early and late frames, making generic listings a liability.
When sourcing a steering head cup kit for harley-davidson machines, assuming a part fits based solely on visual similarity leads to immediate installation failure. I once saw a buyer receive head cups listed for FL and FX 4 speed models 1949/Later for a Softail 1984/1988 project. The parts looked identical on the bench, but the steering head cup dimensions for the late frames were completely different. The neck bearings would not seat right, and the steering locked up entirely. Verifying the exact frame dimensions and bearing sizes against the specific model year is the only way to ensure the steering head cup kit for harley-davidson platforms actually functions as intended [NEED_CITE: factory service manual specifications by model year].
Verifying Platform and Year Range for Exact Fitment
Selecting the correct steering head cup kit for harley-davidson motorcycles requires matching the part to the exact platform family and model year range. This kit is confirmed for FL, FX, and FXWG 4-speed models from 1949-later, as well as Softail models from 1984-1988. Cross-referencing the OEM numbers 48311-60, 48315-60, and 48300-60 helps identify the correct hardware, but the physical frame neck dimensions must always be measured to confirm compatibility, especially on Big Twin custom frames where neck specs may have been altered [NEED_CITE: connector changes across model years for this platform].
Understanding Chrome Plating Consistency in Front-End Assemblies
Finish consistency between chrome and black batches is a critical factor when assembling a front end. A steering head cup kit for harley-davidson builds often sits directly below the triple trees and fork tubes. If the chrome plating on the head cups varies in shade or reflectivity from the fork sliders or handlebars, the visual mismatch becomes immediately obvious once the bike is fully assembled. Sourcing from a supplier that maintains strict quality inspection records for finish specification ensures that the chrome plated components maintain visual uniformity across the entire front-end assembly.
How Bearing Types and Kit Contents Affect Assembly

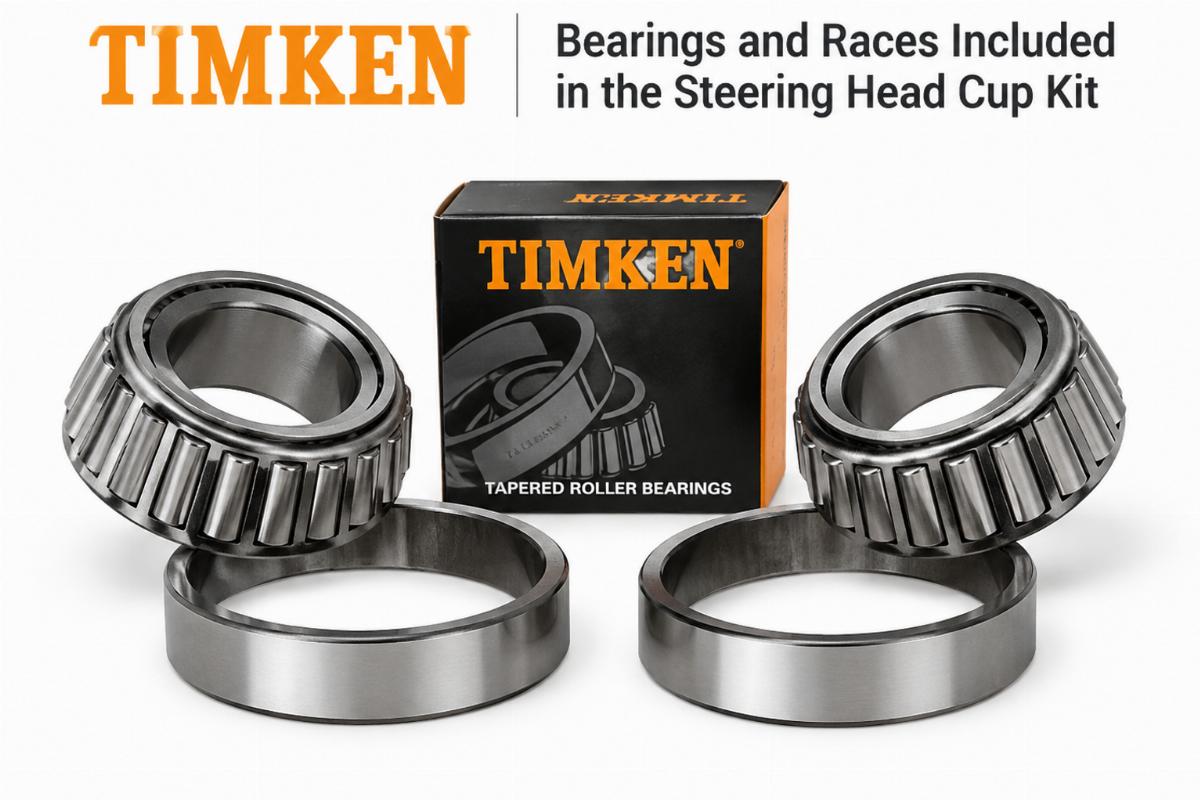

This steering head cup kit for harley-davidson applications includes head cups, races, and Timken bearings, providing a complete solution for the steering neck. Timken bearings are specified for their ability to handle both radial and axial loads, which is essential for the steering geometry of heavy Big Twin frames. Ensuring that the kit contains all necessary races and cups prevents the need to source individual components from different batches, which could introduce slight dimensional variances or inconsistent chrome finishes that compromise the final assembly [NEED_CITE: bearing load specifications for V-twin steering necks].
The Hidden Cost of Incorrect Head Cup Sizing
Ordering a steering head cup kit for harley-davidson projects without verifying the exact frame year range often results in the bike sitting idle on the shop lift. When early frame dimensions are mixed with late frame bearings, the steering stem cannot rotate freely, requiring the entire front end to be disassembled to source the correct parts. This not only delays the build schedule but also incurs additional shipping costs and labor hours. Relying on generic fitment tables that ignore superseded part numbers or custom frame modifications guarantees these costly delays [NEED_CITE: steering neck tolerance variations across frame generations].
Why Builders Trust Our Fitment Verification Process
We verify fitment against the specific platform family and model year range before confirming any steering head cup kit for harley-davidson orders, ensuring the parts match your exact frame specifications. Our catalogue provides deep front-end coverage, allowing you to source head cups, fork parts, and chassis hardware from a single account under one warranty. We offer chrome plated finish options that undergo batch consistency checks, and we cross-reference against Harley-Davidson OEM numbers, including superseded numbers, marked reference only. Furthermore, we support a one-piece minimum order, allowing custom builders and repair shops to procure a single kit for a specific project without being blocked by bulk requirements.
Documentation Provided with Your Order
- Fitment sheet stating applicable platforms and year ranges for this specific kit
- Cross-reference sheet with OEM numbers marked reference only for your records
- Key dimensions including head cup and bearing type specifications
- Finish specification and quality inspection record for batch consistency
- Warranty terms and packing photographs for transit verification
- HS code and customs documentation support for international shipping
Receiving and Pre-Installation Checks
- Verify the kit contents include head cups, races, and Timken bearings as specified
- Cross-reference the included hardware with OEM numbers 48311-60, 48315-60, and 48300-60
- Inspect the chrome plated finish for consistency and absence of plating defects
- Measure the head cup dimensions against your specific frame neck before installation
- Ensure all Timken bearings and races are free from debris or transit damage
- Store the kit in a dry environment to prevent corrosion before assembly
Send Your Details for a Fitment Check
To ensure this steering head cup kit for harley-davidson models fits your specific build, send us your model code, year range, and any custom frame details. Providing your old part number, a photograph of the existing hardware, or key measured dimensions allows us to verify compatibility against our fitment database. Let us know your required finish and quantity, and whether you need a sample for fitment confirmation before placing a larger order.
Frequently Asked Questions
Q: How do I confirm my specific model year and frame type fits this head cup kit?
A: You must verify the exact frame neck dimensions and bearing sizes against the specific model year. This kit is confirmed for FL, FX, and FXWG 4-speed models from 1949-later, and Softail models from 1984-1988. Cross-referencing the provided OEM numbers helps, but physical measurement of the custom frame is essential.
Q: What are the differences in head cup sizes between early and late frames?
A: Early and late frames often feature completely different steering head cup dimensions, even if the parts appear visually identical on the bench. Using early frame cups on a late frame can prevent neck bearings from seating correctly, leading to steering lock-up. Always verify the exact frame specifications for your model year.
Q: How do I cross-reference my old part number with the provided OEM reference numbers?
A: Compare your existing hardware part number against the reference numbers 48311-60, 48315-60, and 48300-60. These numbers are provided for identification purposes only. If your part number has been superseded, cross-referencing helps identify the correct replacement, but physical dimension verification is still required.
Q: Can I order a single kit for a custom build without meeting a minimum order quantity?
A: Yes, we support a one-piece minimum order. This allows custom builders, repair shops, and restorers to procure a single steering head cup kit for a specific project without being blocked by bulk purchasing requirements, ensuring you get exactly what you need for your build.
