Voltage Regulator for Harley-Davidson XLCR Sportster 1977-1981

Fitment verified by platform — This voltage regulator for harley-davidson sportster is checked against the exact generator model year range before quotation to ensure connector compatibility.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Missing Connector Details Cause Assembly Delays

A 10 amp unit must match the exact plug configuration for the specific model year.

Listings that omit amperage, voltage, or connector type lead to parts that arrive but simply do not plug in. When a shop pulls an old manual reference for a voltage regulator for harley-davidson sportster, the cross-reference number might match, but the plug type often shifted for that specific year range. This forces the build to stall on the lift while the correct harness adapter or replacement unit is sourced.

Verifying Generator System Compatibility

Before ordering, confirm the motorcycle is equipped with a generator charging system rather than an alternator setup. The 12 volt 10 Amp output capacity is specifically calibrated for generator models within the XLCR and Sportster lines. Using this unit on an alternator system will result in improper charging and potential electrical damage.

Checking Plug Configuration by Year

Even when the cross-reference number aligns, the physical plug type can vary between the 1977 and 1981 production runs. Always compare the terminal layout of the incoming part against the existing harness. This step prevents the frustration of receiving a correct electrical rating but an incompatible physical connection.

Understanding Electrical Ratings and Finish

The 12 volt and 10 Amp output capacity dictates how much current this unit can safely manage for the battery and lighting circuits. Exceeding this rating causes internal overheating, while under-rating leads to chronic undercharging. The chrome plated finish provides corrosion resistance for the mounting area, ensuring stable grounding and long-term terminal integrity without altering the electrical output.

The Hidden Cost of Incorrect Year Matching

Ordering based solely on a superseded part number often results in a unit that physically mounts but fails to communicate with the rotor. When a voltage regulator for harley-davidson sportster is mismatched by even a single year in the generator era, the bike may experience parasitic draws or dead batteries. This sends the motorcycle back to the back of the service queue, wasting labor hours and delaying the customer pickup.

Sourcing from a Fitment-Focused Catalog

Every quotation begins by verifying the platform family and model year range against the factory records. We supply a fitment sheet detailing the exact year ranges this part was checked against, ensuring your purchasing team has documented proof of compatibility. Cross-reference documentation is provided with all OEM numbers clearly marked for identification only. Sample units are available for physical fitment confirmation before you commit to bulk orders for your distribution catalog.

Documentation and Receiving Checks

• Fitment sheet listing each year range this part was checked against
• Cross-reference sheet with OEM numbers marked reference only
• Quality inspection record verifying the 12 volt 10 Amp output rating
• Finish specification detailing the chrome plated surface treatment

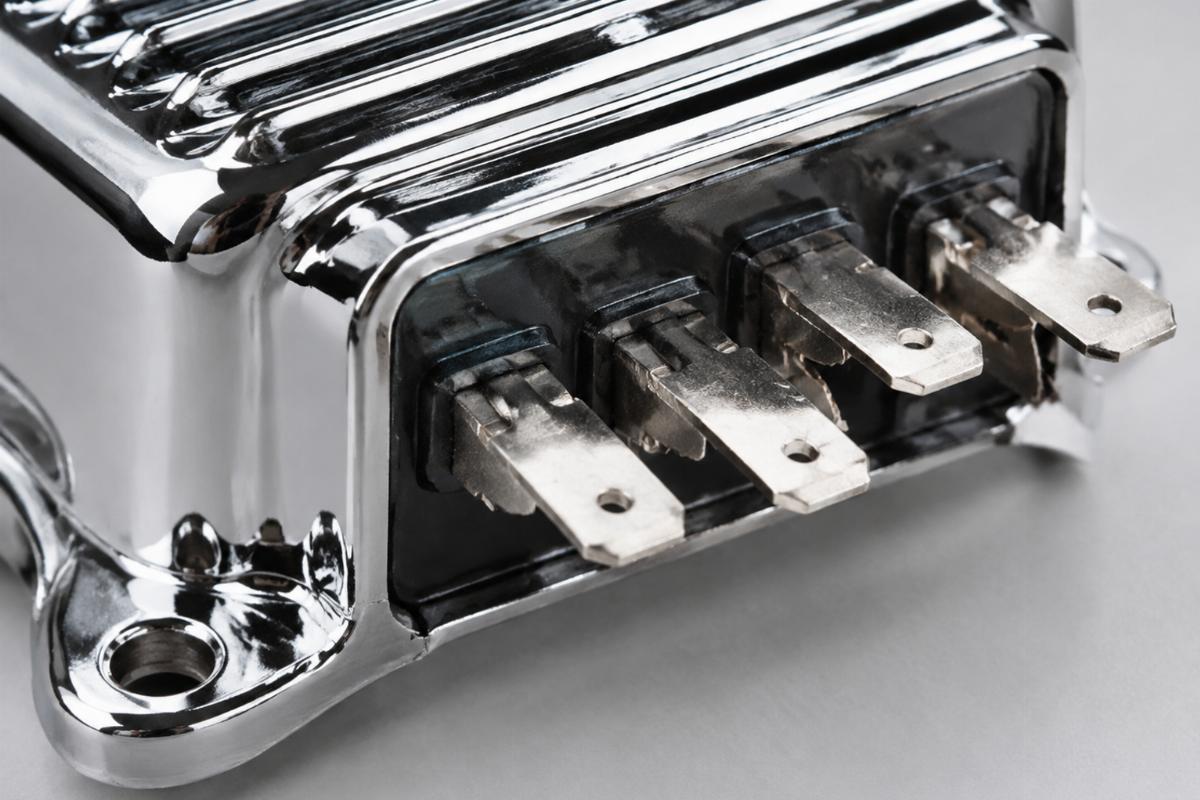

• Packing photographs showing the connector type and terminal layout

• Verify the 12 volt 10 Amp rating matches your generator system requirements
• Inspect the chrome plated finish for any transit damage or terminal bending
• Compare the physical plug type against your existing wiring harness
• Confirm the model year range matches your build specifications exactly
• Store the unit in a dry environment to protect the chrome plated housing

Requesting a Fitment Check

Send your model code and exact year range to verify compatibility before purchasing. Include a photograph of your current connector or the old part number to ensure the physical plug type matches. We will return a fitment sheet and quotation tailored to your generator setup requirements.

Frequently Asked Questions

Q: How do I confirm if my model year fits this voltage regulator for harley-davidson sportster?

A: Check your motorcycle’s production year against the 1977-1981 range for Sportster or 1977-1978 for XLCR. Ensure your bike uses a generator charging system, as this unit is not designed for alternator setups. We provide a fitment sheet with every order to confirm compatibility.

Q: How can I verify the connector type before ordering?

A: Compare the terminal layout of your existing harness with the photos we provide. Connector types shifted during this era, so visual confirmation is necessary even if the cross-reference number matches. Request a sample unit if you need physical verification before a bulk order.

Q: What documentation is included with the shipment?

A: Every order includes a commercial invoice, packing list, and a detailed fitment sheet stating the applicable platforms and year ranges. You also receive a cross-reference sheet with OEM numbers marked for identification only, plus a quality inspection record verifying the electrical ratings.

Q: Can I order a single piece for a custom build or restoration?

A: Yes, we support single-piece minimum orders for independent repair shops and custom builders. You do not need to meet a high volume threshold to get a fitment-checked unit. We provide the same documentation and technical follow-up for one piece as we do for bulk distribution orders.
