Chrome Plated Regulator/Rectifier 12V 15A – Fits Big Twin 1970-1975
Cross-Reference Verified — OEM number 74510-70A checked against 1970-1975 Big Twin alternator models to confirm exact plug type and mount spacing.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 74510-70A (reference only) |
| Part Type | Regulator/Rectifier |
| Voltage | 12 volt |
| Output | 15 Amp |
| Finish | Chrome Plated |
| Mount Type | 16306 or 16308 two bolt type mount |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin (Alternator Models) | 1970-1975 | Requires 16306 or 16308 two bolt type mount |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

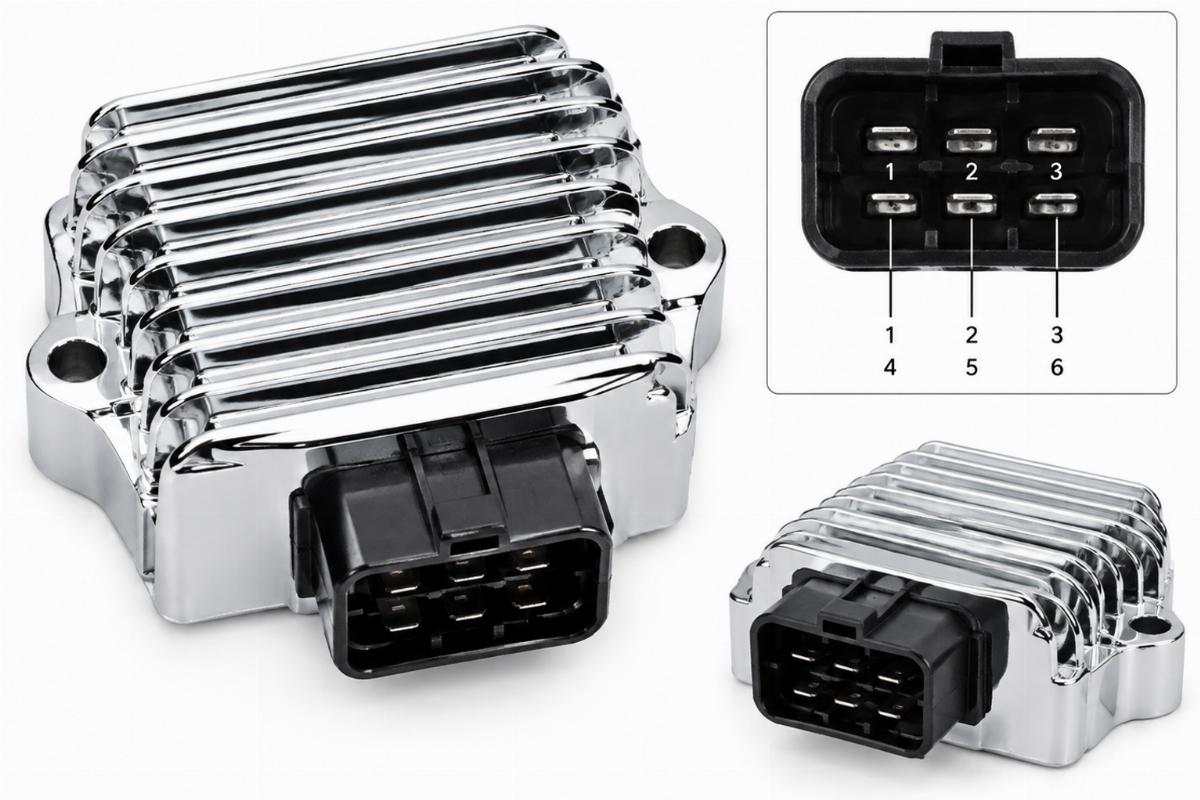

Why Connector Types Override Superseded Part Numbers
A superseded part number does not guarantee the plug will match your specific harness.
When sourcing a regulator/rectifier for big twin models from the early 1970s, relying solely on an old manual number often leads to mismatched connector pins. The physical plug shape and pin layout changed across model years, meaning a part that cross-references correctly on paper might leave the charging system dead in the garage. Verifying the exact plug type against the specific alternator setup prevents the bike from sitting on the lift waiting for the correct harness adapter or a rewired connector. [NEED_CITE: connector changes across model years for this platform]
Verifying the Alternator Setup Before Quoting
When you request a regulator/rectifier for big twin machines built between 1970 and 1975, the first step is confirming the exact alternator setup. The charging system output and the physical connector type must align with the 15 Amp and 12 volt ratings of this unit. We check the model year and the specific alternator configuration to ensure the plug type matches your original harness, avoiding the guesswork that usually happens when buyers only provide an old catalogue number.

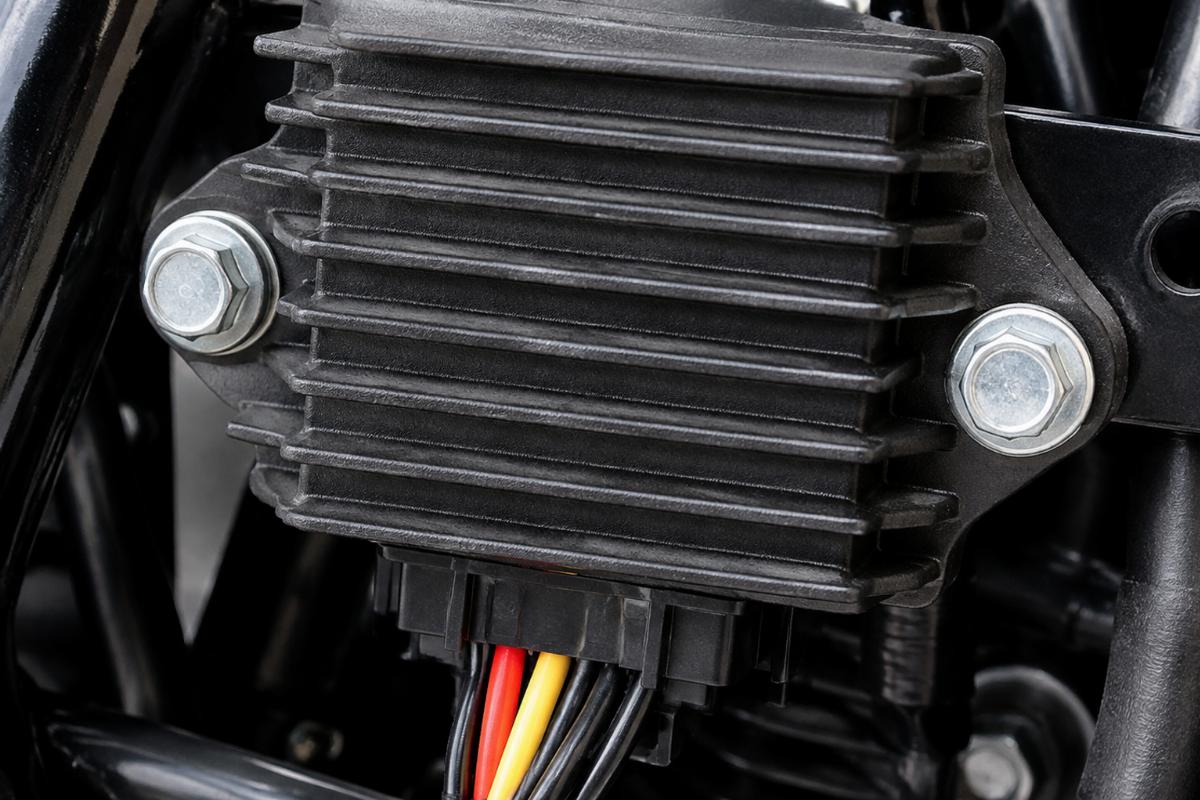

Checking the Two Bolt Mount Spacing
The physical mounting of this unit requires a 16306 or 16308 two bolt type mount. If the frame bracket or the original mount spacing has been altered during a previous restoration, the new unit might not align with the existing holes. We verify the mount type against your frame specifications to ensure the two bolt pattern matches, preventing the need to drill new holes or fabricate custom brackets during installation. [NEED_CITE: frame bracket variations across early 1970s models]
Understanding the 12 Volt and 15 Amp Ratings
The 12 volt system compatibility and 15 Amp output rating are critical for maintaining the correct charging curve for early Big Twin alternator models. If the amperage is too low, the battery will not hold a charge under load; if the voltage regulation is incorrect, it can damage the battery or the alternator stator over time. This unit is rated to handle the specific electrical demands of the 1970-1975 year range, ensuring the charging system operates within the original design parameters without overloading the stator.
The Hidden Cost of Mismatched Electrical Parts
Ordering a regulator/rectifier based only on a superseded part number often results in a part that arrives but does not plug in. When the connector pins do not match, the bike is left dead in the garage, and the shop has to spend hours rewiring the harness or waiting for a replacement. This delays the build, ties up the lift, and forces the buyer to pay for return shipping on a part that was technically the correct cross-reference but the wrong physical fitment for their specific model year. [NEED_CITE: return rates for mismatched electrical connectors]
Sourcing with Fitment Certainty
We verify the fitment of every regulator/rectifier against the Big Twin platform and the specific 1970-1975 year range before providing a quotation. Our cross-reference against HD# 74510-70A is marked reference only, ensuring you know exactly what the original number was without claiming factory authorization. We offer a one-piece minimum order, allowing shops to buy a single unit for a custom build or a restoration without being forced into a bulk purchase. Every unit is inspected for chrome finish consistency and electrical rating before dispatch.
Documentation Provided
- Fitment sheet stating the 1970-1975 Big Twin alternator model year range
- Cross-reference sheet with 74510-70A marked reference only
- Key dimensions including 15 Amp output and 12 volt rating
- Finish specification for the chrome plated housing
- Quality inspection record for the two bolt mount spacing
- Warranty terms covering electrical performance and finish
Receiving and Pre-Installation Checks
- Verify the connector pins match the original harness before cutting any wires
- Check the chrome plated finish for any shipping damage or plating defects
- Confirm the two bolt mount spacing aligns with the 16306 or 16308 bracket
- Ensure the 15 Amp and 12 volt ratings match your specific alternator setup
- Have a qualified technician verify the charging system output before final assembly
- Store the unit in a dry environment to prevent corrosion on the chrome finish
Send Your Model for a Fitment Check
To ensure this regulator/rectifier fits your specific machine, send us the model year, a photograph of the original connector, and the mounting bracket spacing. If the original part number has been superseded, provide the old manual number so we can verify the physical plug type against your alternator setup. We can also supply a sample unit for fitment confirmation before you place a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm if my 1970-1975 Big Twin fits this regulator/rectifier?
A: You need to verify that your model is a Big Twin alternator model within the 1970-1975 year range and requires a 16306 or 16308 two bolt type mount. We also check the physical plug type against your specific alternator setup to ensure the connector pins match your original harness, preventing fitment issues caused by superseded part numbers.
Q: What should I check regarding the electrical output and connector type?
A: Confirm that the 15 Amp output and 12 volt rating match your original charging system requirements. The physical connector type must also match the original harness plug. If the connector pins do not align, the charging system will not function, leaving the bike unable to hold a battery charge or properly regulate the alternator output.
Q: What if my original part number has been superseded across model years?
A: A superseded part number only indicates a replacement for the original catalogue number, but it does not guarantee the physical plug type or mount spacing will match your specific model year. We cross-reference the old number to identify the part, but we still verify the exact connector type and the 16306 or 16308 two bolt mount requirement against your specific bike to ensure a proper physical fit.
Q: Can I order a single piece to check the fit before buying in bulk?
A: Yes, we offer a one-piece minimum order for fitment confirmation. You can order a single chrome plated regulator/rectifier to verify the connector type, the two bolt mount spacing, and the overall finish quality before placing a larger order for your shop or distribution catalogue. This ensures the part fits your specific application without committing to bulk quantities upfront.
