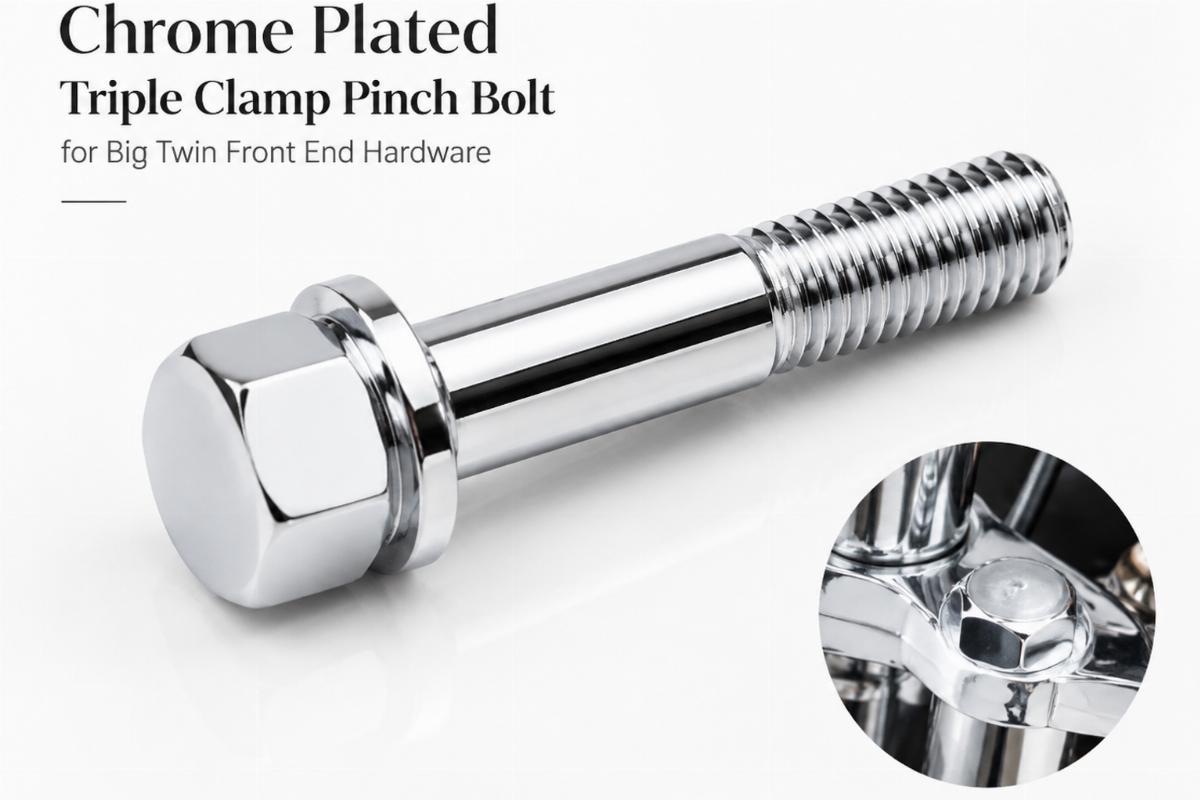

Triple Clamp Pinch Bolt Set Chrome for Big Twin 1936-Up – OEM Ref 4636
Early Front-End Hardware Verified — We physically measure every early triple clamp pinch bolt to ensure exact thread engagement and clamp thickness for specific model years.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 4636 (reference only), 4729 (reference only) |

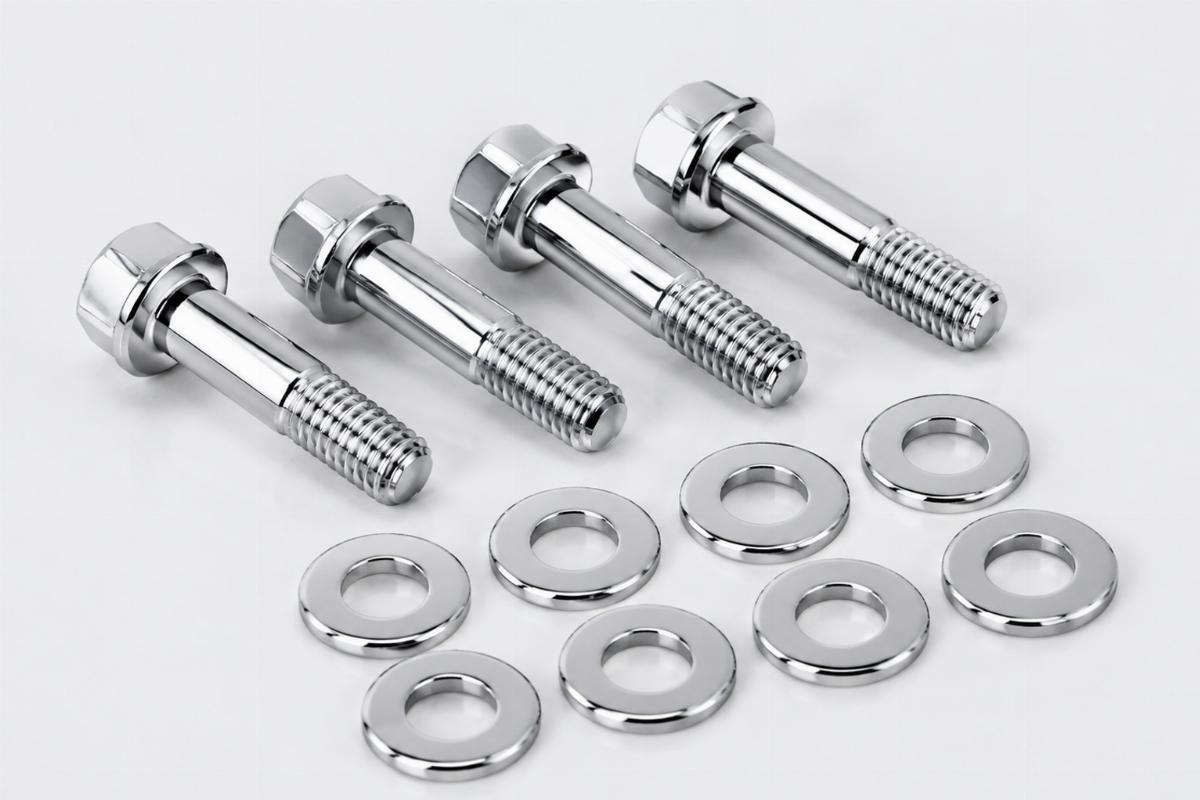

| Part Type | Triple Clamp Pinch Bolt & Washer Set |
| Finish | Chrome Plated |
| Style | Hex/Stock Style |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin | 1936-up | Excludes FLT and Deuce models |
| 45ci | 1940-up | Excludes FLT and Deuce models |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Thread Engagement for Pre-1984 Front Ends
Exact thread length and clamp thickness dictate whether the triple clamp pinch bolt for big twin frames secures the fork tubes safely without bottoming out.
Early front end hardware listings often miss finish consistency or exact fitment exclusions, causing mismatched looks or wrong parts for specific frames. When a pinch bolt bottoms out before clamping the fork tubes, the front end remains dangerously loose. We physically measure every sample to verify the exact thread engagement against the specific model year range before approving any batch [NEED_CITE: factory service manual specifications by model year].
Checking Platform and Year Range Differences
A triple clamp pinch bolt for big twin platforms must match the exact frame generation to function correctly. The thread pitch and overall length can vary subtly between the 1936-up Big Twin and the 1940-up 45ci platforms. Verifying these dimensions prevents the hardware from stripping the triple tree threads or failing to clamp the fork tubes adequately.
Cross-Referencing Superseded Hardware Numbers
Hardware numbers are frequently superseded across model years, meaning a number from an older manual no longer matches the physical part required today. This triple clamp pinch bolt for big twin applications cross-references HD# 4636 and 4729 (reference only) to help identify the correct replacement. Always confirm the physical dimensions of your old hardware against the new set before installation [NEED_CITE: connector changes across model years for this platform].
Interpreting Chrome Plating and Hex Style Specs
The chrome plated finish on this triple clamp pinch bolt for big twin builds provides a consistent visual match for restored front ends. The hex/stock style design ensures that standard wrenches can apply the necessary leverage without rounding the bolt head. A complete bolt and washer set guarantees that all clamping surfaces are covered, preventing moisture ingress and thread corrosion over time.
The Hidden Cost of Incorrect Hardware Fitment
Using a pinch bolt with the wrong thread length can leave the triple tree unclamped, resulting in severe steering instability. If the hardware is excluded for FLT and Deuce models but installed anyway, it will not seat properly in the narrower or wider fork spacing. Sourcing the wrong triple clamp pinch bolt for big twin frames forces the bike to sit on the shop lift while waiting for the correct replacement, delaying the entire build.
Sourcing Verified Chassis Hardware
We manufacture and source chassis hardware under one account, ensuring that every triple clamp pinch bolt for big twin applications meets our internal fitment standards. Our front-end depth covers early springer parts and hydraulic fork components in a single catalogue, simplifying your procurement process. We offer chrome plated finish options and cross-reference against OEM numbers (reference only) to guarantee compatibility. You can order a single set for a restoration build without meeting high minimum order quantities.
Documentation and Inspection Records
- Fitment sheet listing each year range this part was checked against
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification detailing the chrome plating process
- Quality inspection record verifying thread engagement and clamp thickness
- Packing photographs showing the complete bolt and washer set
Receiving and Pre-Installation Checks
- Verify the complete bolt and washer set is included upon arrival
- Compare the chrome plated finish against your existing front-end hardware
- Measure the thread length of the triple clamp pinch bolt for big twin fitment
- Check the hex head for any plating defects or shipping damage
- Store the hardware in a dry environment to prevent surface corrosion
- Have a qualified technician verify the clamp thickness before final assembly
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this triple clamp pinch bolt for big twin frames matches your specific build. Provide your OEM reference number or a clear photograph of the old hardware if the part number is unknown. Let us know if you need a single set or a sample for fitment confirmation before placing a bulk order.
Frequently Asked Questions
Q: How do I confirm my Big Twin or 45ci model year fits this pinch bolt set?
A: Check the fitment table for your specific platform and year range. Verify that your model is not an FLT or Deuce, as this hardware is explicitly excluded for those frames. If your build year falls near a transition period, measure your existing hardware to confirm the thread length matches.
Q: What are the exclusions for FLT and Deuce models?
A: The FLT and Deuce models utilize different triple tree widths and fork spacing. Installing this standard hex/stock style pinch bolt set on those specific frames will result in improper clamping and potential steering instability. Always verify your exact frame model before ordering.
Q: How do I cross-reference HD# 4636 and 4729 for my early springer front end?
A: These OEM numbers are provided for identification purposes only. Compare the physical dimensions, thread pitch, and overall length of your old hardware against the specifications of this aftermarket replacement set. If the numbers are superseded, the physical measurement is the most reliable way to confirm fitment.
Q: Can I order a single set for a restoration build?
A: Yes, we support single-piece minimum orders for shops and restorers building one bike. You can order just one triple clamp pinch bolt and washer set without needing to meet a bulk quantity threshold. We also offer sample supply for fitment confirmation before you commit to a larger order.
