Fork Tube Upper Bracket Bolt Chrome for Big Twin Late 1977-Later
Chrome Plated Finish Consistency — This fork tube upper bracket bolt for big twin is supplied with a uniform chrome plated finish to match adjacent front-end hardware without batch variations.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 45419-80 (reference only) |
| Part Type | Fork Tube Upper Bracket Bolt |
| Finish | Chrome Plated |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin | Late 1977-Later | Excludes FLT Air Forks and Dyna 2006/Later |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Exact Year Mapping Matters for a Fork Tube Upper Bracket Bolt for Big Twin
Hardware spacing changes between early and late 1977 setups, making year verification mandatory before dispatch.
When a buyer requests a fork tube upper bracket bolt for big twin and only specifies the model family, the risk of cross-threading or bracket misalignment increases significantly. A pre-1977 setup requires different thread pitch and bracket spacing compared to the late 1977/later specification. Relying solely on model names without checking the exact year range leads to parts that physically refuse to seat correctly. [NEED_CITE: factory service manual specifications by model year for front-end mounting hardware]
Verifying Platform and Year Range Before Quotation
Every inquiry for a fork tube upper bracket bolt for big twin requires a strict check against the exact model year. The transition in late 1977 altered the upper bracket spacing and thread specifications for these front-end components. We measure the physical sample against the requested year range to ensure the bolt matches the frame’s hard points, preventing the common issue of receiving hardware that belongs to an earlier generation.
Exclusions and Front-End Configuration Checks
Beyond the year range, the front-end configuration must be verified to rule out specific exclusions. This fork tube upper bracket bolt for big twin does not fit FLT Air Forks, which utilize an entirely different damping and mounting architecture. Additionally, Dyna models from 2006 and later feature modified triple tree geometries that render this specific bracket bolt incompatible. Confirming these exclusions ensures the part matches the actual build. [NEED_CITE: chassis geometry changes across model years for this platform]

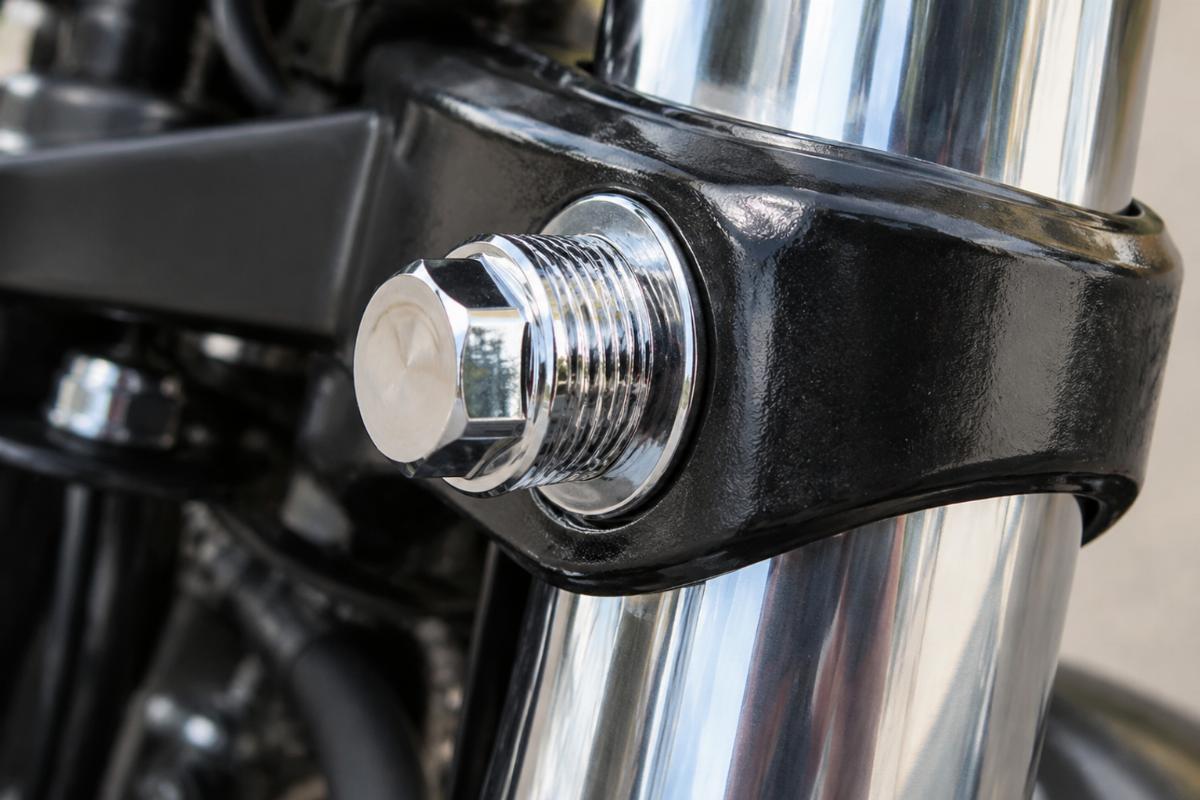

Chrome Plated Finish and Surface Integrity
The chrome plated finish on this bracket bolt is selected to provide visual consistency when installed alongside other front-end hardware. A uniform surface prevents localized corrosion that can seize the bolt in the upper bracket over time. The plating thickness is controlled to maintain the original thread pitch, ensuring the bolt engages smoothly without altering the clamping force required for the upper bracket assembly.
The Hidden Cost of Superseded Part Numbers
Part numbers are frequently superseded across model years, meaning a number pulled from an older manual may no longer match the physical hardware required for a late 1977/later frame. If a supplier ships a bolt based on an outdated cross-reference without verifying the physical dimensions, the bike remains stuck on the lift while the shop waits for the correct hardware. This delays the build and forces the buyer to absorb return shipping costs for parts that were never going to fit. [NEED_CITE: part number supersession records for front-end hardware]
Sourcing Strategy for Independent Aftermarket Hardware
We confirm fitment against the platform family and model year range before issuing any quotation for a fork tube upper bracket bolt for big twin. Cross-reference checks against 45419-80 are marked reference only to ensure identification accuracy without claiming factory authorization. Minimum order quantities are set to one piece, allowing a shop to order a single replacement bolt for a custom build or restoration without committing to bulk inventory. Sample supply is available for fitment confirmation before any larger batch is dispatched.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification for the chrome plated surface
- Quality inspection record for thread pitch and bracket spacing
- Packing photographs showing the hardware condition prior to dispatch
Receiving and Pre-Installation Checks
- Verify the chrome plated finish is free from peeling or pitting before installation.
- Confirm the thread pitch matches the original upper bracket hole on the Big Twin.
- Check the bracket spacing against the late 1977-later specification to ensure proper alignment.
- Store the bolt in a dry environment to prevent surface oxidation before use.
- Have a qualified technician verify the fitment on the front end before final assembly.
Requesting a Fitment Check
Send your exact model and year range to verify if this fork tube upper bracket bolt for big twin matches your front-end setup. Provide the old part number or a clear photograph of the existing bracket and bolt if the number is unknown. Let us know if you require a single piece for a restoration or a sample for fitment confirmation before placing a larger order.
Frequently Asked Questions
Q: How do I confirm if my Big Twin model year fits this upper bracket bolt?
A: You must verify that your motorcycle is a Big Twin model from late 1977 or later. Earlier models use different bracket spacing and thread specifications. If you are unsure, provide your exact model and year, and we will check the fitment against our physical samples before quotation.
Q: What are the exclusions for this fork tube bolt?
A: This hardware specifically excludes FLT Air Forks, which use a different mounting architecture, and Dyna models from 2006 and later due to modified triple tree geometries. Always confirm your front-end configuration matches the late 1977-later Big Twin specification.
Q: How do I check if my reference number 45419-80 has been superseded?
A: Part numbers often change across model years, so a number from an older manual may not match the current physical hardware. We cross-reference 45419-80 for identification only and verify the actual thread pitch and bracket spacing against your specific model year to ensure compatibility.
Q: Can I order a single piece for a custom build or restoration?
A: Yes, we support minimum orders from one piece. This allows independent repair shops and custom builders to source exact replacement hardware for a single bike without being blocked by bulk minimum order quantities. Samples are also available for fitment confirmation.
