Fitment Checked Chrome Spring Fork Rear Legs for FXST
Front-end depth and exact dimension verification — Every set of spring fork rear legs for FXST models is checked against the lower triple tree to axle position before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Rear Legs |
| Finish | Chrome (fork stem is oxidized due to the plating process) |
| Component | Rear spring fork legs only |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FXST models | Confirm with model and year | Verify lower triple tree to axle position for your specific production year. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Exact Lower Triple Tree to Axle Position Matters for Spring Fork Rear Legs for FXST
Matching the exact lower triple tree to axle position prevents the front wheel from contacting the fender and ruining the steering geometry.
Builders often receive springer parts without clear dimension statements. When the rear leg length is off by even a fraction of an inch, the front end geometry shifts drastically. This leads to fender clearance issues and compromised handling, forcing the shop to halt the build and reorder. Verifying this specific measurement against the frame year is the only way to ensure the front end tracks correctly [NEED_CITE: frame geometry specifications by model year for springer platforms].
Verifying Platform and Year Range for Springer Front Ends
Sourcing spring fork rear legs for FXST requires confirming the exact model family and production year. Frame mounts and axle spacing change across different generations of these motorcycles. A rear leg designed for an earlier model year will not align with a later frame without altering the steering geometry. We cross-reference the platform details to ensure the rear legs match your specific front end assembly requirements.

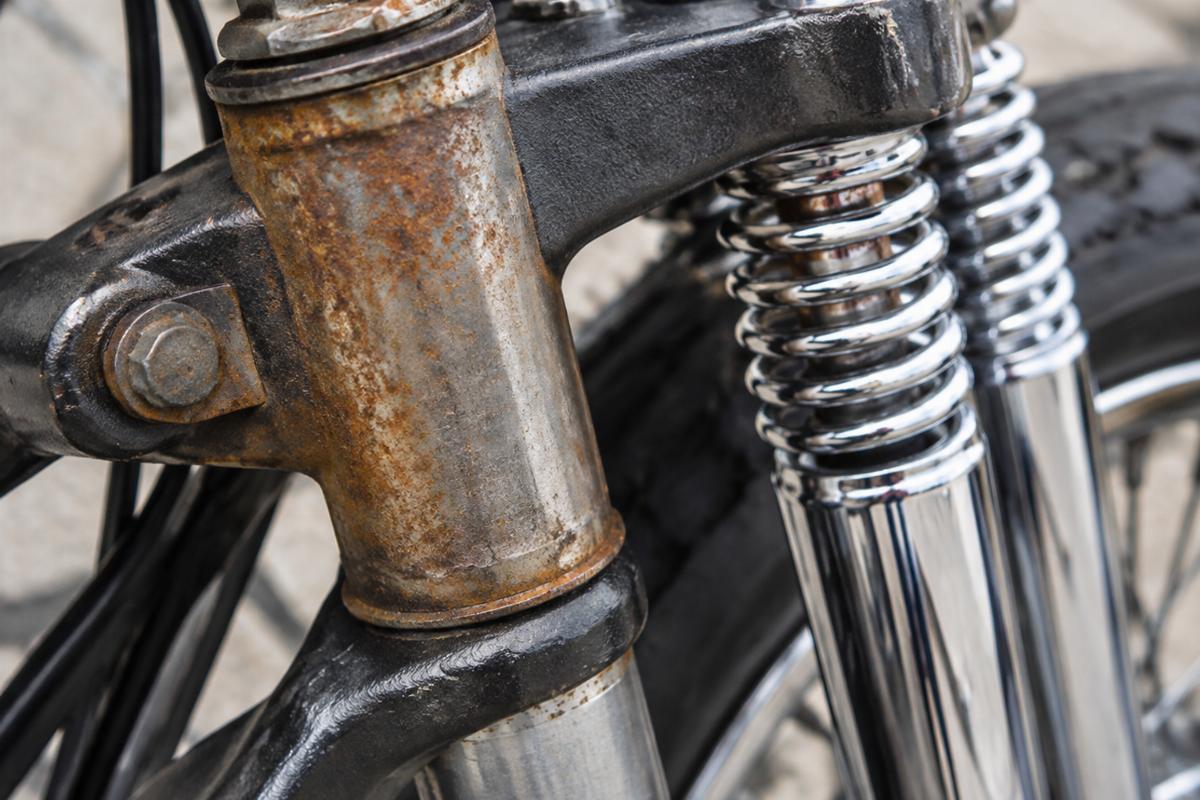

Understanding the Chrome Plating Process on Fork Stems
The chrome finish applied to these rear spring fork legs provides a specific visual profile for custom builds. During the chrome plating process, the fork stem naturally exhibits oxidation. This is a standard result of the chemical bath and does not affect the structural integrity or mounting function of the component. Buyers should expect this visual characteristic when inspecting the fork stem upon delivery [NEED_CITE: standard plating process characteristics for aftermarket chrome fork components].
How Spring Fork Overall Length Affects Installation
Spring fork overall length is measured strictly from the lower triple tree to the axle position. This dimension dictates the ride height and the rake angle of the front end. If the spring fork rear legs for FXST are too long, the front tire will rub against the fender. If they are too short, the front end sits too low, negatively affecting ground clearance and trail. Always measure your existing setup or consult the frame specifications before ordering.
The Hidden Cost of Incorrect Springer Dimensions
Ordering springer parts based solely on the model name without verifying dimensions often leads to costly delays. A half-inch discrepancy in the lower triple tree to axle position means the wheel will not clear the fender. The shop must then disassemble the front end, return the incorrect parts, and wait for replacements. This downtime halts custom builds and restoration projects, wasting labor hours and delaying the final delivery to the customer [NEED_CITE: common fitment errors and dimensional discrepancies in aftermarket springer front ends].
Sourcing Front End Components from a Single Account
We produce front end and chassis hardware in our own facility, ensuring consistent quality across our springer lines. Our catalogue offers deep coverage, including complete springer assemblies and individual early springer parts like these rear legs. We provide both chrome and black finish options to match your build requirements. Cross-referencing against Harley-Davidson OEM numbers is available for identification purposes. Additionally, we support a minimum order from one piece, allowing shops to source exactly what they need for a single custom build without meeting high volume thresholds.
Documentation Provided with Your Shipment
- Fitment sheet listing the FXST platform and applicable year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification detailing the chrome plating and stem oxidation
- Quality inspection record verifying the lower triple tree to axle position
- Packing photographs showing the rear spring fork legs and hardware
Receiving and Inspecting Your Spring Fork Rear Legs
- Verify the shipment contains rear spring fork legs only and matches the packing list.
- Confirm the FXST platform and production year match the fitment sheet provided.
- Measure the lower triple tree to axle position against your frame specifications.
- Inspect the chrome finish and note the expected oxidation on the fork stem.
- Have a qualified technician inspect the mounting points before final assembly.
- Store the rear legs in a dry environment to prevent surface corrosion before installation.
Requesting a Fitment Check for Your Build
Send your exact FXST model designation and production year to verify compatibility. Provide the lower triple tree to axle measurement from your current front end or frame if the original parts are unavailable. Let us know if you require a sample set for physical trial fitting before committing to a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm if these spring fork rear legs for FXST fit my specific model year?
A: You must verify the exact FXST model family and production year. We provide a fitment sheet detailing the applicable year ranges before dispatch. Additionally, you should measure the lower triple tree to axle position on your frame to ensure the rear legs match your specific front end geometry requirements.
Q: Why does the fork stem look oxidized on the chrome-finished rear legs?
A: The fork stem exhibits oxidation as a standard and expected result of the chrome plating process. This chemical reaction occurs during the bath and does not compromise the structural integrity or the mounting function of the rear spring fork legs. It is a normal visual characteristic of this finish.
Q: What is the correct method to measure spring fork length for replacement?
A: Spring fork overall length is measured strictly from the lower triple tree to the axle position. This specific dimension determines the ride height and steering geometry. Always use this measurement to verify fitment rather than relying on general model names, as frame spacing can vary across different production years.
Q: Can I order a single set of rear legs for a custom build?
A: Yes, we support a minimum order from one piece. This allows custom builders and restoration shops to order a single set of rear spring fork legs for FXST models without being blocked by high minimum order quantities. We can also supply a sample for physical fitment confirmation before you place a bulk order.
