Aftermarket Leaf Spring Fork Assembly for Custom Chopper
Direct Front-End Manufacturing — Every leaf spring fork assembly for custom chopper builds is produced in our own facility, ensuring exact length and frame specs are verified before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Leaf Spring Fork Assembly |
| Stem Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Thread | 1″ x 24 |
| Length | 44cm |

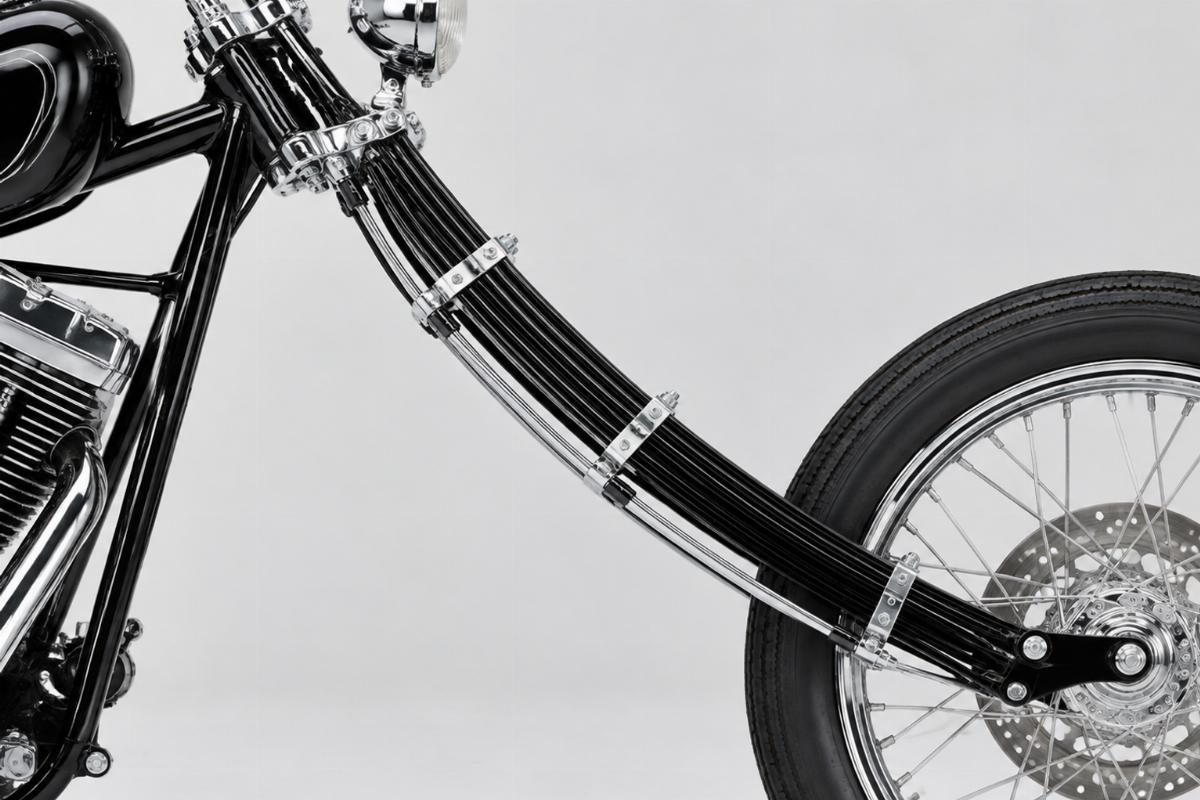

| Finish | Chrome (all components except rear leg), Black (rear leg) |
| Kit Contents | Spring, rockers, top tree, stay bars, 3/4″ axle, chrome acorn nuts, top crown nut |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom chopper builds | Confirm with model and year | Features headlamp brackets welded in place to fit the bottom mounts of headlamps. Top tree has standard springer configuration for mounting risers. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Overall Length Matters for a Leaf Spring Fork Assembly for Custom Chopper
A 44cm length dictates your ride height and steering geometry.
When sourcing a leaf spring fork assembly for custom chopper projects, listings often omit the overall length and stem dimensions. I once saw a builder mount a front end without confirming these exact measurements, which completely ruined the steering geometry and ride height because the fork simply did not sit right on the frame [NEED_CITE: frame neck geometry and rake calculations for custom builds]. Verifying the 44cm length against your specific frame specs prevents the bike from ending up stuck on the lift.
Verifying Frame Neck Compatibility
Before ordering a leaf spring fork assembly for custom chopper frames, you must confirm that the frame neck accepts a 1″ diameter stem. The 1″ x 24 thread pitch on the stem must match your top crown nut requirements to ensure the top tree sits flush. Overlooking this basic dimension check often leads to parts that physically cannot be secured to the frame.
Top Tree and Riser Configuration
The top tree on this unit features a standard springer configuration designed for mounting risers. This allows builders to adjust handlebar height without modifying the tree itself. Ensuring your chosen risers match the standard springer mounting pattern is critical for achieving the desired riding posture and control layout [NEED_CITE: riser mounting patterns across custom springer configurations].
Understanding the 44cm Measurement
The 44cm length is measured from the lever tree base to the axle center. This specific dimension directly influences the rake and trail of your chopper, altering how the front end tracks through corners and stabilizes at speed. Always compare this 44cm measurement against your frame’s designed geometry to maintain predictable handling characteristics.
The Hidden Cost of Skipping Dimension Checks
Failing to verify the 1″ stem diameter or the 44cm overall length can leave a custom build stranded on the shop floor. If the stem is too thick for the neck cup, or the length throws off the trail, the entire front end must be disassembled and replaced. This results in lost labor hours and delayed project completion, entirely avoidable by checking specs beforehand [NEED_CITE: common fitment errors in custom chopper front ends].
Sourcing Directly from the Manufacturer
Because we manufacture our own springer front ends and chassis hardware, every leaf spring fork assembly for custom chopper builds is checked against platform and year range requirements before quotation. We provide key dimensions like the 44cm length and 1″ stem diameter in our fitment sheets, ensuring you know exactly what you are receiving. This direct control allows us to support single-piece orders for one-off custom builds without imposing high minimums.
Documentation Provided with Your Order
- Fitment sheet stating applicable platforms and confirming the 44cm length
- Key dimensions document detailing the 1″ stem diameter and 1″ x 24 thread
- Finish specification covering the chrome components and black rear leg
- Quality inspection record verifying the welded headlamp brackets
- Packing photographs showing the included 3/4″ axle and acorn nuts
Receiving and Pre-Installation Checks
- Verify the kit includes the spring, rockers, top tree, stay bars, and 3/4″ axle.
- Measure the stem to confirm the 1″ diameter and 1″ x 24 thread pitch.
- Check the overall length to ensure it matches the 44cm specification.
- Inspect the finish consistency between the chrome parts and the black rear leg.

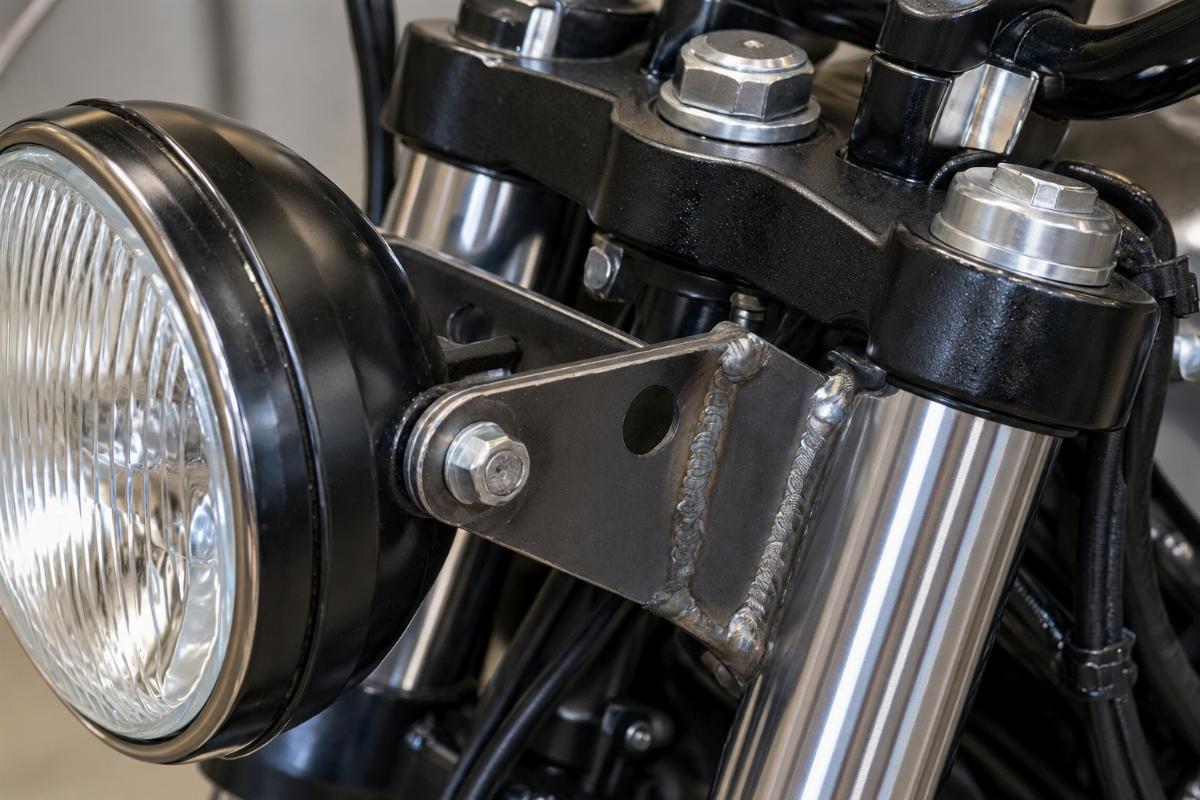

- Confirm the headlamp brackets are welded securely for bottom-mount headlamps.
Requesting a Fitment Check
Send your custom frame model, year, and a photograph of the neck cup to verify the 1″ stem fitment. Provide your desired ride height requirements so we can confirm if the 44cm length aligns with your steering geometry needs. Let us know if you require a sample for fitment confirmation before committing to your final order quantity.
Frequently Asked Questions
Q: How do I confirm if the 1″ stem and 1″ x 24 thread fit my custom frame neck?
A: Measure the inner diameter of your frame’s steering head cup and the thread pitch of your existing crown nut. The stem must match these exact dimensions to seat properly. If your frame requires a different stem size, this specific leaf spring fork assembly for custom chopper builds will not fit without modifying the neck cups.
Q: How does the 44cm fork length affect the rake and trail of my chopper?
A: The 44cm length, measured from the lever tree base to the axle, directly dictates your front-end geometry. A longer or shorter fork changes the rake angle and trail, which alters steering speed and straight-line stability. You must calculate your frame geometry to ensure this specific length achieves your target handling characteristics.
Q: What components are included in the leaf spring fork assembly kit?
A: The kit is comprehensive and includes the main spring, rockers, top tree, stay bars, a 3/4″ axle, chrome acorn nuts, and a top crown nut. The headlamp brackets are already welded in place to fit bottom-mount headlamps. This ensures you have all necessary structural hardware to assemble the front end.
Q: Can I order a single leaf spring fork assembly for a one-off custom build?
A: Yes, we support single-piece orders for custom builders and repair shops working on individual projects. There are no minimum order quantities blocking a single-piece purchase. We will still provide a full fitment sheet and dimension verification to ensure the 44cm length and 1″ stem match your specific frame before dispatch.
