Chrome Narrow Spring Fork Assembly 31″ – Fits Custom Springer
In-house springer production — every narrow spring fork assembly for custom springer is manufactured in our own facility, ensuring strict dimensional control and consistent chrome plating across batches.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Narrow Spring Fork Assembly |
| Finish | Chrome |

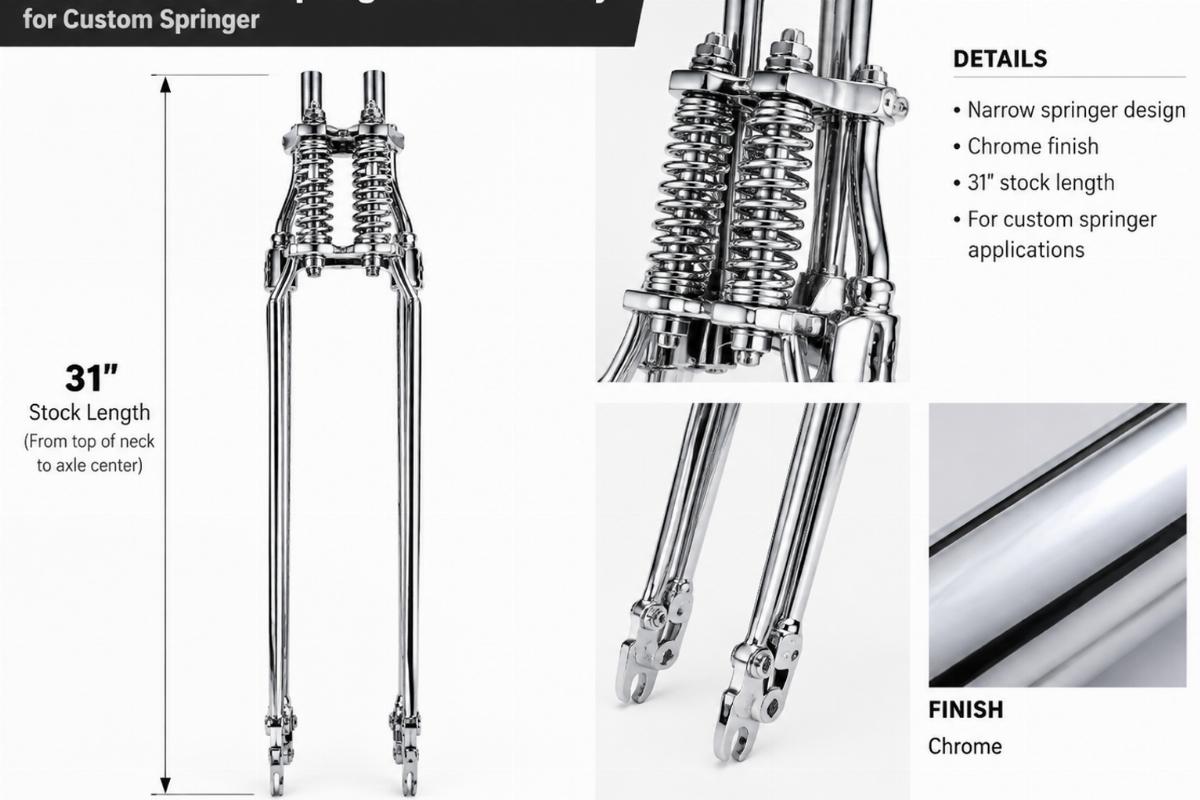

| Length | 31″ stock length |

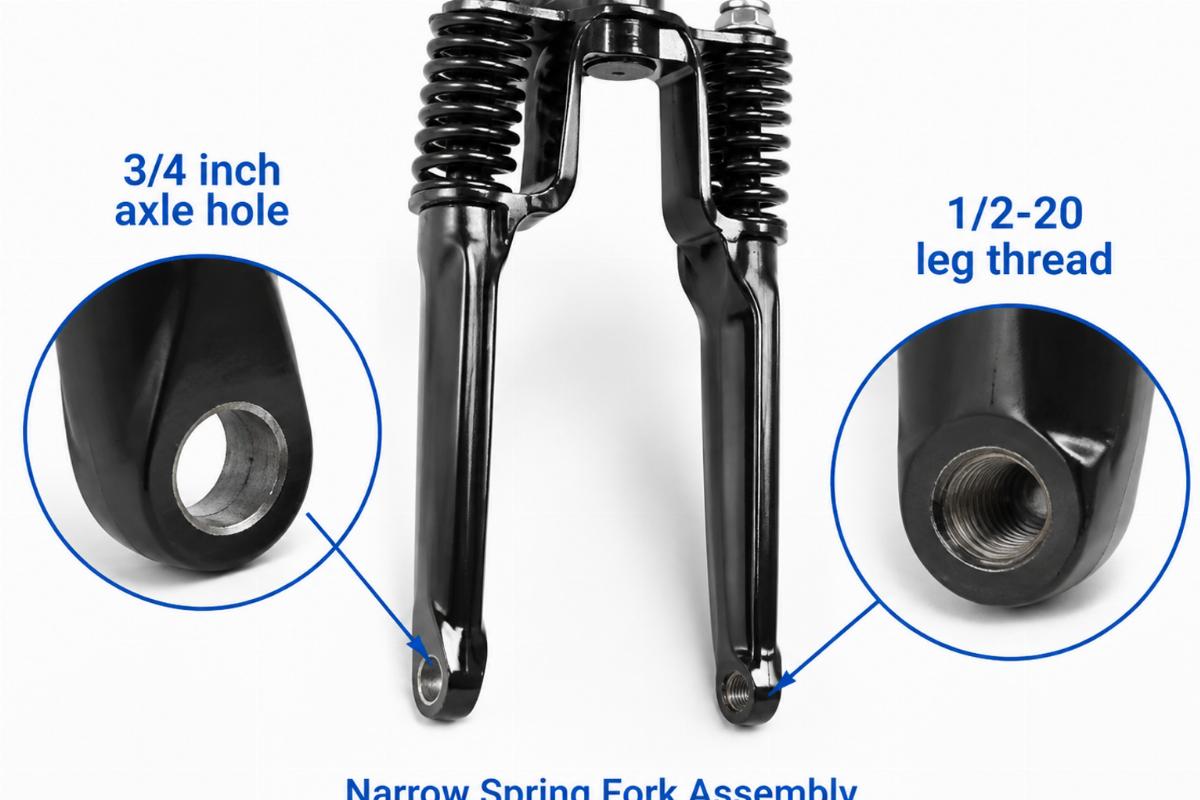

| Axle hole | 3/4″ |
| Top tree | Without ears |
| Leg thread | 1/2″-20″ |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom application | Confirm with model and year | Verify frame geometry and mounting spacing |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Frame Geometry for a Narrow Spring Fork Assembly for Custom Springer
A 31″ stock length and 3/4″ axle hole dictate your ride height and wheel alignment.
Builders often order based on model names alone, skipping the exact year and frame dimensions. I once saw a shop receive a 31″ assembly with a 3/4″ axle hole, only to find the 1/2″-20″ riser mounts on the legs completely mismatched their custom triple tree spacing because late frames had different neck clearances [NEED_CITE: frame neck clearance variations across custom model years]. The entire front end had to be reworked, delaying the build and wasting shipping costs.
Checking Riser Mount Compatibility
When sourcing a narrow spring fork assembly for custom springer, the 1/2″-20″ drilled and tapped legs must align perfectly with your chosen risers. If the thread pitch or diameter is off, the handlebars will sit at an incorrect angle, forcing you to machine new mounts or order different risers. Always measure your existing triple tree spacing before finalizing the order to avoid these alignment issues [NEED_CITE: triple tree spacing measurements for custom frames].
Evaluating Top Tree and Axle Requirements
The top tree without ears on this unit requires a specific steering stem and handlebar mounting setup. You need to confirm that your steering neck bearings and races match this configuration. Additionally, the 3/4″ axle hole must accommodate your specific wheel hub and brake setup. Overlooking these details means the fork cannot be secured to the frame or the wheel cannot be mounted safely [NEED_CITE: steering stem diameter standards for springer front ends].
Understanding the 31″ Stock Length Impact
The 31″ stock length is designed to maintain standard ride height geometry for many custom builds. Changing this length alters the rake and trail, which directly affects how the motorcycle handles and sits on the ground. If your frame was designed for a different over-stock length, installing this 31″ unit will change the steering geometry. Always calculate the impact on your frame’s specific rake and trail numbers before installation.
The Hidden Cost of Unverified Dimensions
Ordering a front end without verifying the exact year and frame dimensions often leads to parts sitting on the shop floor. When a 3/4″ axle hole does not match the wheel, or the 1/2″-20″ threads do not fit the risers, the bike remains stuck on the lift. This forces the builder to halt production, source new hardware, or machine custom adapters, turning a simple replacement into a costly fabrication project [NEED_CITE: machining costs for mismatched front end hardware].
Sourcing from a Dedicated Front-End Facility
We produce front-end and chassis parts in our own facility, meaning every narrow spring fork assembly for custom springer is built under one roof. This allows us to offer a one-piece minimum order, so you do not need to buy in bulk for a single custom build. We also provide cross-reference checks against OEM numbers to ensure the part matches your application before it ships. Our chrome finish options are processed in-house, ensuring visual consistency between batches.
Documentation and Verification Sheets
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length over stock and axle hole size
- Finish specification for chrome consistency
- Cross-reference sheet with OEM numbers marked reference only
- Quality inspection record for dimensional accuracy
Pre-Installation Inspection Checklist
- Verify the 31″ stock length matches your frame geometry requirements
- Confirm the 3/4″ axle hole aligns with your wheel hub and brake setup
- Check the 1/2″-20″ thread on the legs for riser compatibility
- Inspect the chrome finish for consistency and surface defects
- Ensure the top tree without ears matches your steering stem setup
- Have a qualified technician verify all mounting points before assembly
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this narrow spring fork assembly for custom springer matches your build. Provide your key实测尺寸, including triple tree spacing and steering stem diameter, along with any photographs of your current setup. Let us know if you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm if this 31″ spring fork fits my custom frame geometry?
A: You must verify the 31″ stock length against your frame’s designed ride height and calculate the resulting rake and trail. Measure your triple tree spacing and steering stem diameter to ensure the top tree without ears aligns correctly. We provide a fitment sheet to cross-check these dimensions before you finalize the order.
Q: What riser thread sizes are compatible with the 1/2″-20″ drilled legs?
A: The legs feature 1/2″-20″ drilled and tapped threads, which require risers with matching 1/2″-20″ mounting hardware. If your custom setup uses a different thread pitch or metric sizing, you will need to source adapter sleeves or different risers to ensure a secure handlebar mount.
Q: Can I order a single spring fork assembly for a one-off custom build?
A: Yes, we support a one-piece minimum order for custom builders and independent repair shops. You do not need to meet a high bulk threshold to purchase this narrow spring fork assembly for custom springer. We can also supply a sample for fitment confirmation if you are unsure about the dimensions.
Q: How do you ensure chrome finish consistency across different production batches?
A: Because we produce springer front ends in our own facility, we control the plating process directly. This allows us to maintain strict quality inspection records for chrome consistency. You will receive a finish specification document with your order, ensuring the visual appeal matches your expectations across multiple units.
