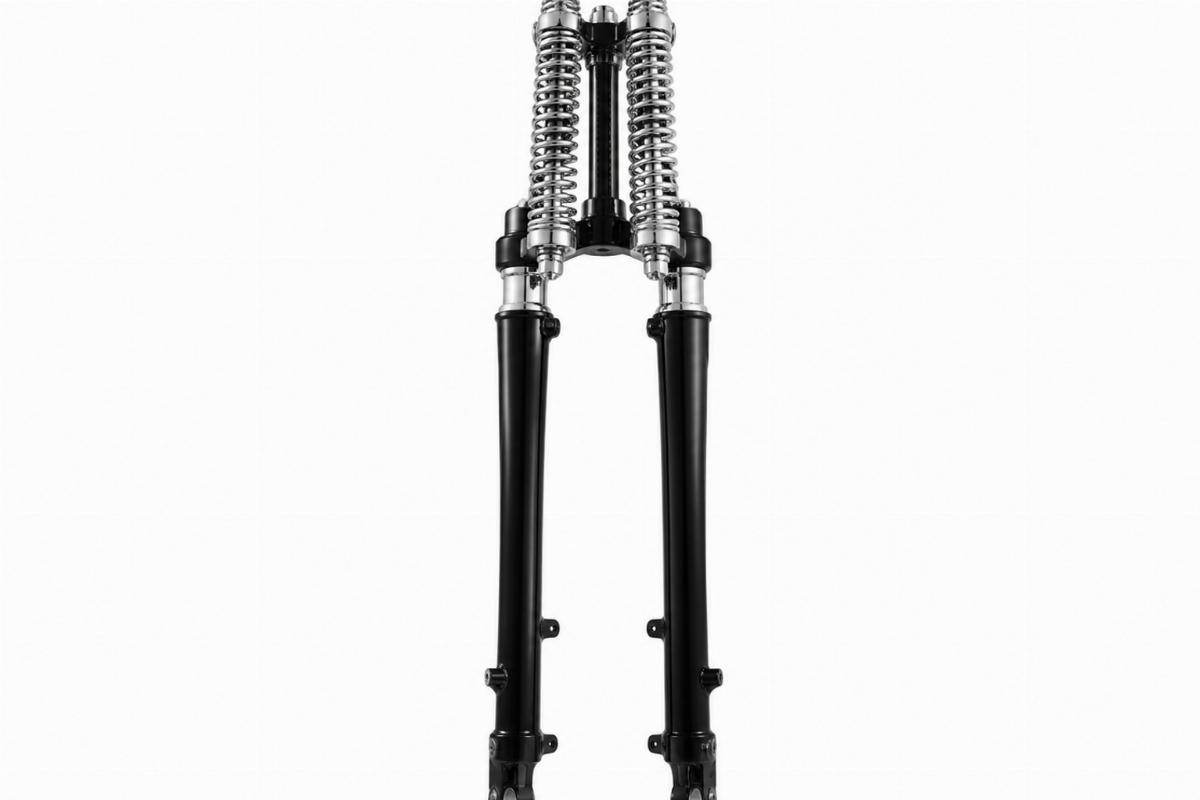

52″ Inline Spring Fork Assembly for Big Twin – Aftermarket Replacement
Platform and Year Verified — Every 52″ inline spring fork assembly for big twin models is checked against specific FL, FX, FLST, and FXST year ranges before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |
| Overall Length | 52″ (20″ over stock) |
| Measurement Method | Top of rear leg to front axle center line |
| Stem | 1″ inline stem |
| Rocker Type | Offset outside mount rockers |
| Rocker Inside Dimensions | 7″ side to side, 36″ back to bottom, 44″ back to top |
| Back Tubing | Oval back tubing |
| Construction | Electric welded and brazed construction |
| Finish | Chrome springs and rockers; black front and rear legs |
| Kit Contents | Inner and outer springs, front and rear legs, 1″ inline stem, offset outside mount rockers, studs and bushings, spring rods with bushings |
| Excluded Items | Top clamp, neck races and cone nut |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FL | 1948-1984 | Verify frame geometry for 20″ over stock length |
| FX | 1971-1984 | Confirm 1″ inline stem matches triple tree |
| FLST | 1986-1999 | Check 7″ rocker inside width for drum brake |
| FXST | 1984-1999 | Confirm with model and year for exact clearance |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Overall Length and Rocker Spacing Decide Your Build
A 52″ inline spring fork assembly for big twin models changes ride height and steering geometry compared to stock.
When an inline spring fork is offered over stock without clear overall length and geometry statements, buyers cannot judge the impact before ordering. I once saw a buyer order a 20″ over stock inline spring fork for a 1999 FXST without checking the 7″ inside rocker width. That extra length completely threw off the rake, and the narrow spacing interfered with the lug bolt type drum brake [NEED_CITE: frame geometry and brake drum clearance specifications by model year]. The front end became unrideable because the dimensions were not verified against the exact model year.
Checking the 1″ Inline Stem and Triple Tree Match
The 1″ inline stem on this inline spring fork assembly for big twin models must match your specific triple tree bore. If the stem diameter is off by even a fraction, the assembly will not seat correctly in the neck. Always verify the stem size against the exact model year and frame family to ensure a proper mechanical fit without modifying the steering head.
Verifying Offset Rocker Clearance for Drum Brakes

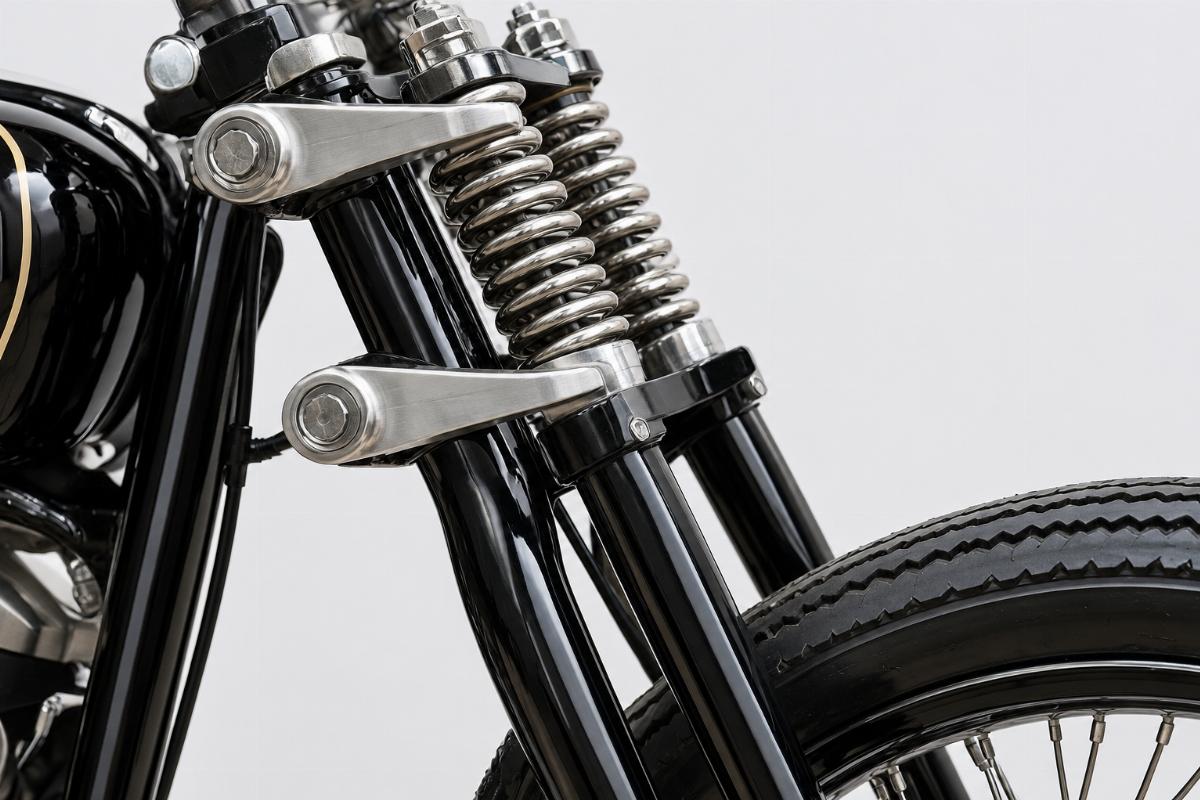

The offset outside mount rockers feature a 7″ side to side inside dimension. This specific spacing is critical when fitting a lug bolt type drum brake on FLST and FXST models. If the rocker width is too narrow, the brake assembly will bind or fail to mount. Always measure your existing brake drum and compare it to the 7″ side to side and 36″ back to bottom rocker dimensions before finalizing the order [NEED_CITE: brake drum width and rocker spacing variations across custom builds].
Understanding the 52″ Overall Length Impact
This inline spring fork assembly for big twin models measures 52″ overall from the top of the rear leg to the front axle center line. This 20″ over stock length alters the front-end profile and steering trail. A longer fork raises the front of the motorcycle and changes the steering angle. You must confirm that your frame can accommodate this extended length and that the resulting geometry matches your intended ride characteristics.
The Hidden Cost of Unverified Dimensions
Ordering a springer assembly without confirming the 52″ length and 7″ rocker spacing often leads to severe build delays. If the fork length throws off the rake, the motorcycle handles poorly or becomes unrideable. If the rocker spacing interferes with the drum brake, the wheel cannot be installed. These dimensional mismatches force the bike to sit on the lift while you source different components or modify the assembly, wasting shop time and delaying the customer’s build [NEED_CITE: common fitment failures and dimensional mismatches in custom springer installations].
Sourcing with Fitment Certainty
We verify the fitment of every inline spring fork assembly for big twin models against the specific FL, FX, FLST, and FXST year ranges before providing a quotation. Our own production facility builds these front ends with electric welded and brazed construction to ensure structural integrity. We offer this assembly with chrome springs and rockers paired with black legs to match your finish requirements. You can order a single sample to confirm the 52″ length and 1″ stem size before committing to a bulk purchase. We also cross-reference Harley-Davidson OEM numbers to help identify superseded parts for your older models.
Documentation Provided
- Fitment sheet listing each FL, FX, FLST, and FXST year range this part was checked against
- Key dimensions sheet detailing the 52″ overall length and 7″ rocker inside width
- Finish specification document confirming chrome springs and black legs
- Quality inspection record for the electric welded and brazed construction
- Packing photographs showing the included inner and outer springs and legs
Receiving and Pre-Installation Checks
- Verify the kit includes inner and outer springs, front and rear legs, and 1″ inline stem
- Confirm the 52″ overall length matches your frame geometry requirements
- Measure the 7″ side to side rocker inside width for drum brake clearance
- Inspect the chrome springs and black legs for finish consistency and defects
- Ensure the top clamp, neck races, and cone nut are sourced separately as they are excluded
- Store the assembly in a dry environment to protect the chrome and black finishes
Send Your Model for a Fitment Check
Provide your specific FL, FX, FLST, or FXST model code and year range so we can verify the 52″ length and 1″ stem fitment. Share a photograph or measurements of your existing front end if the part number is unknown. Let us know if you require a single sample to check the 7″ rocker spacing and finish consistency before placing a larger order.
Frequently Asked Questions
Q: How do I confirm my specific model year fits this 52″ assembly?
A: Provide your exact FL, FX, FLST, or FXST model code and year range. We verify the 52″ overall length and 1″ inline stem against the specific platform family to ensure the fork matches your frame geometry and steering head requirements before clearing the order.
Q: What are the exact inside rocker dimensions for wheel clearance?
A: The offset outside mount rockers measure 7″ side to side, 36″ back to bottom, and 44″ back to top. You must check the 7″ side to side dimension to ensure adequate clearance for your specific wheel hub and lug bolt type drum brake assembly.
Q: Which components are excluded from the kit and need to be sourced separately?
A: The kit includes inner and outer springs, front and rear legs, the 1″ inline stem, offset rockers, studs, bushings, and spring rods. The top clamp, neck races, and cone nut are not included and must be sourced separately for complete installation.
Q: Can I order a single sample to check fitment and finish consistency?
A: Yes, we support a one-piece minimum order. You can order a single sample to verify the 52″ length, 1″ stem size, and 7″ rocker spacing against your frame. This also allows you to inspect the chrome springs and black legs for finish consistency before placing a bulk order.
