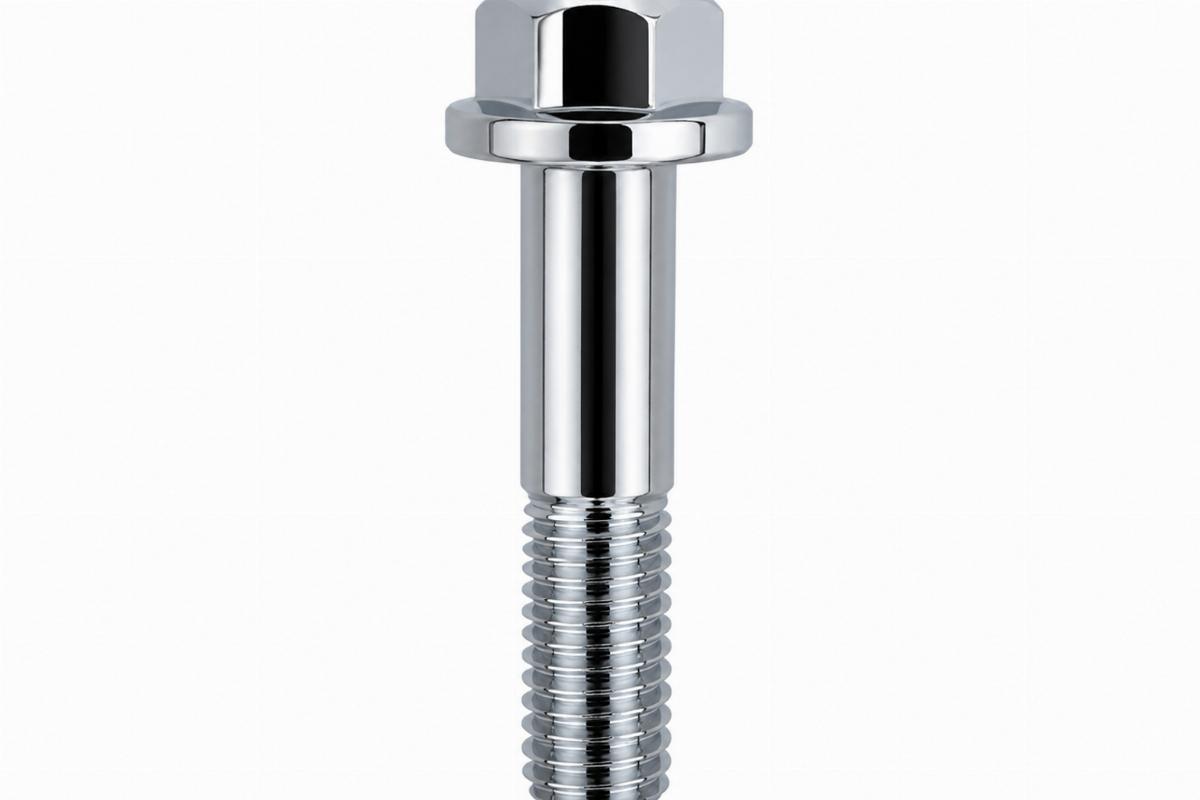

Chrome Plated Fork Tube Upper Bracket Bolt for Big Twin – OEM Ref 45419-80
In-house fork hardware production — Every fork tube upper bracket bolt for big twin is manufactured in our own facility, ensuring exact thread pitch and bracket compatibility for Late 1977-later platforms.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 45419-80 (reference only) |
| Part Type | Fork Tube Upper Bracket Bolt |
| Finish | Chrome Plated |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin | Late 1977-later | Excludes FLT Air Forks and Dyna 2006-later |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Tree Width for a Fork Tube Upper Bracket Bolt for Big Twin
Triple tree spacing dictates bracket alignment, not just the model year.
I remember a builder ordering these bolts for a Wide Glide setup, assuming “Late 1977-later” was enough. The bolt looked identical, but the triple tree spacing on his specific configuration differed from standard Narrow Glide setups, causing cross-threading when he tried to seat it. Always confirm the exact tree width and exclude FLT Air Forks or Dyna 2006-later models before installation [NEED_CITE: triple tree spacing variations across front end configurations].
Platform and Year Range Verification
Finding the correct fork tube upper bracket bolt for big twin requires matching the exact platform family and model year range before checking the thread pitch. A bolt that physically threads into a Late 1977-later triple tree might still fail to seat properly if the underlying fork assembly belongs to an excluded FLT Air Forks or Dyna 2006-later configuration. We verify the specific front end setup against our fitment charts to ensure the bracket geometry aligns perfectly with your build.
Cross-Referencing Hardware Identification
When sourcing replacement hardware, matching the original reference number is only the first step in confirming compatibility. This fork tube upper bracket bolt for big twin cross-references HD# 45419-80, but part numbers were frequently superseded across different model years within the same platform family. Relying solely on an old manual number without checking the current tree width can lead to receiving a bolt that looks correct but features incompatible shoulder dimensions [NEED_CITE: superseded part number charts for front end hardware].

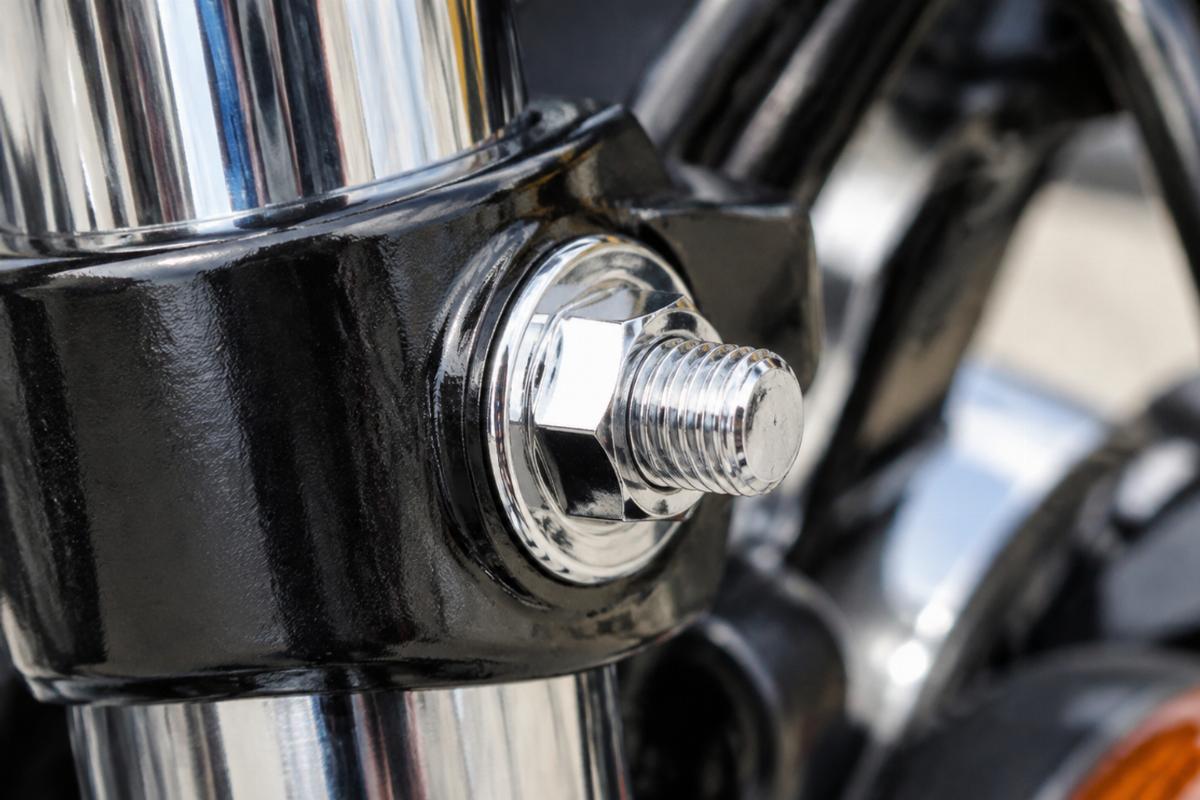

Chrome Plated Finish and Thread Integrity
The chrome plated finish on this fork tube upper bracket bolt for big twin provides a consistent appearance alongside other front-end hardware, but the underlying thread integrity is what actually secures the bracket. Chrome plating must be applied evenly to avoid altering the precise thread pitch required for the upper bracket. If the plating is too thick or uneven, the bolt will bind before reaching the correct torque, potentially damaging the triple tree threads during installation.
The Hidden Cost of Incorrect Bracket Hardware
Installing a bolt with the wrong shoulder length or thread pitch on a Wide Glide front end can quickly turn a simple hardware swap into a major teardown. If the bolt cross-threads the triple tree hole due to an unverified tree width, the entire tree may require professional re-tapping or complete replacement. This kind of fitment error leaves the motorcycle stranded on the shop lift while waiting for a replacement part, delaying the build and increasing labor costs significantly [NEED_CITE: repair costs for damaged triple tree threads].
Sourcing Front End Hardware with Confidence
We manufacture our own fork parts and chassis hardware, meaning every fork tube upper bracket bolt for big twin is produced under direct quality control rather than sourced from unknown catalogs. Our fitment team checks your specific model year and tree width against the Late 1977-later platform requirements before releasing the quotation. We also offer a single piece minimum order, allowing repair shops and custom builders to get the exact hardware they need for one bike without meeting bulk minimums.
Documentation Provided with Your Order
- Fitment sheet stating applicable Big Twin platforms and Late 1977-later year ranges
- Cross-reference sheet with HD# 45419-80 marked reference only
- Finish specification detailing the chrome plated application process
- Quality inspection record verifying thread pitch and shoulder dimensions
Receiving and Pre-Installation Checks
- Verify the chrome plated finish on the fork tube upper bracket bolt for big twin is free from peeling or uneven plating near the threads.
- Confirm the model year and tree width match the Late 1977-later fitment before attempting to thread the bolt into the triple tree.
- Check that the bolt is explicitly not intended for FLT Air Forks or Dyna 2006-later configurations to prevent cross-threading.
- Store the hardware in a dry environment to prevent moisture from affecting the chrome plated surface before installation.
Requesting a Fitment Check
Send your specific Big Twin model year and a photograph of your current triple tree spacing to confirm this fork tube upper bracket bolt for big twin is the correct match. If you are working with an older manual or an unmarked part, providing the exact tree width and fork assembly type helps us verify compatibility against FLT Air Forks and Dyna 2006-later exclusions. We can also supply a sample for fitment confirmation before you commit to a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm my Big Twin model year is compatible with this upper bracket bolt?
A: Check your frame and front end documentation to ensure the motorcycle falls within the Late 1977-later range. You must also verify that the bike is not equipped with FLT Air Forks or a Dyna 2006-later front end, as these configurations use different triple tree spacing and bracket geometry.
Q: Why is this bolt specifically excluded for FLT Air Forks and Dyna 2006-later models?
A: FLT Air Forks and later Dyna models utilize different triple tree widths and bracket mounting geometries. Using a bolt designed for the standard Late 1977-later Wide Glide setup on these excluded models will result in improper seating and can cause severe cross-threading in the triple tree.
Q: How does this aftermarket bolt cross-reference with the original HD# 45419-80?
A: This fork tube upper bracket bolt for big twin is manufactured to match the physical dimensions and thread pitch of HD# 45419-80. The OEM number is used strictly for cross-reference identification to help you match your existing hardware, but it is not an original factory part.
Q: Can I order a single chrome plated bolt for a restoration project?
A: Yes, we support shops and builders working on single bikes by offering a minimum order of just one piece. You will receive the same chrome plated finish and quality inspection documentation as a bulk order, ensuring the hardware matches the rest of your front end.
Q: How is the chrome finish consistency maintained across different batches?
A: Because we manufacture our own fork parts and chassis hardware in our own facility, we control the plating process directly. Every batch undergoes a quality inspection to ensure the chrome plated finish is even and does not interfere with the critical thread pitch required for proper bracket installation.
