Z Bar Handlebars 1 1/4″ O.D. 30″ Width for Custom 1982-Later

Fitment Verification by Measurement — Every 1 1/4″ O.D. handlebar center width and knurling position is physically measured before dispatch to prevent mounting failures on custom builds.

Product Specification

Part Type | handlebars

Material | steel

Finish | Chrome Plated

Style | Z Bar

Outer Diameter | 1 1/4″

Width | 30″

Rise | 4″

Pullback | 4 1/2″

Center Width | 8 1/2″

Riser Center Spacing | 3 1/2″

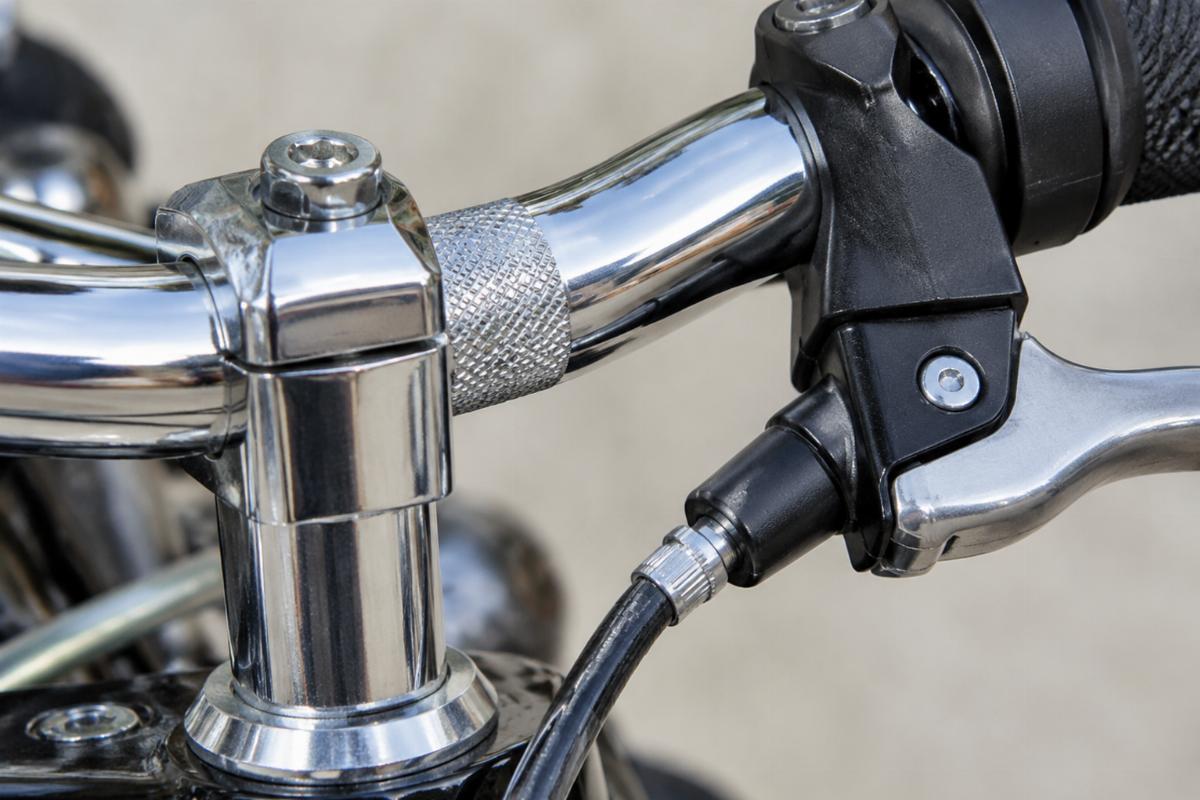

Features | dimpled and slotted under switch housing area for internal wiring; brake side clearanced for OE style master cylinders; knurled at riser area

Fitment

Platform | Year Range | Notes

Not stated in source | 1982-later and 1996-later (for OE style master cylinder clearance) | Fits risers mounted on 3 1/2″ centers

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Z Bar Handlebars for Custom Motorcycles Fail on Narrow Trees

Riser center spacing and switch housing alignment dictate whether the bar actually mounts.

Handlebar listings often miss bar diameter, rise, width, pullback or knurling details, leading to fitment issues and mismatched aesthetics when the parts arrive. I once processed a batch of 1 1/4″ O.D. Z bars for a Latin American buyer who ignored the model year. The bars were dimpled and slotted for internal wiring, matching 1982-later OE bars, and clearanced for 1996-later master cylinders. However, the early switch housings did not align with the slots, and the 3 1/2″ riser centers clashed with their narrow trees [NEED_CITE: frame tree spacing variations across custom chassis builds]. The 4″ rise and 4 1/2″ pullback looked correct on paper, but the physical mounting failed completely.

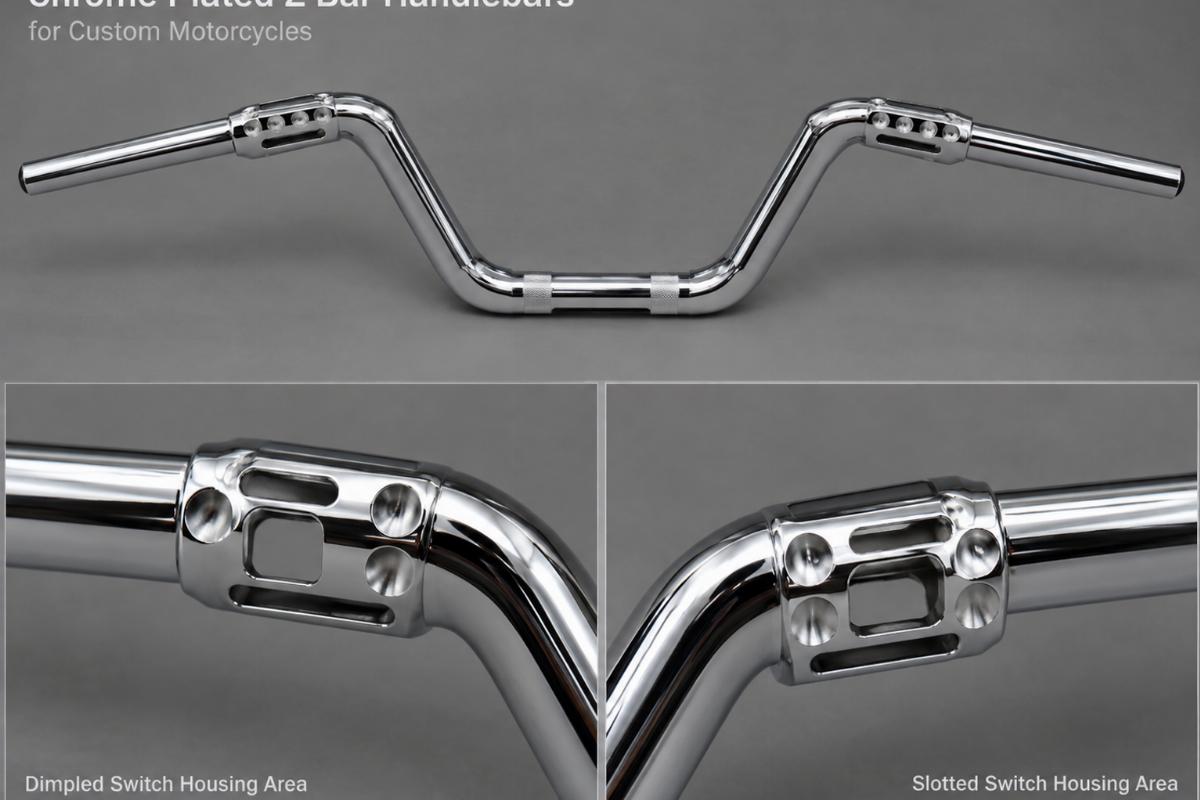

Chrome plated z bar handlebars for custom motorcycles showing dimpled and slotted switch housing area

Checking Riser Center Spacing Against Frame Trees

When sourcing z bar handlebars for custom motorcycles, the 3 1/2″ riser center spacing must match your triple tree mounting holes exactly. A mismatch of even a fraction of an inch prevents the clamps from seating flush, which compromises the entire front-end assembly. Always verify the tree width before ordering to ensure the 8 1/2″ center width of these handlebars clears your specific setup.

Verifying Switch Housing Dimple and Slot Alignment

The dimpled and slotted under switch housing area for internal wiring is designed for specific housing footprints. If your build uses early switch housings, the slots on these 1 1/4″ O.D. bars might not align, leaving wiring exposed or requiring modification [NEED_CITE: switch housing footprint changes across model years]. Confirm your control housing dimensions to guarantee a clean internal wire routing path without altering the chrome plated finish.

Interpreting Rise, Pullback and Width Dimensions

A 4″ rise combined with a 4 1/2″ pullback significantly alters the rider’s reach and posture, changing the overall geometry of the custom build. The 30″ width dictates how the z bar handlebars for custom motorcycles interact with the fuel tank and rider stance. These dimensions must be cross-referenced with your frame geometry to ensure the brake side clearanced for OE style master cylinders reaches the caliper without stretching the lines.

The Hidden Cost of Unverified Handlebar Dimensions

Ordering handlebars without confirming the knurled at riser area grip can lead to the bars slipping inside the clamps once tightened. When riser centers clash with narrow trees, the bike sits in the shop bay unable to move, costing labor hours and delaying the build. Furthermore, if the brake side clearance is incorrect for your specific master cylinder, you face the cost of returning the part and sourcing a replacement, completely halting the assembly progress [NEED_CITE: master cylinder mounting variations across different control setups].

Sourcing Handlebars with Confirmed Dimensions

We physically measure every center width and knurling position before dispatch to ensure the 3 1/2″ riser center spacing matches your requirements. Our fitment verification process checks the 1 1/4″ O.D. steel construction against your specific model year to prevent mounting failures. We offer a minimum order from one piece, allowing custom builders to order a single set of z bar handlebars for custom motorcycles without meeting high volume thresholds.

Documentation Provided

Fitment sheet stating applicable platforms and year ranges
Cross-reference sheet with OEM numbers marked reference only
Key dimensions including bar diameter, rise, width and pullback
Finish specification for the chrome plated surface
Quality inspection record verifying knurling and slot placement

Receiving and Pre-Installation Checks

Verify the 30″ width and 4″ rise match your custom build geometry
Measure the 3 1/2″ riser center spacing against your triple trees
Inspect the dimpled and slotted under switch housing area for internal wiring
Check the brake side clearanced for OE style master cylinders
Ensure the knurled at riser area is free of debris before clamping
Store the chrome plated finish in a dry environment to prevent surface oxidation

Requesting a Fitment Check

Send your model and year for a fitment check to confirm the 3 1/2″ riser center spacing matches your triple trees. Provide your control housing type to verify the dimpled and slotted under switch housing area for internal wiring aligns correctly. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop.
