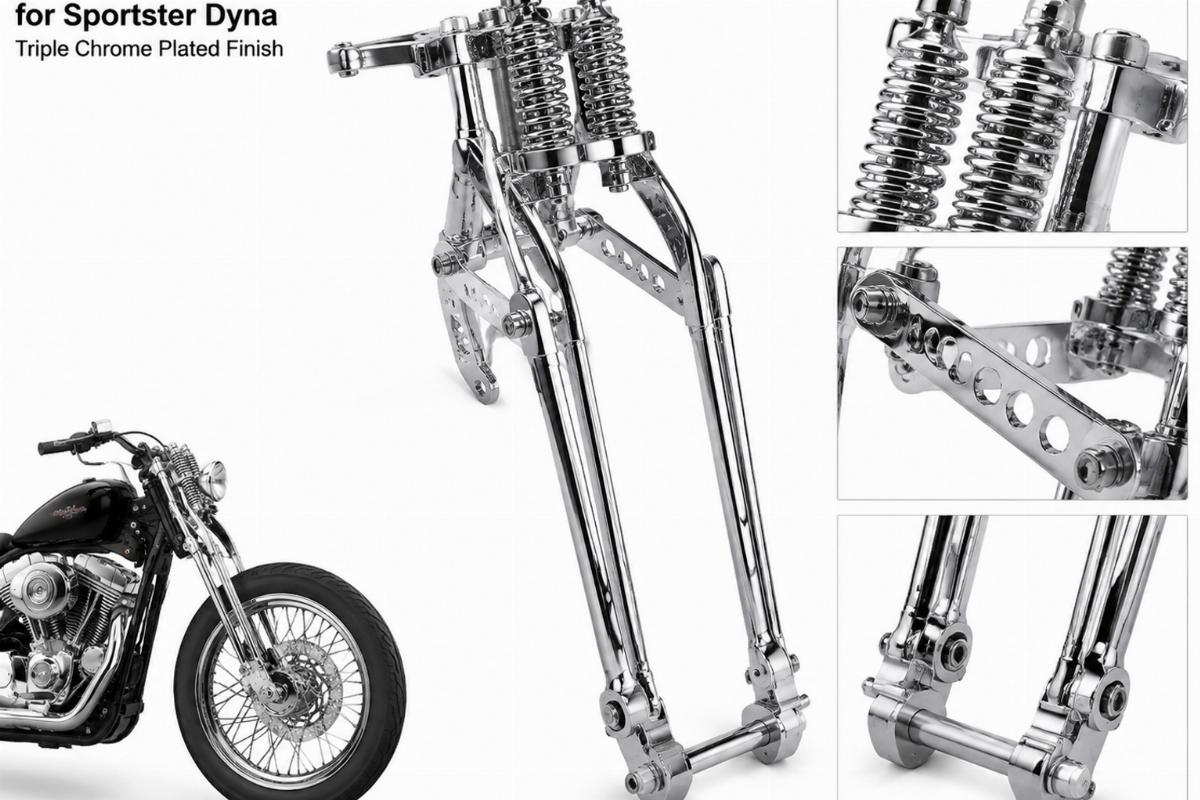

Wishbone Springer Front End for Sportster 2004-Up and Dyna 1991-2017 – Fitment Checked
One-piece minimum order — This wishbone springer front end for sportster dyna is available for single-unit purchase, allowing custom shops to test fitment on a specific frame before committing to larger batches.
Product Specification
Part Type | Wishbone Springer Front End
| Parameter | Value |
|---|---|
| Finish | Triple chrome plated or black powder coated |
| Length | 23 1/2″ (upper surface of lower tree to centerline of axle) |
| Front Leg Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Axle and Steering Stem Plating | Zinc-plated |
| Bearing Type | Precision-fit bronze rocker bushings |
| Construction | One piece forged rear legs, TIG-welded, tubular wishbone front leg design |

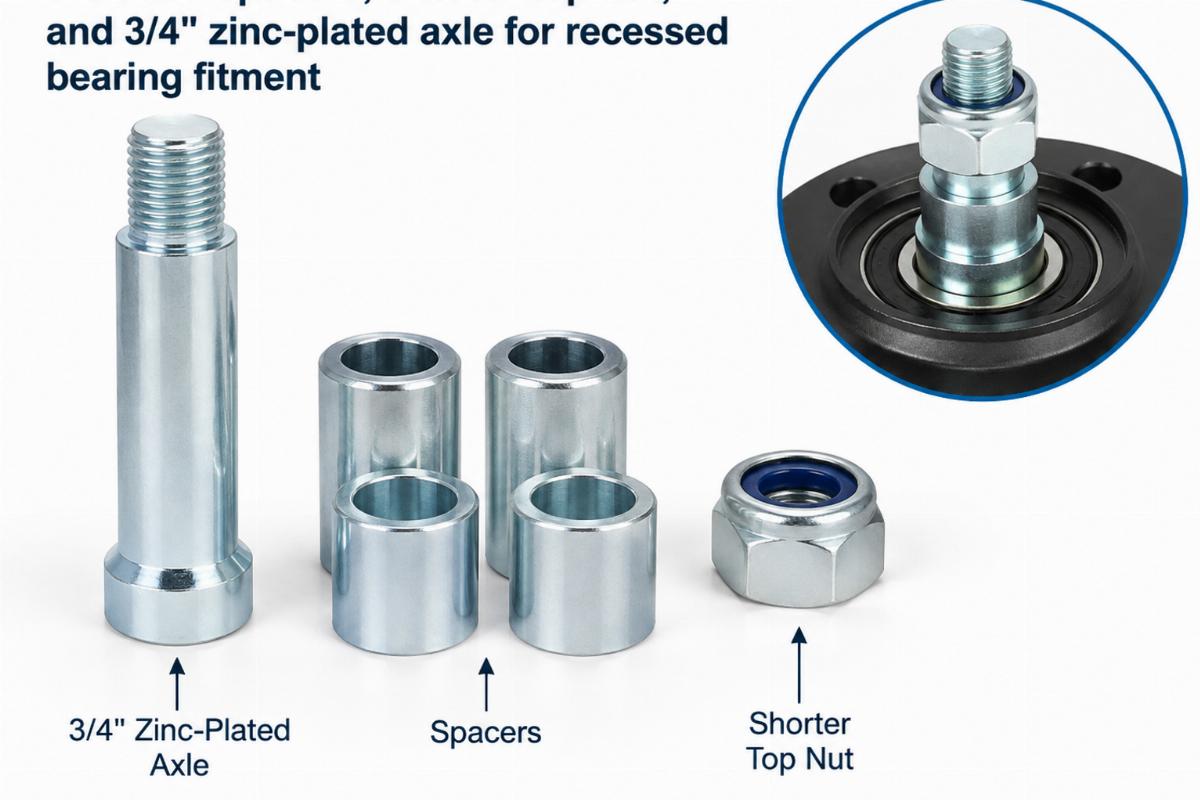

| Kit Contents | 3/4″ axle, spacers, nuts, spacer for recessed lower bearing, shorter top nut |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson Sportster (rubber-mount) | 2004-Up | Includes spacer for recessed lower bearing and shorter top nut |
| Harley-Davidson Dyna | 1991-2017 | Steering stops placed for stock steering tube |
| Front Wheel Application | 2000-2007 Sportster / 2000-2003 Dyna | Requires specific front wheel and included spacers |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Recessed Bearing Confusion on Rubber-Mount Frames
Standard springer kits often fail to account for the recessed lower bearing found on later rubber-mount frames.
When a builder orders a generic wishbone springer front end for sportster dyna applications without checking the steering tube depth, the steering stem bottoms out immediately. The front end will not turn properly, forcing a complete teardown to machine a custom spacer. This specific kit includes the necessary spacer and a shorter top nut to clear the recessed lower bearing, ensuring the steering geometry remains functional without modifying the frame neck. [NEED_CITE: steering stem depth variations across rubber-mount model years]
Verifying Steering Tube Depth Before Assembly
Before installing this wishbone springer front end for sportster dyna setups, you must measure the steering tube to confirm it accepts the recessed lower bearing design. Frames built for earlier solid-mount configurations will not need the included spacer, and using it will cause binding. Checking this dimension against the 23 1/2″ overall length ensures the predetermined rake and trail match the intended ride height. [NEED_CITE: frame neck dimension changes between solid-mount and rubber-mount eras]
Matching Wheel Spacing and Axle Hardware
This front end requires a front wheel sourced from a 2000-2007 Sportster or 2000-2003 Dyna to match the 3/4″ zinc-plated axle diameter. The kit provides the exact spacers and nuts needed to center the wheel within the 1″ front legs. Attempting to use a different wheel year or width will result in incorrect bearing spacing and unsafe axle clamping. [NEED_CITE: front wheel axle spacing changes across model years for this platform]
Interpreting the 23 1/2″ Overall Length
The 23 1/2″ measurement is taken vertically from the upper surface of the lower tree to the centerline of the axle. This stock length is designed to maintain the factory steering geometry for rubber-mount frames without altering the rake and trail. Deviating from this length with universal alternatives often changes the handling characteristics and lowers the front end excessively.
The Hidden Cost of Incorrect Steering Stem Spacers
Using a springer without the correct spacer for a recessed lower bearing forces the steering stem to bottom out in the neck. This prevents the handlebars from turning lock-to-lock and places extreme stress on the precision-fit bronze rocker bushings. Rebuilding the neck to fix this error requires new bearings, cups, and significant machine shop time, delaying the build and adding unexpected costs. [NEED_CITE: steering head binding issues caused by incorrect stem length]
Sourcing Fitment-Checked Front Ends Directly
We verify the platform and year range for every wishbone springer front end for sportster dyna inquiry before quoting. Our own production facility handles the TIG-welded tubular wishbone design and one piece forged rear legs, ensuring consistent triple chrome plated or black powder coated finishes. You can order a single piece to confirm the fitment on your specific frame before placing a bulk order for your shop.
Documentation Provided With Your Shipment
- Fitment sheet stating applicable platforms and year ranges for this specific springer
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including the 23 1/2″ fork length and 1″ front leg diameter
- Finish specification detailing the triple chrome or black powder coat options
- Quality inspection record and warranty terms for the forged construction
Receiving and Pre-Installation Checks
- Verify the kit includes the spacer for recessed lower bearing and shorter top nut
- Confirm the 3/4″ axle and spacers match your 2000-2007 Sportster or 2000-2003 Dyna wheel
- Measure the 23 1/2″ length from the lower tree to the axle centerline before mounting
- Inspect the triple chrome plated or black powder coated finish for any shipping damage
- Have a qualified technician verify the steering tube depth before final assembly
- Store the unit in a dry environment to protect the zinc-plated axle and steering stem
Requesting a Fitment Check for Your Build
Send your exact model and year to confirm this wishbone springer front end for sportster dyna matches your frame specifications. Provide a photograph or measurements of your current steering neck if the year is uncertain. Let us know if you require a single sample unit for trial fitment before committing to a larger production run.
Frequently Asked Questions
Q: How do I confirm my model year is compatible with this springer front end?
A: Check your frame against the rubber-mount Sportster 2004-Up or Dyna 1991-2017 ranges. These frames feature a recessed lower bearing that requires the included spacer and shorter top nut. If your bike falls outside these years, send us a photograph of your steering neck for verification.
Q: What front wheel is required to complete this front end assembly?
A: You must use a front wheel from a 2000-2007 Sportster or 2000-2003 Dyna. The kit includes a 3/4″ zinc-plated axle and specific spacers designed to center these exact wheels within the 1″ front legs.
Q: Can I order a single unit to test the fitment on my custom build?
A: Yes, we support a one-piece minimum order. You can purchase a single wishbone springer front end for sportster dyna applications to verify the 23 1/2″ length and steering tube clearance on your specific frame before ordering in bulk.
Q: How does the 23 1/2″ length affect the steering geometry?
A: This stock length is measured from the lower tree to the axle centerline to maintain the predetermined rake and trail for rubber-mount frames. It prevents the front end from sitting too low or altering the handling characteristics associated with longer universal springers.
