Vintage Springer Front End for Harley-Davidson 1984-1999 – Single Piece Order
Fitment Verified Front Ends — Every unit is checked against the 1-inch steering neck requirement and 1984-1999 Wide Glide wheel spacing before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Vintage Springer Front End |
| Steering Stem Diameter | 1″ |
| Front Leg Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Stock Length | 23″ (measured from upper surface of top of arch in lower tree to centerline of axle vertically) |
| Rear Legs | Heavy duty, tapered |
| Rocker Bushings | Bronze, greaseable |
| Construction | TIG-welded |

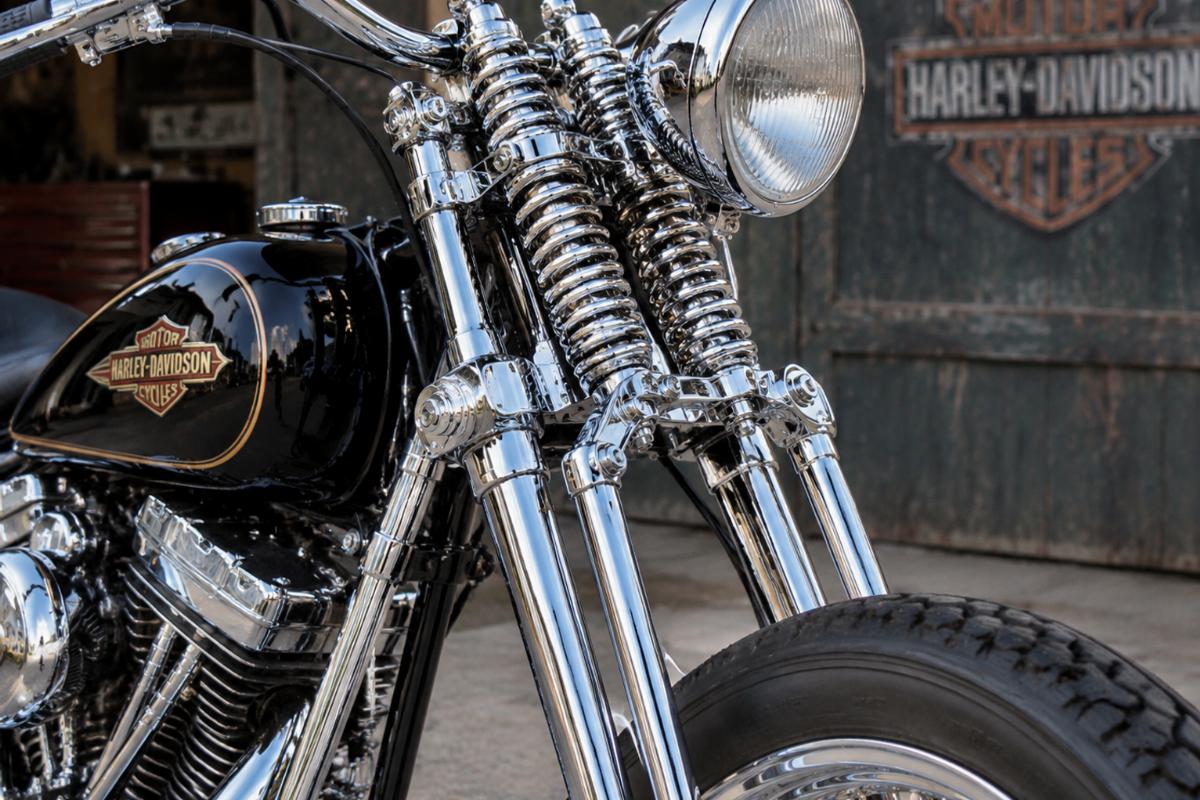

| Finish Options | Triple chrome plated / black powder coated |
| Plating | Zinc-plated axle and steering stem |
| Steering Stops | Threaded |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson Big Twin | 1984-1999 | Fits frames with 1″ neck; set up to accommodate 1984-1999 Wide Glide wheels |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Neck Diameter and Wheel Spacing Dictate Your Build
A vintage springer front end for harley-davidson frames will not drop in if the steering neck or axle spacing is guessed.
Builders often order based on visual appeal alone, only to find the steering stem is too thick for the frame cup or the sliders do not align with the wheel spacers. When the 1-inch neck requirement is overlooked, the entire front assembly sits misaligned, forcing the bike off the lift and back into the sourcing phase [NEED_CITE: frame steering neck diameter variations across Big Twin models]. Confirming the 23-inch stock length against your desired ride height prevents geometry mismatches before the wheel is even mounted.
Confirming the 1-Inch Steering Neck Fitment
Before ordering a vintage springer front end for harley-davidson applications, the frame steering neck must be measured to exactly 1 inch. Frames from the 1984-1999 Big Twin range vary in neck dimensions depending on prior modifications or factory transitions. If the neck is oversized, the steering stem will rattle; if undersized, it will not seat. Always verify the neck diameter and triple tree spacing against the 1-inch stem specification to ensure the front end drops in straight and true.
Matching Wide Glide Wheel and Axle Spacing
This vintage springer front end for harley-davidson setups is configured to accommodate 1984-1999 Wide Glide wheels. The 3/4-inch axle diameter and specific slider spacing must align perfectly with your wheel spacers and brake rotors. Using a wheel from a different width family or model year will cause the axle to bind or the rotor to misalign with the caliper mount. Check your wheel spacer stack and axle length requirements against the 3/4-inch hardware provided with this assembly [NEED_CITE: axle and spacer dimensional changes across Wide Glide model years].
Decoding the 23-Inch Stock Length Measurement
The 23-inch stock length is measured vertically from the upper surface of the top of the arch in the lower tree to the centerline of the axle. This specific dimension determines your final ride height and affects the steering geometry of the chassis. Choosing a length without measuring your frame’s rake and desired stance can result in a front end that sits too high or too low, altering the handling characteristics. Always compare this 23-inch measurement against your build requirements before finalizing the order.
The Hidden Cost of Unchecked Front End Dimensions
Ordering a front end without verifying the 1-inch neck or 23-inch length means the bike sits on the shop floor waiting for returns. When a steering stem diameter is wrong, the frame cups must be machined or the stem replaced, delaying the build by weeks. Incorrect axle spacing for the Wide Glide wheel setup forces custom spacers or new wheels, adding unexpected costs. These dimensional errors compound when the finish batches do not match, leaving mismatched chrome or black powder coat visible once the parts are fitted side by side [NEED_CITE: dimensional discrepancies in aftermarket front end listings].
Sourcing Front Ends with Fitment Certainty
We verify the 1-inch neck diameter and 23-inch length against the 1984-1999 platform before every quotation. Our own production facility handles the TIG-welded construction and finish application, ensuring the triple chrome or black powder coat is consistent across batches. You can order a single vintage springer front end for harley-davidson projects without meeting high minimums. We cross-reference your requirements against platform families to confirm the Wide Glide wheel spacing matches your build. Sample units are available for fitment confirmation before you commit to bulk orders for your shop.
Documentation and Fitment Records
- Fitment sheet listing the 1984-1999 Big Twin platform and 1-inch neck requirement
- Cross-reference sheet identifying compatible Wide Glide wheel setups
- Finish specification detailing the triple chrome or black powder coat process
- Quality inspection record verifying the 23-inch stock length and 3/4-inch axle
- Warranty terms covering the TIG-welded construction and bronze bushings
- Packing photographs showing the zinc-plated hardware and threaded steering stops
Receiving and Verifying Your Front End
- Measure the steering stem diameter with calipers to confirm the 1-inch specification
- Check the 23-inch stock length from the lower tree arch to the axle centerline
- Verify the 3/4-inch axle and spacers align with your 1984-1999 Wide Glide wheel
- Inspect the triple chrome or black powder coat finish for consistency across all legs

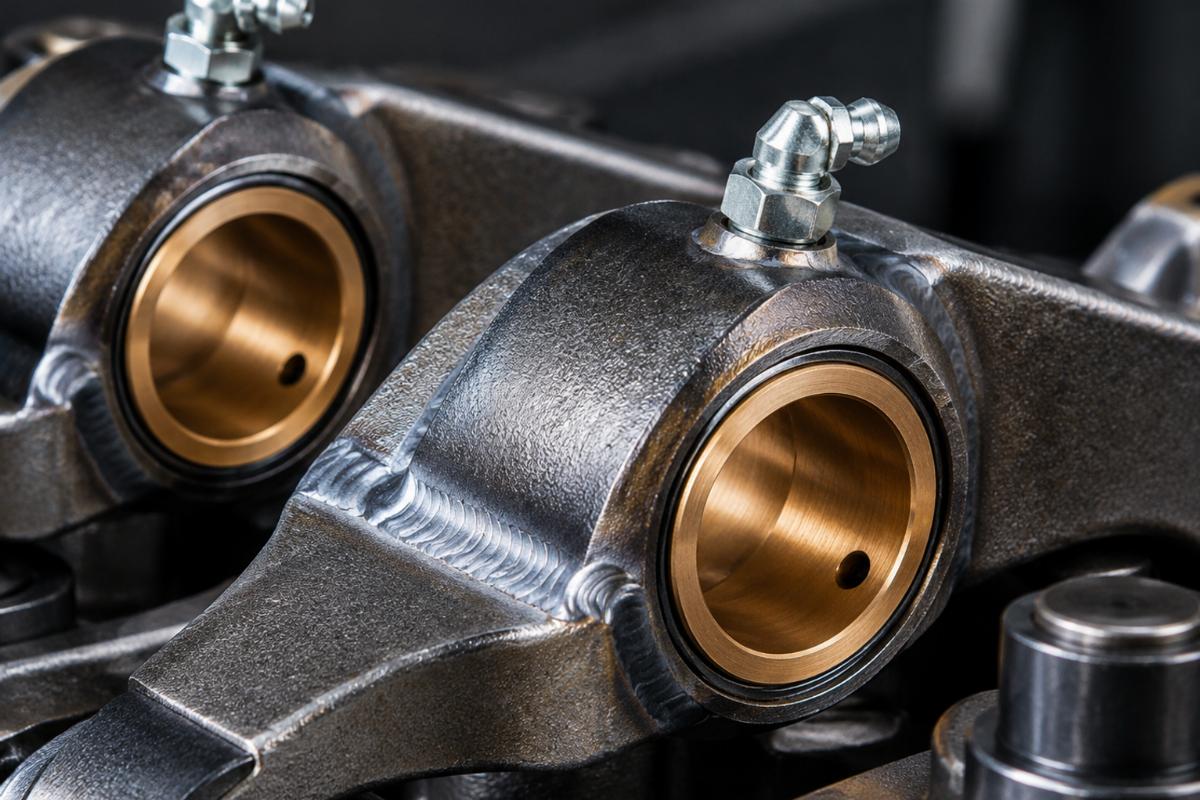

- Ensure the greaseable bronze rocker bushings move freely before assembly
- Store the unit in a dry environment to protect the zinc-plated hardware
Requesting a Fitment Check
Send your frame model and year range to confirm the 1-inch steering neck compatibility. Provide your wheel setup details to verify the Wide Glide axle spacing matches your build. Specify whether you need the triple chrome or black powder coat finish and if a sample unit is required for trial fitting.
Frequently Asked Questions
Q: How do I verify if my frame has a 1-inch steering neck?
A: Measure the inner diameter of the frame steering neck cups using digital calipers. The measurement must be exactly 1 inch for this vintage springer front end for harley-davidson frames to seat properly. If your frame has been modified or uses aftermarket trees, verify the stem diameter matches the 1-inch specification before ordering to prevent fitment issues.
Q: What wheel setups are compatible with this front end?
A: This unit is set up to accommodate 1984-1999 Wide Glide wheels with a 3/4-inch axle. You must ensure your wheel spacer stack and brake rotor alignment match this specific axle diameter and slider spacing. Using wheels from other width families or model years will require custom spacers or axle modifications to fit correctly.
Q: How is the 23-inch stock length measured?
A: The 23-inch stock length is measured vertically from the upper surface of the top of the arch in the lower tree down to the centerline of the axle. This vertical measurement determines your final ride height. Compare this dimension against your frame geometry and desired stance to ensure the front end proportions match your custom build requirements.
Q: Can I order a single unit for a custom build?
A: Yes, we support single piece orders for custom builders and repair shops working on one-off projects. There are no minimum order quantities blocking a single vintage springer front end for harley-davidson applications. You can also request a sample unit for fitment confirmation against your frame and wheel setup before committing to larger quantities for your inventory.
Q: What is the difference between the finish options?
A: This front end is offered in triple chrome plated or black powder coated finishes. Both options are applied in our facility to ensure consistency across the front legs, rockers, and hardware. The choice depends on your visual build requirements, but both finishes are designed to provide uniform coverage and protection for the TIG-welded steel construction.
